ABS Ring Installation Tool for Mercedes-Benz, as W211589006100

Price: €77.50 151.58лв.

Code:

120726
Weight:

1.019 Kgs

Overview:
✔ Professional ABS ring installation tool
✔ Enables damage-free installation of ABS sensor rings and impulse rings
✔ Suitable for installation using the axle nut or a hammer
✔ Prevents deformation and coating damage during installation
✔ Compatible with numerous Mercedes-Benz and Chrysler vehicles
✔ Reference tool as W211589006100

ABS Ring Installation Tool for Mercedes-Benz, as W211589006100

Send to friend

Rate this product

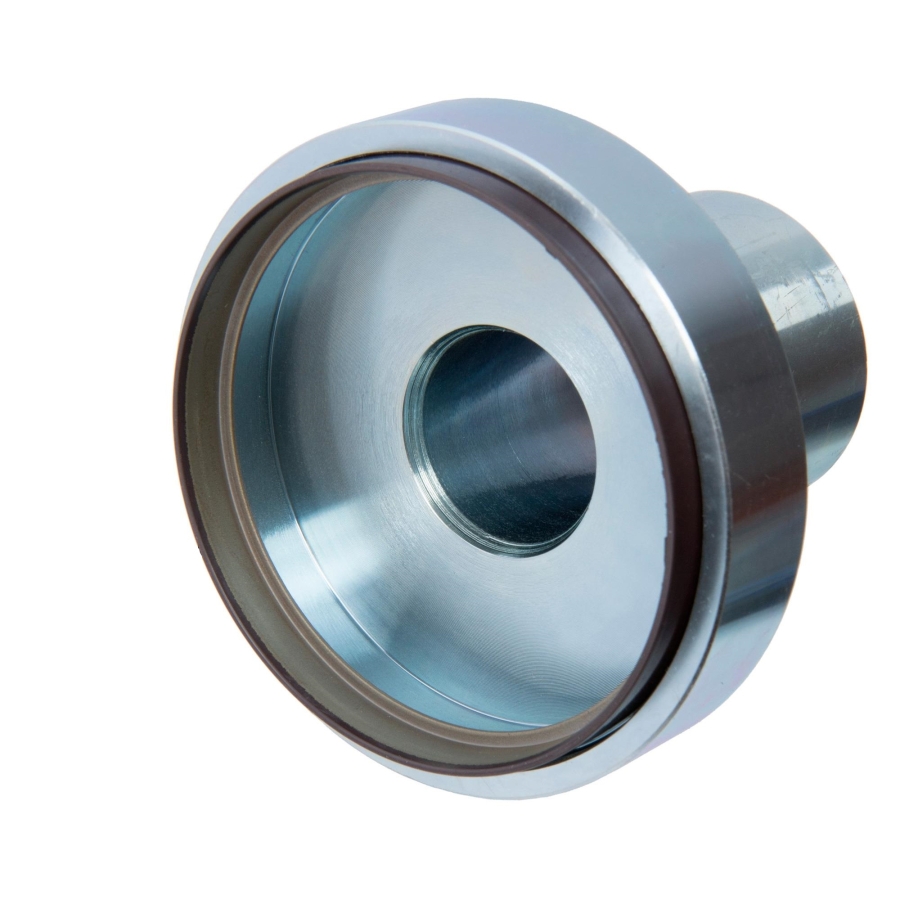

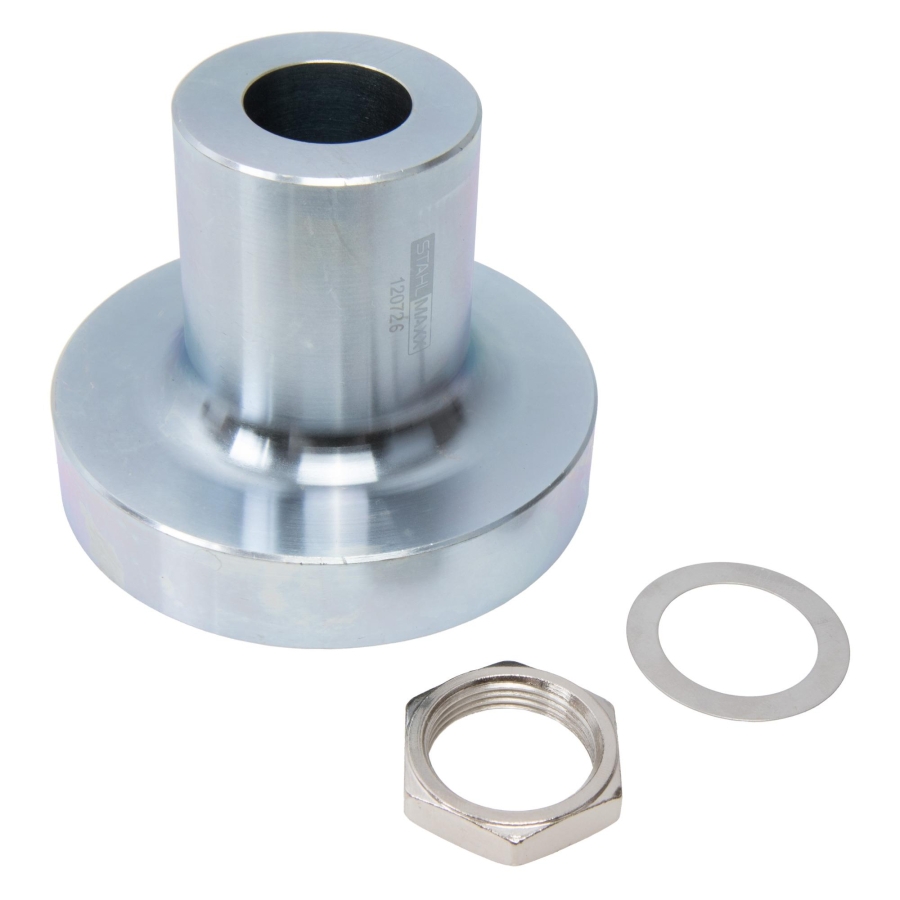

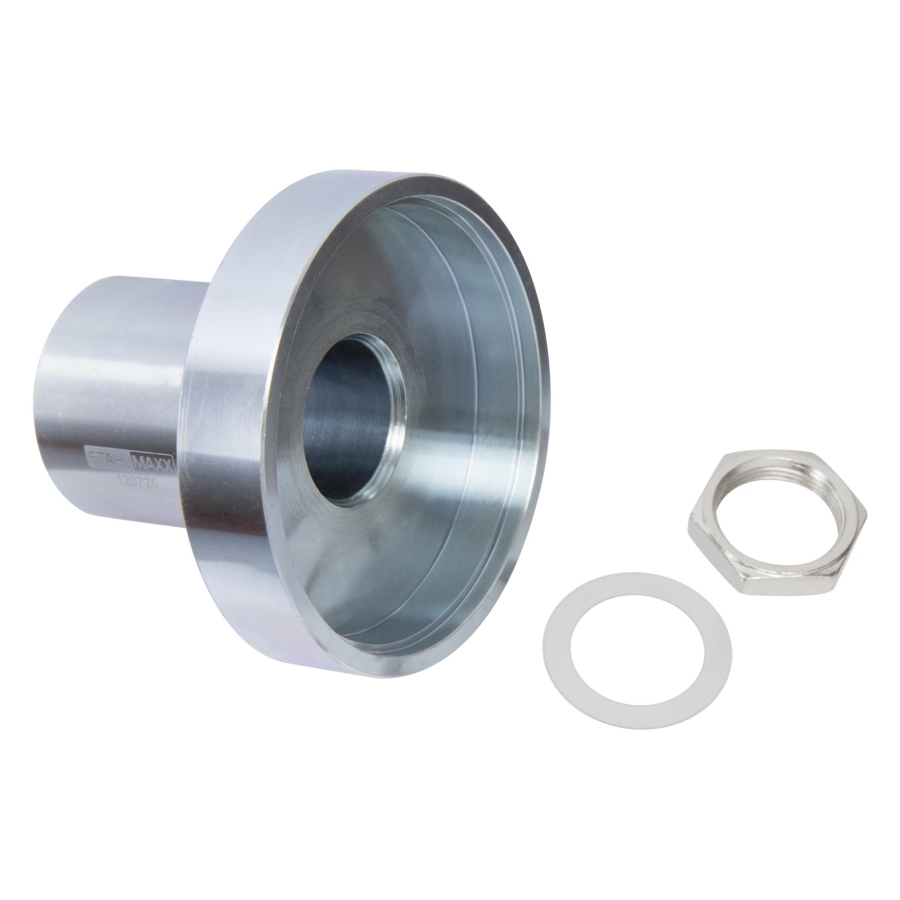

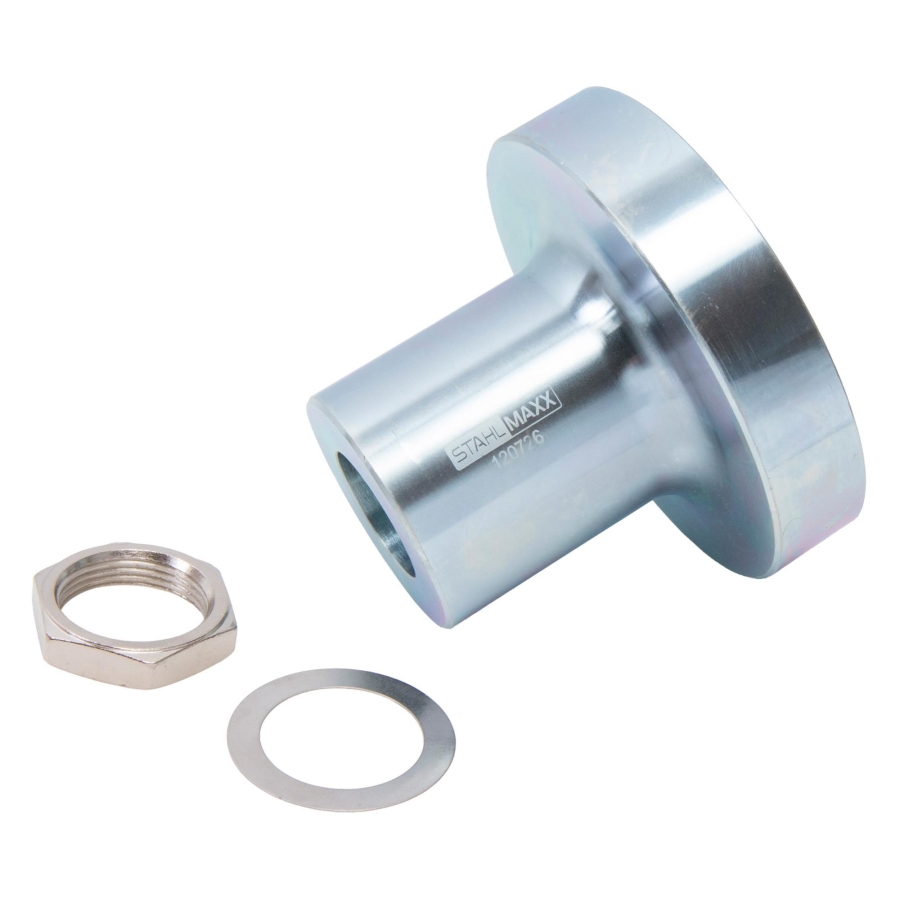

This ABS Ring Installation Tool is designed for the professional and damage-free installation of ABS sensor rings with integrated impulse rings on Mercedes-Benz and Chrysler vehicles. The tool enables precise fitting of the ABS ring onto the driveshaft outer joint without deforming or damaging the ring during installation.

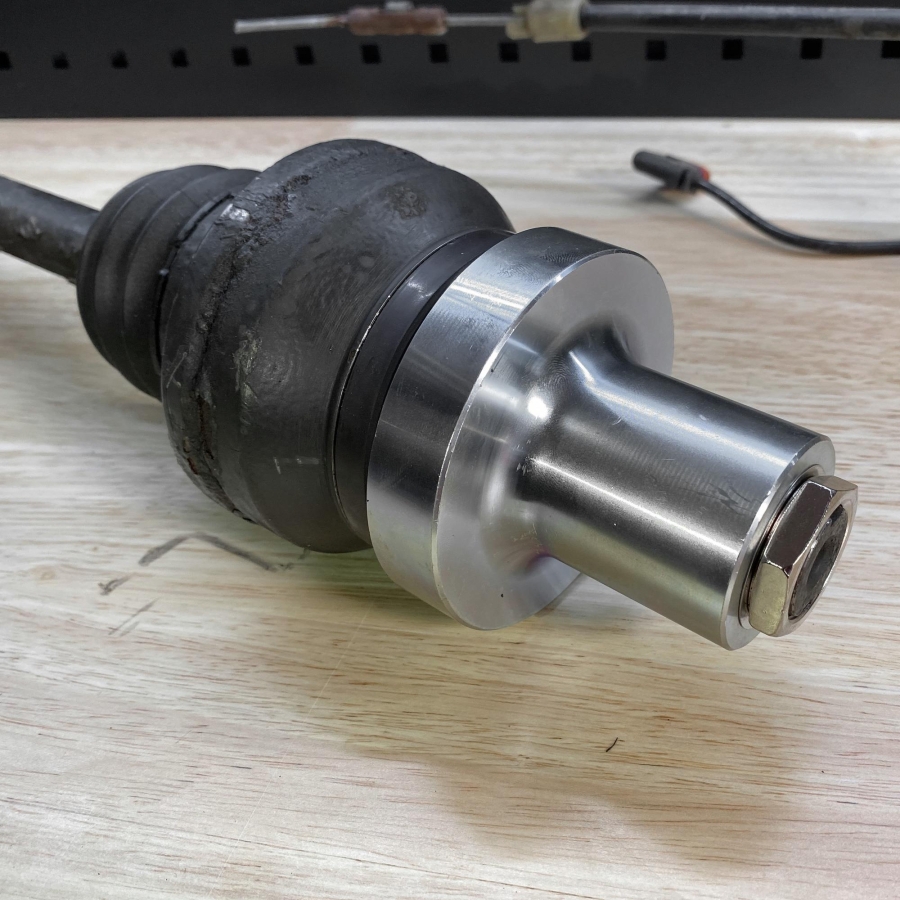

Depending on the vehicle design, the ABS ring can either be pressed onto the driveshaft using the axle nut or carefully installed with a hammer while maintaining the ring's original shape and integrity.

Applications & Benefits

Modern ABS sensor rings are often manufactured as coated metal rings. During installation with conventional tools, the protective coating can easily become damaged, potentially leading to ABS sensor malfunction or failure.

This installation tool distributes force evenly across the ring surface, helping to prevent:

Ring deformation
Damage to the protective coating
Incorrect sensor signal generation
Premature ABS system faults

For certain vehicle models, such as Mercedes-Benz W204 4MATIC, where the driveshaft stub is too short for installation using the axle nut method, the tool still allows safe installation using a hammer.

Instructions for Use

Before installation, ensure that the outer CV joint seating surface is thoroughly cleaned and free from rust or corrosion.

The tool can be used:

With the axle nut to press the ABS ring into position
With a hammer for controlled installation when required by vehicle design

Compatibility

Compatible ABS Sensor Ring / Driveshaft Reference Numbers

A2113500056
A2113500456
A2113503856
A2113507410
A2113507610
A2303506210
A2303570382
A2303570182

Compatible Vehicles

Chrysler

300C

Mercedes-Benz

C-Class: W202, W203, W204, W205
CL / CLK / CLS: C208, C209, C215, C216, C218, C219
E-Class: C207, W210, W211, W212, W213
GLC / GLK: X204, X253
S-Class: W140, C217, W220, W221, W222
SL / SLK: R129, R170, R171, R172, R230, R231
Also suitable for various A-Class, C-Class, S-Class, V-Class and additional Mercedes-Benz model variants
