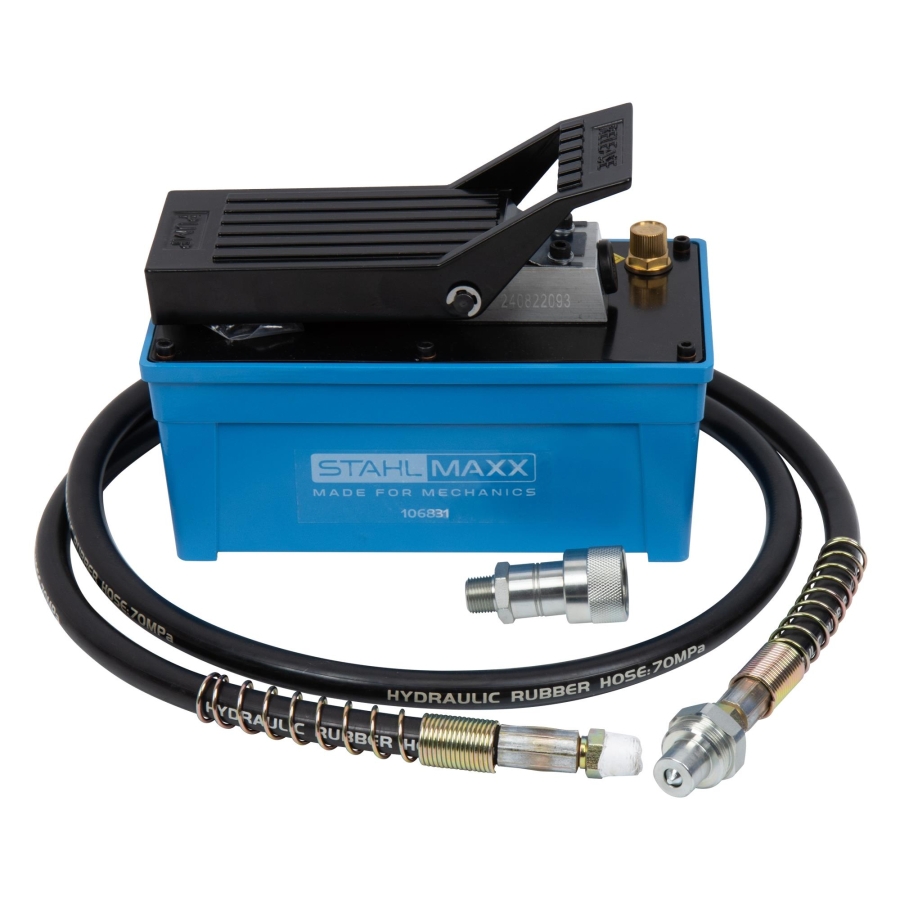

Air Hydraulic Pump with Foot Pedal, Quick Coupling and 2.2 m Hose, 689 Bar (10,000 PSI)

This powerful and robust pneumatic hydraulic pump is designed for demanding workshop applications and provides hydraulic pressure up to 689 bar (10,000 PSI). The system includes an integrated foot control, quick-connect couplings and a 2.2 m hydraulic hose for increased flexibility during operation.

The pump simplifies removal of seized, corroded or tightly fitted components and significantly reduces the effort required during repair work.

Suitable applications include:

• Wheel bearing replacement
• Suspension repairs
• Engine repairs
• Body and panel repair work
• Alignment and straightening operations

Foot Pedal Operation for Hands-Free Work

The integrated foot pedal design allows the technician to keep both hands free during repairs and assembly work.

Benefits include:

• Improved working comfort
• Better control during repairs
• Increased precision during component positioning
• Reduced operator fatigue

The specially designed rocker mechanism enables controlled and precise pressure increase and release according to application requirements.

Extended Reach with 2.2 m Hydraulic Hose

The included extra-long hydraulic hose improves accessibility, especially when working on vehicles raised on lifts.

Advantages:

• Greater working range
• Improved accessibility
• Better flexibility in workshop environments

The pump provides stable positioning on workshop floors, allowing the technician to focus entirely on the repair process.

Universal Hydraulic Compatibility

The package includes an additional coupling adapter, allowing compatibility with hydraulic cylinders from multiple manufacturers.

The system is delivered pre-filled and ready for immediate use.

Suitable for use with components such as:

• Wheel bearings
• Rubber and metal bushings
• Ball joints
• Wheel hubs
• Drive shafts
• Various press-fit components

Technical Specifications

• Air supply pressure: 6.2–9.6 bar
• Air connection: 1/4" × 18 NPT
• Hydraulic oil connection: 3/8" × 18 NPT
• Hydraulic coupling for hollow cylinders included
• Adapter thread: male 1/4" to female 3/8" NPT
• Hydraulic hose length: 2.2 m
• Maximum output pressure: 689 bar (10,000 PSI)
• Oil reservoir capacity: 2.2 L
• Usable oil volume: 1.6 L
• Weight: 8.5 kg
• Dimensions: 261 × 185 × 135 mm (L × H × W)

Package Contents

1 × Air hydraulic pump

• Foot pedal operated
• Pre-filled
• Maximum pressure: 689 bar

1 × Hydraulic hose

• Length: 2.2 m
• Quick coupling included

1 × Hydraulic coupling adapter

• Male 1/4" to female 3/8" NPT
