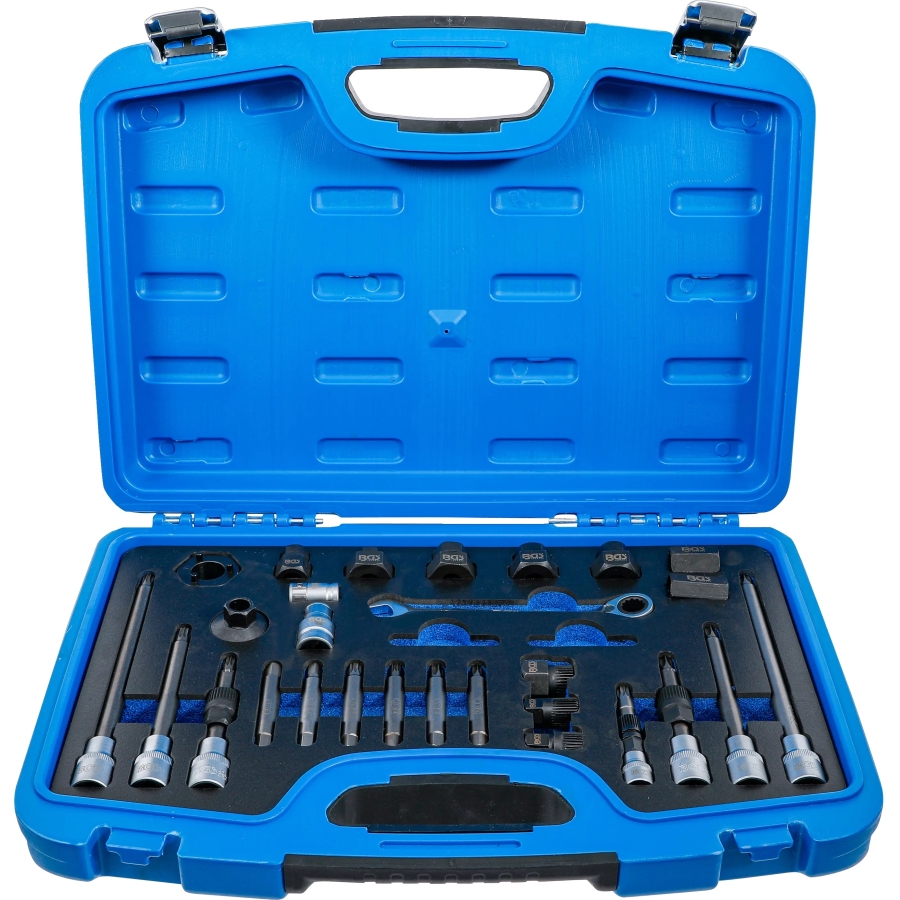

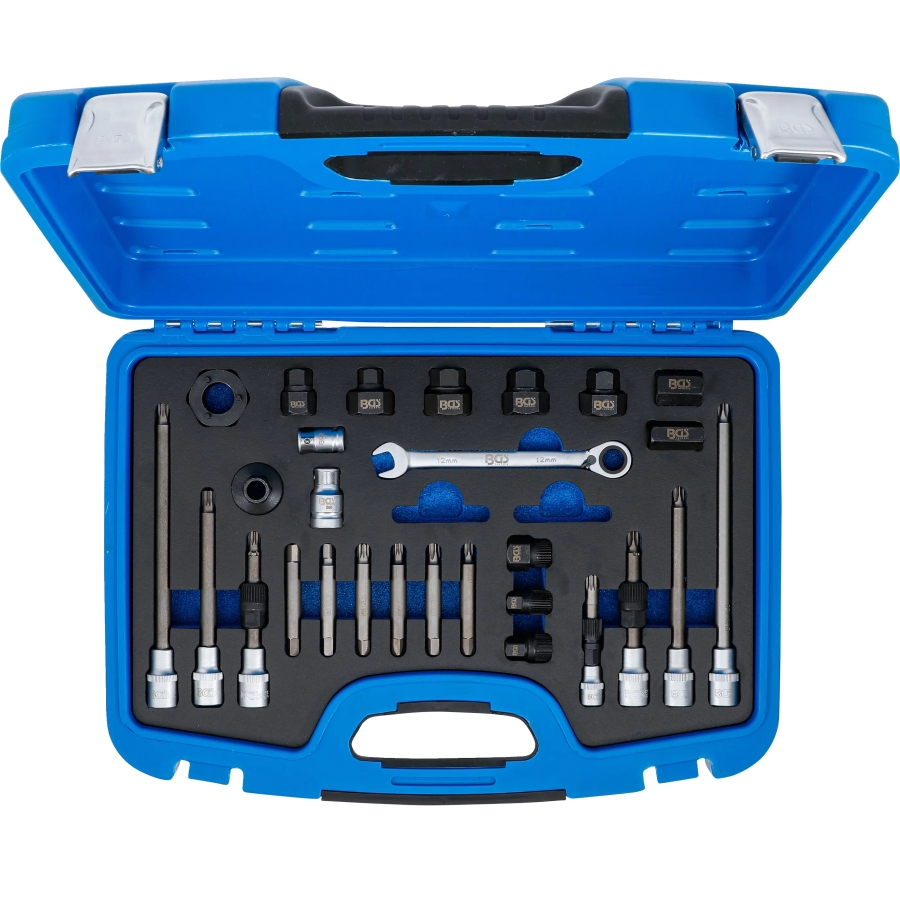

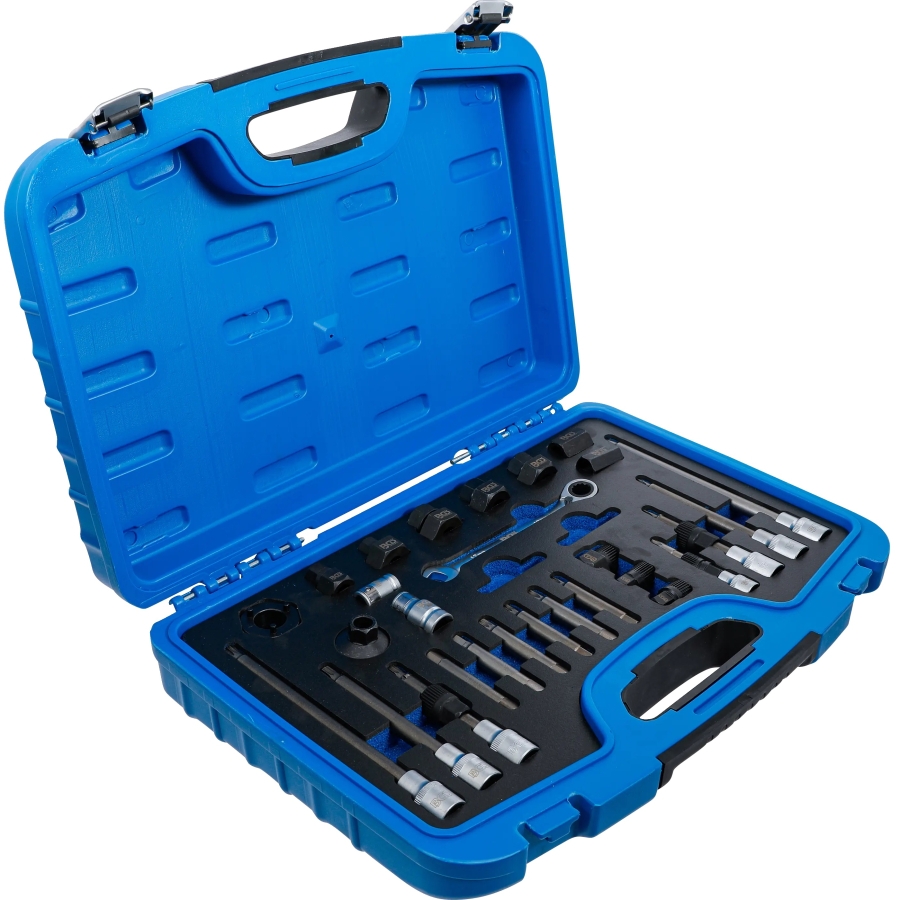

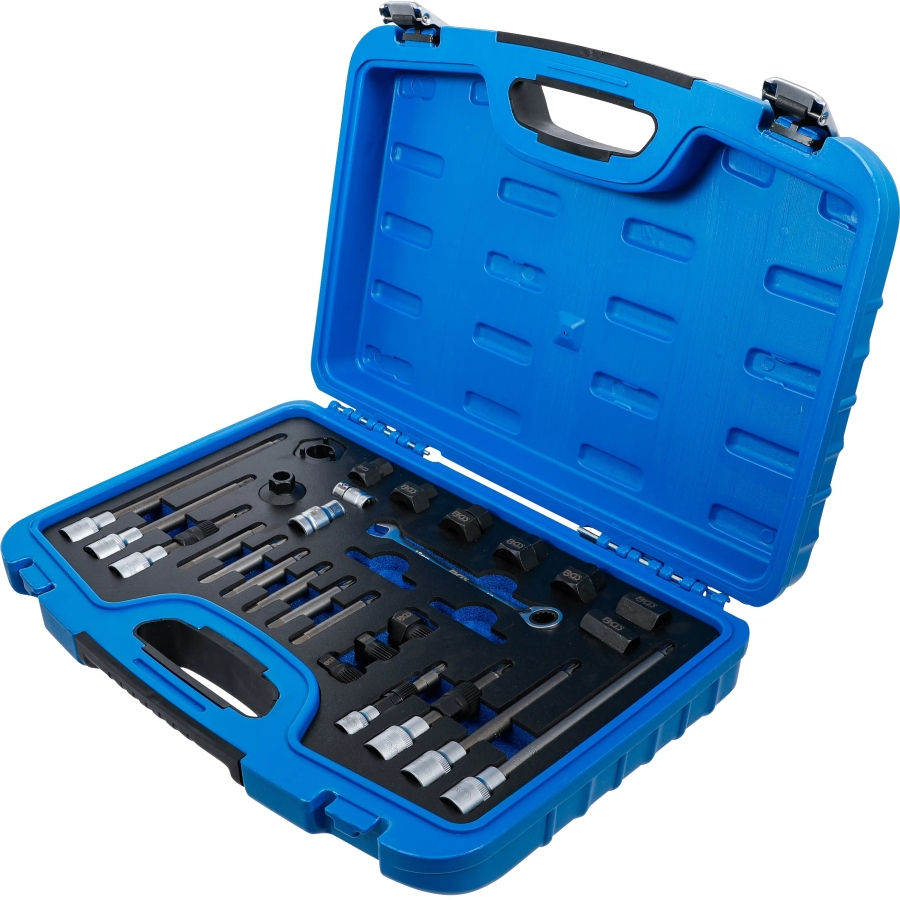

Alternator Pulley Removal Tool Set, 30-Piece

This 30-piece tool set is designed for removing alternator pulleys and freewheel pulleys with a wide range of fastening profiles.

The hollow sockets allow the appropriate counterholding bit to pass through the centre, enabling the alternator shaft to be held while the pulley fastener is loosened.

Different bit lengths and drive sizes provide access to both recessed and confined alternator installations.

Set Components

Pin-type sockets

• 3-pin socket for 3-hole fasteners
  • Bolt circle: 28 mm
  • Pins: 3 × Ø4 mm
  • Wrench size: 38 mm
• 4-pin socket for 4-hole fasteners
  • Bolt circle: 26 mm
  • Pins: 4 × Ø4 mm
  • Wrench size: 15 mm

Hollow hexagonal sockets for counterholding bits

• 15 × 28 mm
• 19 × 28 mm
• 20 × 28 mm
• 22 × 28 mm – 2 pieces
• 22 × 22 mm
• 17 × 17 mm

Hollow 33-tooth sockets for counterholding bits

• 33-tooth × 15 mm
• 33-tooth × 17 mm
• 33-tooth × 22 mm

T50 bit sockets with 1/2" drive

• T50 × 200 mm
• T50 × 145 mm

M10 XZN bit sockets with 1/2" drive

• M10 XZN × 200 mm
• M10 XZN × 145 mm

Bits with 10 mm hex drive, length 75 mm

• T40 for Torx
• T50 for Torx
• M8 XZN
• M10 XZN
• 8 mm internal hex
• 10 mm internal hex

Bits for use with the ratcheting ring spanner

• T50 × 65 mm
• M10 XZN × 65 mm

Bit sockets with 1/2" drive and 33-tooth sleeves

• T50 × 115 mm
• M10 XZN × 115 mm
• 2 × 33-tooth sleeves

Bit socket with 3/8" drive

• M10 XZN × 90 mm

Wrench

• 12 mm ratcheting ring spanner

Technical Specifications

• Number of pieces: 30
• Main drive sizes: 1/2", 3/8" and 10 mm hex
• Working profiles: T40, T50, M8 XZN, M10 XZN, 8 mm internal hex and 10 mm internal hex
• Adapter profiles: 3-pin, 4-pin, hexagonal and 33-tooth
• Application: removal and installation of alternator pulleys and freewheel pulleys

Scope of Delivery

• 30-piece alternator pulley removal tool set with sockets, bits, adapters and ratcheting ring spanner
