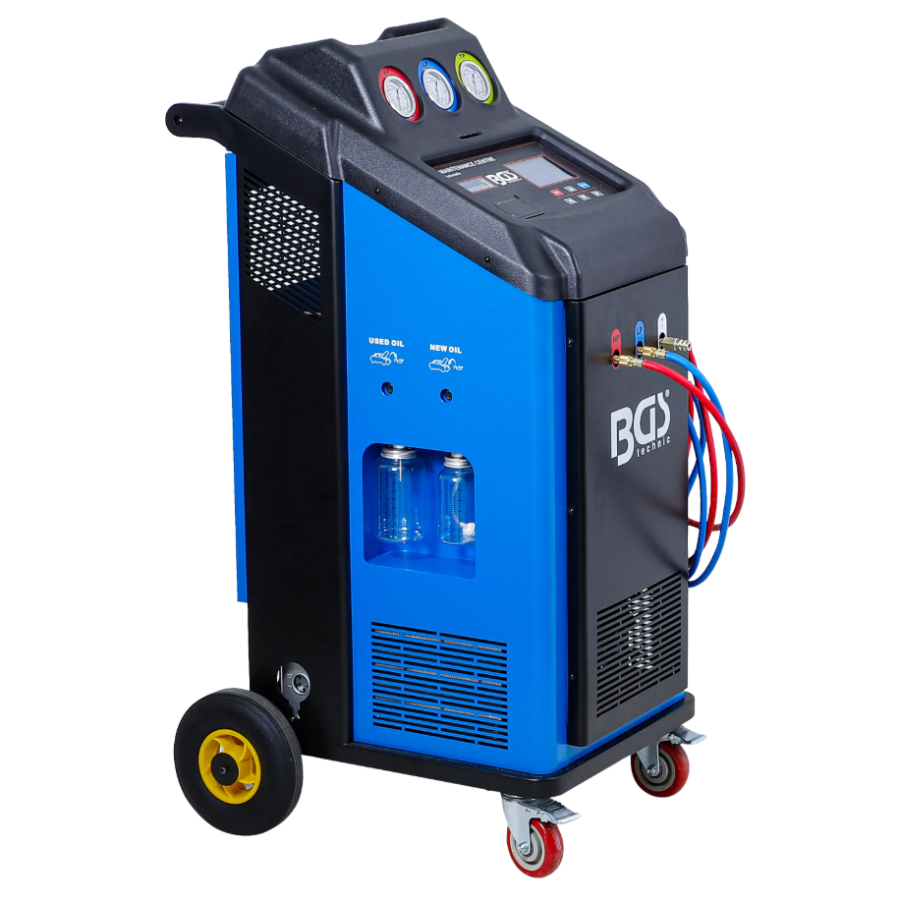

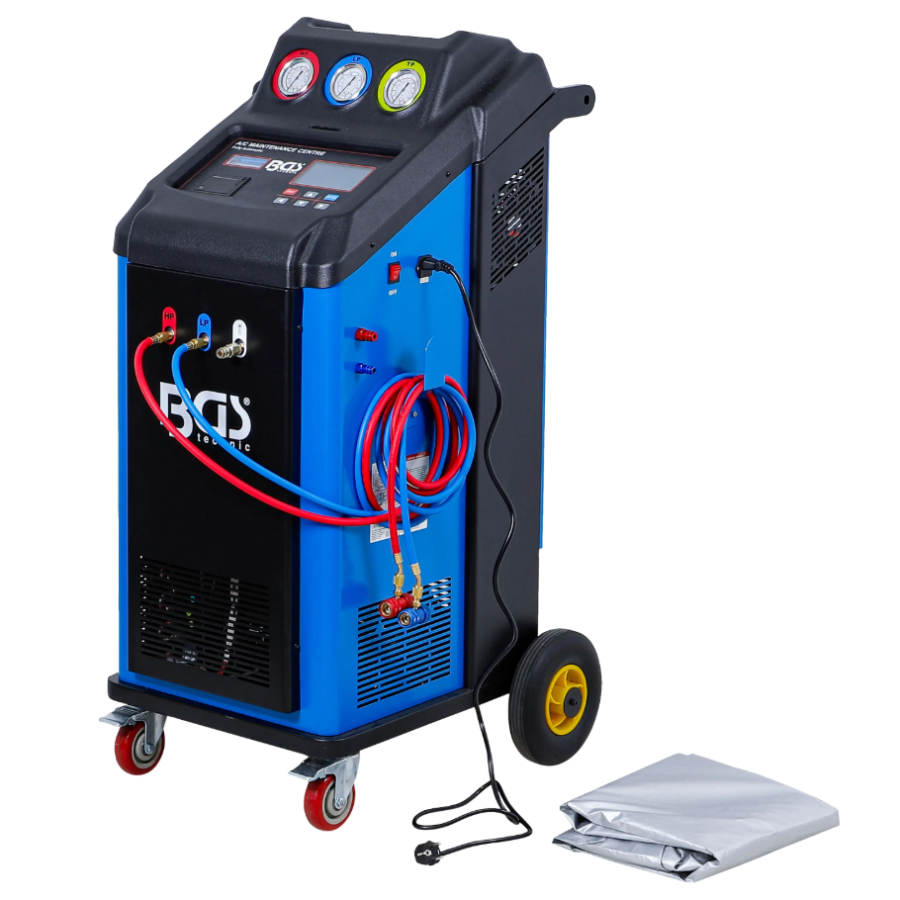

Fully Automatic Air Conditioning Service and Maintenance Machine for R134a & R1234yf
-
Code:7092
-
Weight:102.500 Kgs
Overview:
✔ Professional fully automatic air conditioning service machine for R134a and R1234yf systems
✔ Performs refrigerant recovery, recycling, flushing, vacuuming and recharging functions
✔ Powerful vacuum pump with automated workflow operation
✔ Integrated printer and large backlit LCD display
✔ Extensive vehicle database with update capability
✔ Suitable for most passenger and commercial vehicles
✔ High refrigerant recovery efficiency for gas and liquid phases
✔ Heavy-duty mobile design with lockable ball-bearing wheels
This fully automatic air conditioning service and maintenance machine is designed for professional servicing, repair and maintenance of vehicle air conditioning systems using R134a and R1234yf refrigerants.
The unit automates the complete service process, reducing labor time and operating costs while increasing workshop efficiency and accuracy.
Suitable for:
- Passenger vehicles
- Commercial vehicles
- Most refrigerant-based automotive AC systems
Fully Automated Service Operation
The machine uses an automatic operating sequence designed to simplify servicing procedures and reduce manual intervention.
Functions include:
- Automatic flushing
- Automatic refrigerant recovery and recycling
- Automatic and manual used oil discharge
- Vacuum control
- Automatic and manual new oil injection
- Quantitative refrigerant charging
- Quantitative charging through external refill tank (optional)
- Automatic operating mode
- Vehicle database integration
- Print function
Integrated Internal Flushing System
The integrated AC flushing circuit effectively removes oil residues, contamination and deposits within the air conditioning system to help restore operating performance.
Flushing functions:
- Forward flushing
- Reverse flushing
- Pulse flushing
The combination of flushing modes significantly improves cleaning efficiency.
The large observation tube with LED backlighting allows continuous monitoring of the cleaning process.
Advanced Refrigerant Recovery System
The unique refrigerant line design enables a high recovery rate regardless of whether refrigerant is in liquid or gas form.
Additional features:
- Non-condensable gas discharge
- Service and maintenance procedures
- Device information access
- Integrated help function
Vehicle Database and User Interface
The machine features a large LCD display and an intuitive interface for simplified operation.
Features:
- Large illuminated LCD display
- LED power switch
- Integrated printer
- Vehicle database
- Updateable software and database
- User-friendly operating interface

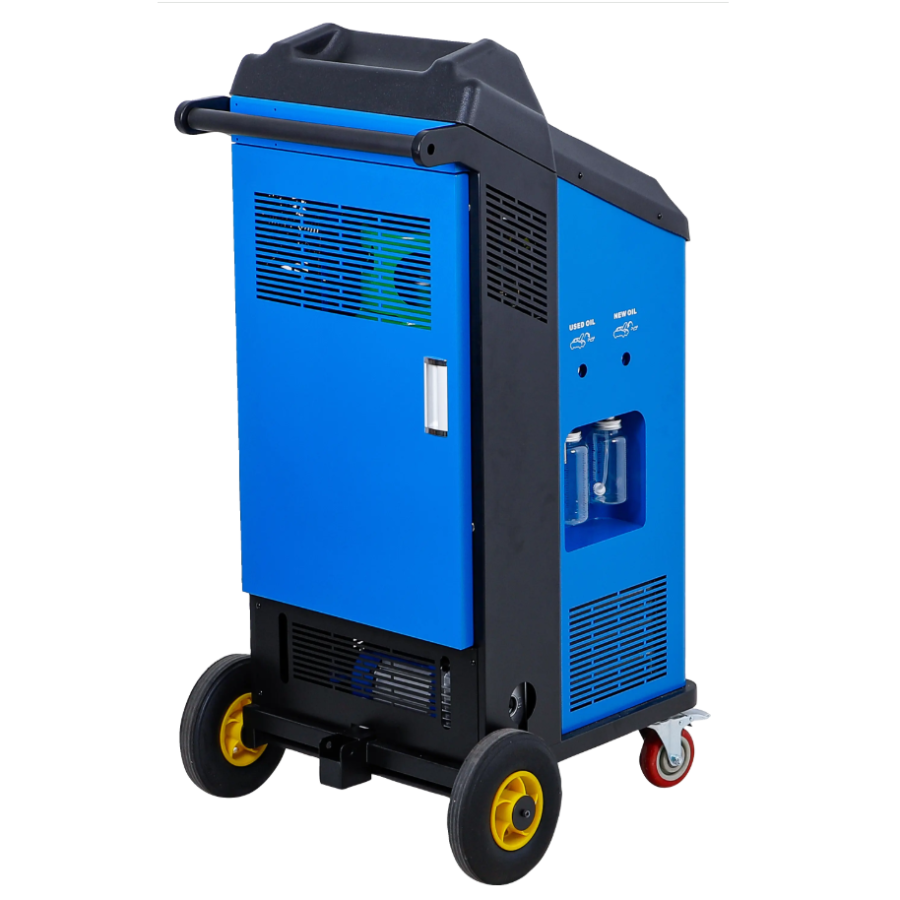

Mobile Workshop Design
The service station is designed for mobility within workshop environments.
Features:
- Heavy-duty ball-bearing wheels
- Two lockable swivel wheels
- Easy movement and positioning
Technical Specifications
Environmental conditions:
- Ambient temperature: 0–50°C
- Relative humidity: <85%
Electrical specifications:
- Input voltage: AC 200–240V ~50/60Hz
Compressor:
- 12.12 ccm
Vacuum pump:
- Capacity: 100 l/min
- Vacuum level: 2 Pa
Tank weighing cell:
- Accuracy: ±10 g
Additional weighing cell:
- Accuracy: ±10 g (optional)
Oil bottle weighing cell:
- Accuracy: ±5 g

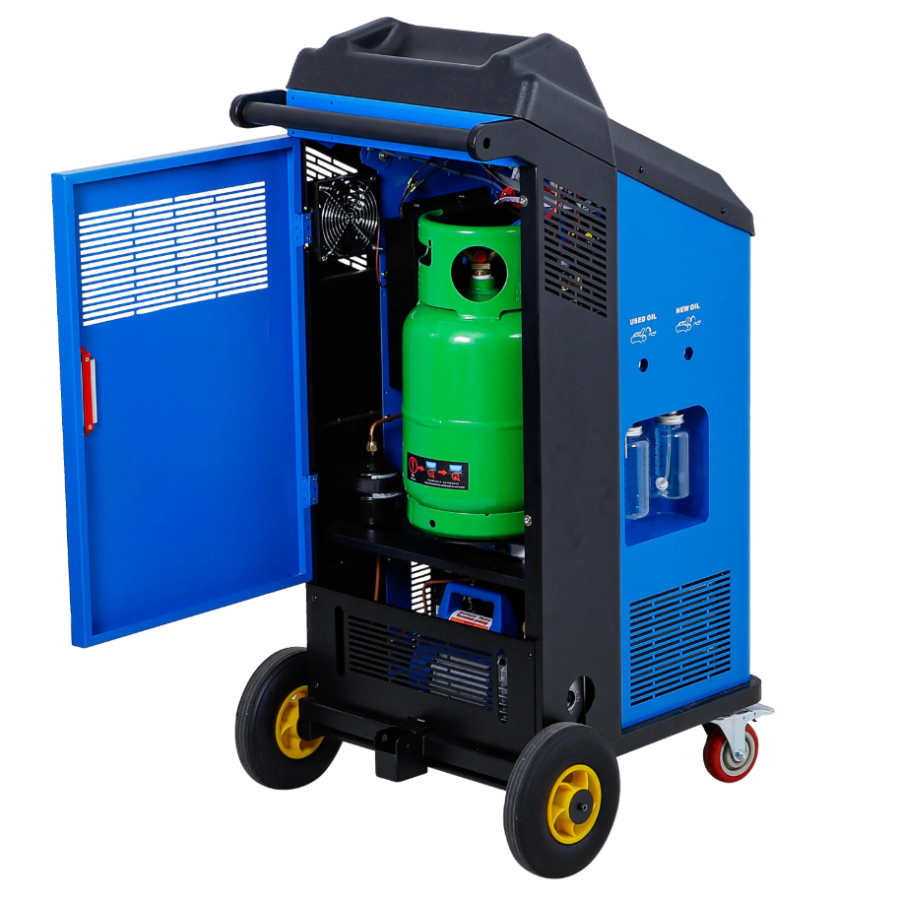

Tank capacity:
- 12 L
Fresh oil bottle:
- 280 ml
Used oil bottle:
- 500 ml
Display:
- LCD: 240 × 128 px
- LED backlight

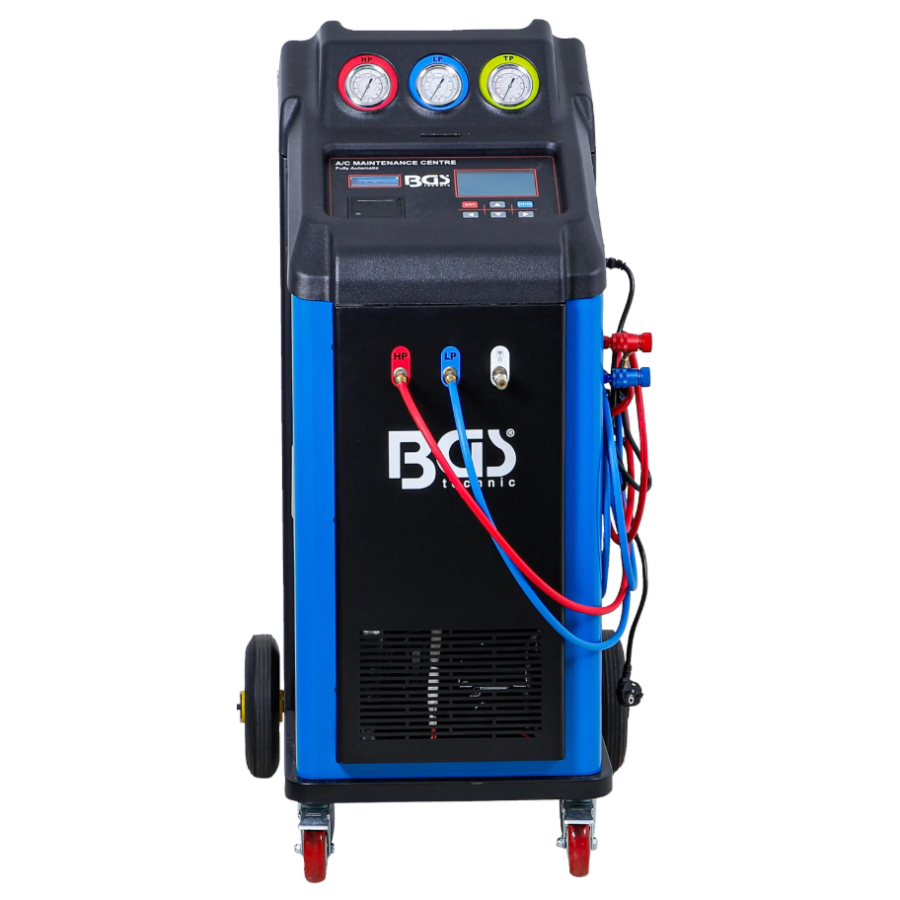

Pressure values:
- Operating pressure: max. 20 bar
- High-pressure and output pressure gauge: -1 to 35 bar
- Low-pressure gauge: -1 to 20 bar
