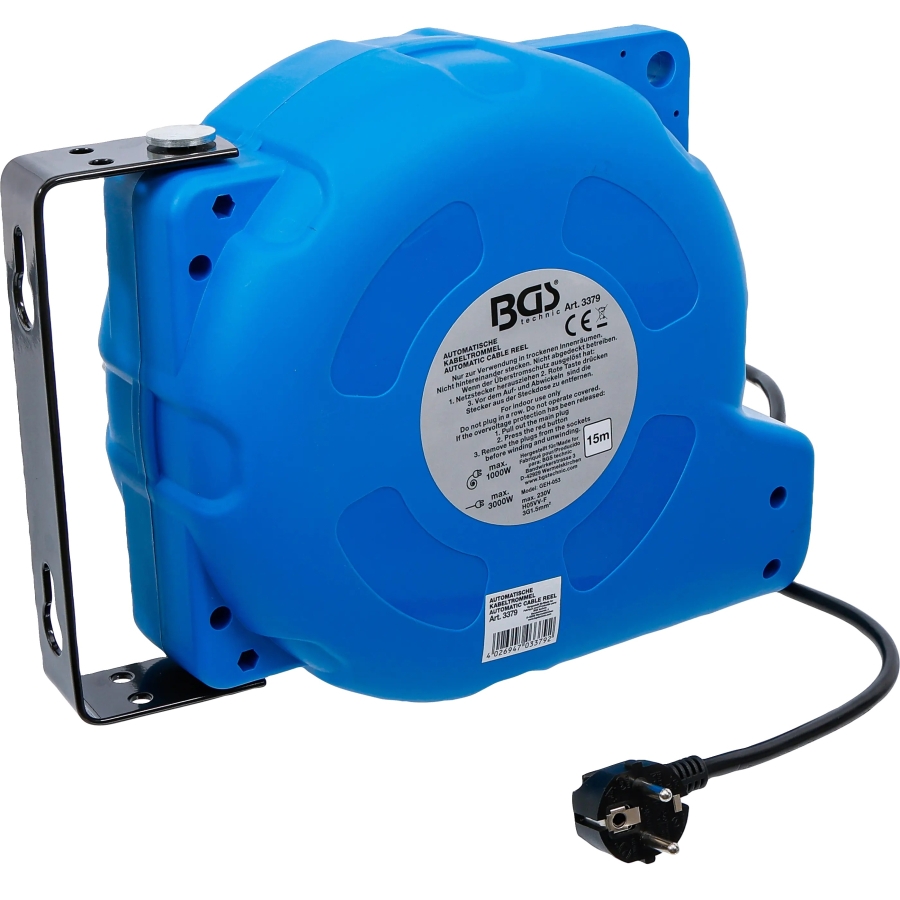

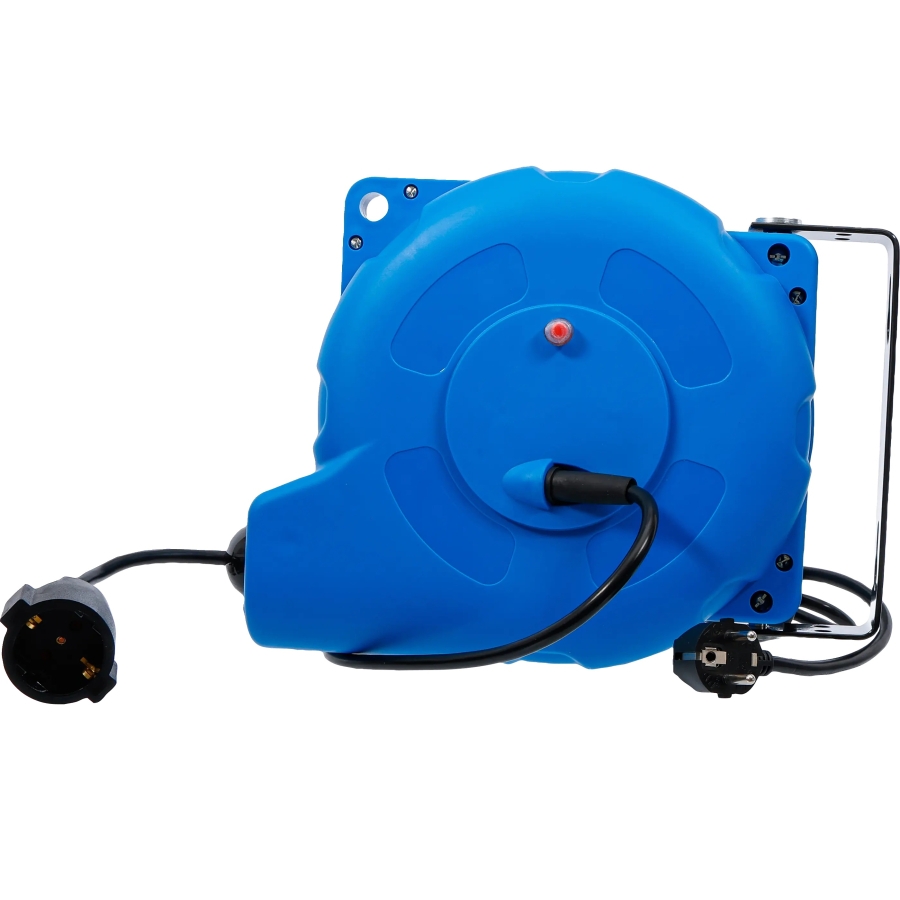

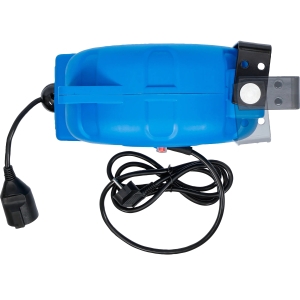

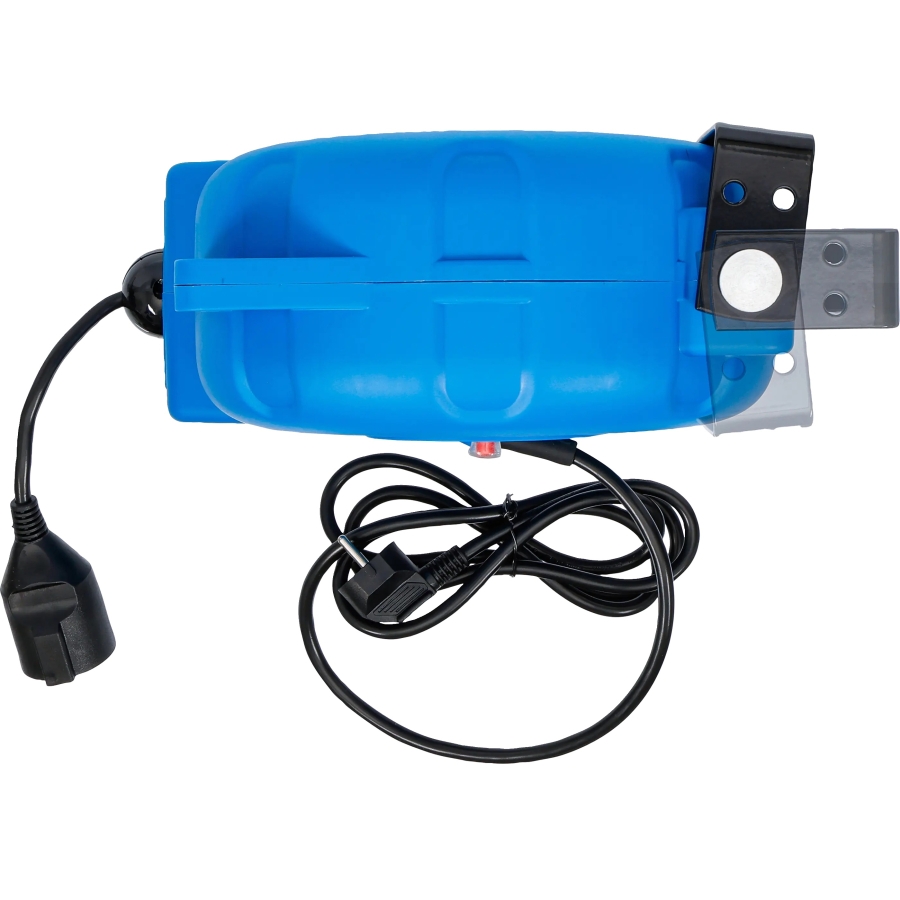

Automatic Retractable Cable Reel 15 m with Thermal Protection, IP34
-
Code:3379
-
Weight:5.162 Kgs
Overview:
✔ 15 m cable with automatic retraction
✔ Includes a bracket for wall mounting
✔ One socket and a 1 m supply lead
✔ Suitable for indoor use, with IP34 protection
✔ Thermal cut-out trips if the cable temperature becomes too high
✔ Maximum load: 1,000 W when wound, 3,000 W when fully unwound
The automatic cable reel provides an extension supply for 230 V electrical appliances. It includes a wall-mounting bracket and automatically retracts the 15 m cable after use.
The connected load must not exceed 1,000 W with the cable wound or 3,000 W with the cable fully unwound.
Mounting and cable retraction

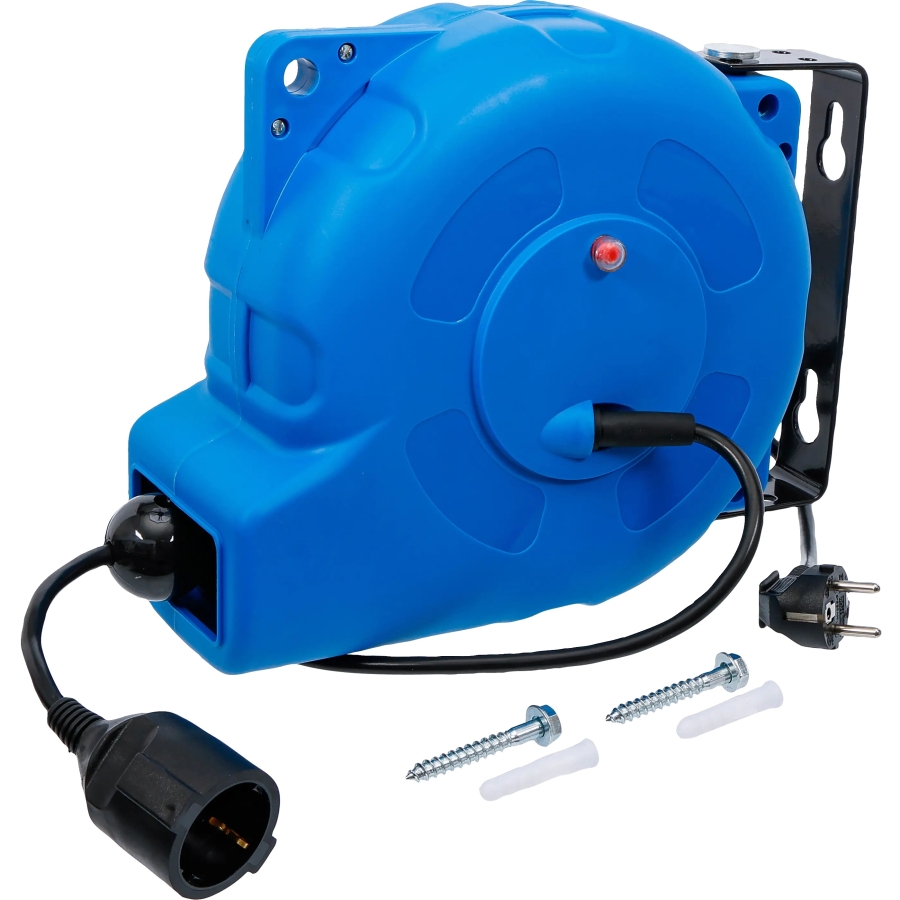

The supplied bracket allows the reel to be mounted on a wall. Automatic cable retraction keeps the cable stored when not in use. A separate 1 m supply lead connects the reel to the power source.
Thermal protection
An integrated thermal cut-out trips if the cable temperature becomes too high. The reel is intended for indoor use and has an IP34 protection rating.
Technical specifications
- Retractable cable length: 15 m
- Supply lead length: 1 m
- Rated voltage: 230 V
- Maximum current, wound: 4.3 A
- Maximum current, fully unwound: 13 A
- Maximum power, wound: 1,000 W
- Maximum power, fully unwound: 3,000 W
- Sockets: 1
- Cable retraction: Automatic
- Mounting: Wall bracket included
- Electrical protection class: I
- Ingress protection: IP34
- Overheating protection: Thermal cut-out
- Use: Indoors
- Length: 298 mm
- Height: 280 mm
- Width: 167 mm
- Net weight: 5.2 kg
