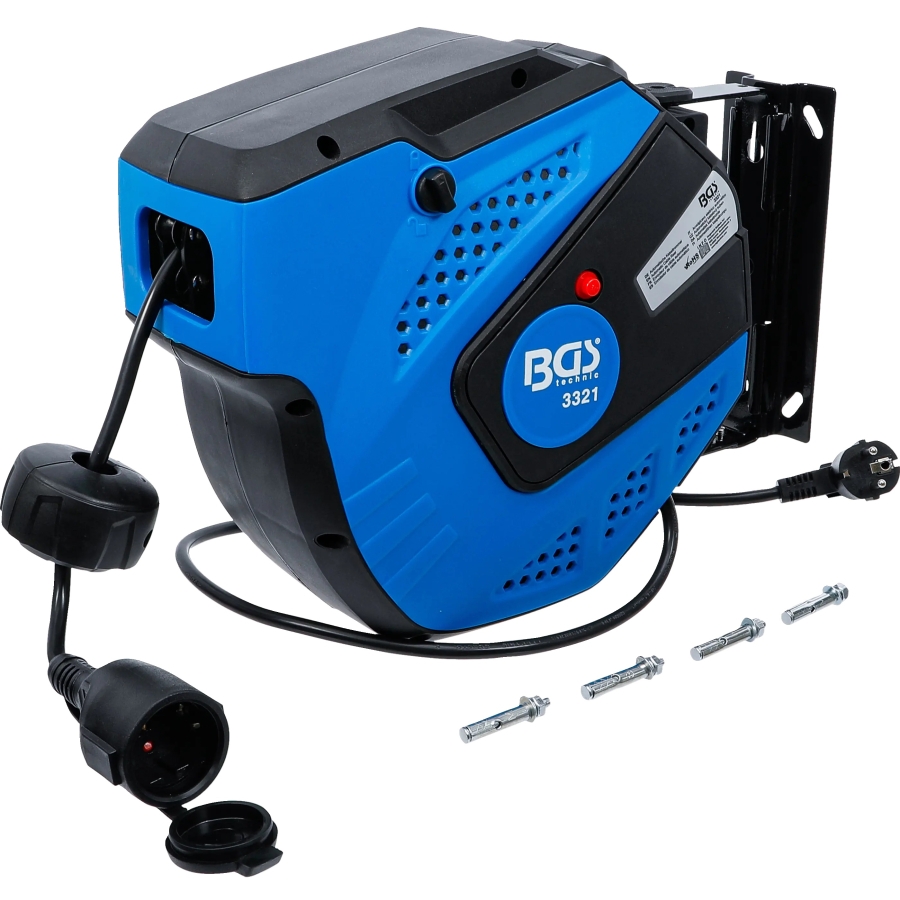

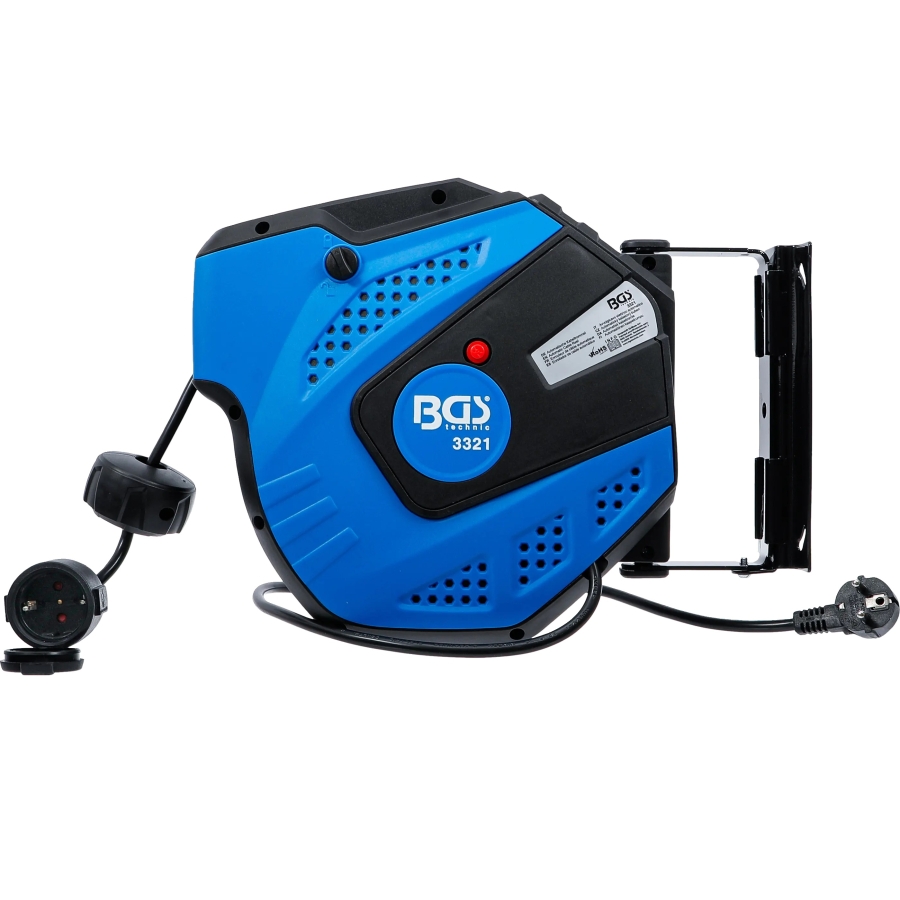

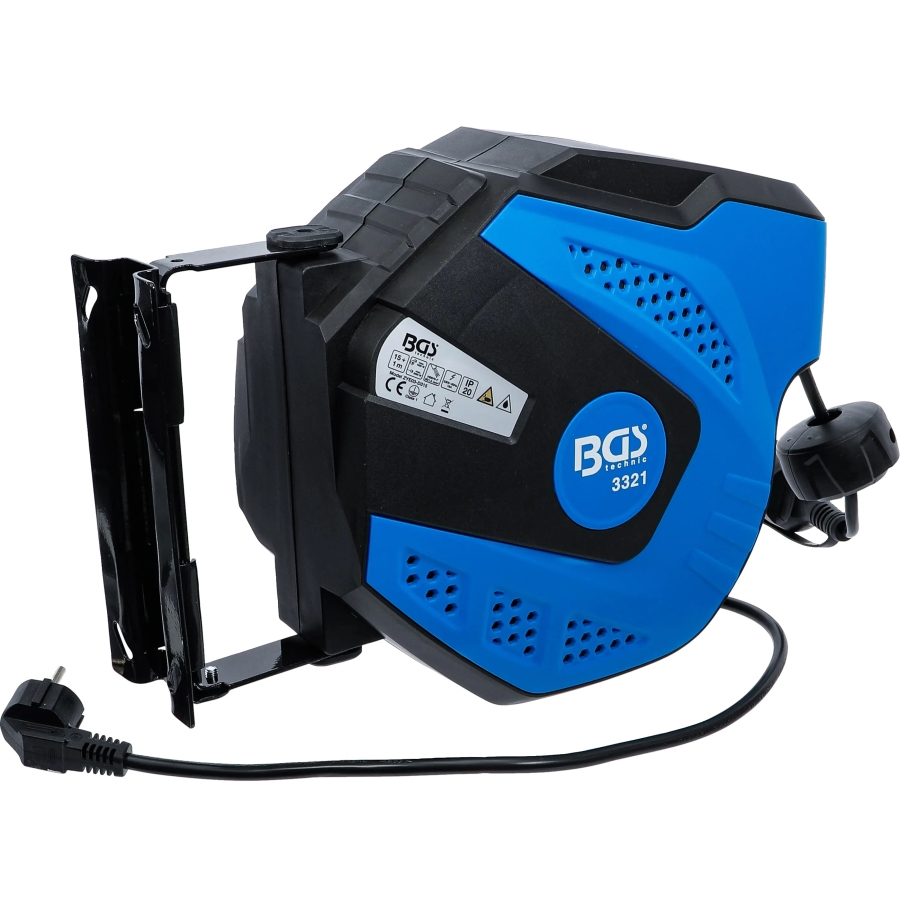

Automatic Retractable Cable Reel 15 m, 3 × 1.5 mm², IP20
-15%
Price:
€160.64
List Price:
€189.00
Discount:
€28.35 (15%)
-
Code:3321
-
Weight:5.190 Kgs
Overview:
✔ 15 m retractable cable and 1 m supply lead
✔ Automatic retraction stop, released by a short pull on the cable
✔ Housing swivels sideways
✔ Includes a bracket for wall mounting
✔ Conductor configuration of 3 × 1.5 mm²
✔ Suitable for 230 V, with IP20 protection
The automatic cable reel provides a 15 m retractable cable and a separate 1 m supply lead for connection to a 230 V power source.
The automatic retraction stop holds the cable at the required extension. A short pull releases the stop so the cable can retract.
Wall mounting and swivel function

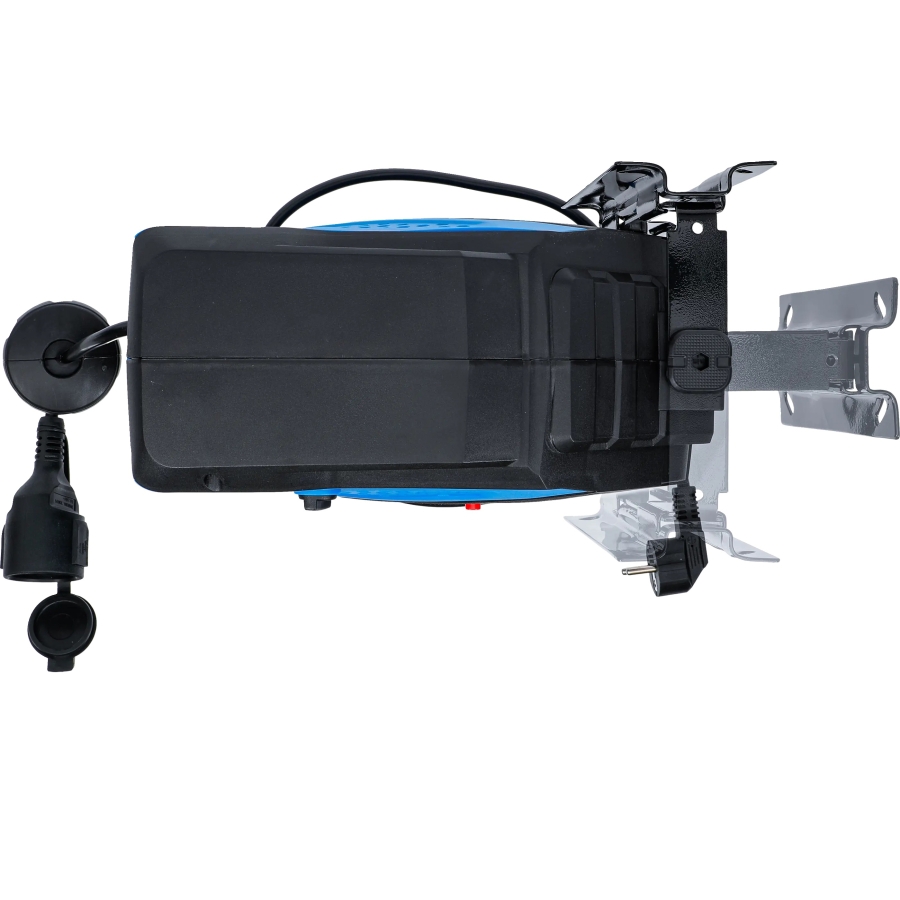

The included mounting bracket allows the reel to be fixed to a wall. The housing swivels sideways to follow the direction in which the cable is pulled.
Technical specifications
- Retractable cable length: 15 m
- Supply lead length: 1 m
- Conductor configuration: 3 × 1.5 mm²
- Suitable voltage: 230 V
- Cable retraction: Automatic, with pull-release stop
- Swivel function: Sideways
- Mounting: Wall bracket included
- Ingress protection: IP20
- Length: 295 mm
- Height: 330 mm
- Width: 165 mm
