Automotive Digital Multimeter with USB Interface
-
Code:63401
-
Weight:1.159 Kgs
Overview:
✔ Professional high-performance automotive digital multimeter with 3 5/6-digit display
✔ Designed for automotive diagnostics and suitable for 2-stroke and 4-stroke engines
✔ Measures voltage, current, resistance, continuity, diode values, capacitance and temperature
✔ Supports RPM, dwell angle, pulse width, frequency and duty cycle measurements
✔ Auto-ranging function automatically selects the measurement range
✔ USB interface for PC connection and data transfer
✔ Relative measurement mode and Data HOLD function
✔ Includes temperature probe, inductive clamp, USB cable and accessories
This high-performance automotive digital multimeter is specifically designed for vehicle diagnostics and repair applications. The device combines standard electrical measurements with advanced automotive diagnostic functions, making it suitable for professional workshops and automotive service environments.
The unit supports both 2-stroke and 4-stroke engines and provides multiple advanced testing capabilities.
Supported measurement functions:
- DC voltage
- AC voltage
- DC current
- AC current
- Resistance
- Continuity
- Diode testing
- Capacitance
- Temperature
- Frequency
- Duty cycle
- RPM measurement
- Dwell angle measurement
- Pulse width measurement
3 5/6-Digit Display and Intelligent Functions
The multimeter features a large illuminated 3 5/6-digit display designed for improved readability during workshop use.
Features:
- Backlit display
- Auto-ranging function
- Relative measurement mode
- Data HOLD function
- Overload indication
- Low battery indication
- Automatic power-off function
Auto-ranging automatically selects the appropriate measurement range, improving speed and ease of use.
Relative measurement mode enables differential measurements between values.
Data HOLD allows measured values to remain visible on the display.
USB Interface and PC Connectivity
The integrated USB interface allows connection to a PC for measurement data transfer and monitoring.
Features:
- USB connection
- PC communication support
- Driver and software package included
Measurement Ranges
DC voltage:
- 6 V
- 60 V
- 600 V
- 1000 V
AC voltage:
- 6 V
- 60 V
- 600 V
- 750 V
DC current:
- 60 mA
- 600 mA
- 6 A
- 20 A
AC current:
- 60 mA
- 600 mA
- 6 A
- 20 A
Resistance:
- 600 Ω
- 6 kΩ
- 600 kΩ
- 6 MΩ
- 60 MΩ
Continuity:
- Audible signal below 20 Ω
Diode test:
- Test current approximately 0.8 mA
Capacitance:
- 40 nF–4000 µF
Temperature:
- -20°C to 400°C
Frequency:
- 10 Hz–10 MHz
Duty cycle:
- 0.5–99.9%
RPM:
- 120–20,000 rpm
Dwell angle:
- 0°–90°
- 0°–72°
- 0°–60°
- 0°–45°
Pulse width:
- 0.5–20 ms

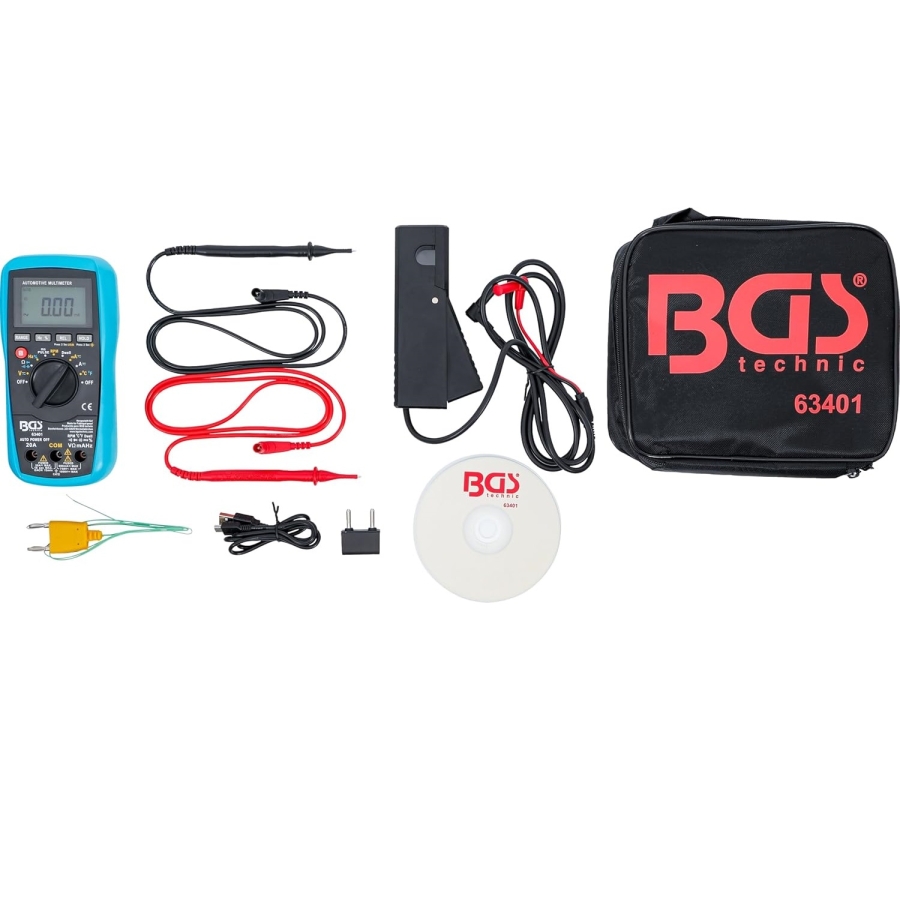

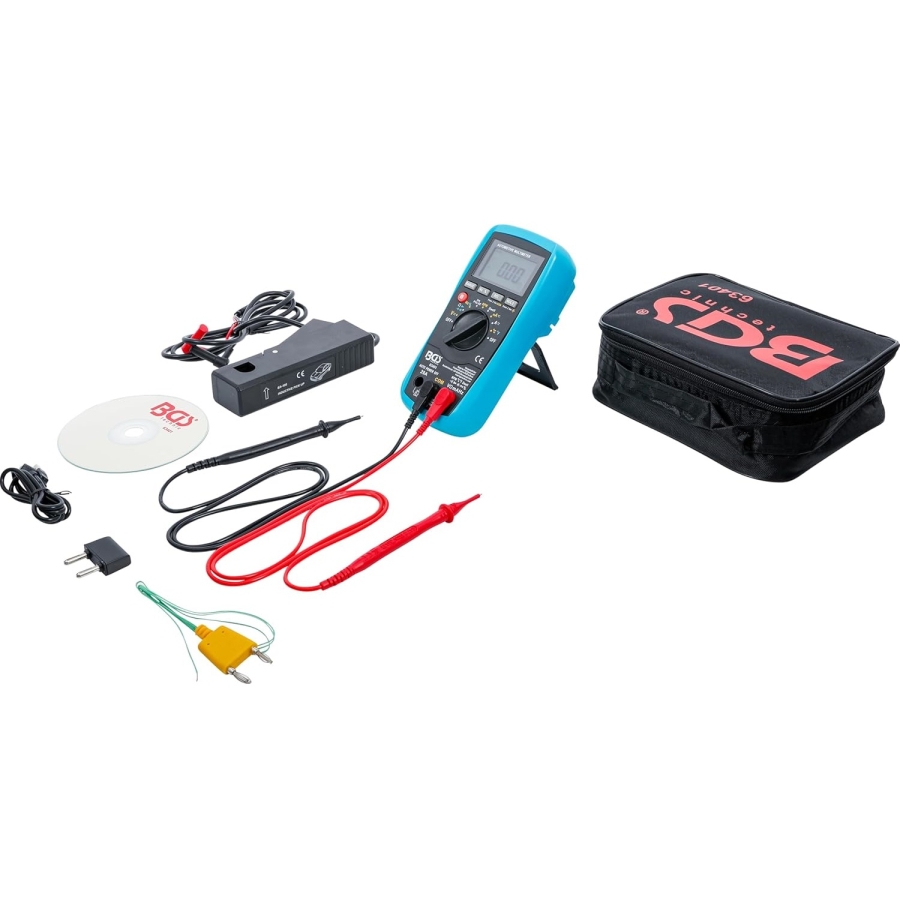

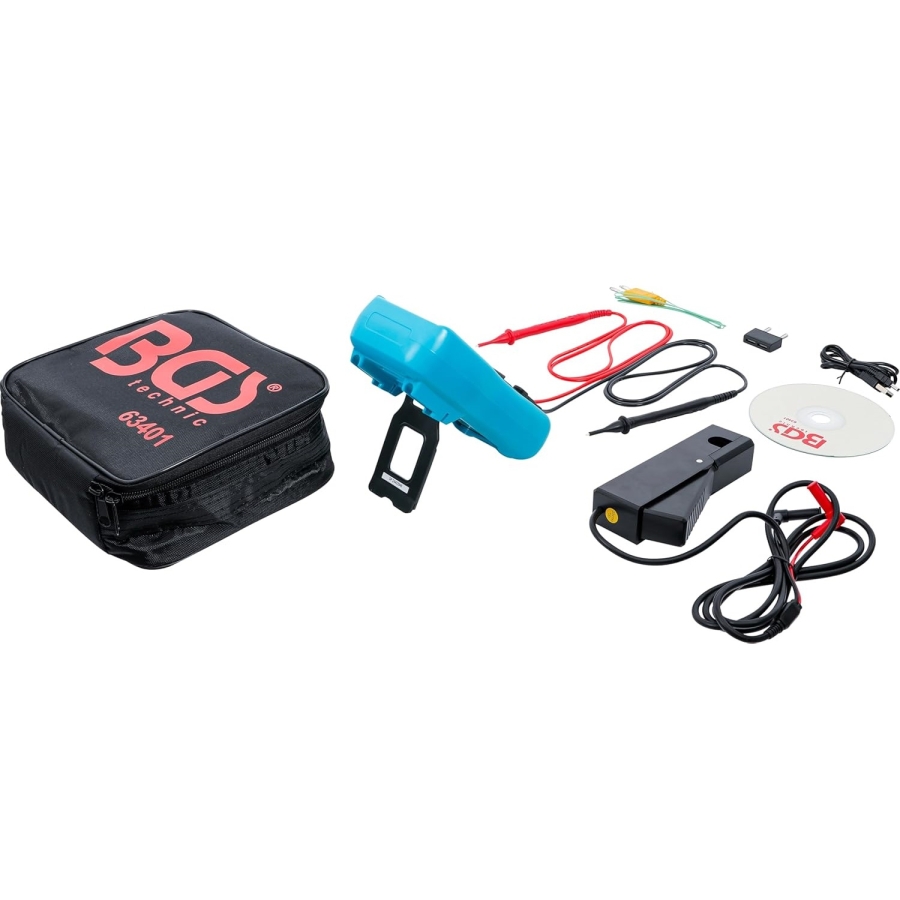

Included Components
Included:
- Temperature measuring probe
- Capacitor adapter
- Inductive clamp
- 2 measuring cables
- USB cable
- Driver/software CD
- Storage case
- 9V battery
