Ball Joint Installation Tool for Mercedes W116 W123 W126 W220

Price: €259.00 506.56лв.

Code:

100963
Weight:

1.500 Kgs

Overview:
✔ Designed for installing and pressing ball joints directly on the vehicle
✔ Eliminates the need to remove the steering knuckle in most applications
✔ Suitable for Mercedes W116, W123, W126 and W220 models
✔ Enables professional ball joint replacement without a hydraulic press
✔ Reduces repair time and simplifies suspension servicing
✔ Suitable for ball joints as Lemförder 10762 04, Mercedes A1163330927, Febi 03668 and TRW JBJ164

Ball Joint Installation Tool for Mercedes W116 W123 W126 W220

Send to friend

Rate this product

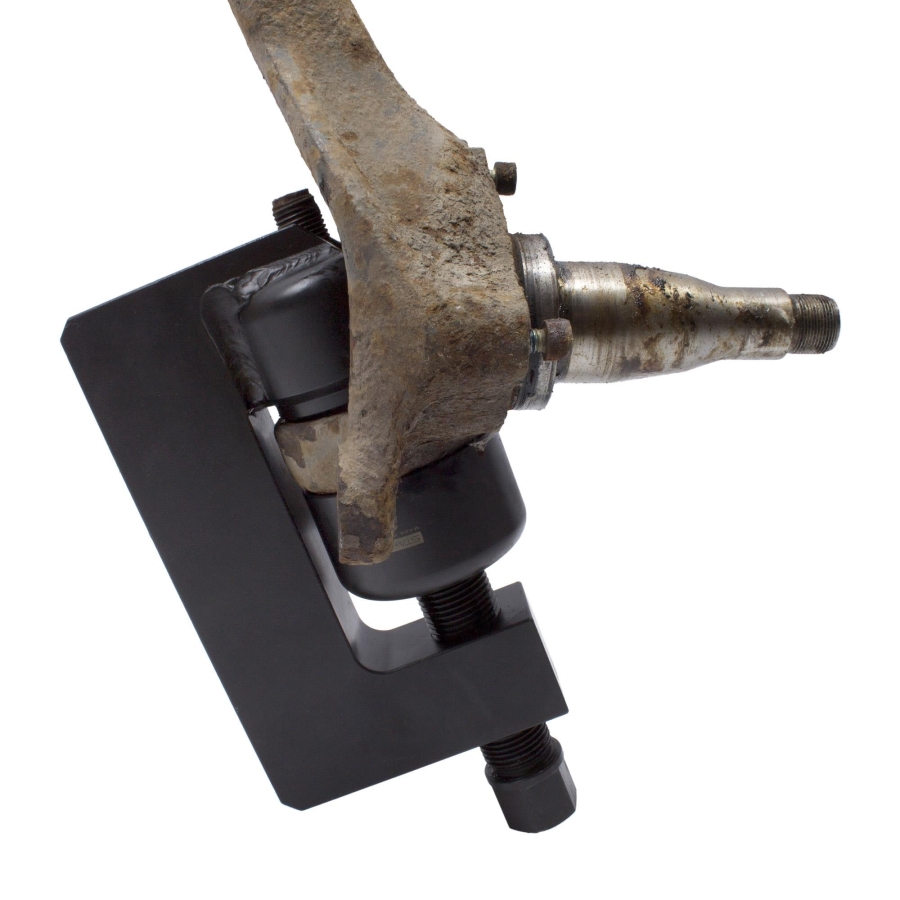

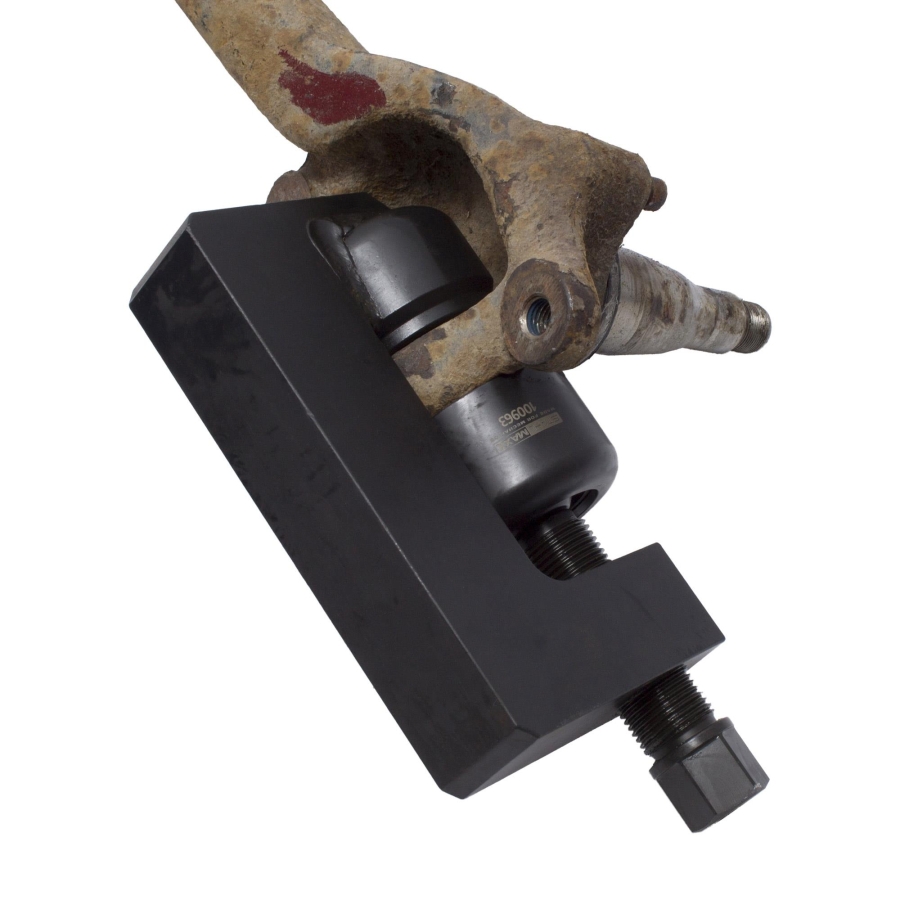

This special tool is designed for pressing ball joints into the steering knuckle directly on the vehicle. It allows professional servicing without removing the steering knuckle, significantly reducing labor time compared to conventional repair methods.

Ball joint removal is performed by driving the old joint out, while the supplied installation tool enables precise installation of the new ball joint directly on the vehicle.

Eliminates the Need for a Hydraulic Press

Using this tool eliminates the need for the traditional removal and reinstallation of the steering knuckle as well as the use of a workshop hydraulic press. This results in faster repairs and a more efficient workflow when replacing worn ball joints.

Vehicle Compatibility

Suitable for the following Mercedes-Benz models:

W116 S-Class (1972–1980)
W123 (1975–1986)
- 200–280
- 200 D–300 D
- 230 E / C / CE / TE
- 240 TD
- 250 T
- 280 E / C / CE / TE
- 300 TD Turbodiesel
W126 S-Class (1979–1991)
W220 S-Class (1998–2005)

Compatible Ball Joint Reference Numbers

Suitable for servicing ball joints as:

Lemförder 10762 04
Mercedes A 116 333 09 27
Febi 03668
TRW JBJ164

Comparable OEM Tool Numbers

Designed for use as:

Mercedes 116589046200
Mercedes 220589034300

Important Information

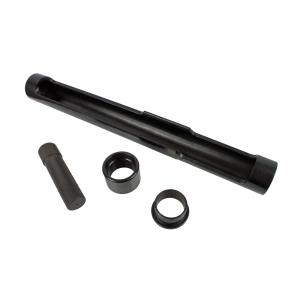

For ball joint installation on a removed steering knuckle using a hydraulic press, we recommend using Item no. 116130.

Original part and tool numbers are provided for identification and comparison purposes only. This product is not an original Mercedes-Benz tool.
