Ball Joint Locknut Socket for Citroën & Peugeot, as 9780-Q7 / I-0627

Price: €25.50 49.87лв.

Code:

120903
Weight:

0.370 Kgs

Overview:
✔ Special locknut and pin socket for upper ball joint removal and installation
✔ Suitable for Citroën C5, C6 and Peugeot 407, 508 models
✔ Designed for upper ball joints threaded into the steering knuckle
✔ Prevents slipping during operation through secure engagement design
✔ Dual-drive design with 1/2" square drive and 38 mm external hex
✔ Essential tool for professional suspension and steering repairs

Ball Joint Locknut Socket for Citroën & Peugeot, as 9780-Q7 / I-0627

Send to friend

Rate this product

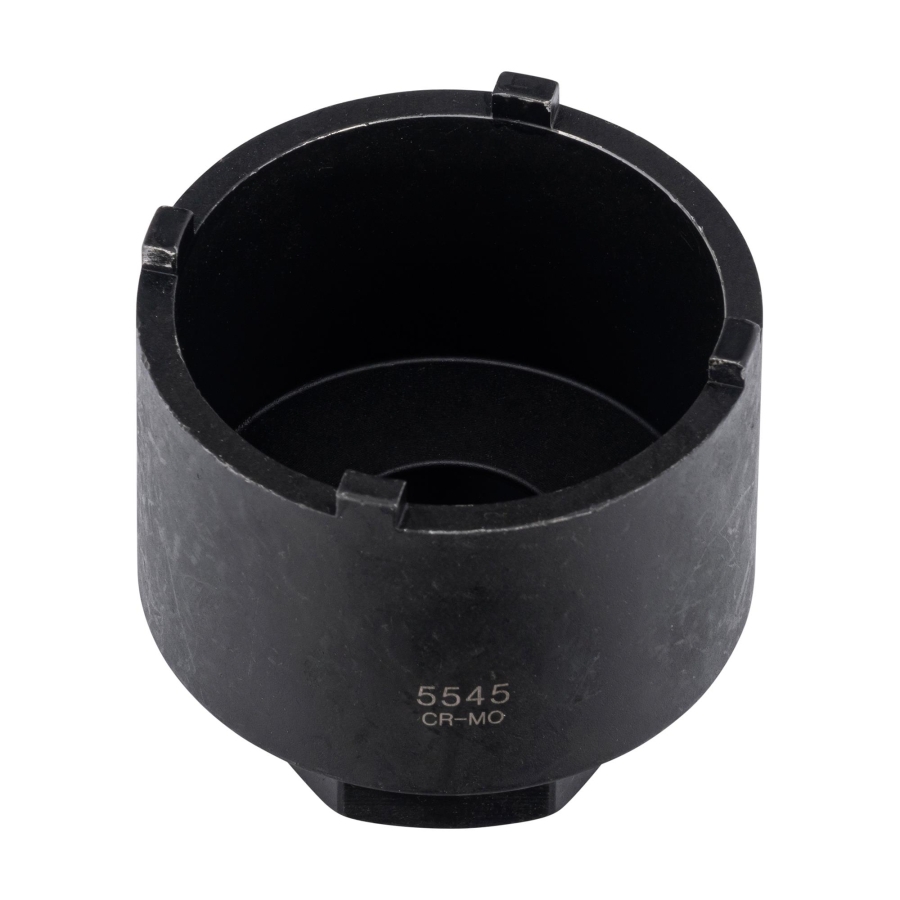

This specialized ball joint locknut socket is designed for the removal and installation of upper threaded ball joints on selected Citroën and Peugeot vehicles. The upper ball joint is screwed directly into the steering knuckle and can only be serviced using this type of dedicated tool.

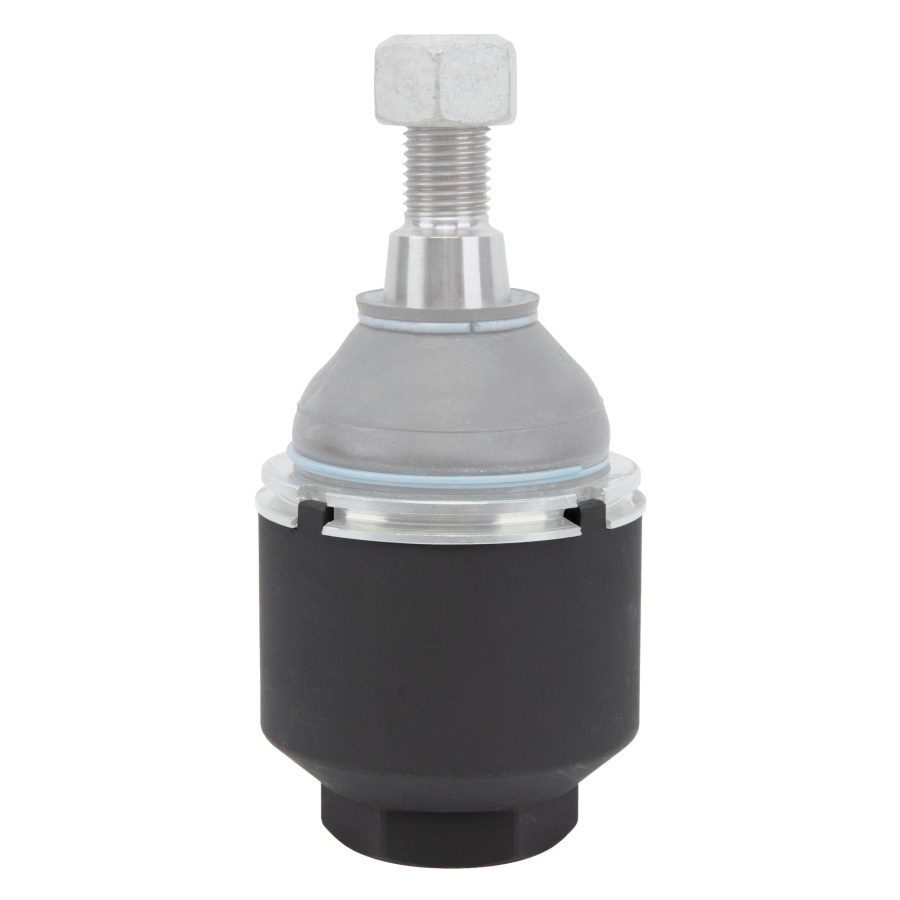

To minimize the risk of the pins slipping out during operation, the socket can be secured by partially reinstalling the ball joint nut. This presses the pin socket firmly into the recesses of the ball joint housing, ensuring reliable engagement during removal and installation.

The tool can be driven using either the 1/2" square drive or the 38 mm external hex, providing flexibility for various workshop applications.

Applications

Suitable for upper ball joints on:

Citroën

Citroën C5 III (RD, RW) 2008–
Citroën C6 (TD) 2005–2013

Peugeot

Peugeot 407 (6C, 6D, 6E) 2004–2012
Peugeot 508 (8D, 8E) 2010–2019

Features

Special pin socket for threaded upper ball joints
Designed for professional suspension repairs
Secure pin engagement design
Suitable for removal and installation procedures
1/2" square drive and 38 mm external hex drive
Durable workshop-grade construction

Technical Specifications

Outer diameter: 60 mm
Inner diameter: 52 mm
Pin width: 6 mm
Height: 57 mm
Drive: 1/2" (12.5 mm) square drive
Additional drive: 38 mm external hex

Ball Joint References

Suitable for ball joints referenced as:

OEM as PSA 1607298680
OEM as 3640.57
OEM as 3640.74
OEM as Febi Bilstein 28356
OEM as Meyle 11-160500035
OEM as Lemförder 28335 02

Used as:

OEM as Citroën / Peugeot 9780-Q7
OEM as I-0627

Installation Procedure

Remove the wheel bearing housing assembly.
Remove the axle nut, brake disc, brake caliper and stabilizer link.
Disconnect the lower ball joint.
The driveshaft can remain installed in the vehicle.
Release the staking deformation securing the outer ring in the steering knuckle using a suitable chisel.
Remove and replace the upper ball joint using the socket.
After installation, secure the outer ring again against rotation.

Reference Tightening Torques

Always follow the vehicle manufacturer's specifications.

Reference vehicles: Citroën C5 (X7) 2.0i 16V (2008–2011) and Peugeot 407 Break 1.6 HDi 110 (2004–2011)

Upper Ball Joint

Upper ball joint in steering knuckle: 200 Nm
Upper ball joint nut: 60 Nm

Steering Knuckle Bracket

Center bolt (lower ball joint to steering knuckle bracket): 65 Nm
Outer bolts (lower ball joint to steering knuckle bracket): 170 Nm

Steering Components

Tie rod end nut: 48 Nm
Driveshaft nut:
- Citroën C5: 325 Nm
- Peugeot 407: 354 Nm

OEM numbers are provided for comparison purposes only. This is not an original manufacturer tool.
