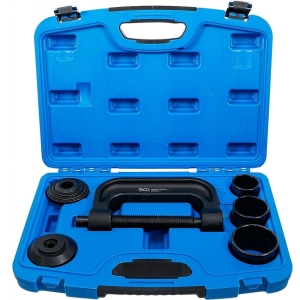

Ball Joint Tool Set with C-Frame Press
-
Code:8263
-
Weight:7.522 Kgs
Overview:
✔ Designed for replacing ball joints, universal joints and brake anchor pins
✔ Suitable for SUVs, vans and vehicles with large suspension components
✔ Heavy-duty C-frame press for professional workshop use
✔ Includes receiving sleeves and stepped discs for multiple applications
✔ Suitable for pressing and extraction operations
✔ Ideal for suspension, steering and driveline repairs
This professional tool set is designed for the removal and installation of ball joints, universal joints and brake anchor pins on vehicles equipped with large and heavy-duty components.
The robust C-frame press allows controlled force application, making it suitable for a wide range of workshop repair tasks involving press-fit components.
Suitable for Large Vehicle Components
The tool set is specifically intended for SUVs, vans and other vehicles with larger suspension and chassis components where standard ball joint tools may not provide sufficient capacity.
Its heavy-duty construction makes it suitable for demanding professional applications.
Versatile Workshop Tool Set
The included sleeves and stepped discs allow the tool to adapt to different component sizes and configurations, providing flexibility when performing installation and removal work on various vehicle systems.

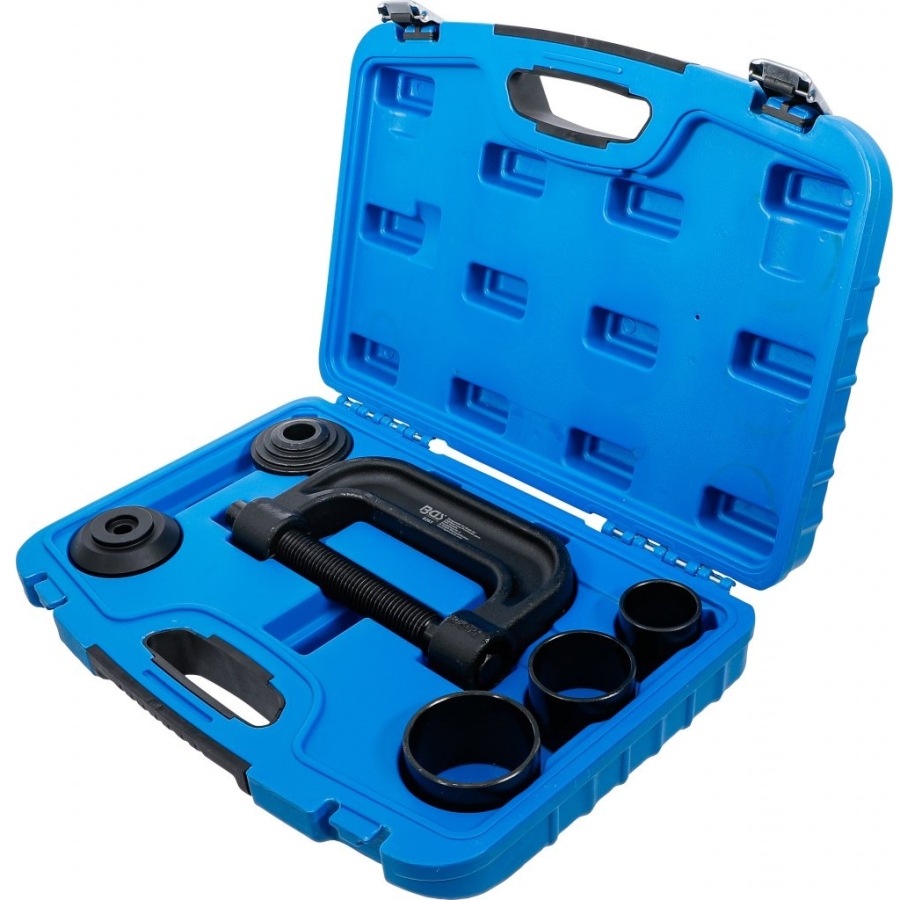

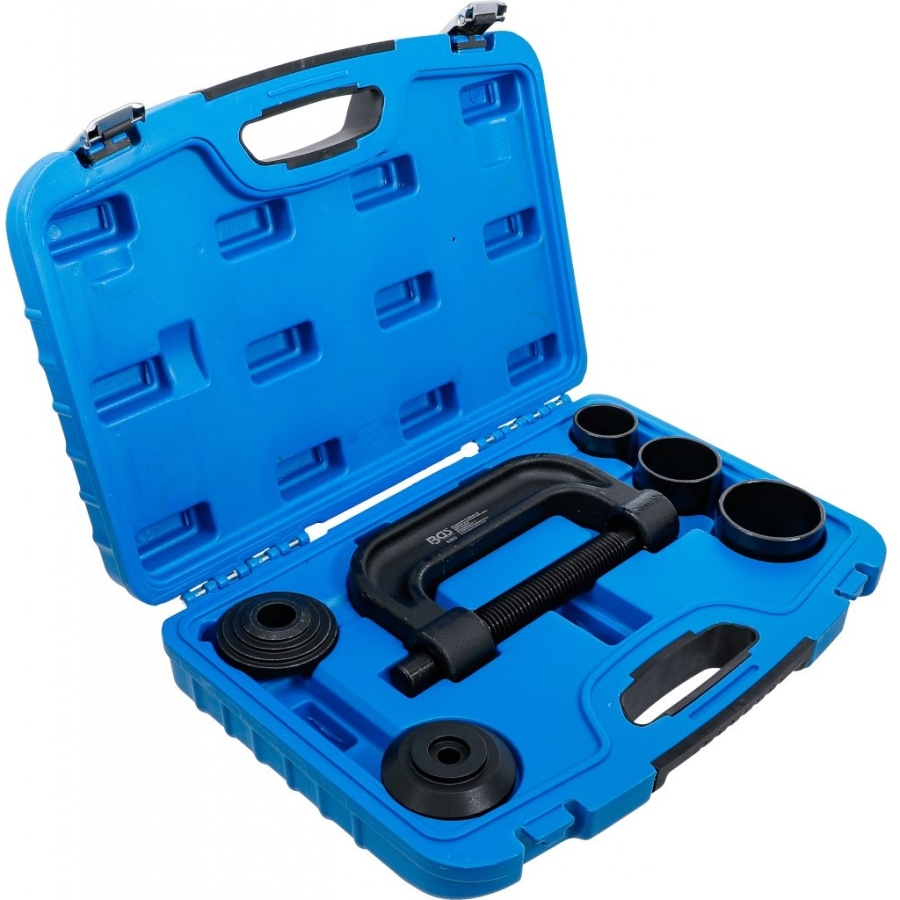

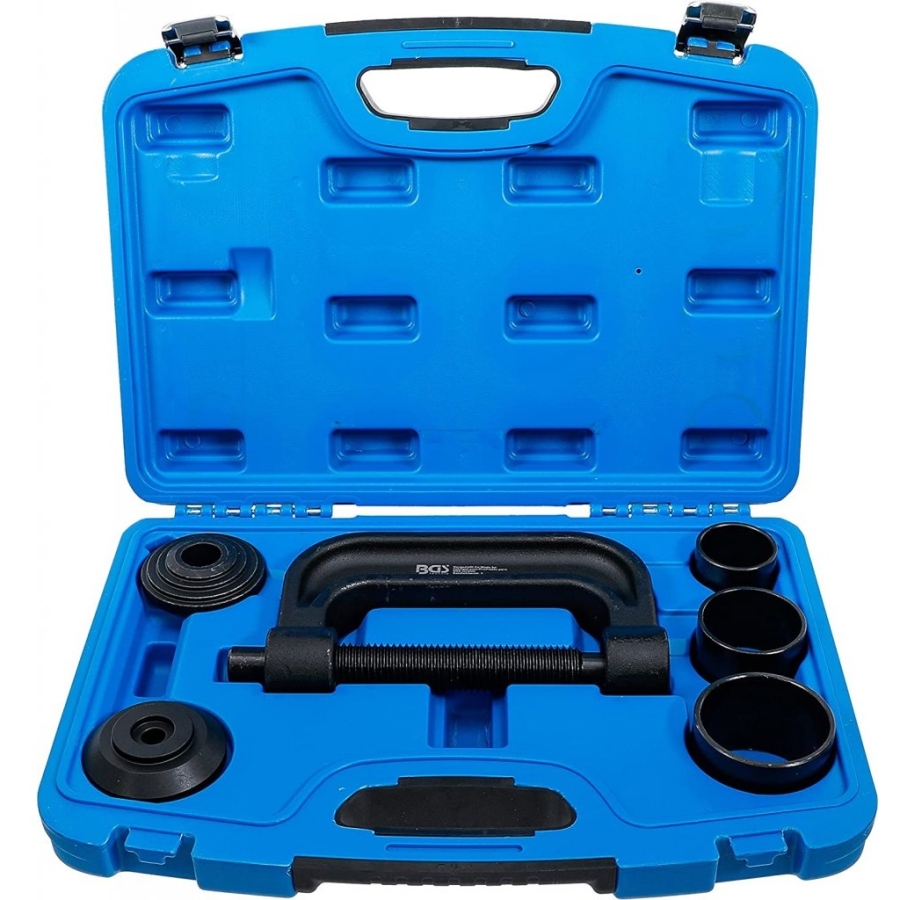

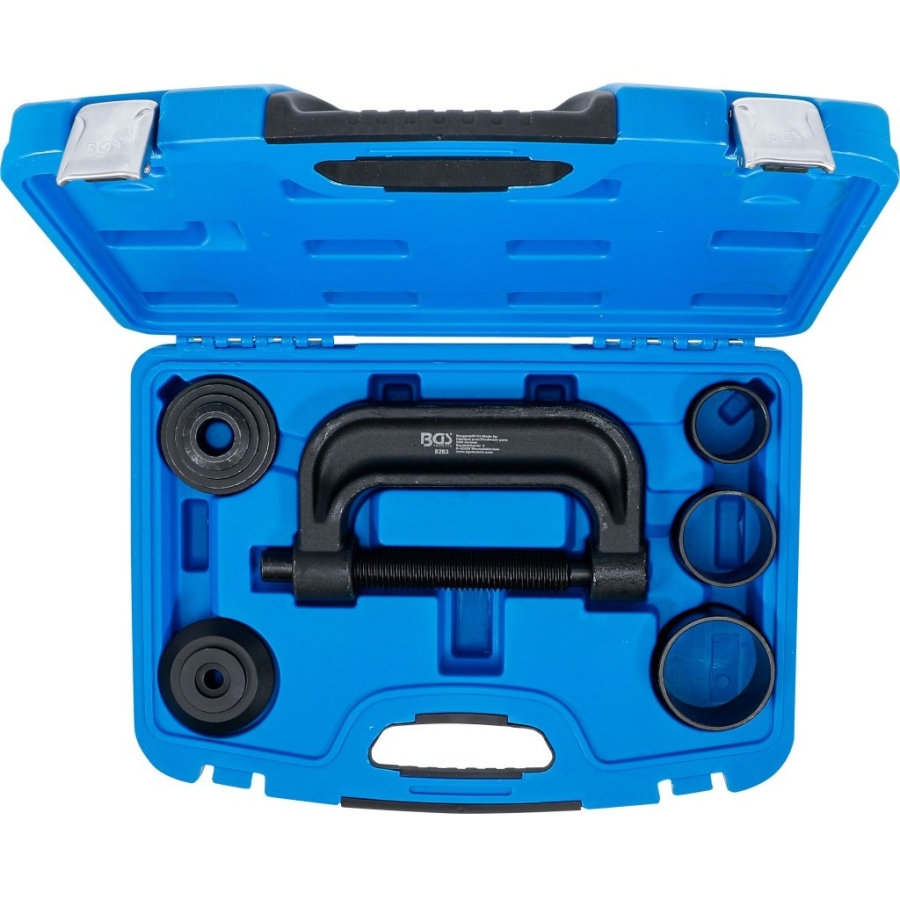

Package Contents
- Stepped disc with large bore
- Stepped disc with small bore
- C-frame press with spindle
Receiving Sleeves
- Sleeve
- Inner diameter: 44.4 mm
- Outer diameter: 50.8 mm
- Length: 45 mm
- Sleeve
- Inner diameter: 56.6 mm
- Outer diameter: 63.4 mm
- Length: 45 mm
- Sleeve
- Inner diameter: 69 mm
- Outer diameter: 76.1 mm
- Length: 56 mm
Professional Suspension and Driveline Tool
Designed for professional workshops and technicians, this tool set provides a reliable solution for servicing press-fit suspension and driveline components on a wide range of vehicles with large-diameter assemblies.
