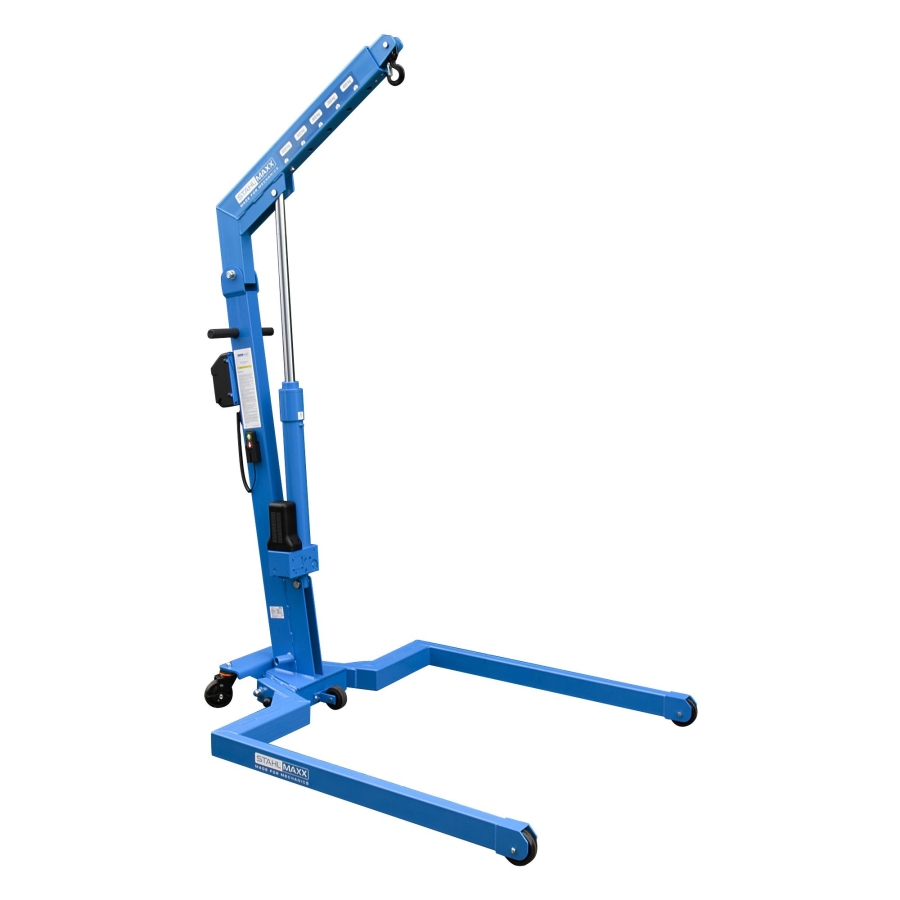

Battery-Powered Engine Crane, 1000 kg, Wired Remote Control, Foldable, for Euro Pallets

The innovative STAHLMAXX engine and workshop crane is designed for daily professional use. With a maximum lifting capacity of 1000 kg, it is suitable for handling heavy engine and transmission assemblies. Even with the boom fully extended, the rated lifting capacity remains 600 kg.

The parallel chassis is designed so that a standard Euro pallet can fit between the legs. This considerably simplifies picking up and setting down components on pallets or in mesh containers. Despite its stable construction, the crane can be folded for compact storage.

Battery-Powered Electro-Hydraulic Operation

The electro-hydraulic system can be operated using either the controls on the cylinder or the supplied wired remote control. This allows the load to be raised and lowered while the mechanic simultaneously monitors its position in the engine compartment.

Features

• Five boom positions for adjusting reach and lifting capacity
• Parallel chassis suitable for Euro pallets and mesh containers
• Foldable construction for compact storage
• Brakes on the swivel castors for a stable working position
• Load hook rotates through 360° for easier positioning

Technical Specifications

Maximum lifting capacity: 1000 kg, depending on boom position
Boom positions and capacities: 1000 / 900 / 800 / 700 / 600 kg
Lifting height: Approx. 2080–2300 mm, depending on boom position
Boom reach: Approx. 960–1350 mm
Electric drive: 18 V DC, 450 W
Batteries: 2 × 18 V, 5 Ah, 90 Wh, included
Chassis: Parallel and foldable
Wheels: 2 swivel castors and 2 fixed wheels
Brakes: Fitted to the swivel castors
Packaging dimensions: Approx. 157 × 53 × 25 cm

Scope of Delivery

• 1 × Battery-powered engine crane, 1000 kg, foldable, suitable for Euro pallets
• 1 × Wired remote control
• 2 × 18 V 5 Ah batteries
• 1 × Battery charger
