BMW Engine Timing Tool Kit M40 M42 M43 M44 M50 M52 M54 M56 Petrol

This professional timing tool kit is designed for BMW petrol engines M40, M42, M43, M44, M50, M52, M54 and M56.

It is used for accurate valve timing adjustment during:

• Engine repair and overhaul
• Timing chain service
• VANOS system adjustment and installation

The kit ensures precise synchronization of engine components for reliable operation.

---

Important Notes

For correct timing adjustment:

• The timing chain must be pre-tensioned to 0.7 Nm using a torque wrench (e.g. 106650)
• If equipped with VANOS, the unit must be pressurized with compressed air to its end position (connection included in the kit)

---

Functionality

The set includes tools for:

• Camshaft locking and positioning
• Crankshaft locking at Top Dead Center (TDC)
• VANOS unit adjustment and positioning
• Timing chain pre-tensioning (primary and secondary chains)
• Secondary chain component positioning

---

Compatibility

Engine Codes:
M40, M42, M43, M44, M50, M52, M54, M56

Detailed Engine Variants:
ENC
M40B16 (164E1), M40B18 (184E1), M40B18C
M42B18, M42B18 (184S1)
M43B16 (164E2), M43B16 (164E3), M43B18 (184E2), M43B19 (194E1)
M44B19 (194S1)
M50B20 (206S1), M50B20 (206S2), M50B25 (256S1), M50B25 (256S2), M50B26A
M52, M52 (286S1), M52B20 (206S3), M52B20 (206S4), M52B25 (256S3), M52B25 (256S4), M52B25TU
M52B28, M52B28 (286S), M52B28 (286S1), M52B28 (286S2), M52B28 (286S7T), M52B28 (286ST5)
M54B22 (226S1), M54B25 (256S5), M54B30 (306S3)
M56B25 (256S6), M54256S5, M54306S3

---

Vehicle Compatibility

BMW models: 3, 5, 7 Series, X3, X5, Z3, Z4
Platforms: E30, E31, E32, E34, E36, E38, E39, E42, E46, E53, E60, E61, E65, E66, E83, E85

---

Function Reference (OEM Comparison)

Used as:
112300, 113190, 113240, 113320, 113390, 113450, 114220, 115490, 116150, 116180

---

Package Contents

• Camshaft locking tool – as 113240
• Camshaft locking tool – as 113190
• Camshaft locking tool – as 113320
• VANOS sleeve adjustment plate – as 116150
• Secondary chain gear positioning tool – as 116180
• Camshaft lever for VANOS adjustment – as 115490
• Secondary chain tensioner locking tool – as 113290, 113291, 113292
• Primary chain tensioning tool – as 113390, 114220
• VANOS compressed air connection – as 113450
• Flywheel locking tool / crankshaft TDC tool – as 112300

---

Key Features

✔ Wide compatibility across BMW M-series petrol engines
✔ Includes full VANOS adjustment tooling
✔ Supports both primary and secondary timing chain systems
✔ Accurate pre-tensioning capability for correct timing setup
✔ Supplied in workshop-ready foam insert (2/3 size)



OEM numbers are provided for reference purposes only. This product is not an original tool.

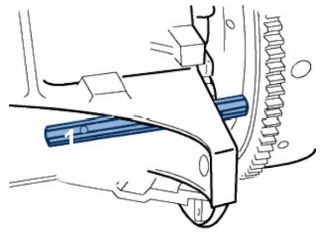

Crankshaft locking pin (1),
to be used as OEM 112300

This tool is suitable for all listed engines and is inserted from the engine side into the flywheel bore.
To install, rotate the crankshaft until cylinder 1 is at TDC (Top Dead Center).

Note: The bore may show corrosion on cast iron engines and should be cleaned before insertion if necessary.

---

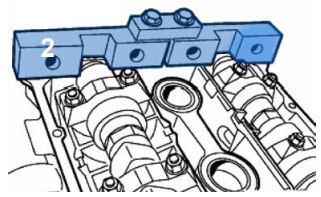

Camshaft alignment tool (2),
to be used as OEM 113240,
for engines with double camshafts

Camshaft alignment tool (4),
to be used as OEM 113320,
for M21 SOHC engines

Camshaft alignment tool (3),
to be used as OEM 113190,
for other SOHC engines

The tools rest on the valve cover gasket surface of the cylinder head, and the cut-outs align with the flat surfaces of the camshafts.

The two-piece tool (2) is connected together.

---

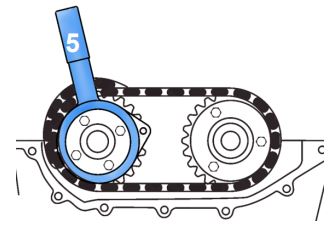

VANOS unit wrench,
to be used as OEM 115490

Carefully rotate the exhaust sprocket and the secondary chain counterclockwise.
Required for removal and installation of VANOS units with spring plates.

VANOS units without spring plates can be removed without using wrench (5).

---

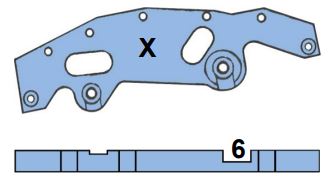

Double VANOS alignment tool (6),
to be used as OEM 116150

This tool is available in two versions.
The included tool (6), like tool (X), is used for aligning the double VANOS unit.

---

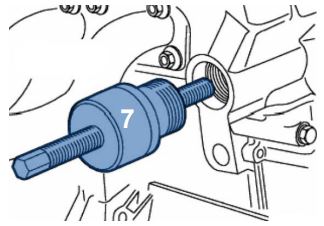

Timing chain pre-tensioning tools (7/8),
to be used as OEM 114220, 113390

When setting engine timing, the chain pre-tensioning tool is applied to the primary timing chain.

• M22 for M42 engines
• M26 for M50 & M52 engines



---

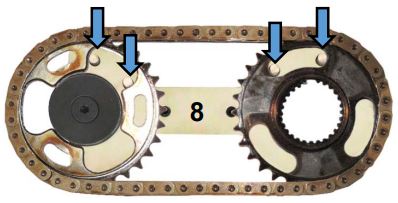

VANOS alignment tool (8),
to be used as OEM 116180

---

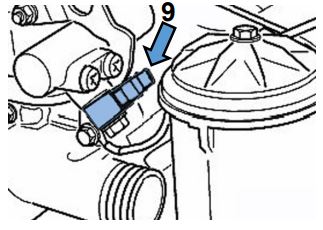

Compressed air connection (9),
to be used as OEM 113450

---

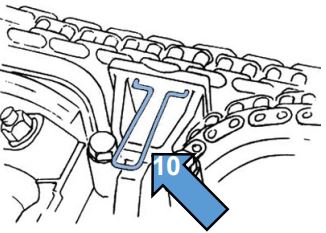

Locking clip / retaining pin set (10),
to be used as OEM 113290, 113291, 113292



OEM numbers are provided for reference purposes only. This product is not an original tool.
