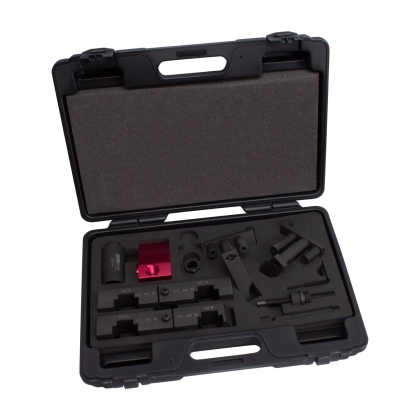

Engine Timing Tool Kit for BMW M60 / M62 V8 Engines

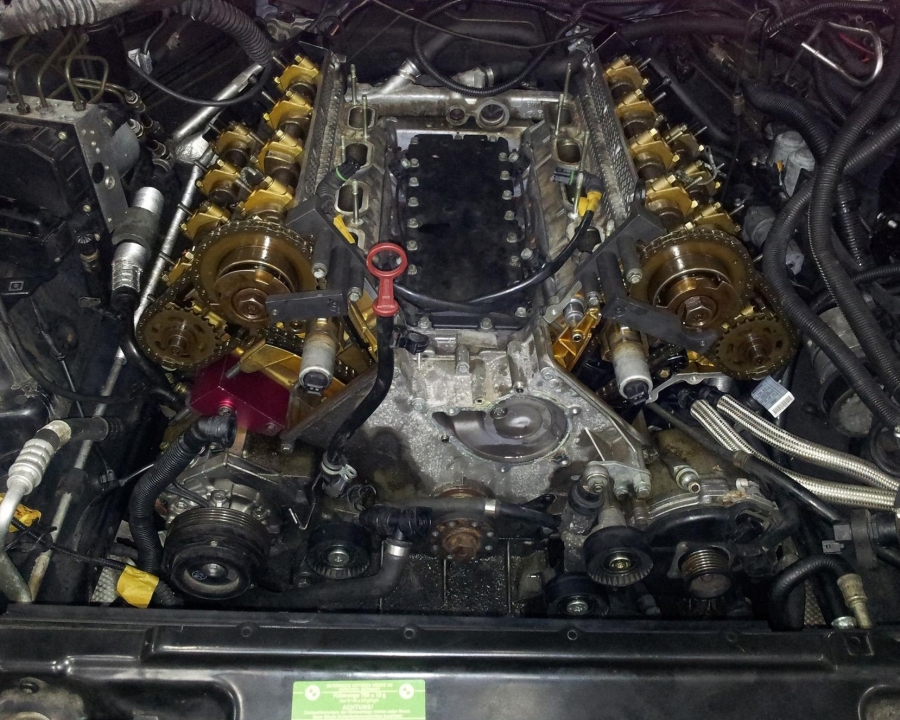

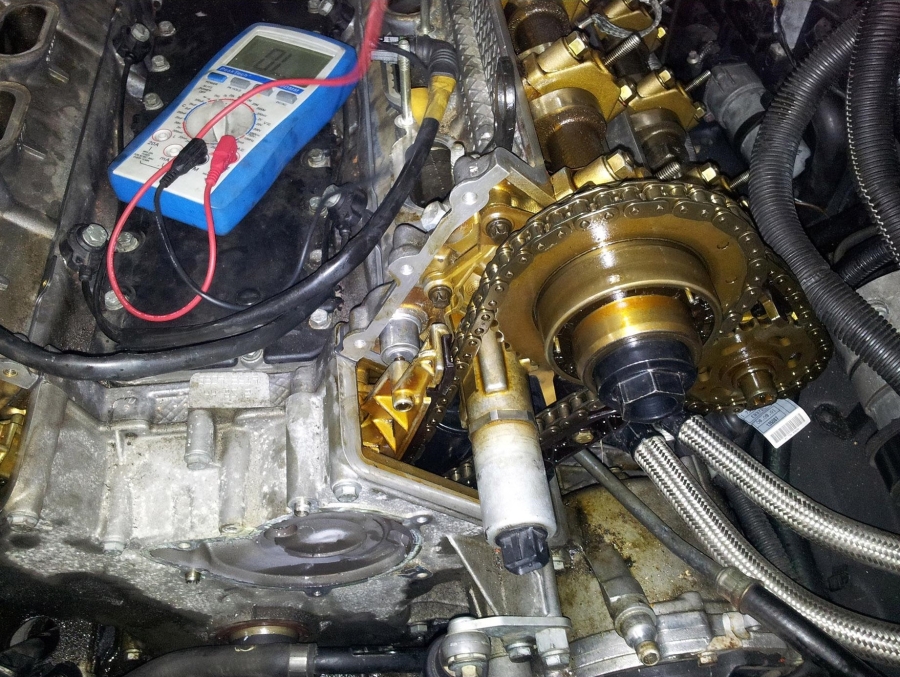

This professional engine timing tool kit is specifically designed for precise adjustment and locking of timing components on BMW V8 engines. It enables accurate positioning of the camshaft, flywheel, timing chain tension system, and VANOS units during maintenance and repair operations.

Compatibility

Suitable for the following BMW engine types:

• M60
• M62B35
• M62B44
• M62TUB44

Engine codes:

• F2/1 (M60B46)
• M60B30 (308S, 308S1, 308S1K, 308S6K)
• M60B40 (408S1, 408S1K)
• M62B35 (358S1, 358S2)
• M62B44 (448S1, 448S2)
• M62B46 (468S1, 468S4K, 468S72)
• M62B48 (488S2)
• M73B48 (488S12)
• M62408S3
• M62448S3

Functions

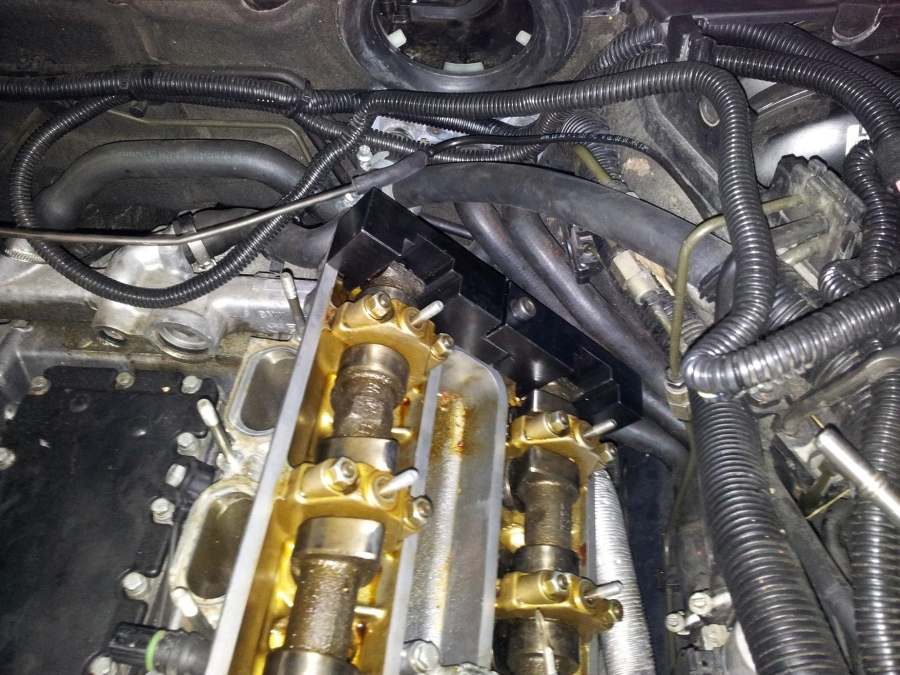

• Locks camshafts in correct timing position
• Secures flywheel during service procedures
• Supports timing chain tension system alignment
• Enables accurate VANOS adjustment and positioning
• Assists in removal and installation of VANOS solenoids

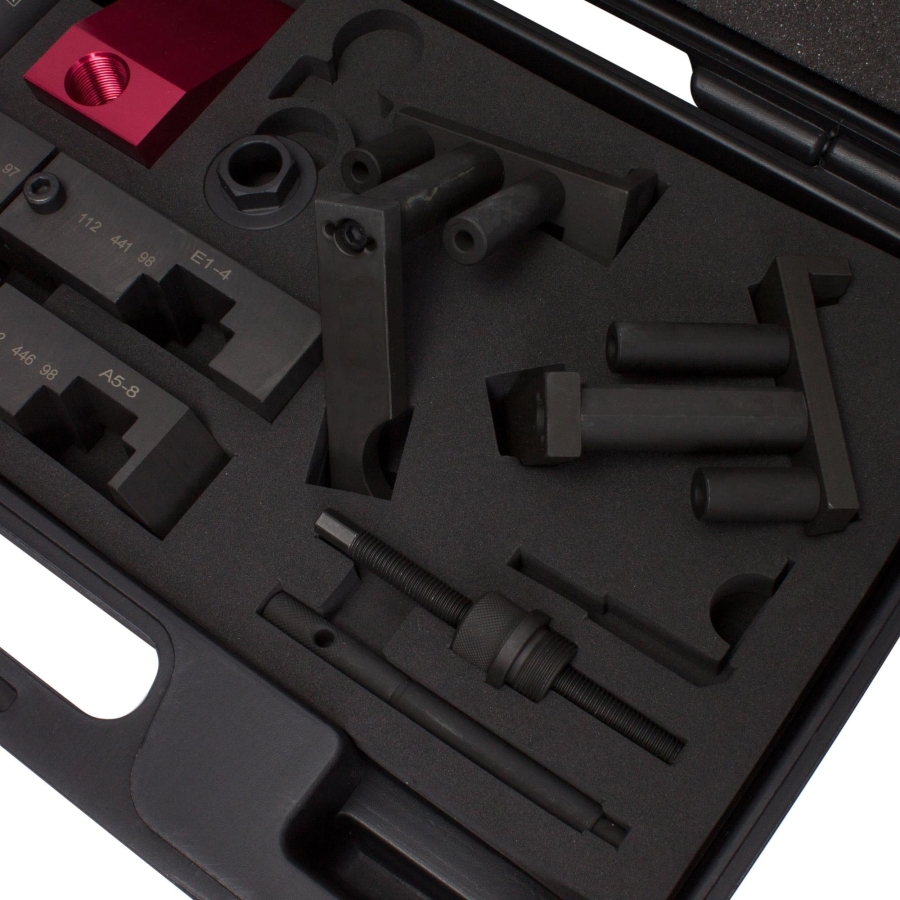

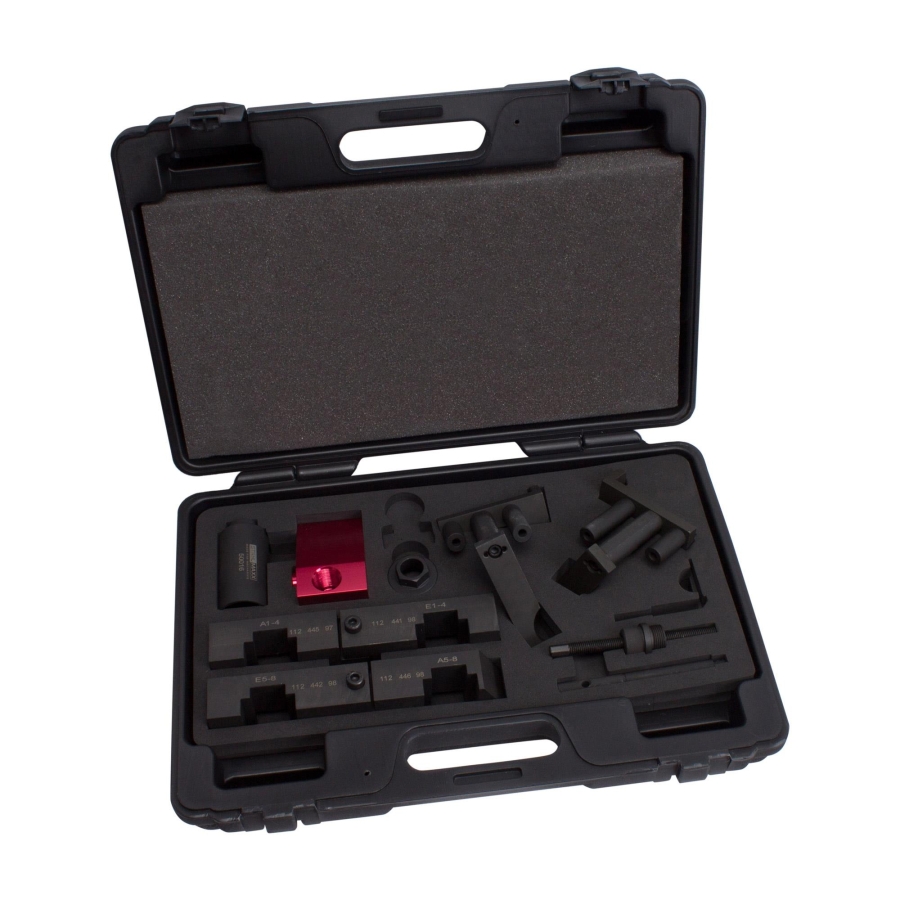

Scope of Delivery

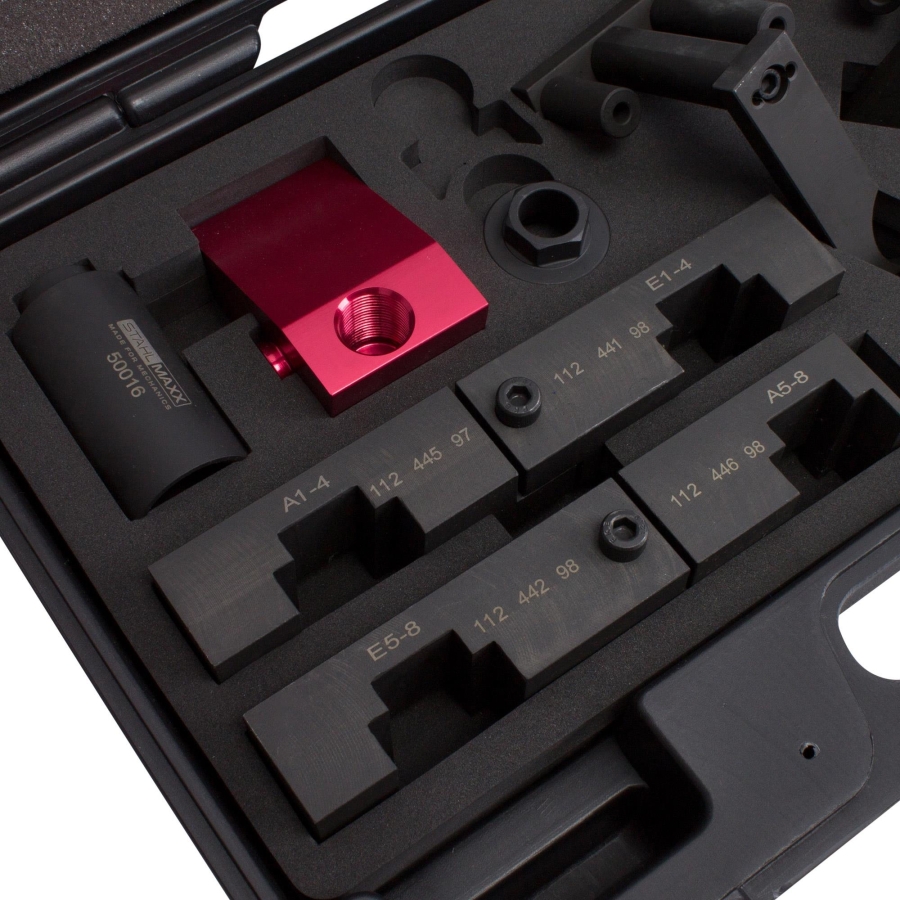

• 4 pcs camshaft locking tools (112440)
• Timing chain support block (117380)
• Locking pin (112300)
• Chain tensioning tool (114230, 113390)
• 2 pcs VANOS trigger wheel locking tools (116450)
• VANOS adjustment tool (116440)
• Solenoid valve removal/installation tool (116420)
• Durable storage case

Important Notes

For BMW X5 applications, an additional crankshaft locking pin is required:

• Art.no. 101020

Recommended Additional Tools

• 116002 - Camshaft locking retaining brackets (112443, 112444)
• 101020 - Flywheel locking tool for BMW X5 (115180, 116080)
• 116401 - Timing chain tensioner locking pins (113310)
• 112450 - Crankshaft counter holder (112450)
• 115545 - Viscous fan removal/installation tool (115050, 115030)

OEM numbers are for reference purposes only. This product is not an original tool.

ALPINA B10 (E34) (04.1988 - 04.1995) 4.0 (316 HP, 232 kW)

ALPINA B10 (E34) (04.1988 - 04.1995) 4.6 (340 HP, 250 kW)

ALPINA B10 (E39) (12.1996 - 05.2004) 3.2 (260 HP, 191 kW)

ALPINA B10 (E39) (12.1996 - 05.2004) 4.6 V8 (340 HP, 250 kW)

ALPINA B10 (E39) (12.1996 - 05.2004) 4.6 V8 (347 HP, 255 kW)

ALPINA B10 Touring (E34) (11.1993 - 04.1996) 4.0 (316 HP, 232 kW)

ALPINA B10 Touring (E34) (11.1993 - 04.1996) 4.6 (340 HP, 250 kW)

ALPINA B10 Touring (E39) (01.1997 - 05.2004) 3.2 (260 HP, 191 kW)

ALPINA B10 Touring (E39) (01.1997 - 05.2004) 4.6 V8 (340 HP, 250 kW)

ALPINA B10 Touring (E39) (01.1997 - 05.2004) 4.6 V8 (347 HP, 255 kW)

ALPINA B11 (E32) (01.1987 - 02.1994) 4.0 (316 HP, 232 kW)

ALPINA B3 (E36) (04.1993 - 04.1999) 3.0 (250 HP, 184 kW)

ALPINA B3 (E36) (04.1993 - 04.1999) 3.2 (265 HP, 195 kW)

ALPINA B3 Cabriolet (E36) (04.1993 - 03.1999) 3.0 (250 HP, 184 kW)

ALPINA B3 Cabriolet (E36) (04.1993 - 03.1999) 3.2 (265 HP, 195 kW)

ALPINA B3 Coupe (E36) (04.1996 - 03.1999) 3.2 (265 HP, 195 kW)

ALPINA B3 Touring (E36) (04.1993 - 03.1999) 3.0 (250 HP, 184 kW)

ALPINA B3 Touring (E36) (04.1993 - 03.1999) 3.2 (265 HP, 195 kW)

ALPINA B8 (E36) (01.1995 - 03.1998) 4.6 (333 HP, 245 kW)

ALPINA B8 Cabriolet (E36) (01.1995 - 11.1998) 4.6 (333 HP, 245 kW)

ALPINA B8 Coupe (E36) (01.1995 - 03.1998) 4.6 (333 hp, 245 kW)

ALPINA B8 Touring (E36) (01.1995 - 03.1998) 4.6 (333 HP, 245 kW)

ALPINA ROADSTER V8 (E52) (06.2002 - 10.2003) 4.8 V8 (381 HP, 280 kW)

BENTLEY ARNAGE (RBS_) (03.1998 - 12.2013) 4.4 V8 (354 HP, 260 kW)

BMW 5 (E34) (02.1987 - 12.1995) 530 i (218 hp, 160 kW)

BMW 5 (E34) (02.1987 - 12.1995) 530 i V8 (218 HP, 160 kW)

BMW 5 (E34) (02.1987 - 12.1995) 540 i V8 (286 hp, 210 kW)

BMW 5 (E39) (09.1995 - 06.2003) 535 i (235 hp, 173 kW)

BMW 5 (E39) (09.1995 - 06.2003) 535 i (245 hp, 180 kW)

BMW 5 (E39) (09.1995 - 06.2003) 540 i (286 hp, 210 kW)

BMW 5 Touring (E34) (07.1991 - 07.1996) 530 i (218 HP, 160 kW)

BMW 5 Touring (E34) (07.1991 - 07.1996) 540 i (286 hp, 210 kW)

BMW 5 Touring (E39) (11.1996 - 06.2004) 540 i (286 hp, 210 kW)

BMW 7 (E32) (03.1985 - 10.1994) 730 i,iL V8 (218 HP, 160 kW)

BMW 7 (E32) (03.1985 - 10.1994) 740 i,iL V8 (286 HP, 210 kW)

BMW 7 (E38) (03.1994 - 11.2001) 730 i, iL (211 hp, 155 kW)

BMW 7 (E38) (03.1994 - 11.2001) 730i, iL (218 hp, 160 kW)

BMW 7 Series (E38) (03.1994 - 11.2001) 735i, iL (235 hp, 173 kW)

BMW 7 Series (E38) (03.1994 - 11.2001) 735i, iL (238 hp, 175 kW)

BMW 7 Series (E38) (03.1994 - 11.2001) 740i, iL (286 hp, 210 kW)

BMW 8 Series (E31) (08.1992 - 12.1999) 840Ci (286 hp, 210 kW)

BMW 8 Series (E31) (08.1992 - 12.1999) 840 i (286 hp, 210 kW)

BMW X5 (E53) (01.2000 - 12.2006) 4.4 i (286 HP, 210 kW)

BMW X5 (E53) (01.2000 - 12.2006) 4.6 is (347 HP, 255 kW)

BMW X5 (E53) (01.2000 - 12.2006) 4.6 is (355 HP, 261 kW)

LAND ROVER RANGE ROVER III (L322) (03.2002 - 12.2012) 4.4 4x4 (286 HP, 210 kW)

LAND ROVER RANGE ROVER III (L322) (03.2002 - 12.2012) 4.4 4x4 (288 HP, 212 kW)
