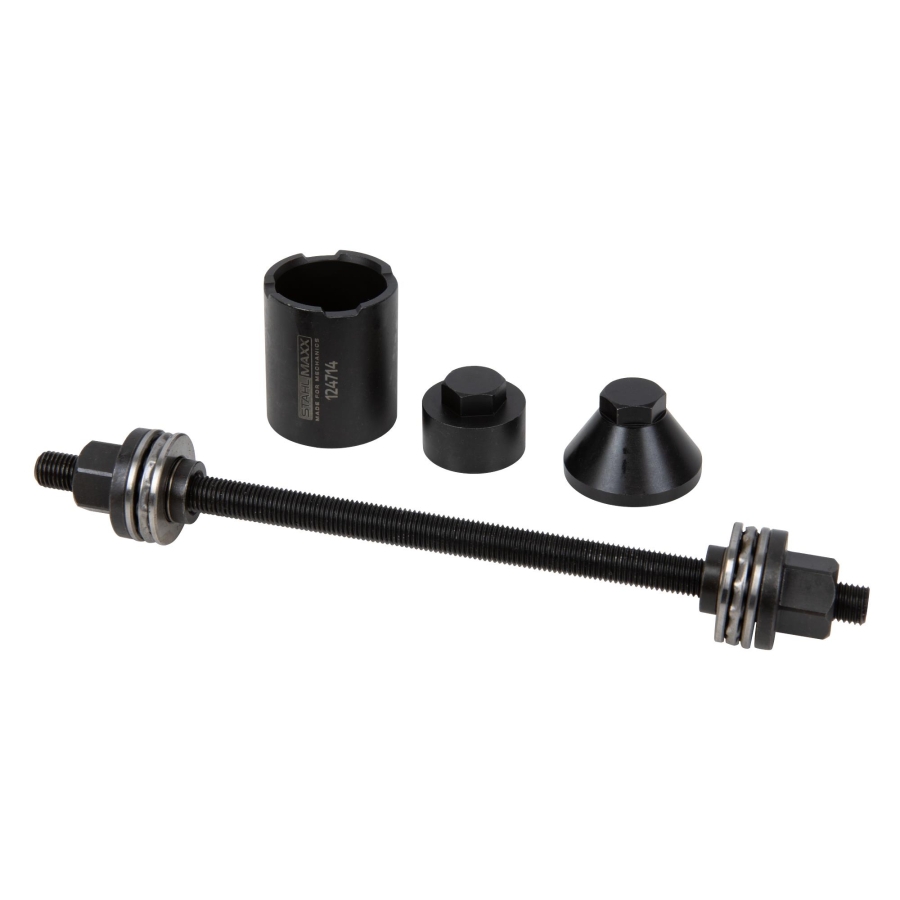

Rear Axle Trailing Arm Bush Removal & Installation Tool for BMW

Price: €55.50 108.55лв.

Code:

124714
Weight:

0.965 Kgs

Overview:
✔ Special tool for removing and installing rear axle trailing arm bushes
✔ Allows bush replacement directly on the vehicle
✔ Suitable for BMW 1, 2, 3 and 4 Series models
✔ Designed for rear trailing arm bushes mounted in the wheel carrier
✔ Enables fast servicing with minimal dismantling
✔ Compatible with OEM tool references 2240471, 2240472 and 2240466

Rear Axle Trailing Arm Bush Removal & Installation Tool for BMW

Send to friend

Rate this product

This professional special tool set is designed for the removal and installation of rear axle rubber bushes located in the rear trailing arm wheel carrier assembly on BMW vehicles.

The rear axle rubber bushes are a common source of knocking, squeaking and friction noises, alongside worn ball joint bearings. With this tool set, the rearmost suspension bush can be replaced quickly and efficiently without removing the complete wheel carrier assembly.

Only the rear sheet metal brace needs to be removed to gain access. The removal and installation process is performed using a threaded spindle system, allowing controlled extraction and installation directly on the vehicle.

Due to the limited space around the brake caliper carrier and brake disc dust shield, specially designed adapters are required to perform the repair efficiently and according to workshop standards.

Applications

Suitable for:

Rear axle trailing arm bushes
Rear wheel carrier rubber bushes
Rear suspension bush replacement
Rear axle repair and maintenance

Vehicle Compatibility

BMW

1 Series: F20, F21
2 Series: F22, F23, F87
3 Series: F30, F31, F34, F80
4 Series: F32, F33, F36, F82, F83

Compatible Replacement Parts

Suitable for servicing bushes with the following reference numbers:

BMW

33 32 6 792 525
33 32 6 792 551

Lemförder

45710 01

Febi Bilstein

39088

Tool References

Designed for use as:

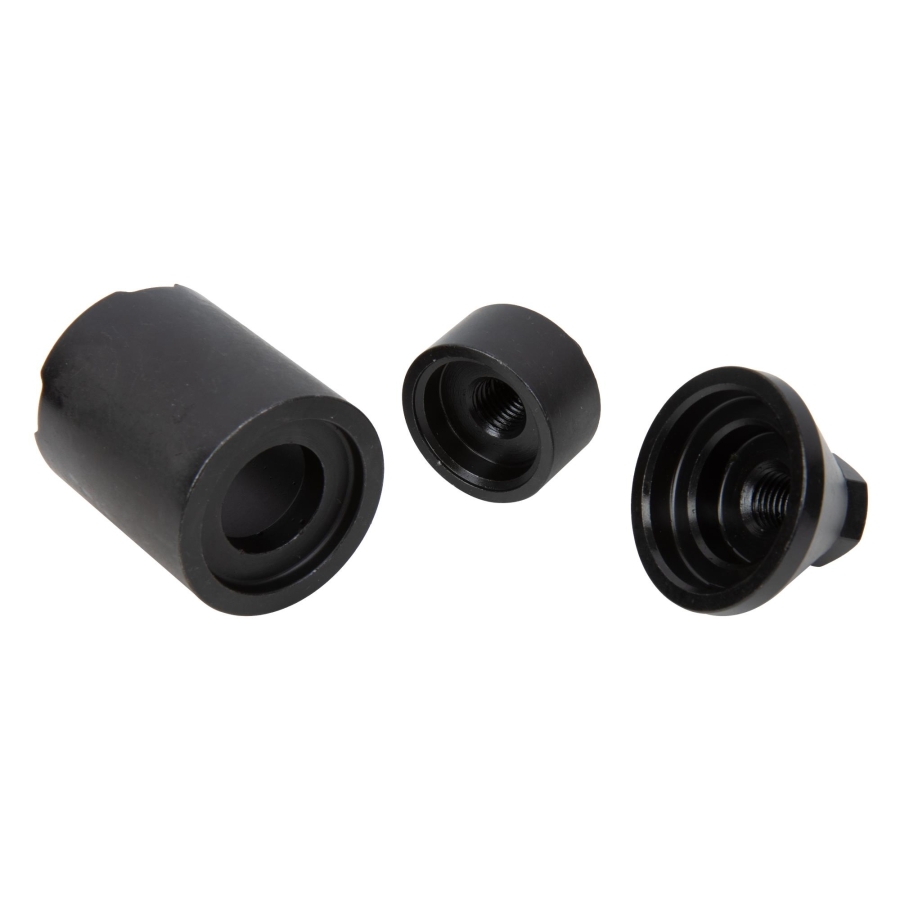

Removal washer as 83302240466, 2240466
Sleeve for bush removal and installation as 83302240471, 2240471
Installation washer as 83302240472, 2240472

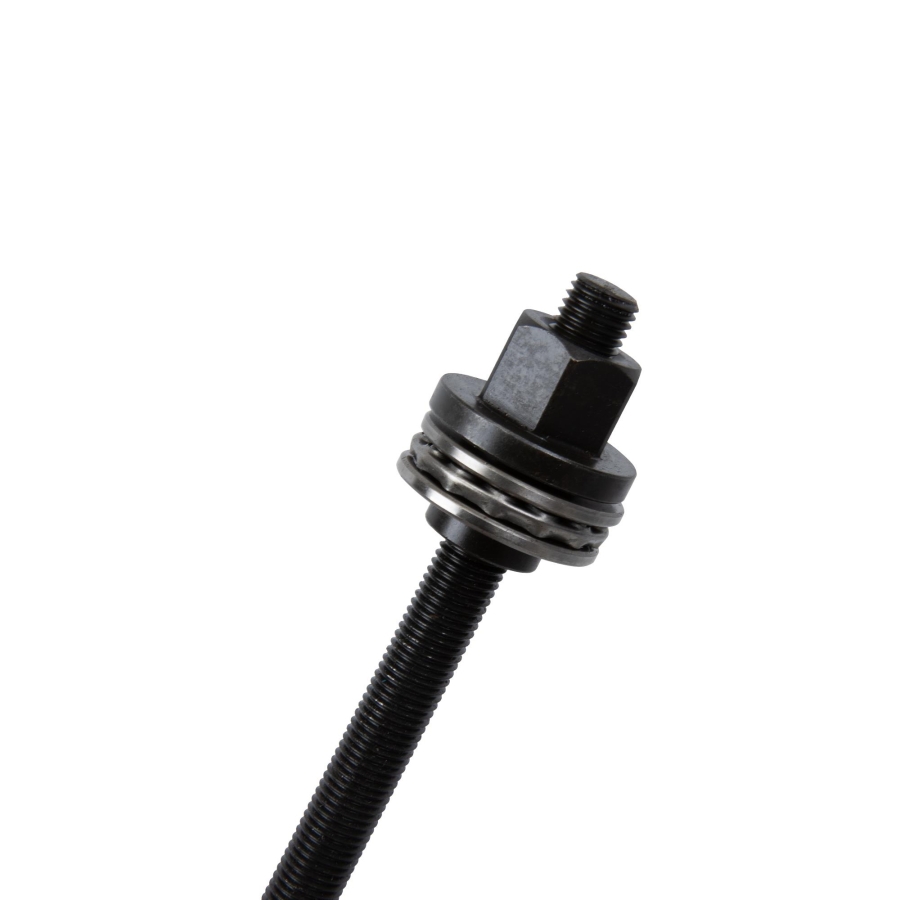

Spindle M12 x 1.5 as 83300496552, 333010

Features

Steelmaxx quality tool
Designed based on the original special service tool
Removal and installation according to OE repair procedures
Suitable for professional workshop use
Allows direct servicing on the vehicle

Installation Notes

Removal and installation must always be performed from rear to front.
The slot in the rubber bush must be positioned vertically upwards during installation.
All suspension fasteners must be tightened with the vehicle at normal ride height.

Torque Specification

Inner and outer trailing arm mounting nut: 100 Nm

Available Spare Part

Item No. 123983

Replacement spindle M12 x 1.5, length 250 mm, supplied with bearing-supported nuts.

OEM numbers and reference numbers are provided for identification and comparison purposes only. This product is not an original BMW tool.
