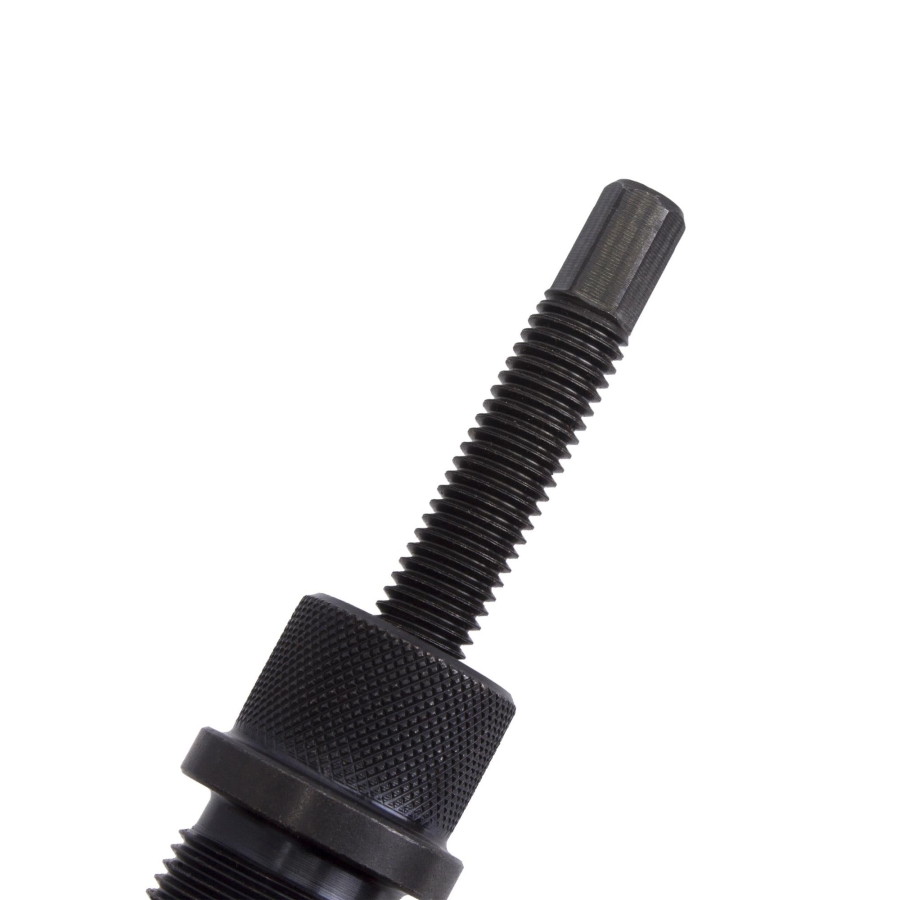

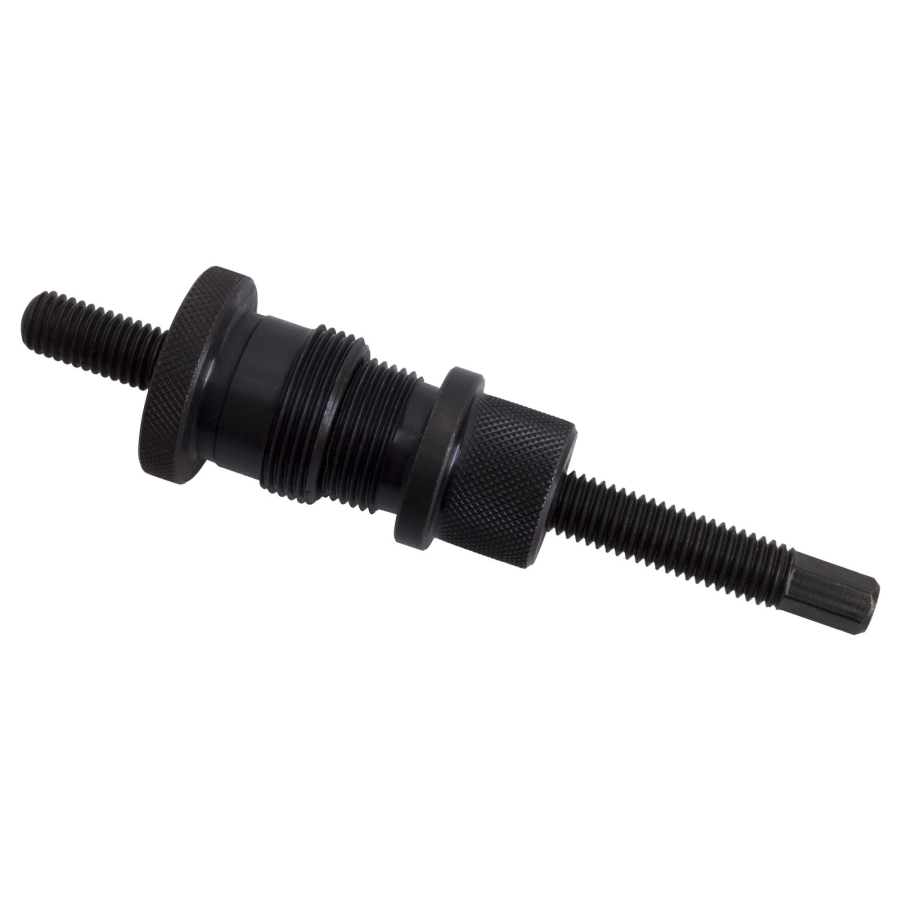

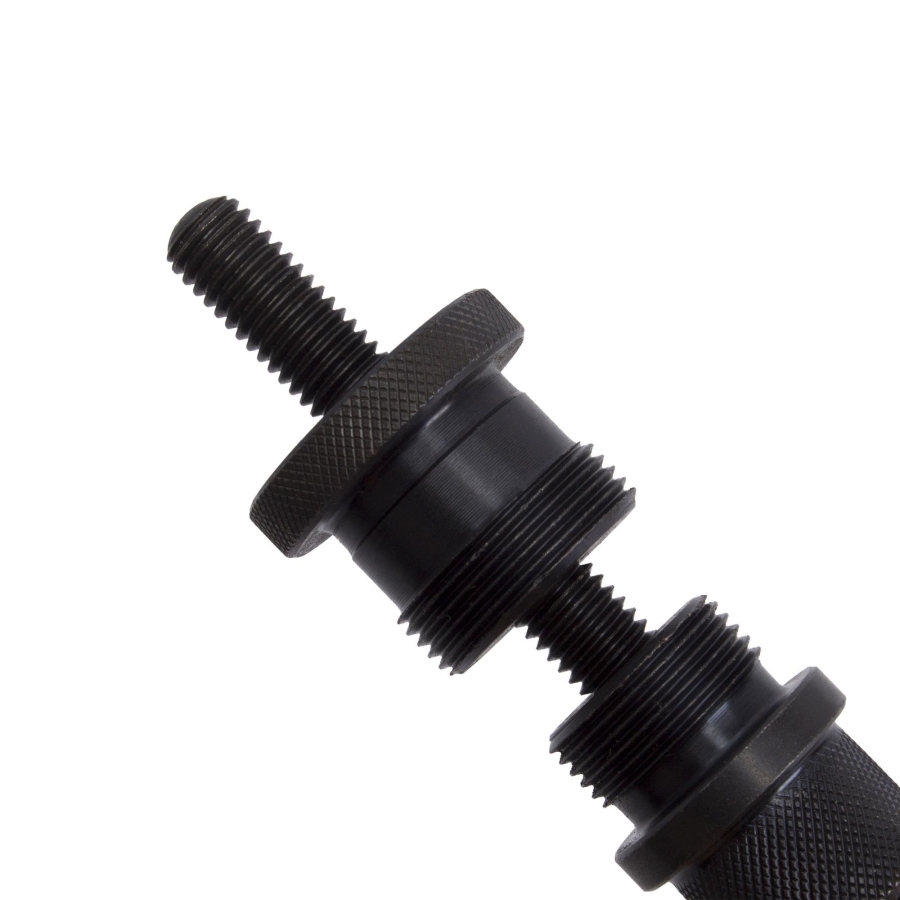

Timing Chain Tensioning Tool for BMW M50 / M52 / M54 / M56 / M60 / M62 / S50 / B30 – as 113390 / 114220

This special tool is designed for tensioning the timing chain during engine service procedures on various BMW engines.

It is used to apply the correct tension to the timing chain when setting valve timing, ensuring accurate alignment and preventing timing errors during assembly or repair.

---

Key Features

• Ensures correct timing chain tension during setup
• Supports precise valve timing adjustment
• Reduces risk of timing misalignment
• Suitable for a wide range of BMW engines
• Durable construction for workshop use

---

Compatibility

Suitable for BMW engines:

• M50, M52, M52TU, M54, M56
• M60, M62
• S50, B30

---

Engine codes:

• F2/1 (M60B46)
• M50B20 (206S1, 206S2), M50B25 (256S1, 256S2), M50B26A
• M52B20 (206S3, 206S4), M52B25 (256S3, 256S4), M52B25TU
• M52B28 (286S, 286S1, 286S2, 286S7T, 286ST5)
• M54B22 (226S1), M54B25 (256S5), M54B30 (306S3)
• M62B35 (358S1, 358S2), M62B44, M62B44 (448S1, 448S2)
• M62B46 (468S1, 468S4K, 468S72), M62B48 (488S2)
• M73B48 (488S12)
• M54256S5, M54306S3, M62408S3, M62448S3
• S50B30 (306S1, 306S2), S50B32 (326S1)

---

Reference Numbers

• as BMW 113390
• as BMW 114220

---

Scope of Delivery

• Timing chain tensioning tool



These OEM numbers are for reference purposes only and do not imply that the tool is an original product.
