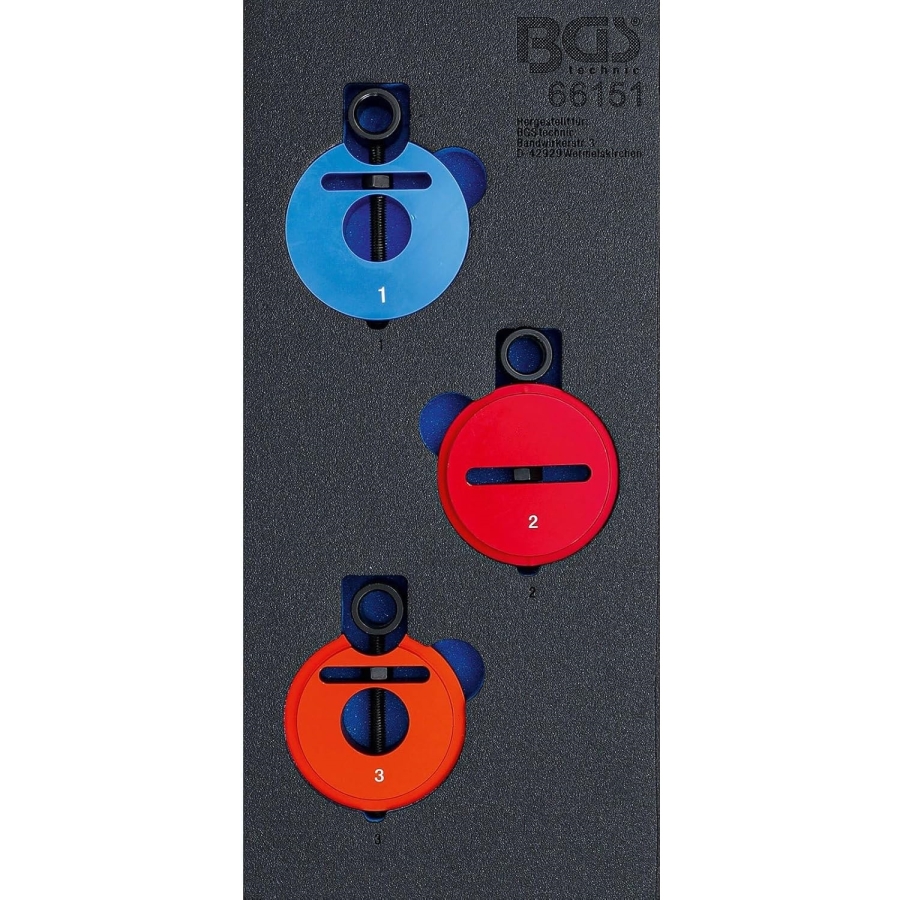

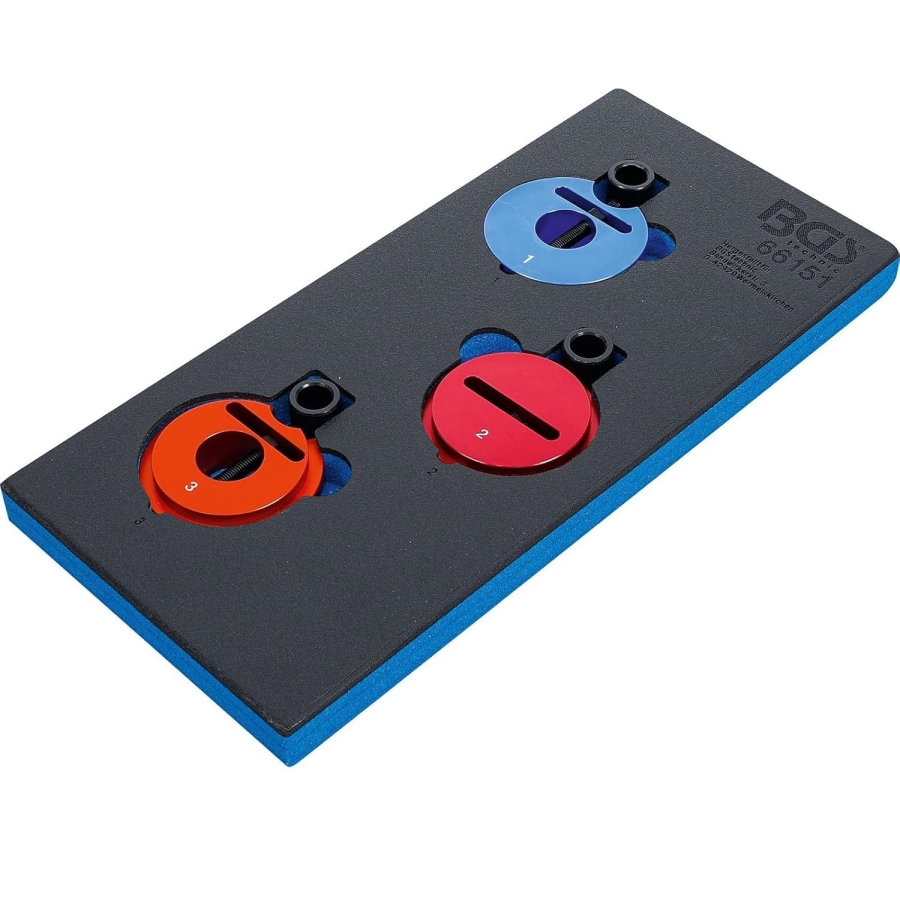

Camber Adjustment Tool Set for BMW

This adjustment tool set simplifies camber adjustment on selected BMW vehicles. The tool remains attached to the suspension strut while the fasteners are tightened, eliminating the need for additional adjustments after tightening.

This design allows accurate and efficient camber setting during suspension and wheel alignment procedures.

Technical Specifications

• Manufactured from aluminum
• Designed for camber adjustment
• Remains installed during tightening of suspension fasteners

Vehicle Compatibility

Suitable for the following BMW models:

• E38
• E39
• E46
• E53
• E60
• E61
• E63
• E64
• E65
• E66
• E67
• E81
• E83
• E85
• E86
• E87
• E90
• E91
• E92
• E93

Applications

Designed for camber adjustment during wheel alignment, suspension servicing, and repair procedures on compatible BMW vehicles.

WHEEL CAMBER

Camber is the angle between the wheel centerline plane and a line perpendicular to the road surface.

APPLICATION

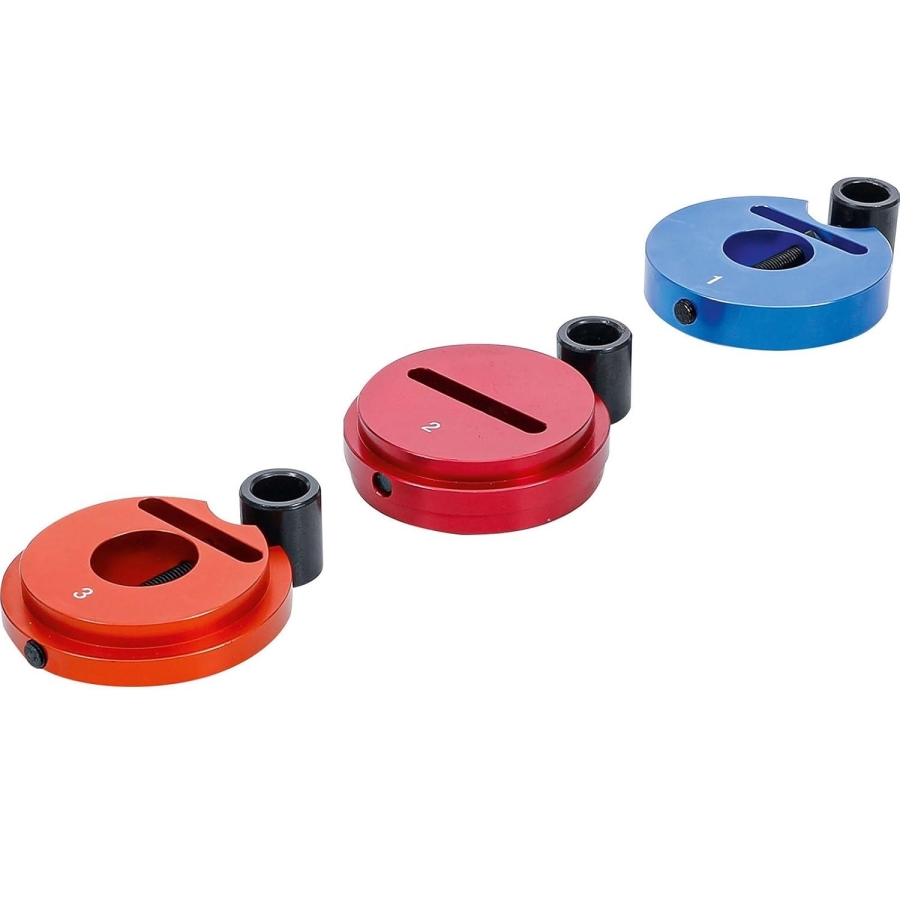

Camber Adjustment Tool (1)
For BMW models:
E60, E61, E63, E64

Camber Adjustment Tool (2)
For BMW models:
E65, E66, E67, E81, E83, E85, E87, E90, E91, E92, E93

Camber Adjustment Tool (3)
For BMW models:
E38, E39, E46, E53, E65, E66, E67, E81, E83, E85, E86, E87, E90, E91, E92, E93

Instructions for Use

1. Loosen the strut mounting nuts (A).
2. Position the camber adjustment tool on the strut tower (E).
3. Apply slight preload to the camber adjustment tool using the adjustment nut (D).
4. Loosen the two accessible strut mounting nuts (B).
5. Remove the rivet (C) from the strut tower (E), if present.
6. Adjust the camber to the desired specification using the adjustment nut (D).
7. Tighten the two accessible strut mounting nuts (B).
8. Remove the tool and tighten the remaining strut mounting nut (A).
