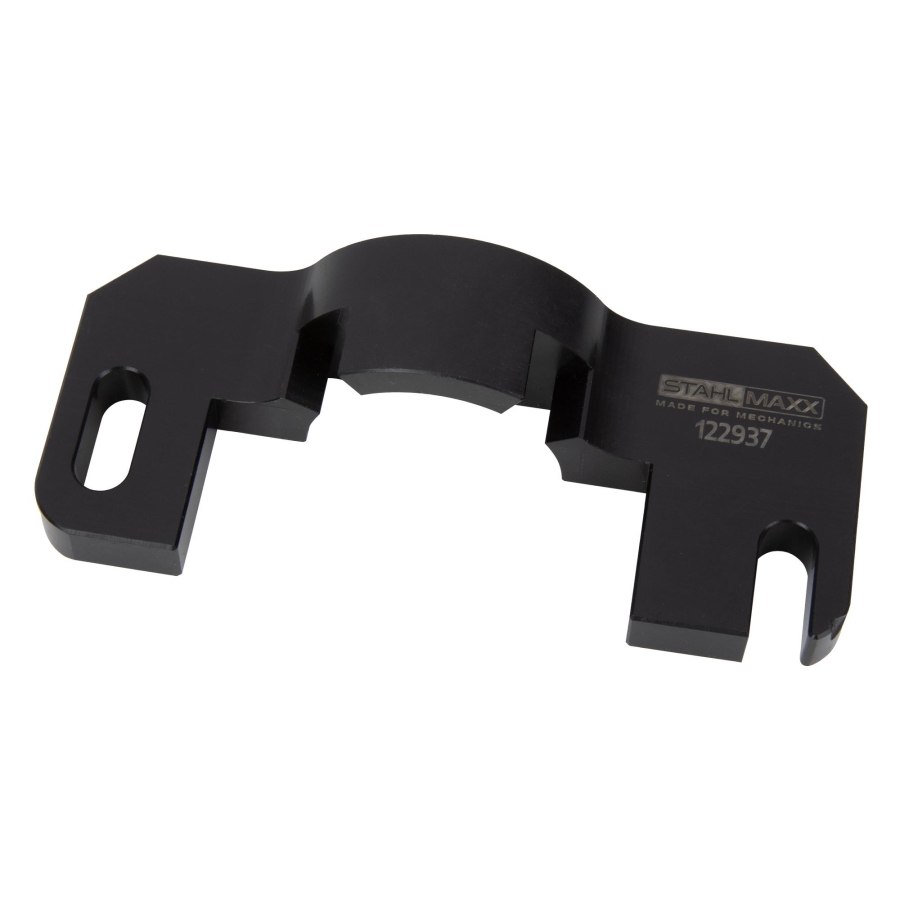

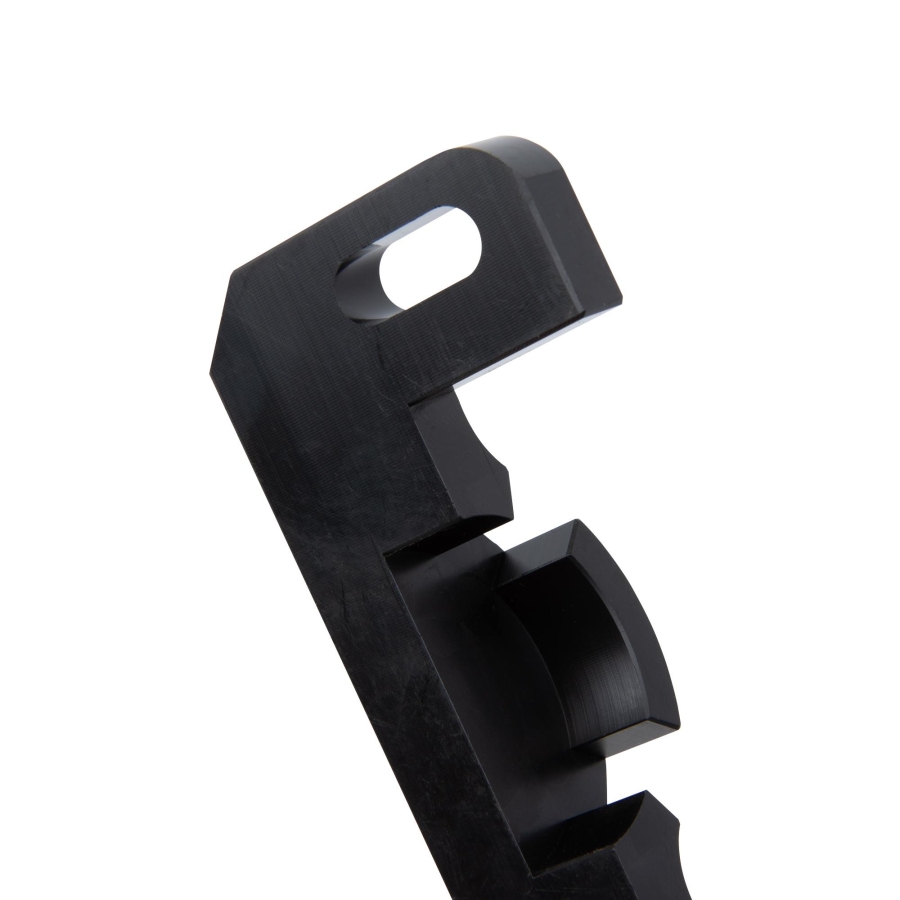

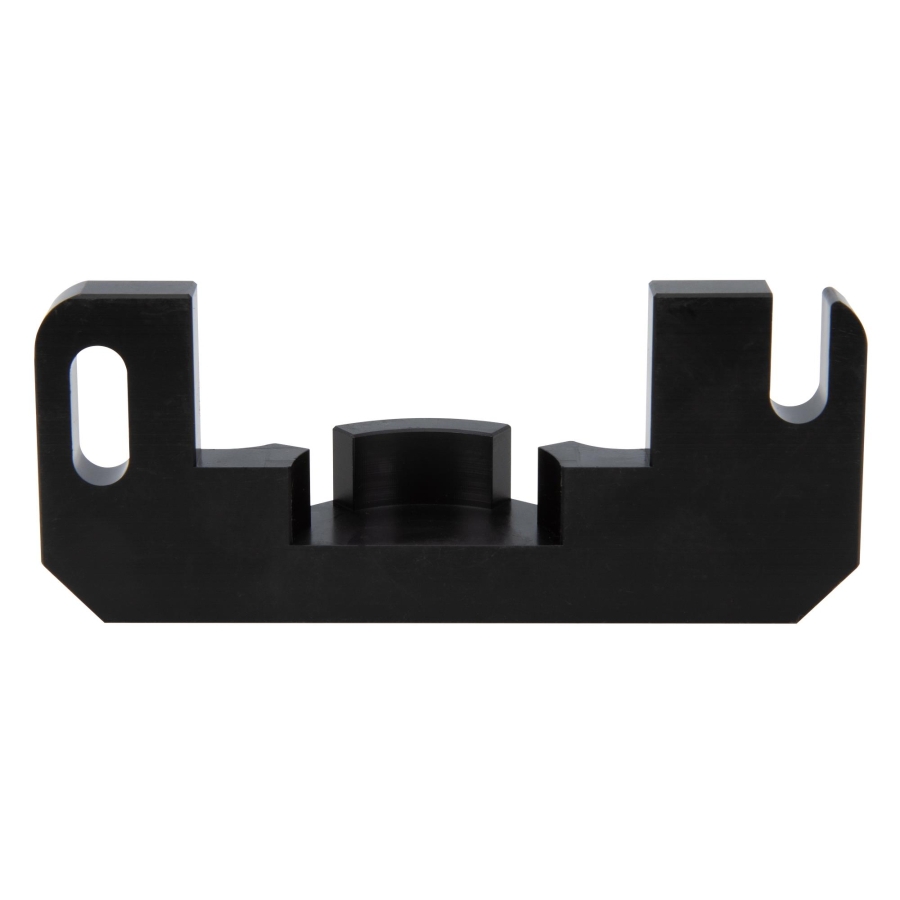

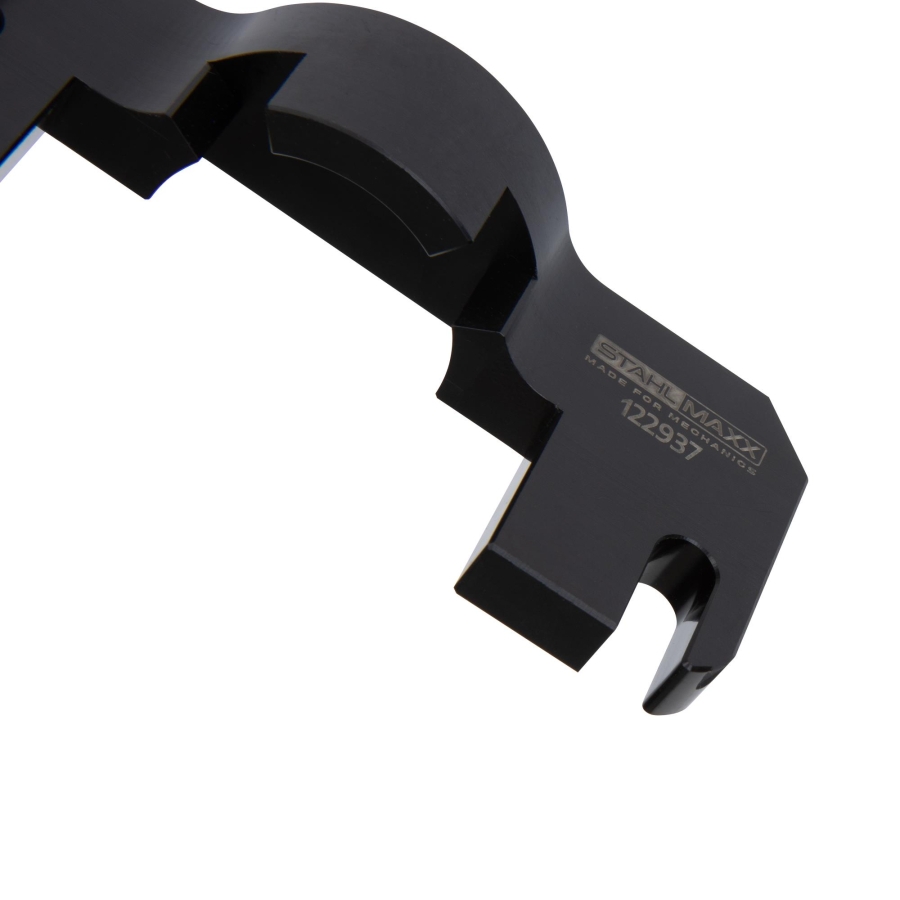

Camshaft Locking Tool for Alfa Romeo / Fiat / Lancia 1.0 L FireFly Engines, as 2072000090
-
Code:122937
-
Weight:0.047 Kgs
Overview:
✔ For correctly aligning and locking the camshaft
✔ Suitable for 1.0 L 3-cylinder FireFly engines
✔ Positioned on the transmission side via the sensor trigger profile
✔ Required for timing-chain replacement
✔ Suitable for removing the camshaft and camshaft adjuster
✔ Compatible with engine code 46341162
✔ Use as 2072000090 / 2.072.000.090
This special tool is used to set and lock the camshaft in the correct position on 1.0 L 3-cylinder FireFly engines. It is installed on the transmission side and positioned over the camshaft sensor trigger profile.
The camshaft locking tool is required when replacing the timing chain and when removing the camshaft or camshaft adjuster.
Compatible Vehicles
Fiat:
- 500
- 500C
- Panda
Lancia:
- Ypsilon
Compatible Engine Code
46341162 / 463 41 162
Reference Numbers
Use as 2072000090 / 2.072.000.090.
The original numbers are provided for identification purposes only. This is not an original manufacturer tool.
