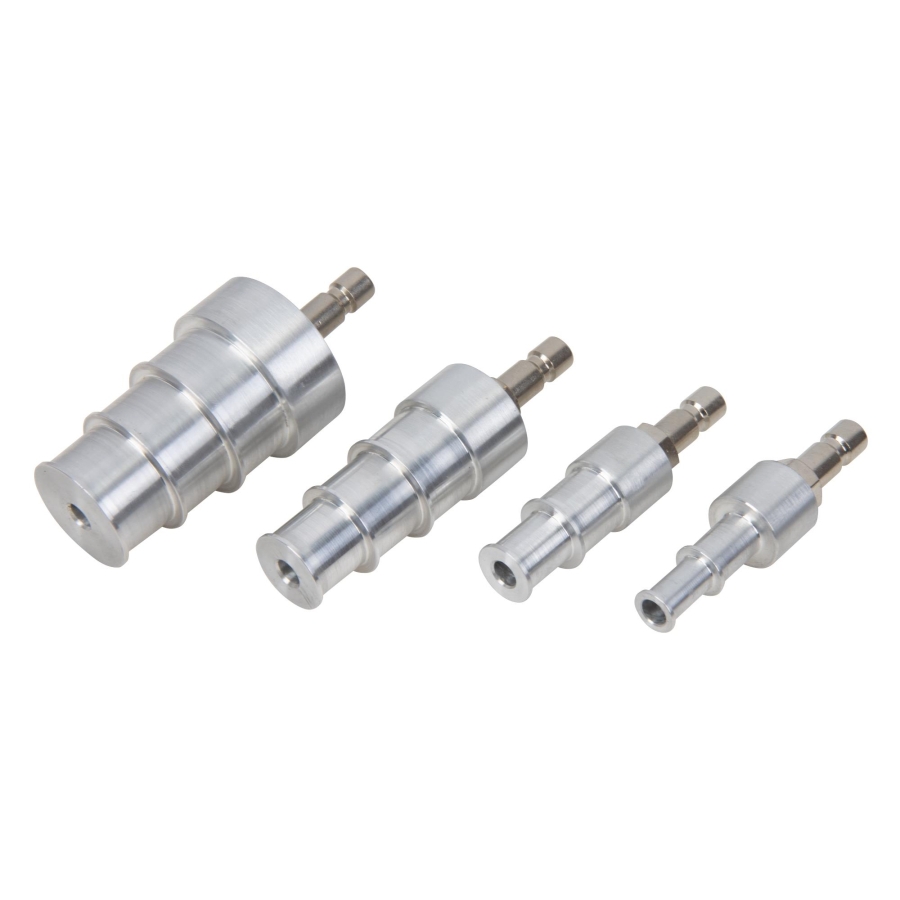

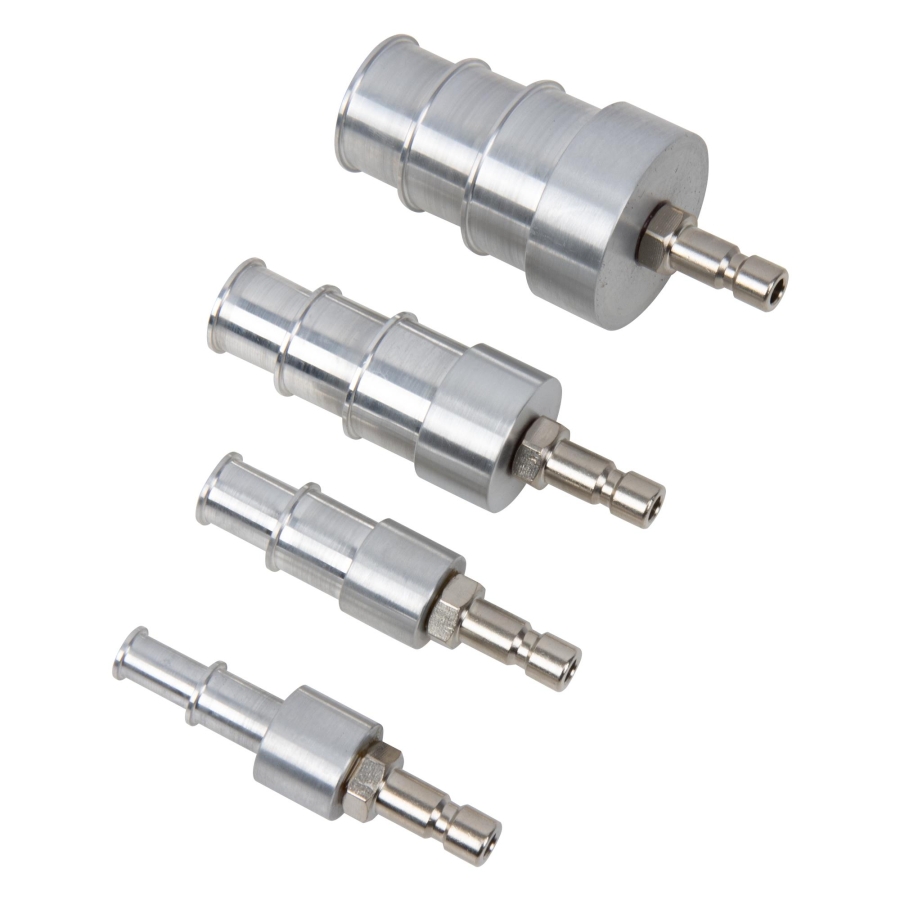

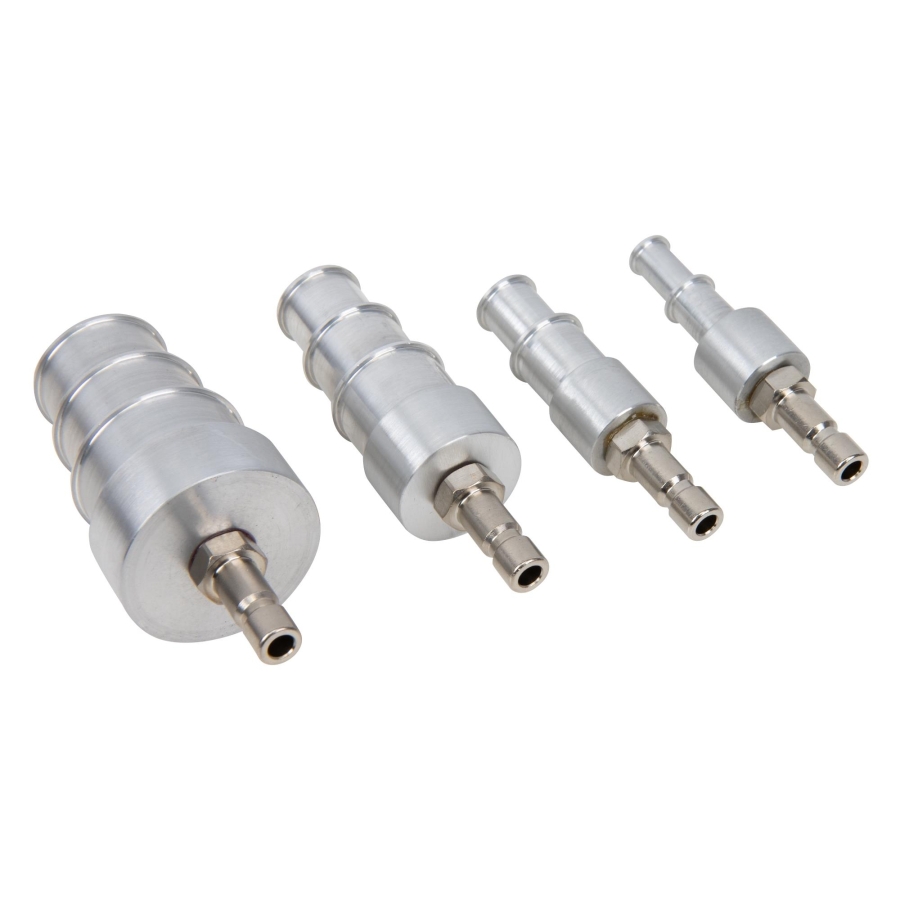

Cooling System Pressure Test Adapter Set, Stepped 8–32 mm | 4 pcs | as VAG 1274B/14

Price: €59.95 117.25лв.

Code:

124378
Weight:

0.291 Kgs

Overview:
✔ Professional stepped adapters for cooling system diagnostics
✔ Designed for intercooler, EGR cooler, and transmission oil cooler testing
✔ Covers diameters from 8 mm to 32 mm
✔ Enables isolated pressure testing of individual components
✔ Compatible with coolant pressure testers and pumps
✔ Suitable for VAG applications and universal use
✔ item.no. set includes 4 adapters with multiple step sizes

Cooling System Pressure Test Adapter Set, Stepped 8–32 mm | 4 pcs | as VAG 1274B/14

Send to friend

Rate this product

This adapter set is specifically designed for pressure testing coolant-cooled components with smaller hose connections. It allows isolated diagnostics of individual components such as intercoolers, EGR coolers, and transmission oil coolers, which cannot always be accurately tested via the expansion tank.

Accurate Diagnosis of Hidden Coolant Loss

In cases of gradual coolant loss without visible external leaks, this tool enables precise testing of suspected components. It is particularly effective for identifying internal leaks in:

EGR coolers
Charge air intercoolers
Transmission oil coolers

Controlled Testing Procedure

Testing is performed by sealing one side of the system using hose clamp pliers or hose clamps, while applying pressure through the stepped adapter on the opposite side.

Each adapter features a connector nipple compatible with standard coolant pressure testing kits and pressure pumps.

Manufacturer-Specified Testing Method

The application follows OEM diagnostic procedures. Example test reference:

Engine: 2.0L BiTDI (engine code DAUA)
Test pressure: approx. 2 bar
Allowed pressure drop: max. 0.2 bar within 10 minutes

This ensures reliable and workshop-grade diagnostics according to manufacturer standards.

Wide Compatibility and OEM Reference

Designed for use as VAG 1274B/14 (includes item.no. 1274/14-1, 1274/14-2, 1274/14-3, 1274/14-4), but fully suitable for universal vehicle applications.
