Crankshaft Pulley Puller (Non-Threaded) for Ford 2.0 EcoBlue TDCi – as 204-158-01, 303-D121

This specialized puller is designed for removing crankshaft pulleys without threaded holes on Ford 2.0L EcoBlue TDCi engines. It allows safe and controlled extraction of the vibration damper, even when tightly seated on the crankshaft.

Operation

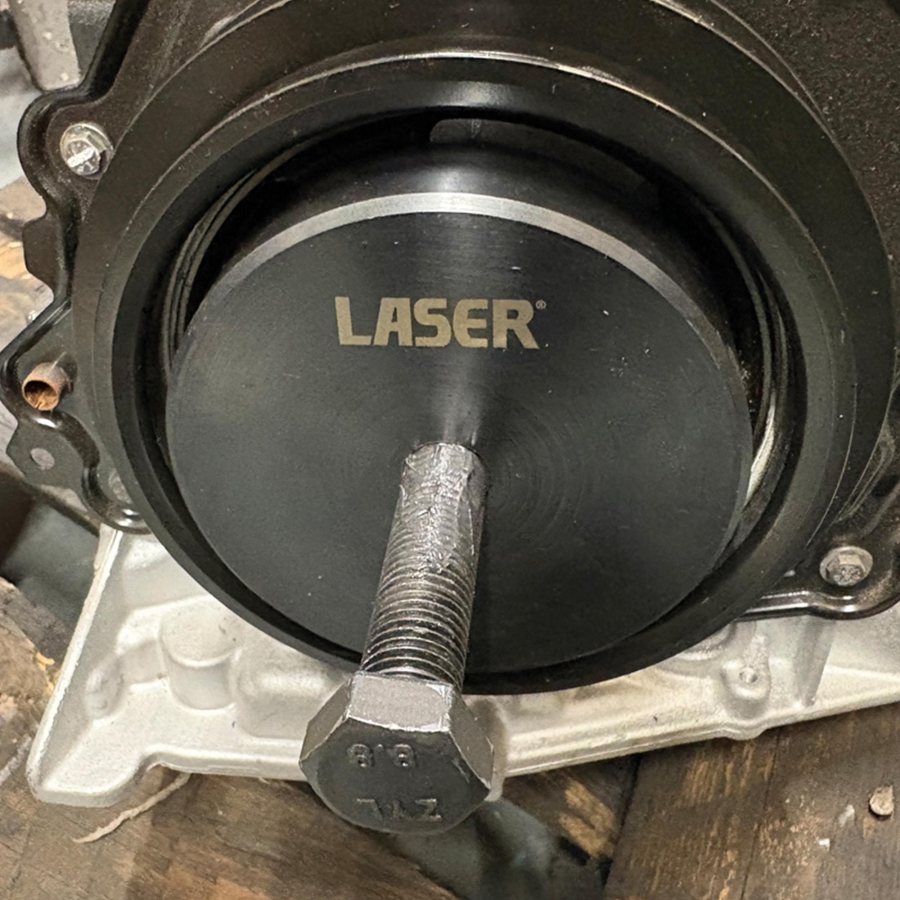

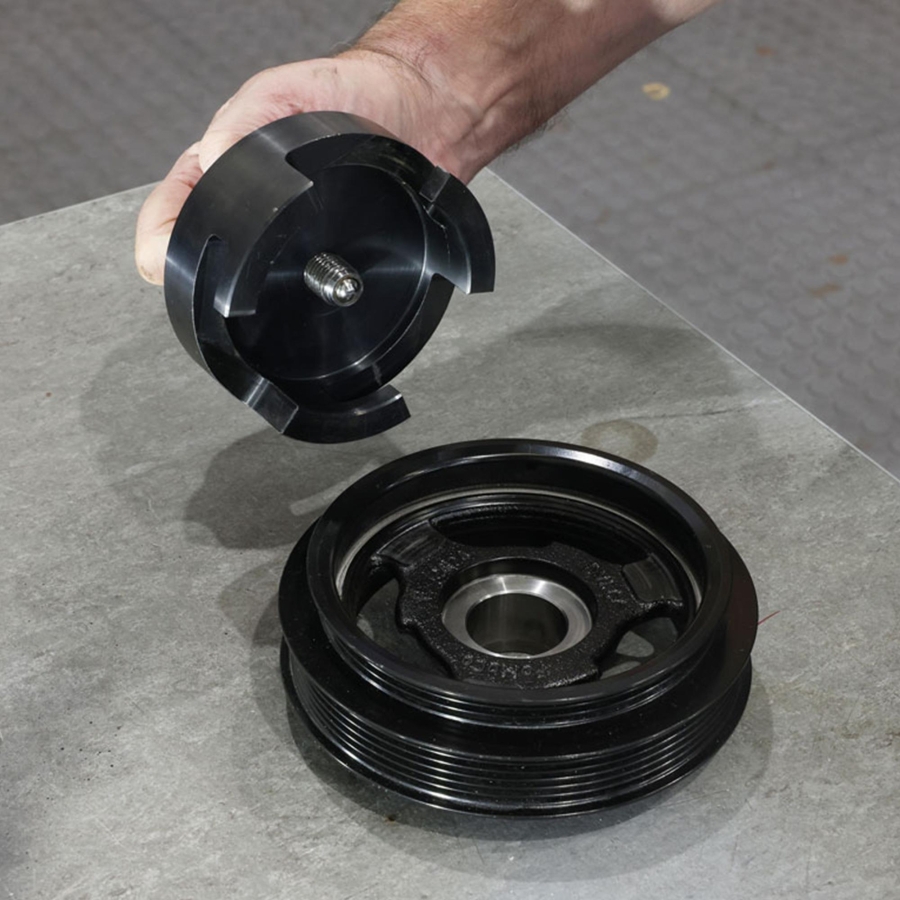

After removing the central crankshaft bolt, a protective adapter is inserted into the crankshaft bore. The puller’s central spindle is then used to apply controlled force, allowing the pulley to be removed without damaging the crankshaft or surrounding components.

Application

Required during:

• Timing belt replacement (belt-in-oil systems)

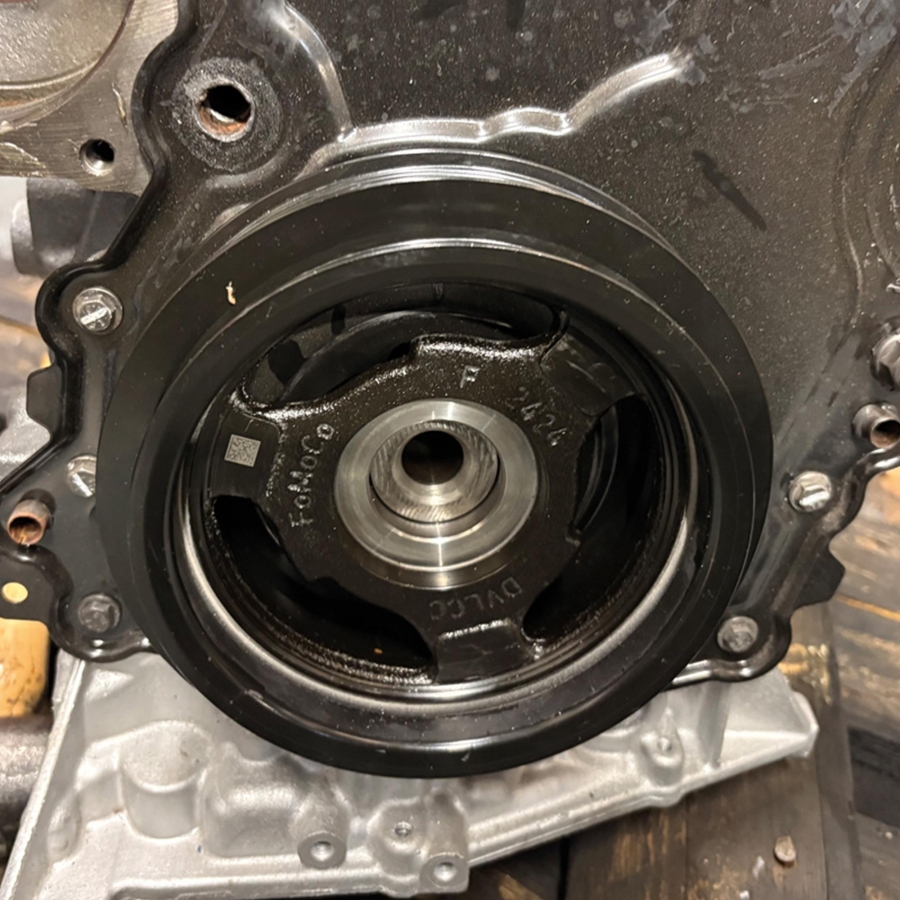

• Removal of crankshaft pulley / vibration damper
• Engine service and repair procedures

Compatibility – Vehicles

• Ford Transit (from 2023)
• Ford Ranger (from 2023)

Compatibility – Engine Codes

YLCC, BCCC, YLDA, BCCD, YMCB, BCDA, YMCC, P02X, YN2R, YLCB, YN2X, YNCA

Compatibility – Pulley Reference

Suitable for crankshaft pulleys as:

• Ford: 2789483

Reference Numbers

Used as:

• Ford: 204-158-01
• Ford: 204-158
• Ford: 303-D121

Scope of Delivery

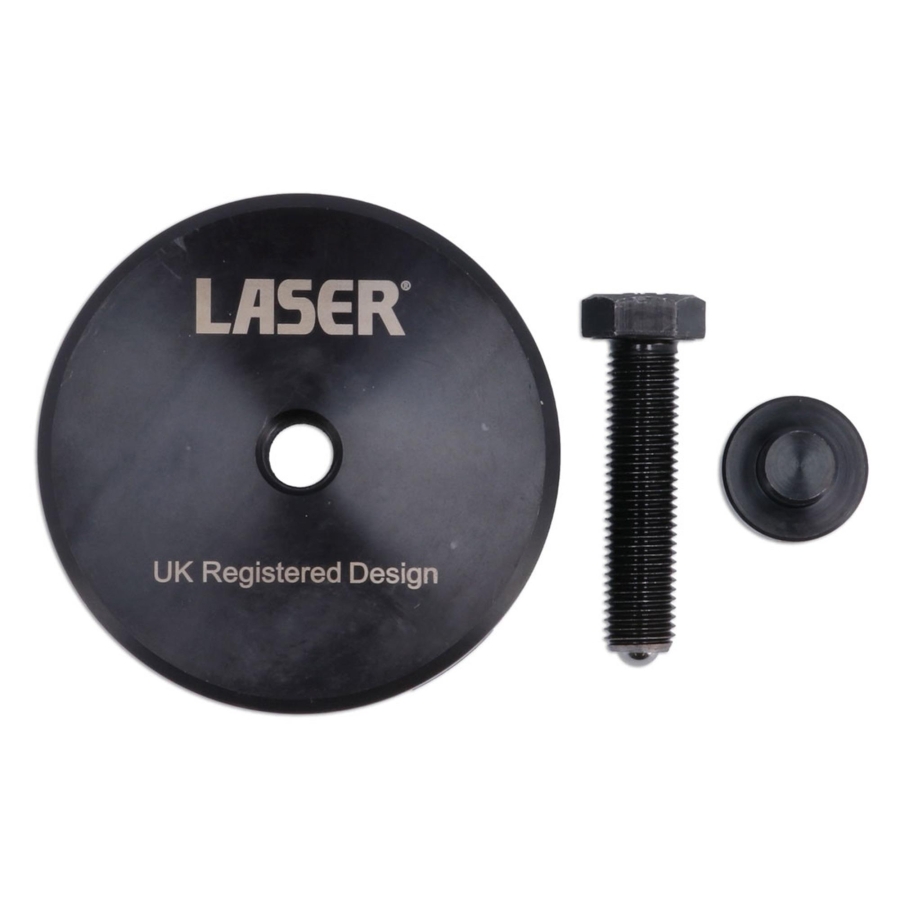

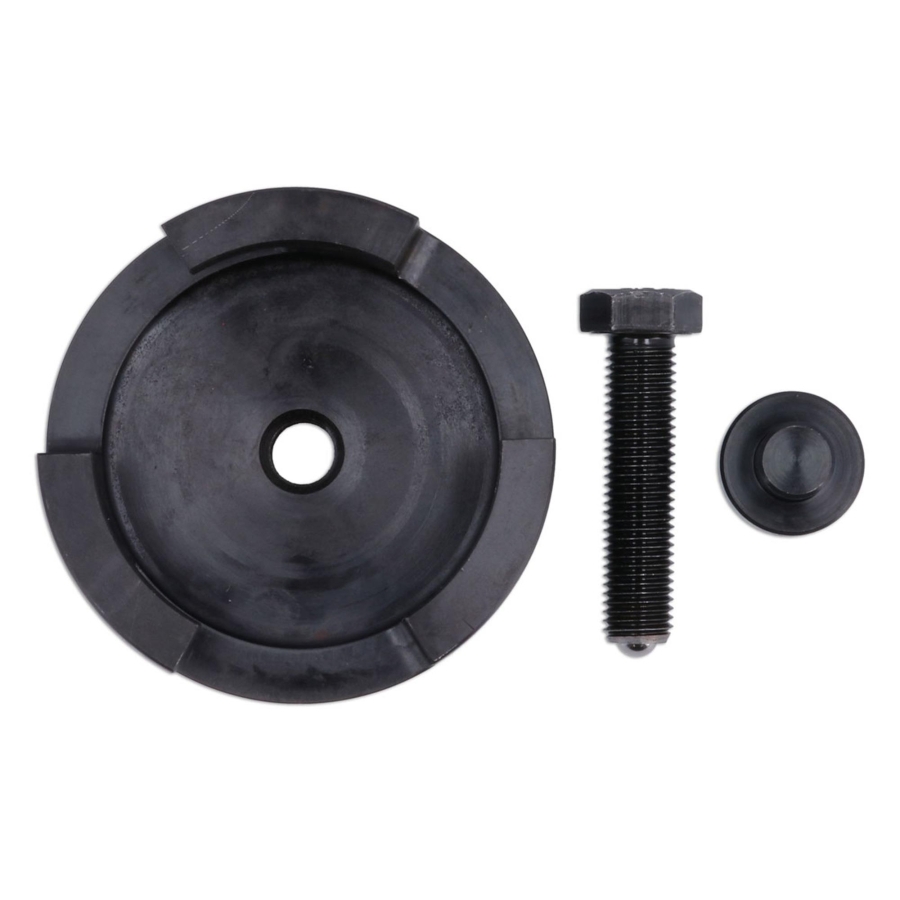

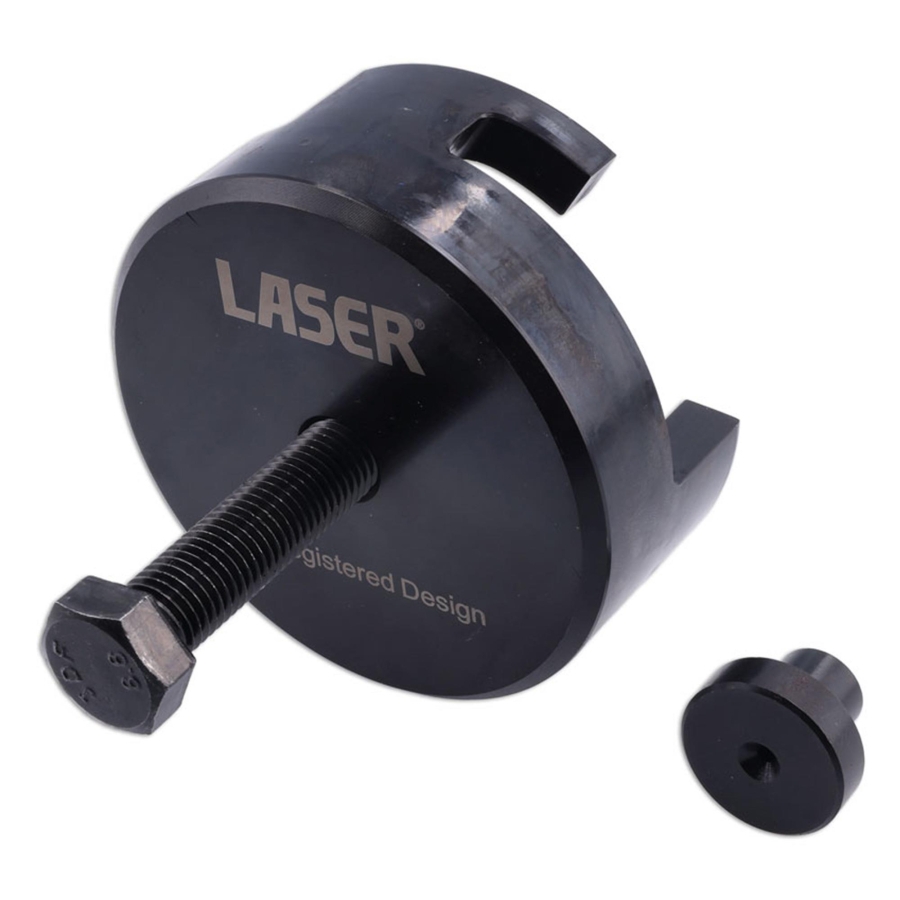

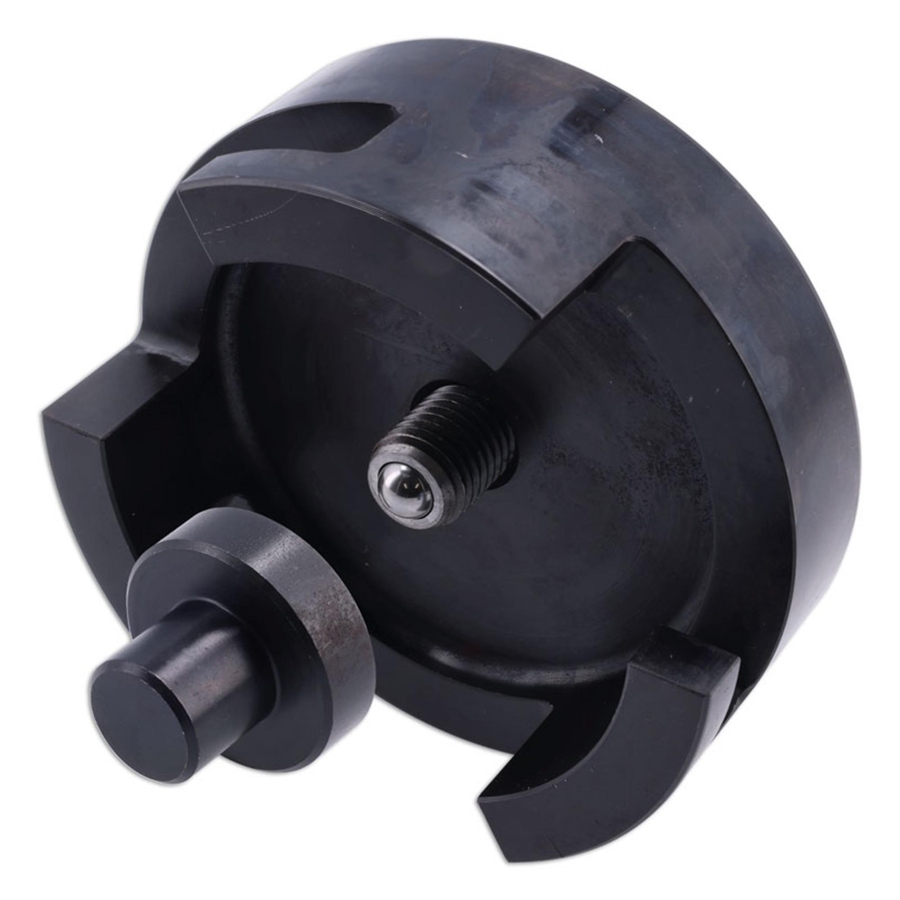

• 1 × Crankshaft pulley puller (non-threaded type)

Additional Tools (Not Included)

• item.no. 118467 Timing tool set for Ford 2.0 EcoBlue TDCi (belt-in-oil)

Optional additional pullers for other pulley variants:

• item.no. 121264 Puller for crankshaft pulley with 2 threaded holes (as Ford 204-158-01)
• item.no. 123021 Puller with central internal thread for 2.0 EcoBlue TDCi (from 2019) as Ford 303-1657

The OEM reference numbers are for identification purposes only. This tool is not an original OEM product.

FORD FOCUS IV (HN) (01.2018 - ) 2.0 EcoBlue (150 HP, 110 kW)

FORD FOCUS IV (HN) (01.2018 - ) 2.0 ST EcoBlue (190 HP, 140 kW)

FORD FOCUS IV Tournament (HP) (09.2018 - ) 2.0 EcoBlue (150 HP, 110 kW)

FORD FOCUS IV Tournament (HP) (09.2018 - ) 2.0 ST EcoBlue (190 HP, 140 kW)

FORD GALAXY (CK) (01.2015 - 06.2018) 2.0 EcoBlue (120 HP, 88 kW)

FORD GALAXY (CK) (01.2015 - 06.2018) 2.0 EcoBlue (150 HP, 110kW)

FORD GALAXY (CK) (01.2015 - 06.2018) 2.0 EcoBlue (190 HP, 140 kW)

FORD GALAXY (CK) (01.2015 - 06.2018) 2.0 EcoBlue 4x4 (150 HP, 110 kW)

FORD GALAXY (CK) (01.2015 - 06.2018) 2.0 EcoBlue 4x4 (190 HP, 140 kW)

FORD GALAXY (CK) (01.2015 - 06.2018) 2.0 EcoBlue Bi-Turbo (240 HP, 176 kW)

FORD GALAXY MK III VAN (CK) (03.2019 - ) 2.0 EcoBlue (150 HP, 110 kW)

FORD GALAXY MK III VAN (CK) (03.2019 - ) 2.0 EcoBlue AWD (190 HP, 140 kW)

FORD MONDEO V Hatchback (CE) (09.2014 - ) 2.0 EcoBlue (120 HP, 88 kW)

FORD MONDEO V Hatchback (CE) (09.2014 - ) 2.0 EcoBlue (150 HP, 110 kW)

FORD MONDEO V Hatchback (CE) (09.2014 - ) 2.0 EcoBlue (190 HP, 140 kW)

FORD MONDEO V Hatchback (CE) (09.2014 - ) 2.0 EcoBlue 4x4 (190 HP, 140 kW)

FORD MONDEO V Saloon (CD) (09.2012 - 07.2016) 2.0 EcoBlue (120 HP, 88 kW)

FORD MONDEO V Saloon (CD) (09.2012 - 07.2016) 2.0 EcoBlue (150 HP, 110 kW)

FORD MONDEO V Saloon (CD) (09.2012 - 07.2016) 2.0 EcoBlue (190 HP, 140 kW)

FORD MONDEO V Saloon (CD) (09.2012 - 07.2016) 2.0 EcoBlue 4x4 (190 HP, 140 kW)

FORD MONDEO V Tournament (CF) (09.2014 - ) 2.0 EcoBlue (120 HP, 88 kW)

FORD MONDEO V Tournament (CF) (09.2014 - ) 2.0 EcoBlue (150 HP, 110 kW)

FORD MONDEO V Tournament (CF) (09.2014 - ) 2.0 EcoBlue (190 HP, 140 kW)

FORD MONDEO V Tournament (CF) (09.2014 - ) 2.0 EcoBlue 4x4 (190 HP, 140 kW)

FORD S-MAX (CJ, WA6) (01.2015 - 06.2018) 2.0 EcoBlue (120 HP, 88 kW)

FORD S-MAX (CJ, WA6) (01.2015 - 06.2018) 2.0 EcoBlue (150 HP, 110 kW)

FORD S-MAX (CJ, WA6) (01.2015 - 06.2018) 2.0 EcoBlue (190 HP, 140 kW)

FORD S-MAX (CJ, WA6) (01.2015 - 06.2018) 2.0 EcoBlue 4x4 (150 HP, 110 kW)

FORD S-MAX (CJ, WA6) (01.2015 - 06.2018) 2.0 EcoBlue 4x4 (190 HP, 140 kW)

FORD S-MAX (CJ, WA6) (01.2015 - 06.2018) 2.0 EcoBlue BI-Turbo (240 HP, 176 kW)

VW AMAROK (T1A, T1B) (09.2022 - 12.2024) 2.0 TDI 4motion (170 HP, 125 kW)

VW AMAROK (T1A, T1B) (09.2022 - 12.2024) 2.0 TDI 4motion (205 hp, 151 kW)
