Differential Mount Silent Bush Tool Set for BMW E38 & E39

This specialist tool set is designed for the removal and installation of silent bushes located in the differential mounting of the rear axle carrier. It allows worn or damaged bushes to be replaced efficiently while minimizing the risk of damage to the differential housing and suspension components.

The tool is suitable for workshop repairs and helps simplify bush replacement procedures on compatible BMW vehicles.

Designed for BMW E38 and E39

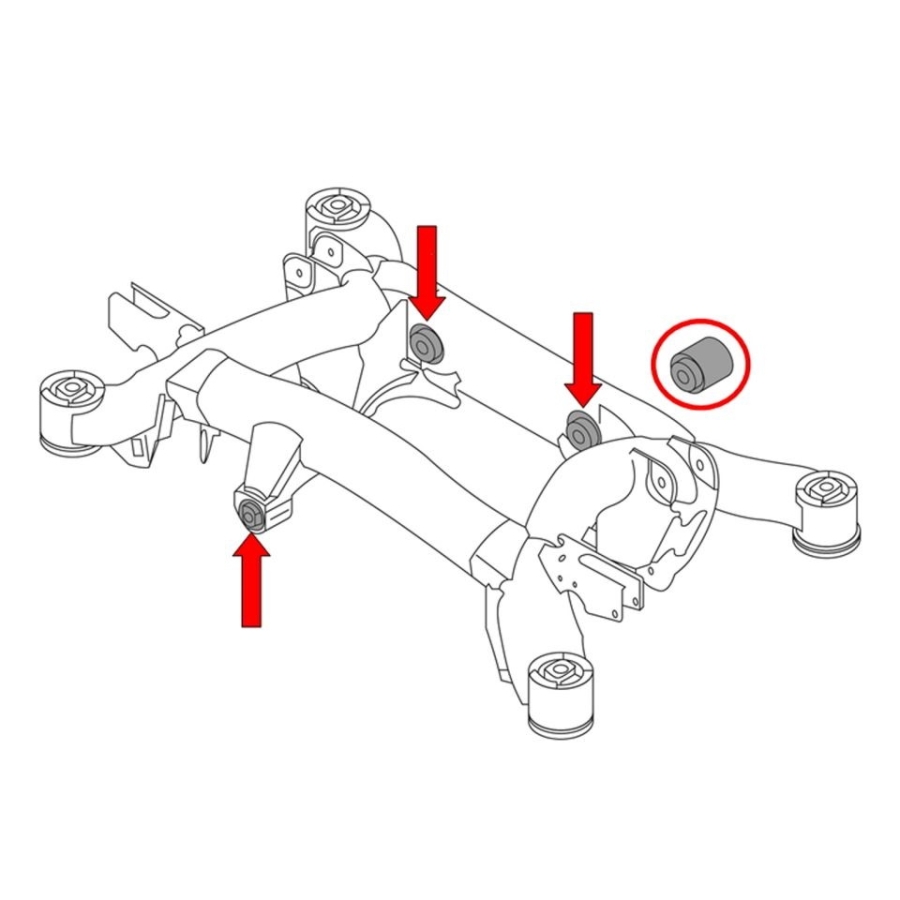

The set is specifically developed for servicing the differential mounting silent bushes installed in the rear axle carrier of:

• BMW E38
• BMW E39

Its precision-machined components ensure proper alignment during removal and installation, helping achieve professional repair results.

Robust Construction for Workshop Use

Manufactured from durable materials, the tool set is designed to withstand the high forces required during bush extraction and installation. The included spindle, thrust bearing and pressure plates provide smooth operation and reliable force transmission.

Technical Specifications

• Long spindle: M14 × 2
• Short spindle: M12 × 1.75
• Spindle length: 300 mm
• Drive size: 10 mm hex
• Drive nut size: 22 mm

Receiving cup:

• Internal diameter: 60 / 70 mm
• External diameter: 80 mm
• Length: 70 mm

Pressure plate:

• External diameter: 67 mm
• Thickness: 25 mm

Pressure washer:

• Internal diameter: 27 mm
• External diameter: 70 mm
• Thickness: 16 mm

Pressure plate:

• External diameter: 48 mm
• Thickness: 16 mm

Thrust ball bearing:

• External diameter: 42 mm

Profile washer:

• Internal diameter: 50 mm
• External diameter: 80 mm

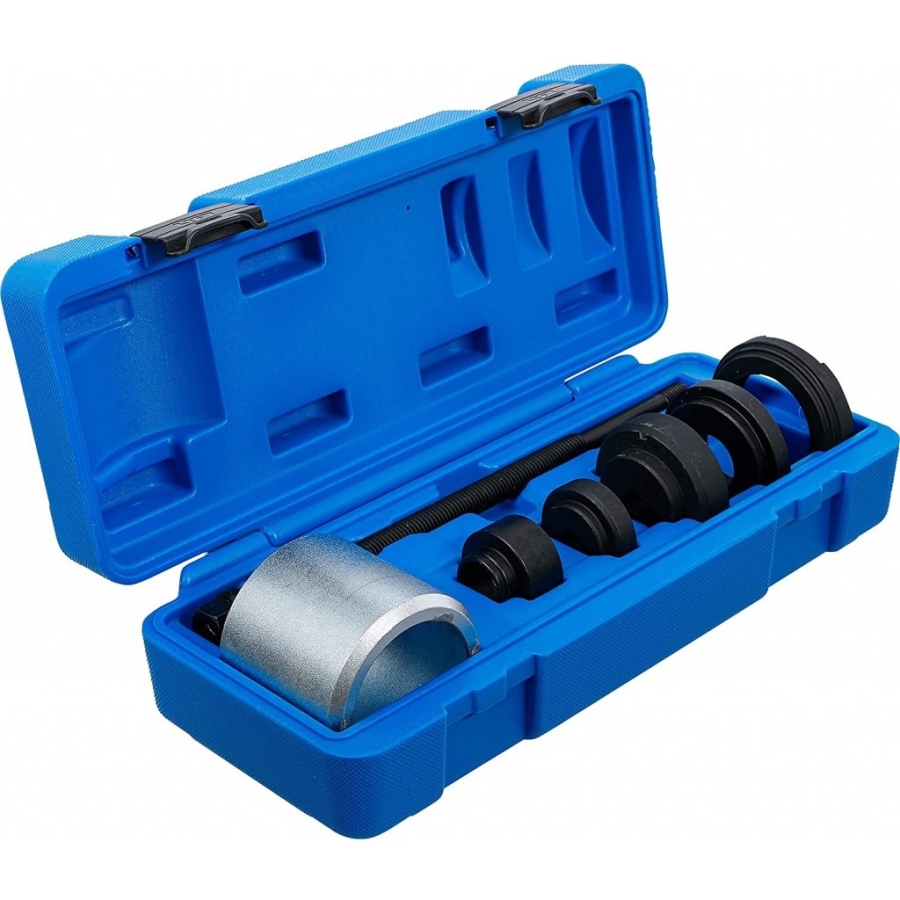

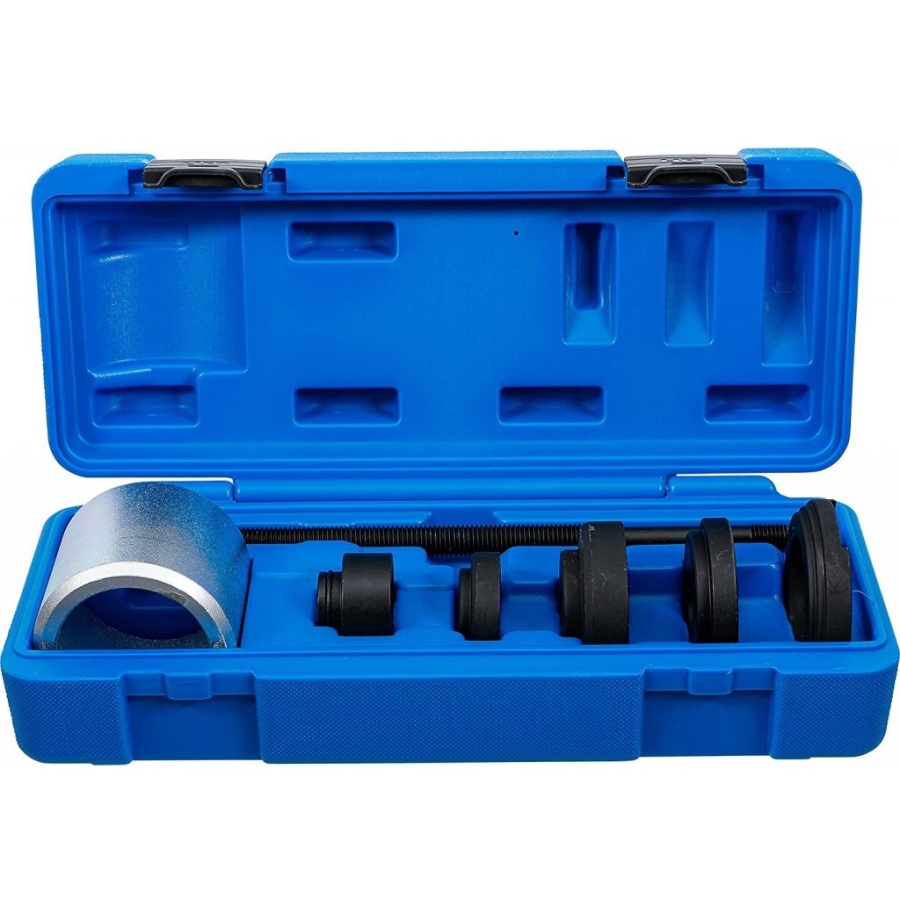

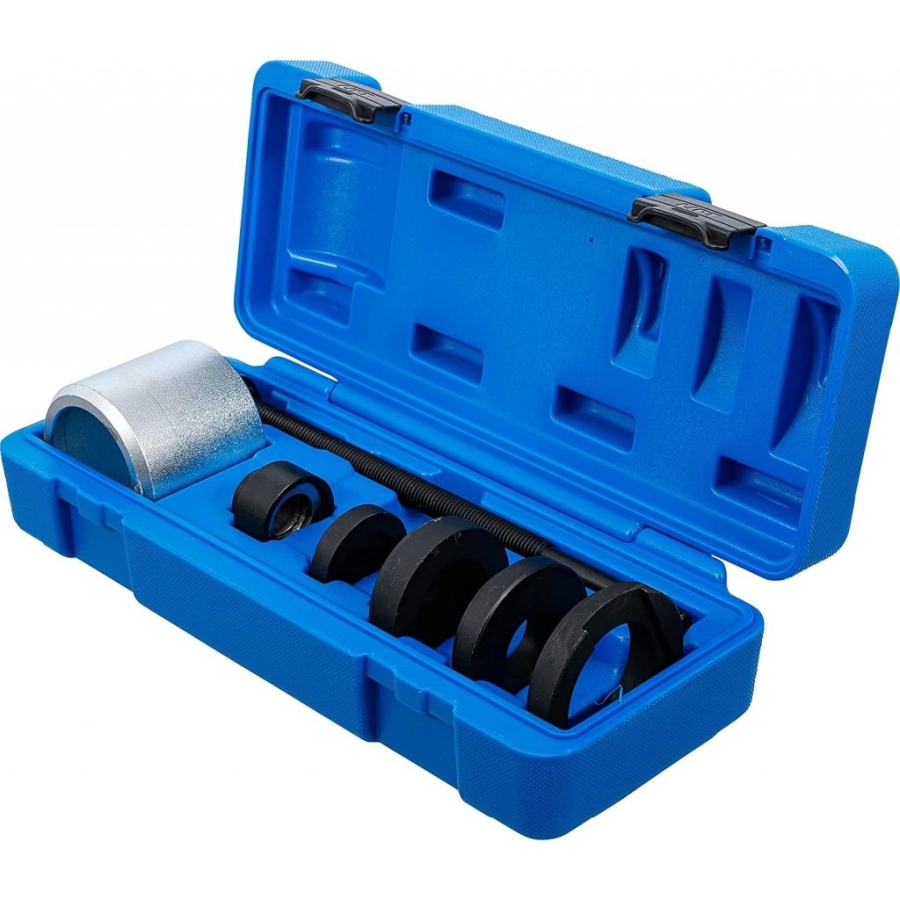

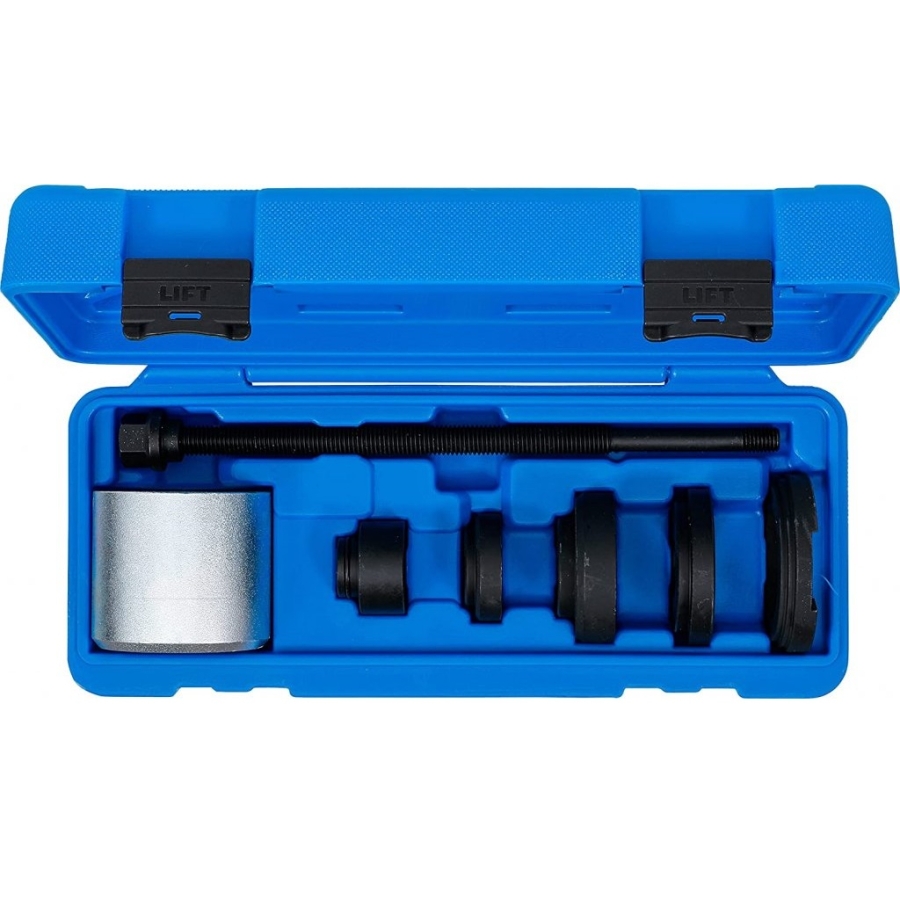

Package Contents

• 1 × Long spindle M14 × 2
• 1 × Short spindle M12 × 1.75
• 1 × Receiving cup
• 2 × Pressure plates
• 1 × Pressure washer
• 1 × Thrust ball bearing
• 1 × Profile washer
• 1 × Drive nut

Original part and tool numbers are provided for reference and comparison purposes only. This product is not an original BMW tool.
