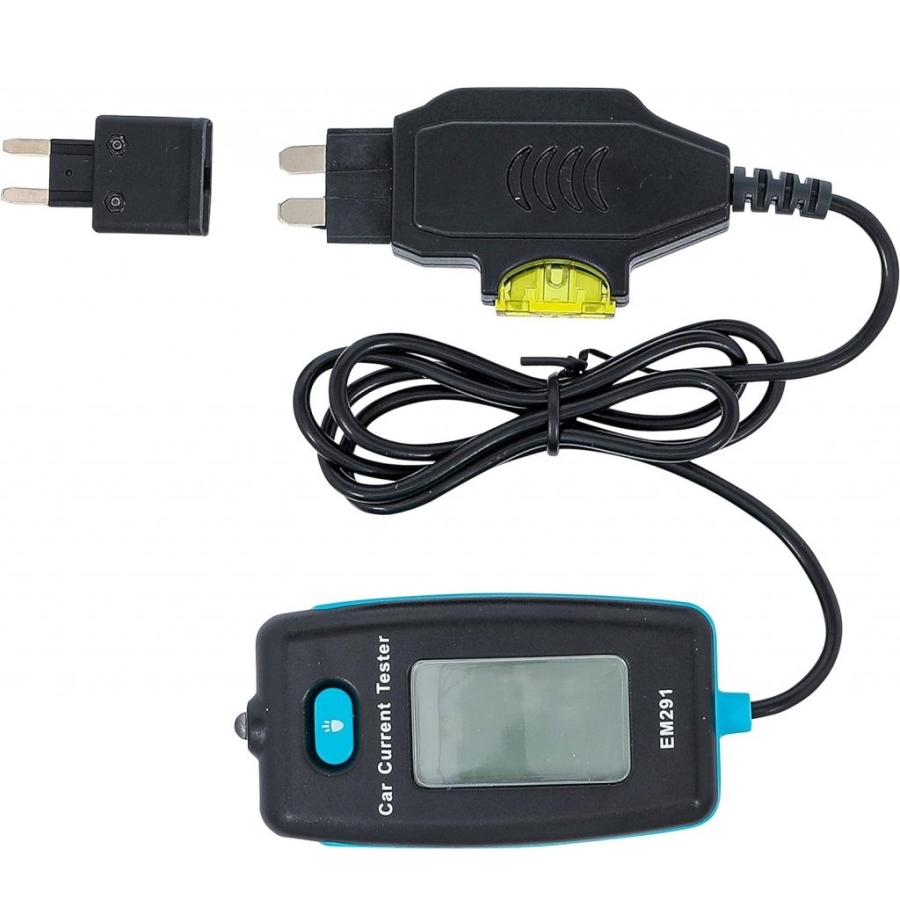

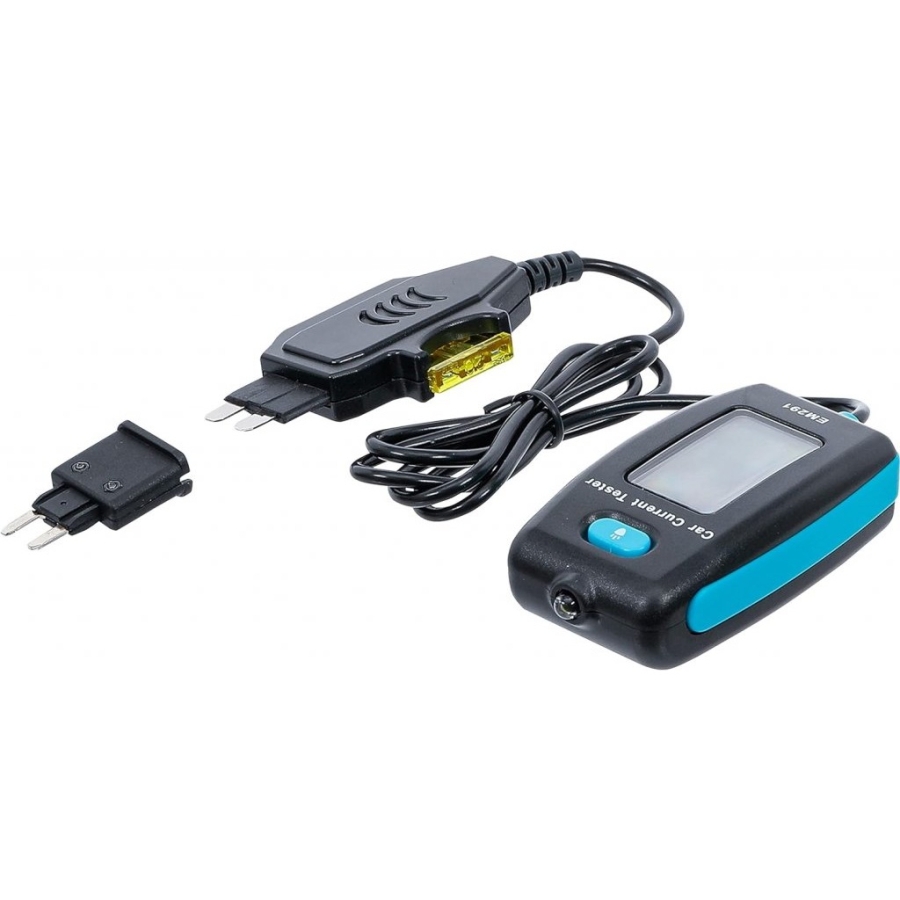

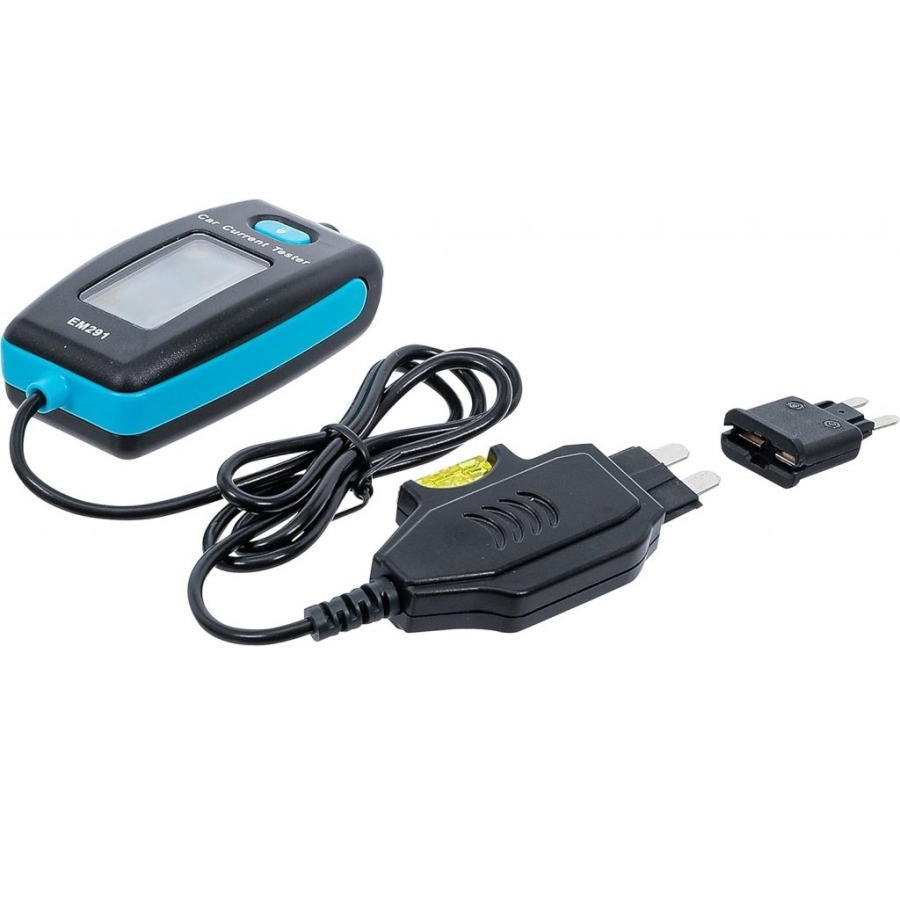

Digital Ammeter for Fuse Socket Testing

This digital ammeter is designed for direct current measurements at fuse boxes in passenger vehicles and commercial vehicles. The device simplifies troubleshooting procedures and is particularly suitable for identifying hidden electrical loads and parasitic current draw within vehicle electrical systems.

The compact design enables quick diagnostics directly from the fuse panel without requiring complicated wiring modifications.

Detection of Hidden Electrical Consumers

The tester is intended for diagnosing so-called hidden or "silent" consumers that continue drawing current even when the vehicle is switched off.

Typical applications include:

• Parasitic battery drain diagnostics
• Hidden current consumer detection
• Electrical system troubleshooting
• Vehicle battery discharge diagnosis

Simple Plug-In Operation

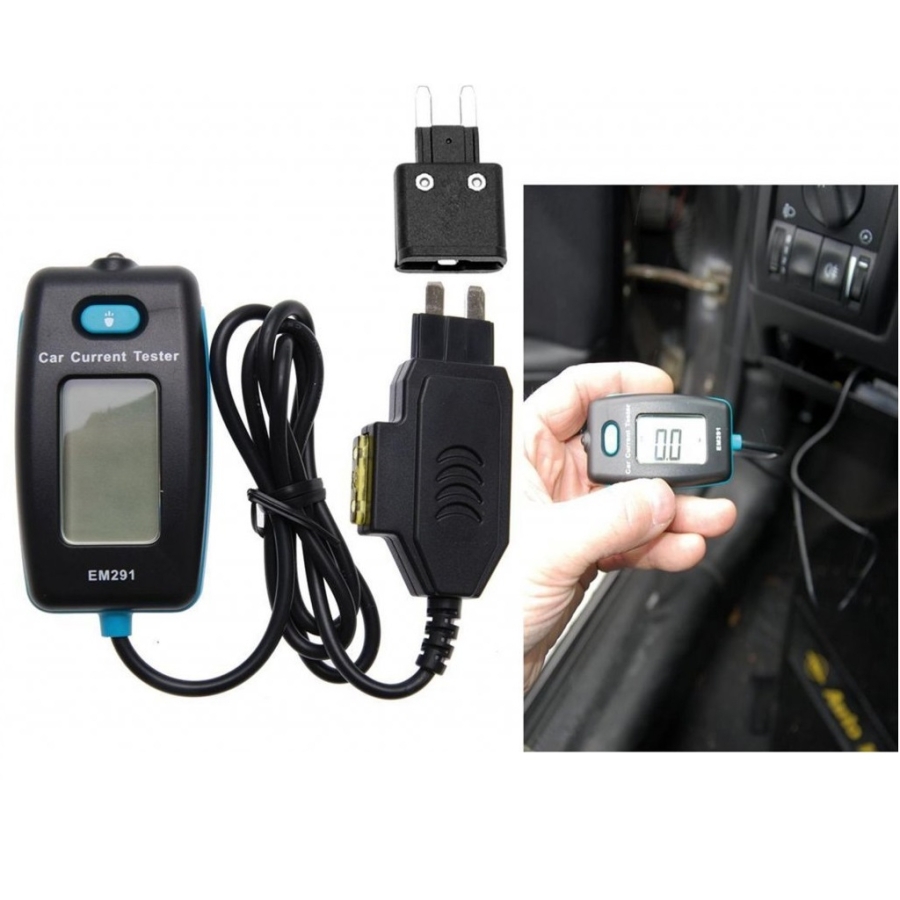

The measuring process is performed directly through the fuse socket.

Operation procedure:

• Remove the original fuse from the fuse box
• Insert the tester connector into the fuse socket
• Perform current measurement directly through the circuit

The circuit remains protected during measurement because the tester includes integrated fuse protection.

Maintained Circuit Protection

Unlike direct wire measurement methods, the electrical circuit remains protected during testing.

Features:

• Integrated circuit protection
• Safe measurement process
• Reduced risk of circuit damage
• Quick diagnostic setup

Compatibility and Technical Specifications

Compatible fuse sockets:

• Mini blade fuse socket
• Standard blade fuse socket

System compatibility:

• 12V systems
• 24V systems

Maximum current:

• 20A
