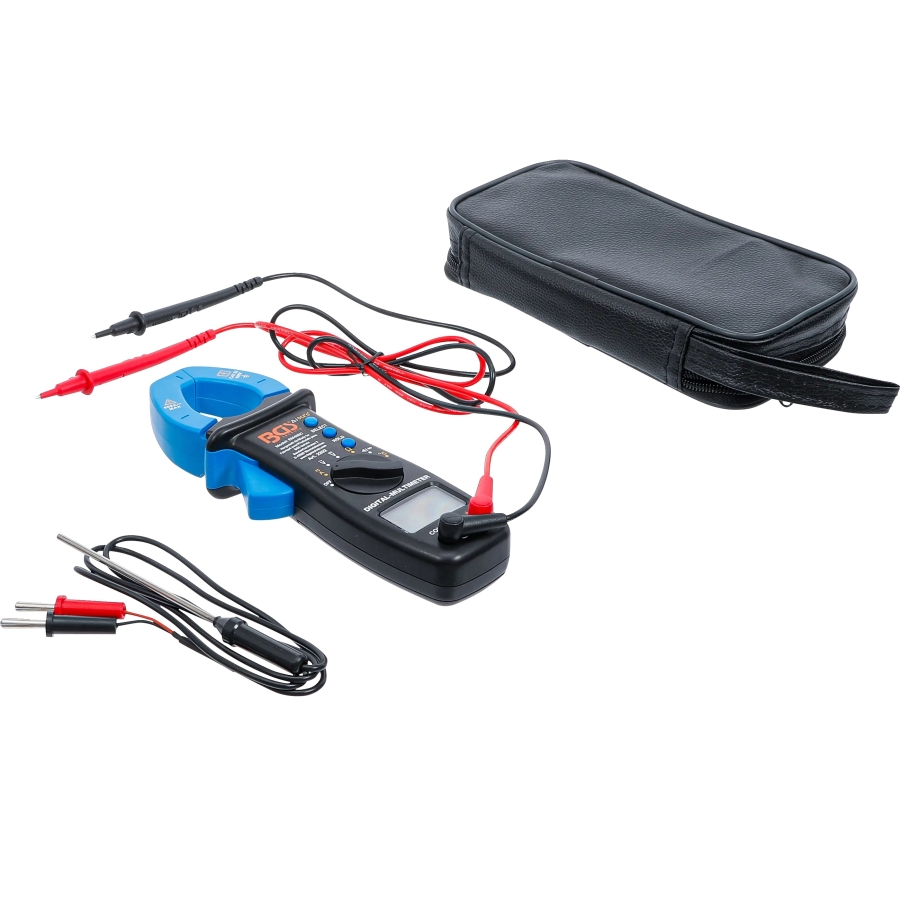

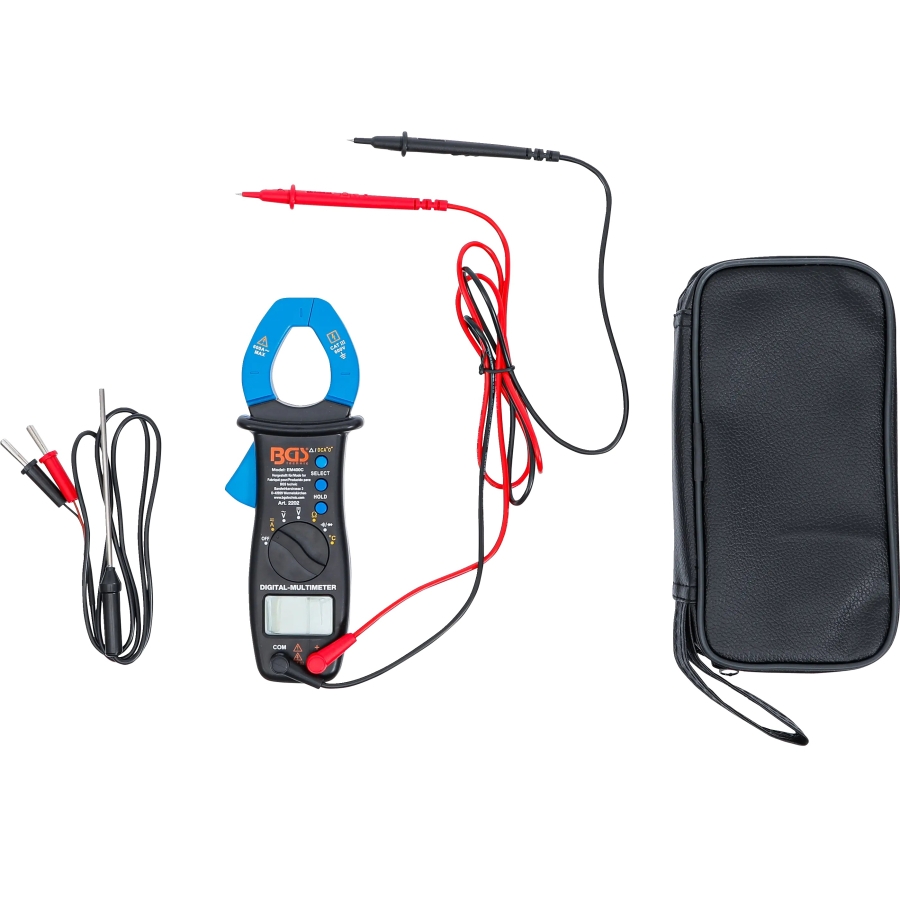

Digital Clamp Multimeter for AC/DC Current

This digital clamp multimeter is designed primarily for automotive applications, while also being suitable for general electrical and maintenance work. The device combines current, voltage and resistance measurements in one compact unit, allowing fast and efficient troubleshooting.

The clamp design allows current measurements without disconnecting wires or interrupting electrical circuits.

Suitable for:

• Passenger vehicles
• Trucks
• Motorcycles
• Workshops
• Electrical maintenance applications

Comprehensive Measurement Functions

The device combines several essential measuring functions.

Measurement functions:

• AC voltage measurement
• DC voltage measurement
• AC current measurement
• DC current measurement
• Resistance measurement

Additional indicators:

• Low battery indication
• Negative polarity indication
• Overrange indication

Measurement Specifications

Voltage measurement (AC/DC):

• 400.0 mV
• 4.000 V
• 40.00 V
• 400.0 V
• 600 V

Resistance:

• 400 Ω
• 4 kΩ
• 40 kΩ
• 400 kΩ
• 4 MΩ
• 40 MΩ

Current measurement (AC/DC):

• Up to 400 A
• Minimum resolution: 100 mA

LCD Display and Clamp Specifications

The device features a 3¾-digit LCD display with a maximum reading of 3999 counts.

Display features:

• LCD display
• Maximum reading: 3999
• Low battery indication
• Negative polarity indication
• Overrange indication

Clamp specifications:

• Maximum clamp opening: 33 mm
• Maximum conductor diameter: 28 mm

The clamp system allows safe current measurement without direct electrical contact.

Technical Specifications

Safety category:

• CAT II

Power supply:

• 2 × AAA batteries (1.5V)

Storage temperature:

• -10°C to 50°C

Maximum relative humidity:

• 85% RH

Dimensions:

• 194 × 71 × 38 mm

Weight:

• Approx. 215 g (including batteries)
