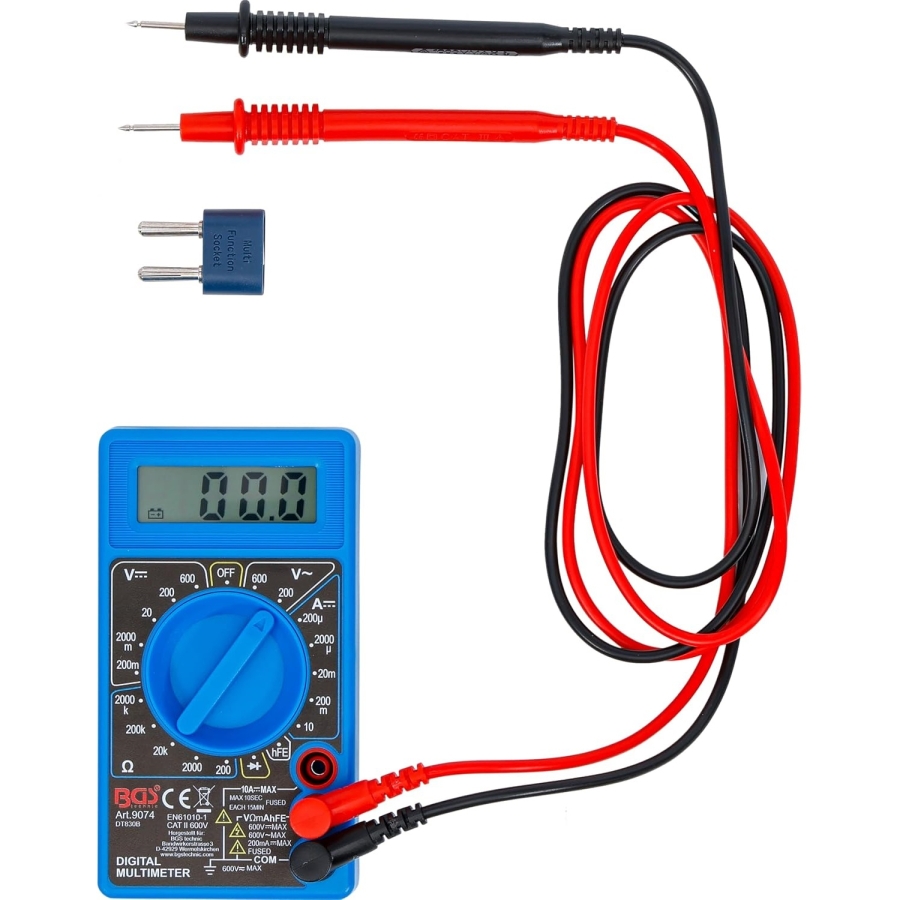

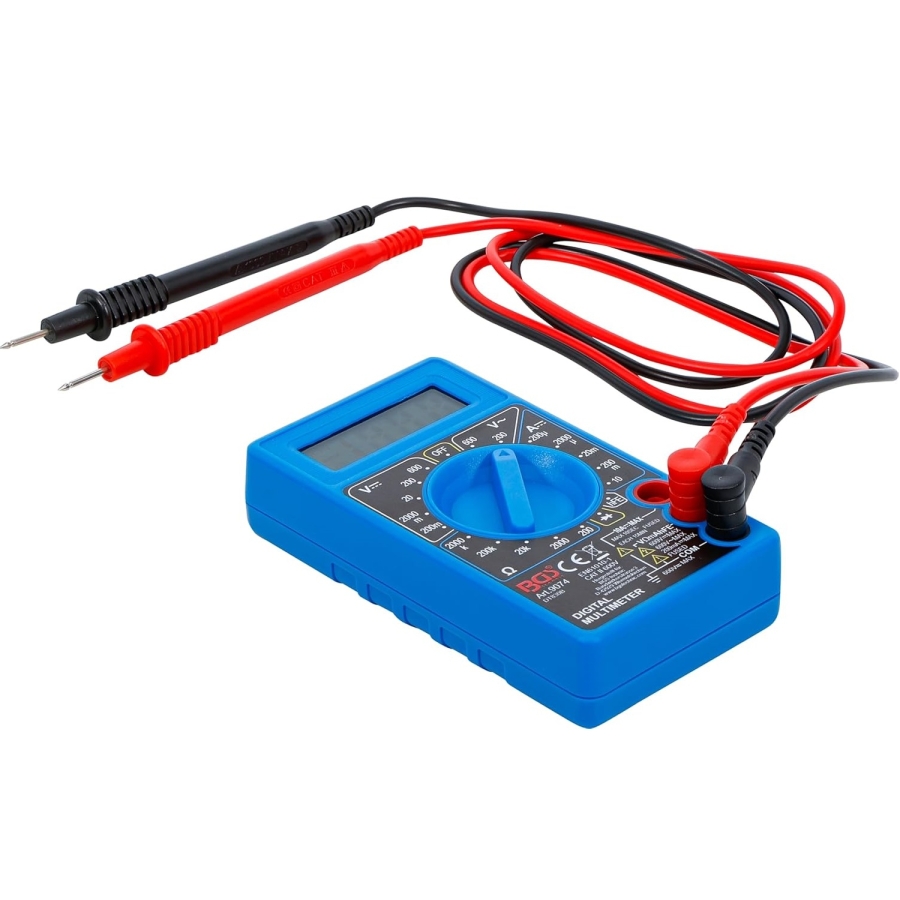

Digital Multimeter 3½ Digit
-
Code:9074
-
Weight:0.242 Kgs
Overview:
✔ Professional 3½ digit digital multimeter for electrical diagnostics and measurements
✔ Suitable for CAT II measurement applications
✔ LCD display with 7-segment layout and 12.5 mm digits
✔ Measures AC voltage, DC voltage, current and resistance
✔ Supports diode voltage drop and hFE transistor testing
✔ Battery status, polarity and overload indication
✔ Compact design for workshop and electrical testing applications
✔ Powered by 2 × AAA batteries
This 3½ digit digital multimeter is designed for accurate electrical measurements and diagnostic applications. The device provides multiple measurement functions suitable for workshop, automotive and electrical service environments.
The compact design and clear LCD display allow quick reading and simple operation during daily use.
Supported measurement functions:
- AC voltage measurement
- DC voltage measurement
- Current measurement
- Resistance measurement
- Diode voltage drop testing
- hFE transistor testing
Clear LCD Display and Status Indication
The multimeter features a 3½ digit LCD display with a 7-segment design and large 12.5 mm characters for improved readability.
Display functions:
- Overload indication
- Polarity indication
- Low battery indication
Display specifications:
- LCD type: 3½ digit
- Segment type: 7-segment
- Character height: 12.5 mm
Voltage Measurement Ranges
DC voltage:
| Range | Resolution | Accuracy |
|---|---|---|
| 200 mV | 10 µV | ±0.5% +10 digits |
| 2000 mV | 1 mV | ±1% +5 digits |
| 20 V | 10 mV | ±1% +5 digits |
| 200 V | 100 mV | ±1% +5 digits |
| 600 V | 1 V | ±1.2% +5 digits |
AC voltage:
| Range | Resolution | Accuracy |
|---|---|---|
| 200 V | 10 mV | ±0.5% +10 digits |
| 600 V | 1 V | ±0.5% +10 digits |
Current Measurement Ranges
| Range | Resolution | Accuracy |
|---|---|---|
| 200 µA | 100 nA | ±1.8% +2 digits |
| 2000 µA | 1 µA | ±1.8% +2 digits |
| 20 mA | 10 µA | ±1.8% +2 digits |
| 200 mA | 100 µA | ±2% +2 digits |
| 10 A | 10 mA | ±2% +10 digits |
Resistance Measurement Ranges
| Range | Resolution | Accuracy |
|---|---|---|
| 200 Ω | 0.1 Ω | ±1% +10 digits |
| 2000 Ω | 1 Ω | ±2% +4 digits |
| 20 kΩ | 10 Ω | ±2% +4 digits |
| 200 kΩ | 100 Ω | ±2% +4 digits |
| 2000 kΩ | 1 kΩ | ±2% +4 digits |
Technical Specifications
Measurement category:
- CAT II
Operating temperature:
- 10°C to 40°C
Relative humidity:
- 0–75%
Power supply:
- 2 × AAA batteries (1.5V)
Weight:
- Approx. 140 g (including batteries)
