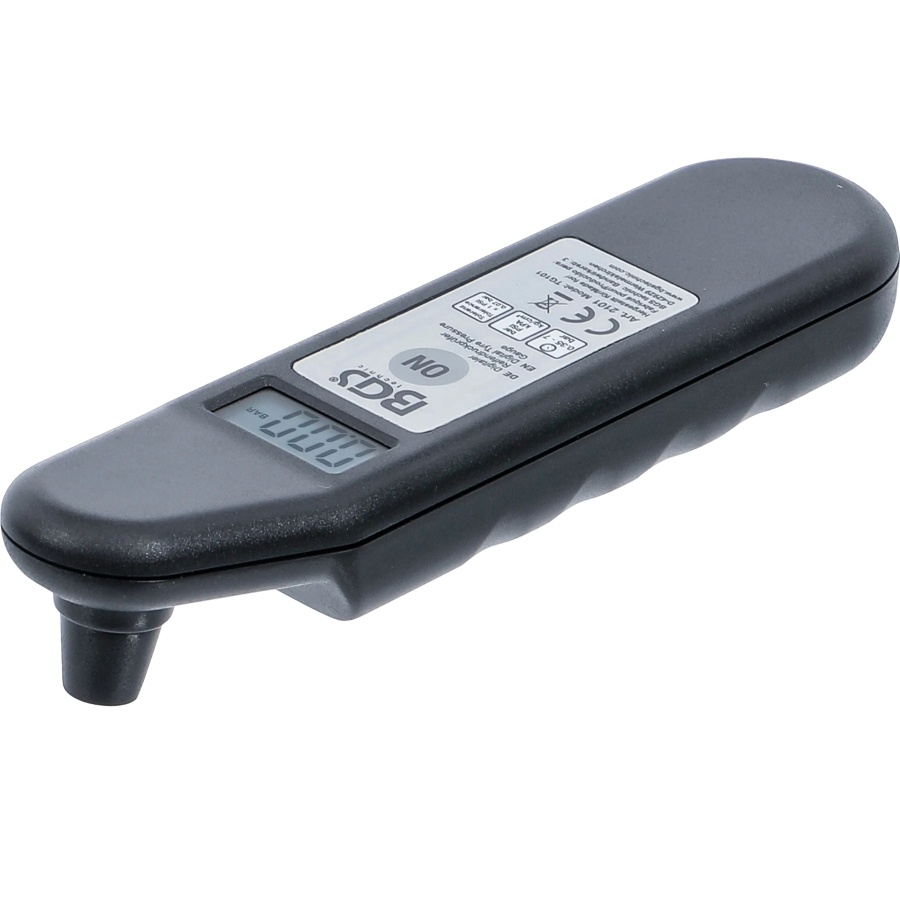

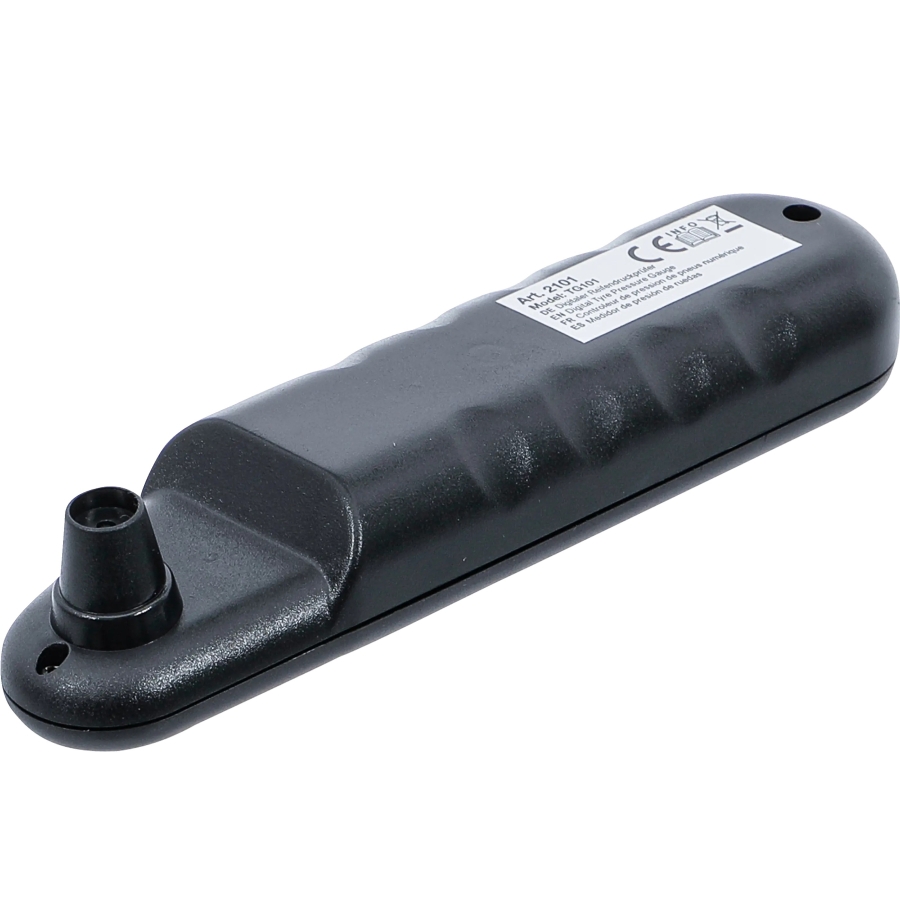

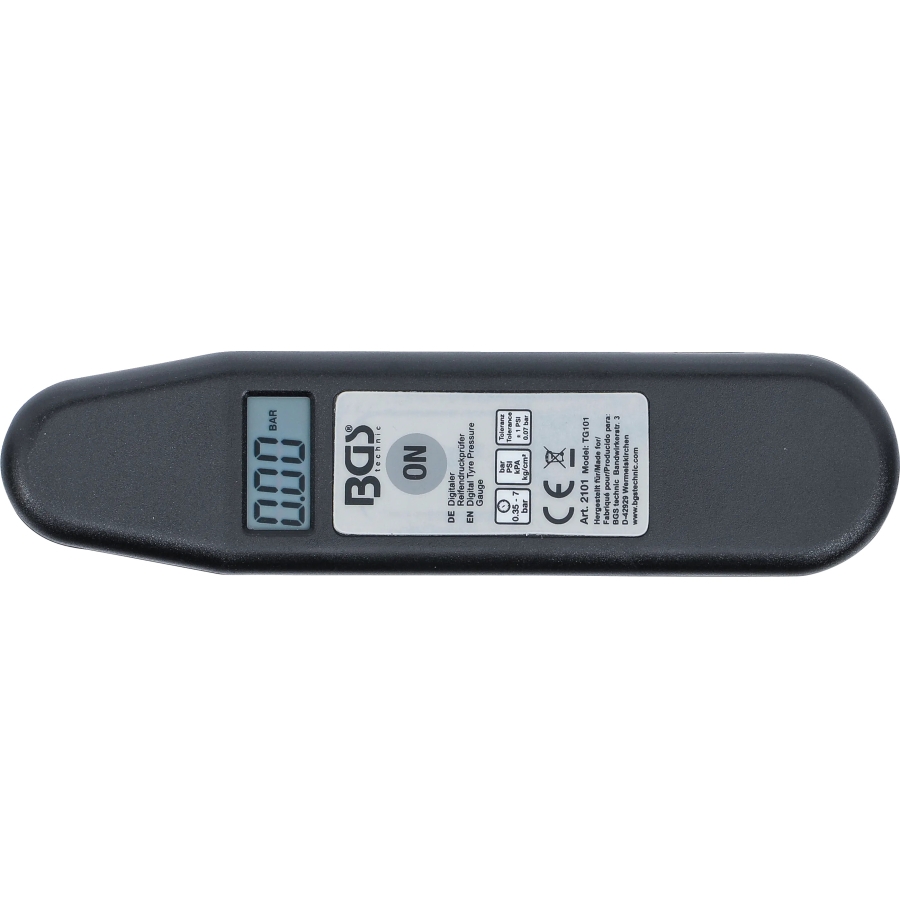

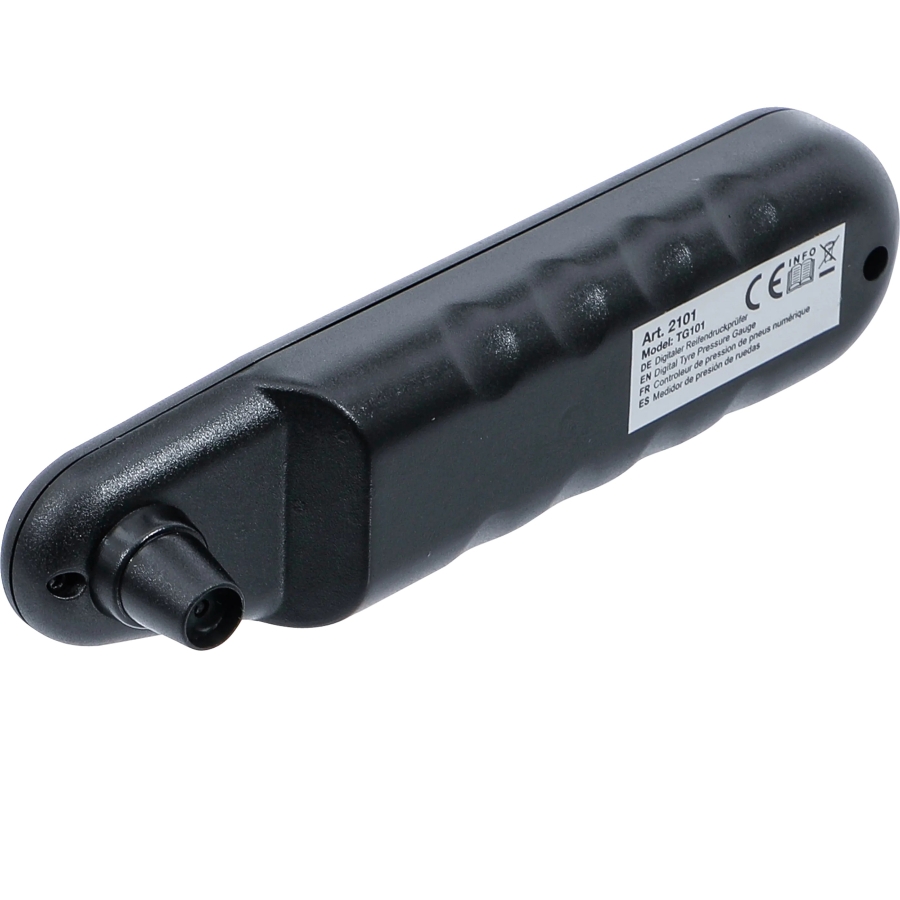

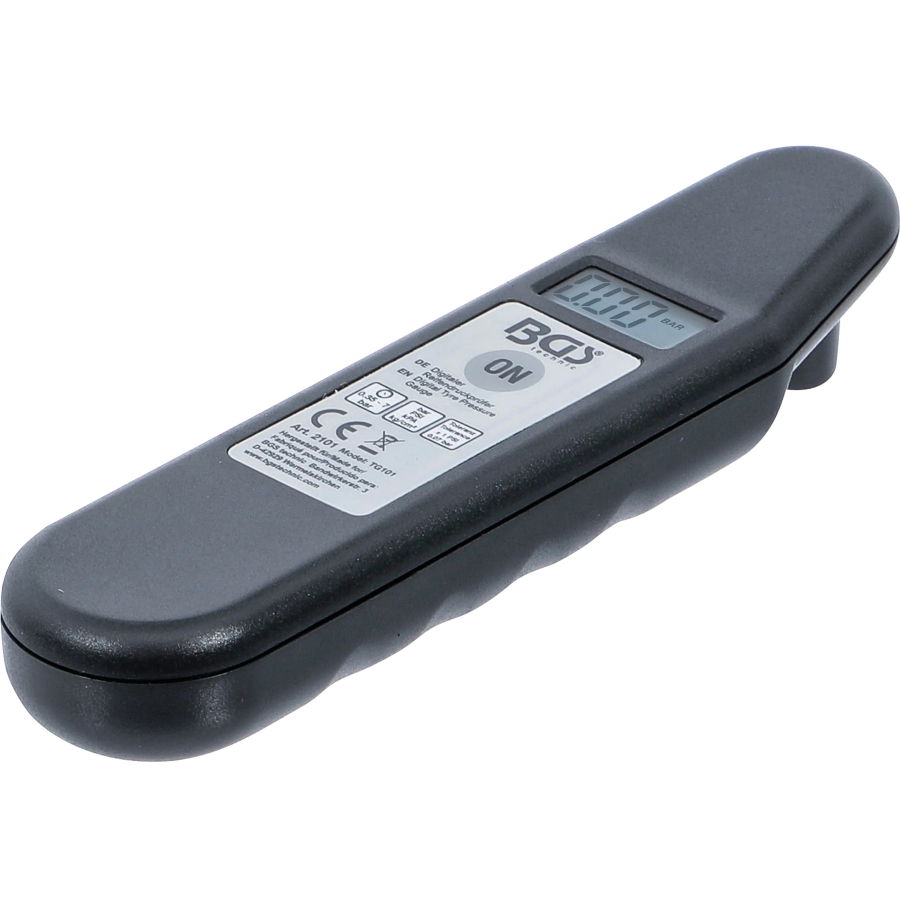

Digital Tyre Pressure Gauge

This digital tyre pressure gauge is a compact and lightweight tool for checking vehicle tyre pressure. Regular pressure checks support safer driving and help maintain correct tyre performance.

The gauge is easy to operate and displays measurements in PSI, bar, kPa or kg/cm².

Instructions for Use

1. Press the “ON” button to switch on the gauge. The display will show zero after approximately 2 seconds.
2. Press the “ON” button again to select the required unit. Each press cycles through PSI, bar, kPa and kg/cm².

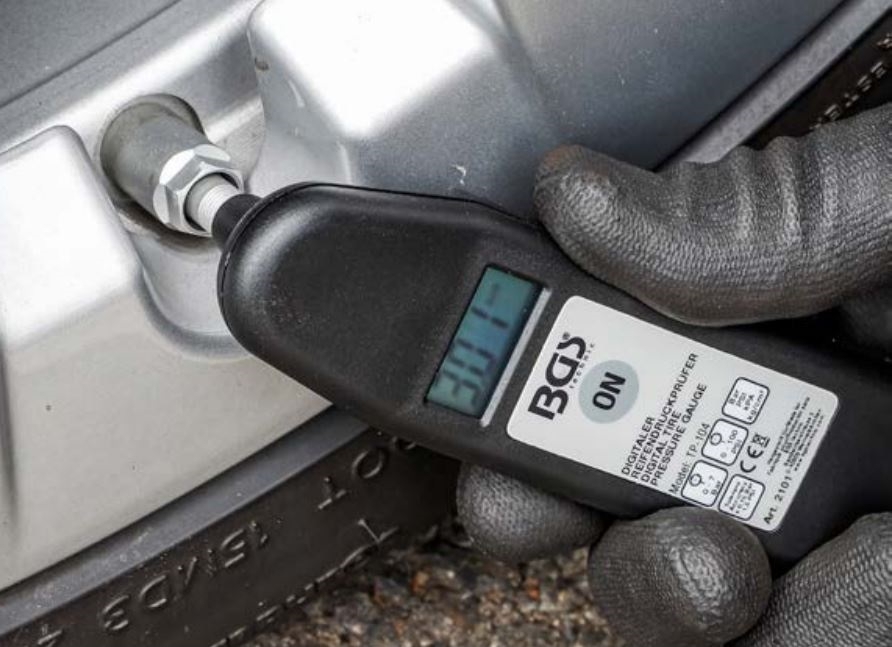

3. Press the gauge nozzle firmly onto the tyre valve.
4. Ensure a proper seal has been established and that no hissing sound from escaping air can be heard.
5. Wait approximately 2 seconds for the reading to stabilize. The stable value is the measured tyre pressure.
6. Remove the gauge from the tyre valve and repeat the procedure on the remaining tyres.
7. The gauge switches off automatically approximately 60 seconds after use.
8. To switch it off manually, press and hold the “ON” button for more than 3 seconds.

Technical Specifications

• Measuring range: 0.35–7.00 bar / 0–100 PSI
• Display units: PSI, bar, kPa and kg/cm²
• Tolerance: ±1 PSI / ±0.07 bar
• Accuracy: ±1.5 PSI
• Resolution: 0.5 PSI
• Automatic shut-off: Approximately 60 seconds
• Battery: 3 V lithium battery, CR2032
• Operating temperature: −5 to 50 °C / 23 to 122 °F
• Storage temperature: −20 to 70 °C / −4 to 158 °F
• Dimensions: 143 × 35 × 29 mm
• Weight: Approximately 40 g, including battery
