Drill-Out Tool Set for VAG Multi-Link Suspension Clamp Bolts

Price: €179.00 350.09лв.

Code:

103340B
Weight:

1.693 Kgs

Overview:
✔ Professional tool set for removing seized VAG clamp bolts
✔ Designed for upper control arm clamp bolts on multi-link suspensions
✔ Suitable for Audi, VW, Seat and Skoda vehicles
✔ Drill guidance system for precise centered drilling
✔ Includes drill bushings for 6 mm and 8.5 mm drill bits
✔ Allows complete drilling to Ø 10 mm when required
✔ Includes carbide drift punch and special drill bits
✔ Supplied in a durable storage case with foam insert

Drill-Out Tool Set for VAG Multi-Link Suspension Clamp Bolts

Send to friend

Rate this product

This special tool set is designed for safely drilling out clamp bolts seized by galvanic corrosion, rust, or oxidation on the upper control arms of VAG multi-link suspension systems.

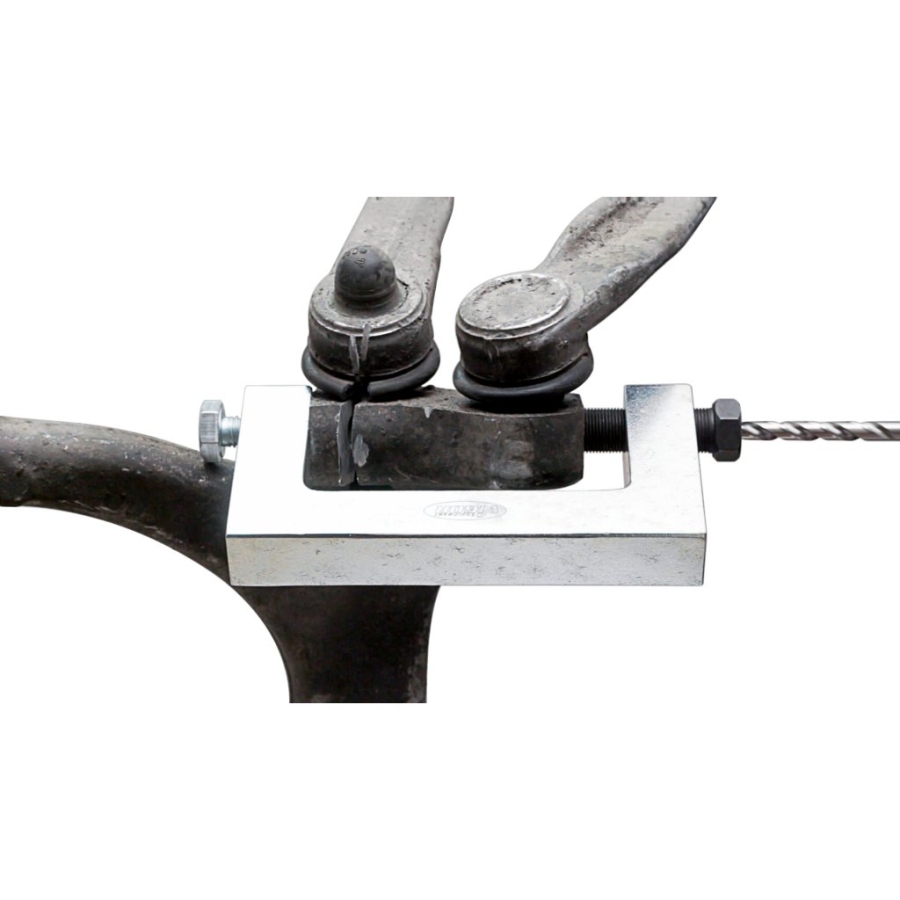

The enlarged steel C-frame accommodates newer axle designs and, together with the interchangeable drill bushings, guides the drill bit precisely through the center of the clamp bolt over its entire length. The bolt is first drilled with a 6 mm drill bit and then with an 8.5 mm drill bit.

In many cases, relieving the tension allows the remaining bolt section to be driven out using the included carbide drift punch. Severely seized bolts can be drilled completely to Ø 10 mm.

Technical Features

Enlarged steel C-frame for newer axle designs
Centered drilling through the full bolt length
Drill guidance for 6 mm and 8.5 mm drill bits
Suitable for complete drilling to Ø 10 mm
Manufactured from high-quality materials
Designed for frequent professional workshop use

Vehicle Compatibility

Audi

A4 (B7) 2004–2008
A4 (B8) 2007–2015
A4 (B9) from 2015
A5 (8T) 2007–2017
A5 (F5) from 2016
A6 (C5) 1997–2005
A6 (C6) 2004–2011
A6 (C7) 2010–2017
A6 (C8) from 2018
A7 (4K) from 2017
A8 (D5) from 2017
E-Tron (GE) from 2018
Q5 (8R) 2008–2017
Q5 (FY) from 2016
Q7 (4M) from 2015
Q8 (4M) from 2018

Seat

Exeo (3R) 2008–2013

Skoda

Superb I (3U) 2001–2008

Volkswagen

Passat (B5) 1999–2005
Phaeton (3D) 2002–2016
Touareg (CR) from 2017

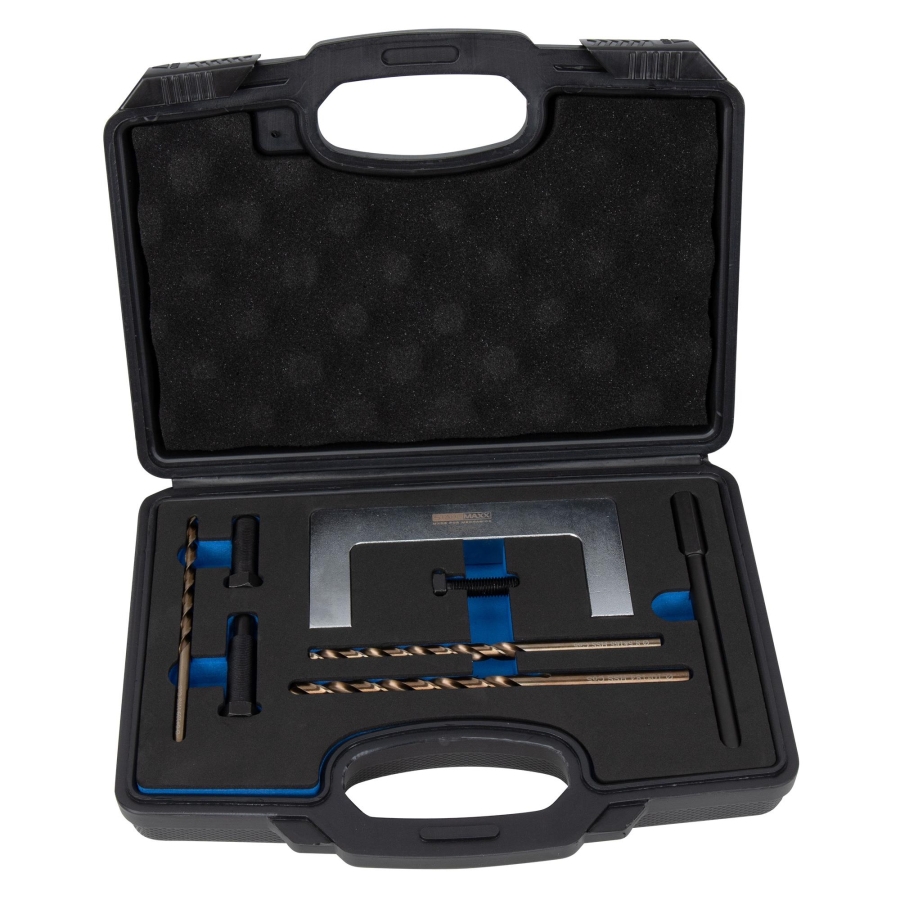

Package Contents

Item no. 124315 – C-frame drilling guide
Item no. 124316 – Centering screw for C-frame
Item no. 124314 – Centering drill bushing for 6.0 mm drill bit
Item no. 124313 – Centering drill bushing for 8.5 mm drill bit
Item no. 121120 – Special drill bit 6 x 138 mm (CO5)
Item no. 121121 – Special drill bit 8.5 x 165 mm (CO5)
Item no. 121122 – Special drill bit 10 x 185 mm (CO5)
Item no. 122976 – Drift punch
Heavy-duty storage case with foam insert

Workshop Recommendation

For best results, use cutting oil and a corded drill to reduce drill bit wear and avoid tool overload. When working on installed suspension assemblies, protect adjacent body panels from damage or remove the suspension assembly for bench drilling when required.

Drilling out the clamp bolt on the four-link / multi-link suspension axle for VAG vehicles.

Recommendation:
Use cutting oil and a corded drill to prevent damage to drill bits and avoid overloading battery-powered tools. When working on the vehicle, protect the inner wheel arch edges with protective tape to prevent damage. Alternatively, remove the axle assembly by cutting off the control arms, allowing the drilling operation to be carried out securely in a bench vise.

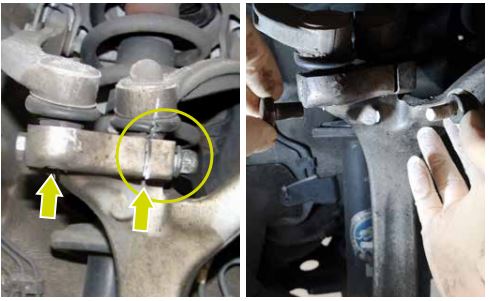

1. REMOVE THE BOLT ENDS

Cut through both ends of the bolt at the expansion slot using an angle grinder or a similar tool (such as a hand saw or pneumatic saw) and remove them.

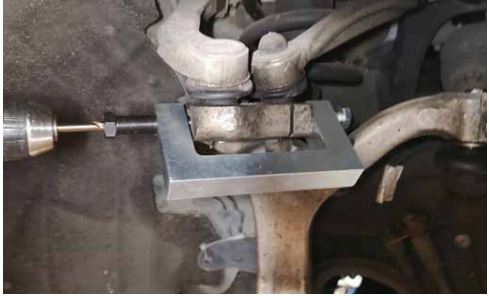

2. INSTALL THE GUIDE BRACKET AND DRILL

Position the guide bracket with the 6 mm drill bushing and tighten it by hand on both sides. Drill through the remaining bolt section using the 6 mm drill bit. Ensure the drill bit is regularly cooled and lubricated during the process.

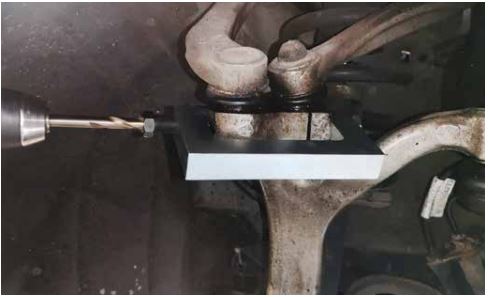

3. DRILL WITH THE 8.5 MM BIT

Replace the 6 mm drill bushing with the 8.5 mm drill bushing and repeat the procedure. To prevent premature wear caused by overheating, continue cooling and lubricating the drill bit.

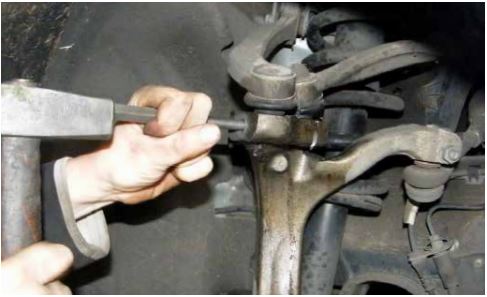

4. DRIVE OUT THE REMAINING BOLT PIECES

Remove the guide bracket and carefully drive out the remaining bolt pieces using a drift punch. Exercise caution, as there is a risk of damaging or breaking part of the axle assembly (see marking in Figure 1). If the remnants cannot be removed immediately, drill them out using the supplied 10 mm drill bit.
