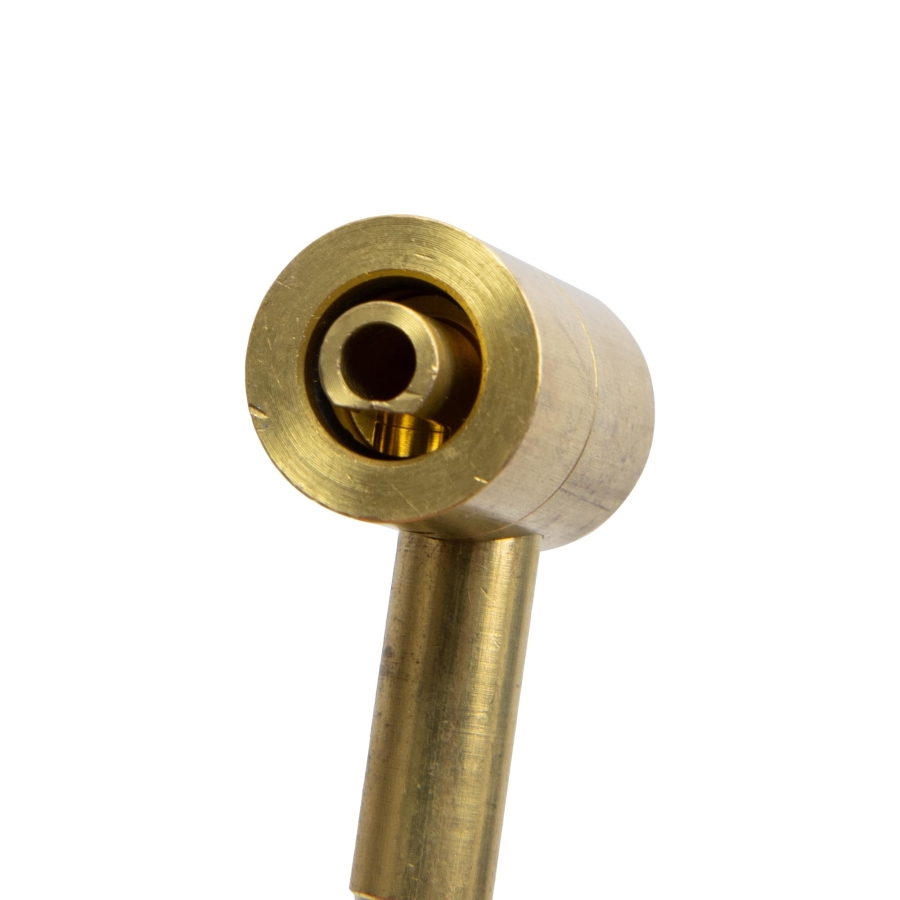

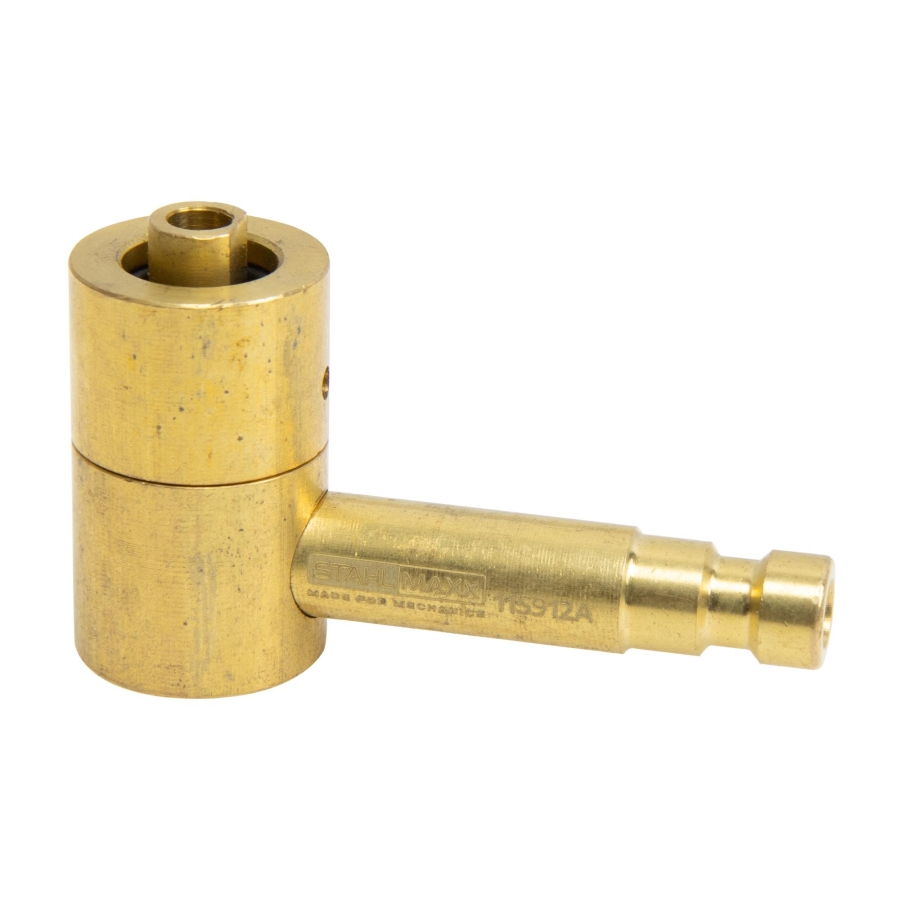

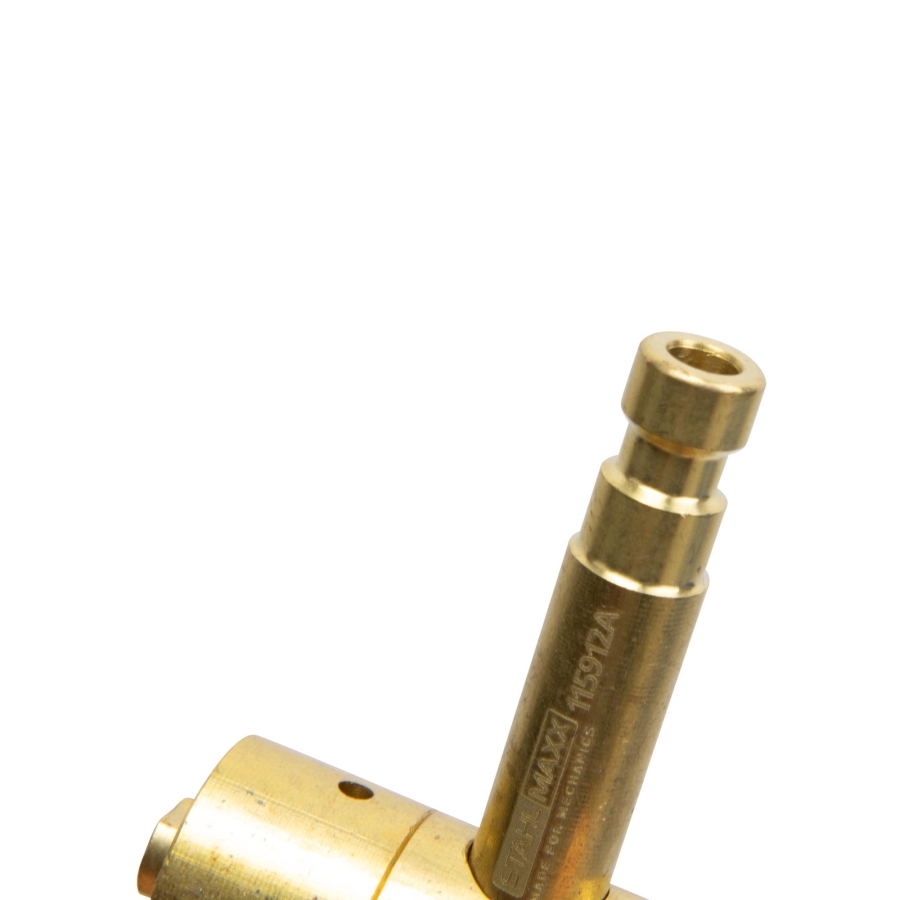

Transmission Oil Filling Adapter for 7-Speed DSG 0AM, 0CW, DQ200 and 8-Speed VAG/Porsche Transmissions, as VAG 6262/4

Price: €27.50

Code:

115912A
Weight:

0.092 Kgs

Overview:
✔ For filling 7- and 8-speed direct-shift transmissions through the breather opening
✔ Suitable for VAG 0AM, 0CW and DQ200 gearboxes
✔ Suitable for selected Porsche 8-speed ZF 8DT transmissions
✔ Compatible with a quick coupling, clamp connector or 10 mm filling hose
✔ Requires filling with the exact specified oil quantity
✔ Used as VAG 6262/4

Transmission Oil Filling Adapter for 7-Speed DSG 0AM, 0CW, DQ200 and 8-Speed VAG/Porsche Transmissions, as VAG 6262/4

Send to friend

Rate this product

This special transmission oil adapter is designed for filling 7- and 8-speed direct-shift gearboxes through the breather opening in the side cover.

Applications include VAG vehicles with 1.2, 1.4 and 1.8 TFSI, 1.5 MPI and 1.6 TDI engines. The adapter is also suitable for selected 8-speed ZF 8DT transmissions fitted to Porsche Cayenne, Panamera and other models.

Important Filling Information

The transmission oil level cannot be checked using this filling method. The exact oil quantity specified by the vehicle or transmission manufacturer must be observed.

Before filling, the existing transmission oil must be drained completely.

Reference filling quantity for an Audi A1 from 2022 with 0AM/0CW transmission: 1.7 l.

Always confirm the correct filling quantity using the appropriate repair documentation for the specific vehicle and transmission code.

Warning

Incorrect filling can cause transmission damage.

The filling process must be carried out slowly. Because the gearbox and mechatronic unit use a shared breather system, oil may enter the mechatronic unit if the transmission is filled too quickly or incorrectly.

Maintain strict cleanliness during filling and prevent the transmission fluid from being mixed with other oils.

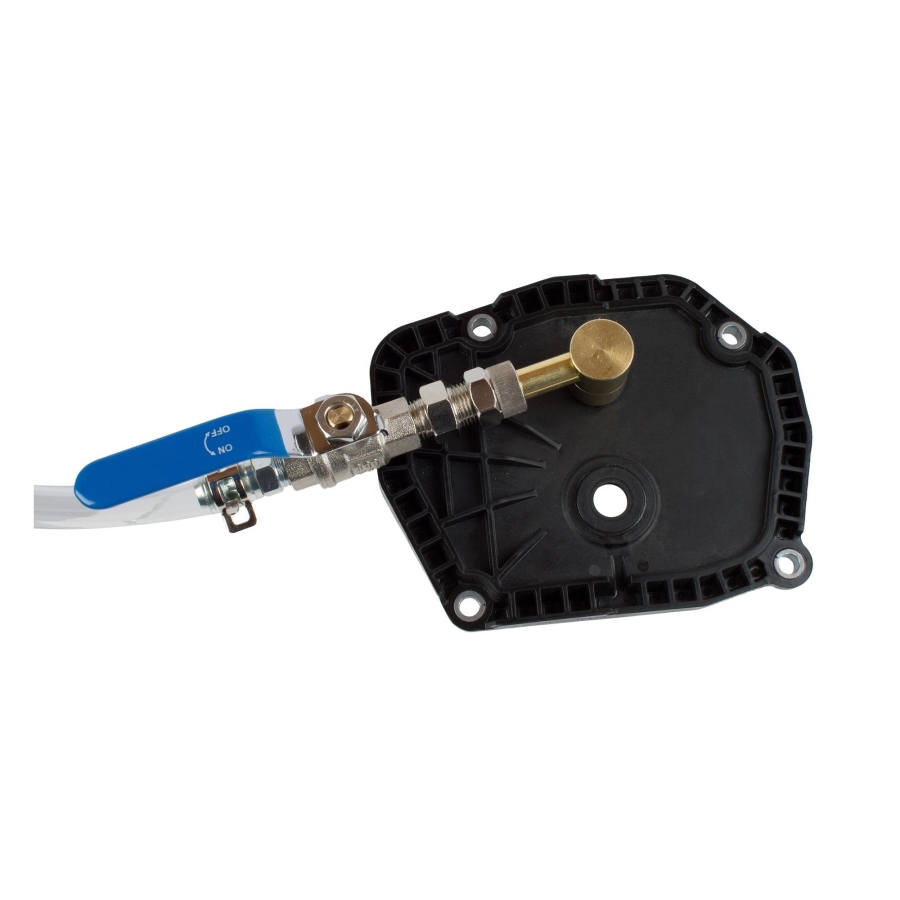

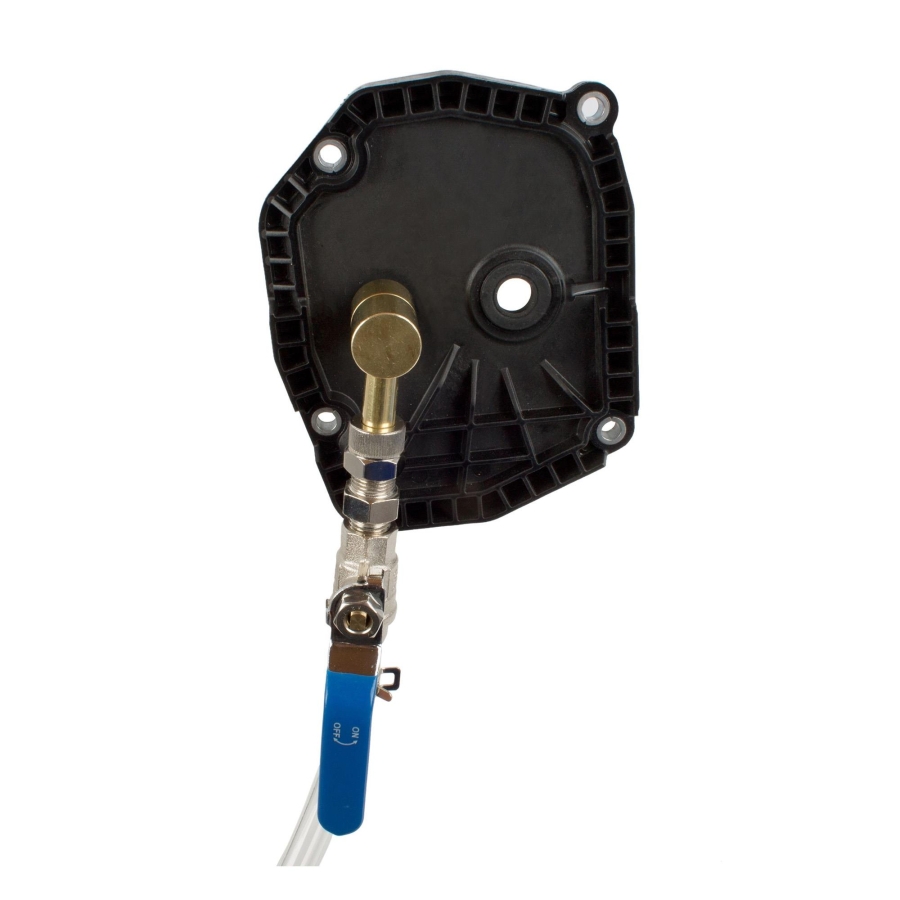

Connection Options

The adapter can be used with:

Ball valve with quick coupling
Clamp-type connector
10 mm filling hose
Filling hose with item no. 115909

Suitable Transmissions

7-speed DSG: 0AM, 0CW, DQ200
Selected VAG 8-speed direct-shift transmissions
Selected Porsche 8-speed ZF 8DT transmissions

Suitable for the Following Transmission Codes

MLL, MLM, MPP, MPS, MPT
NAY, NBB, NBC, NNX, NQH, NQL, NQM, NTW, NTY, NUA, NUB
PKT, PKV, PKX, PKY, PMP, PMR, PMT, PMU, PWA, PWC, PWE, PWF
QHB, QHF, QHG, QHN, QQY, QRA, QRC, QRD
