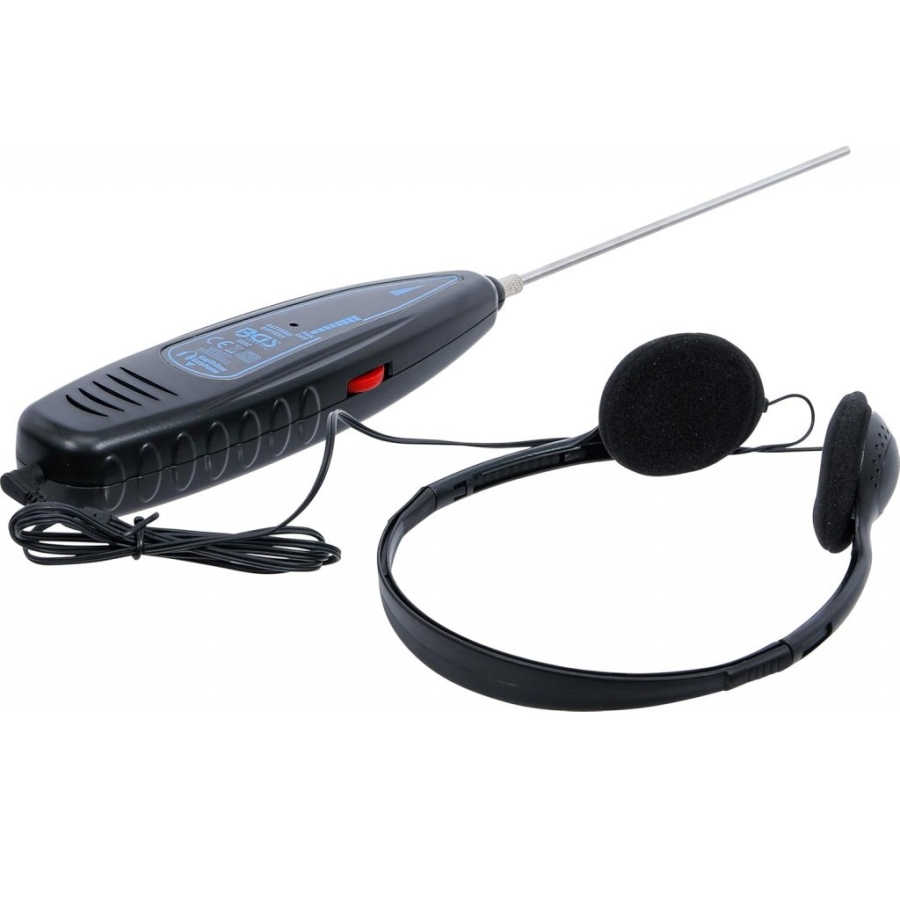

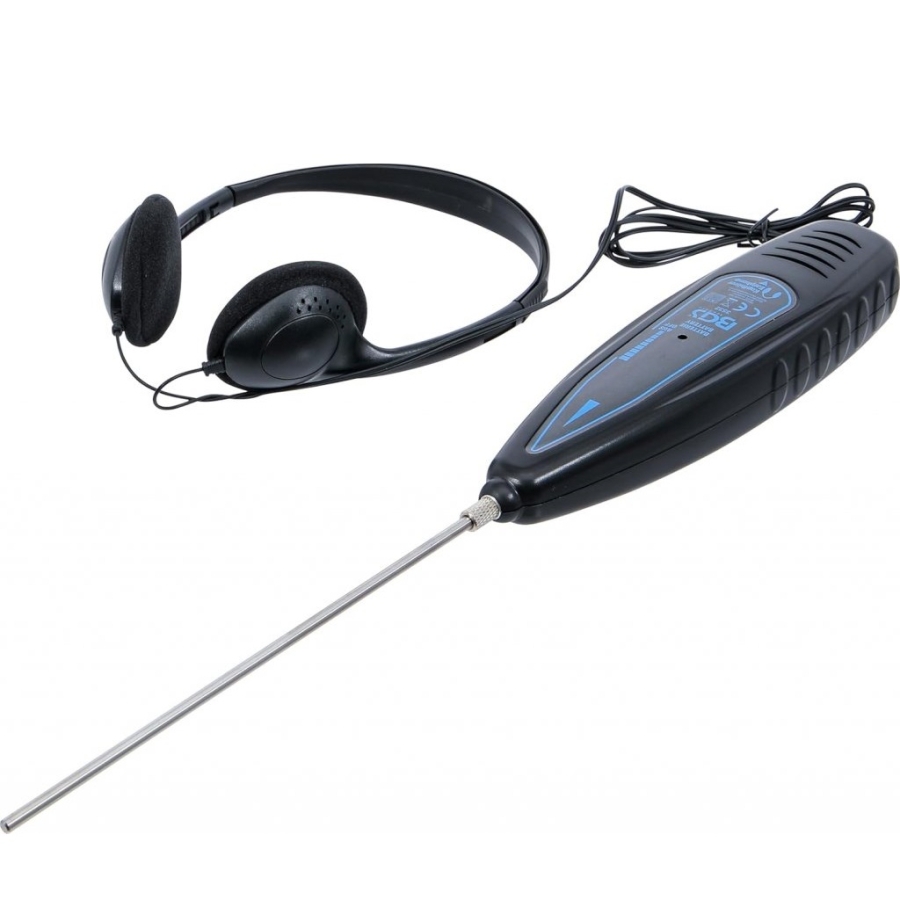

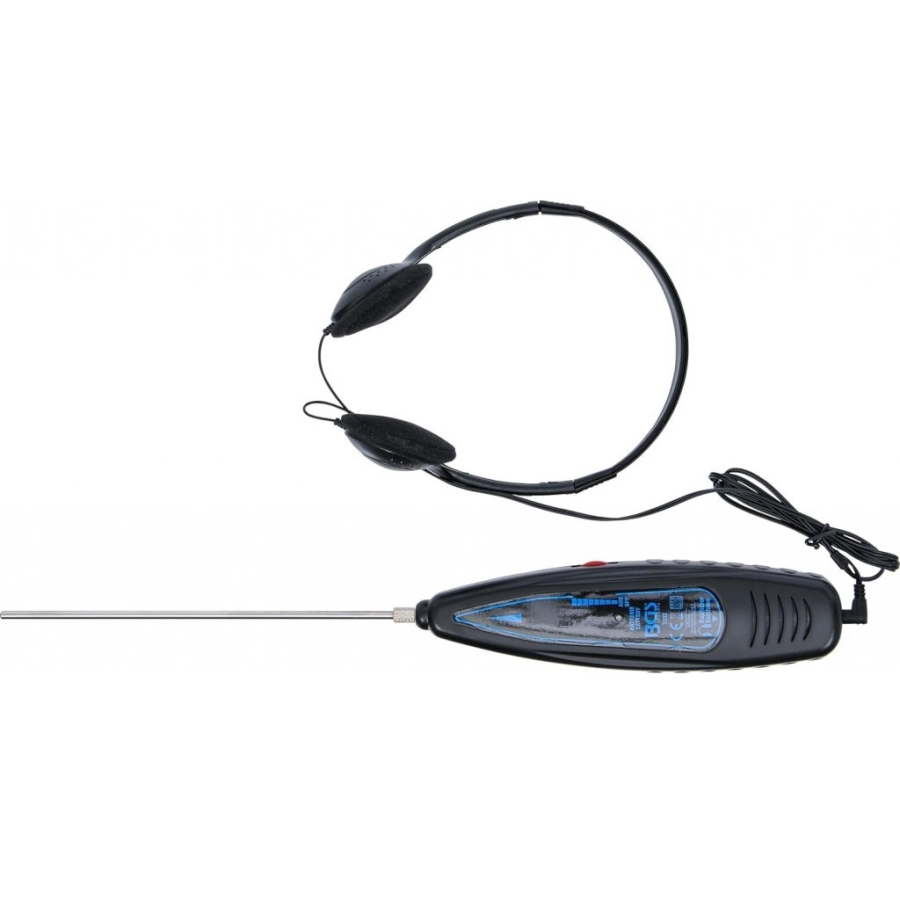

Electronic Mechanic Stethoscope

This electronic stethoscope is designed for locating mechanical noises in automotive systems, agricultural machinery and industrial equipment. The device electronically amplifies sound signals and reproduces them through the headphones, allowing even very low-level noises to be identified and analyzed.

By amplifying mechanical sounds, the stethoscope helps identify faults faster and simplifies troubleshooting procedures in workshop and maintenance environments.

The compact design and simple operation make the device suitable for both routine inspections and detailed diagnostic work.

Applications

Suitable for diagnosing:

• Engine components
• Alternators
• Bearings
• Vehicle components
• Agricultural machinery
• Industrial machinery
• Mechanical noises and vibrations

Features

• Fast localization of noise sources
• Amplification of low-level mechanical sounds
• Simple operation
• Adjustable volume control
• Integrated ON/OFF switch
• LED operation indicator
• Comfortable padded headphones
• Portable design

Operation Instructions

1. Insert a 9 V battery into the amplifier by opening the battery compartment and placing the battery inside.
2. Connect the headphone plug to the amplifier socket.
3. The adjustment wheel on the side of the housing functions as both an ON/OFF switch and volume control. When switched on, the red LED indicator illuminates.
4. Adjust the volume using the control wheel. Medium volume settings generally provide optimal analysis results and reduce surrounding background noise.
5. Switch the device off after use to maximize battery life.

Package Contents

• 1 × Electronic stethoscope amplifier unit
• 1 × Padded headphones

Workshop Benefits

• Simplifies localization of mechanical noise sources
• Reduces diagnostic time
• Allows rapid acoustic testing of components
• Helps identify low-level mechanical faults
• Suitable for professional workshop use
