Engine Timing Tool Set for BMW Diesel Engines M41 / M47 / M51 / M57

This engine tool set is designed for locking and positioning crankshaft and camshafts during engine timing procedures and timing chain or belt replacement.

It ensures precise alignment of engine components, preventing incorrect timing and potential engine damage.

Vehicle Compatibility

Compatible with the following models:

BMW:

• 1 Series
• 3 Series
• 5 Series
• 6 Series
• 7 Series
• X3 / X5
• Model series: E34, E36, E38, E39, E66, E83, E90, E91, E92, E93

Land Rover:

• Range Rover
• Freelander

Rover / MG:

• Rover 75
• MG
• MG ZT

Opel / Vauxhall:

• Omega B

Engine Compatibility

Suitable for the following engine codes:

• M41
• M51
• M47 / M47 TU / M47 T2
• M57 / M57 TU / M57 T2 (2.0L / 3.0L)
• 204D3 / Td4
• Td6
• M47R

Function

The tool set enables:

• Locking of crankshaft and camshafts in correct timing position
• Camshaft alignment during engine assembly
• Injection pump removal and installation
• Securing tensioners and timing components
• Accurate timing adjustment during service

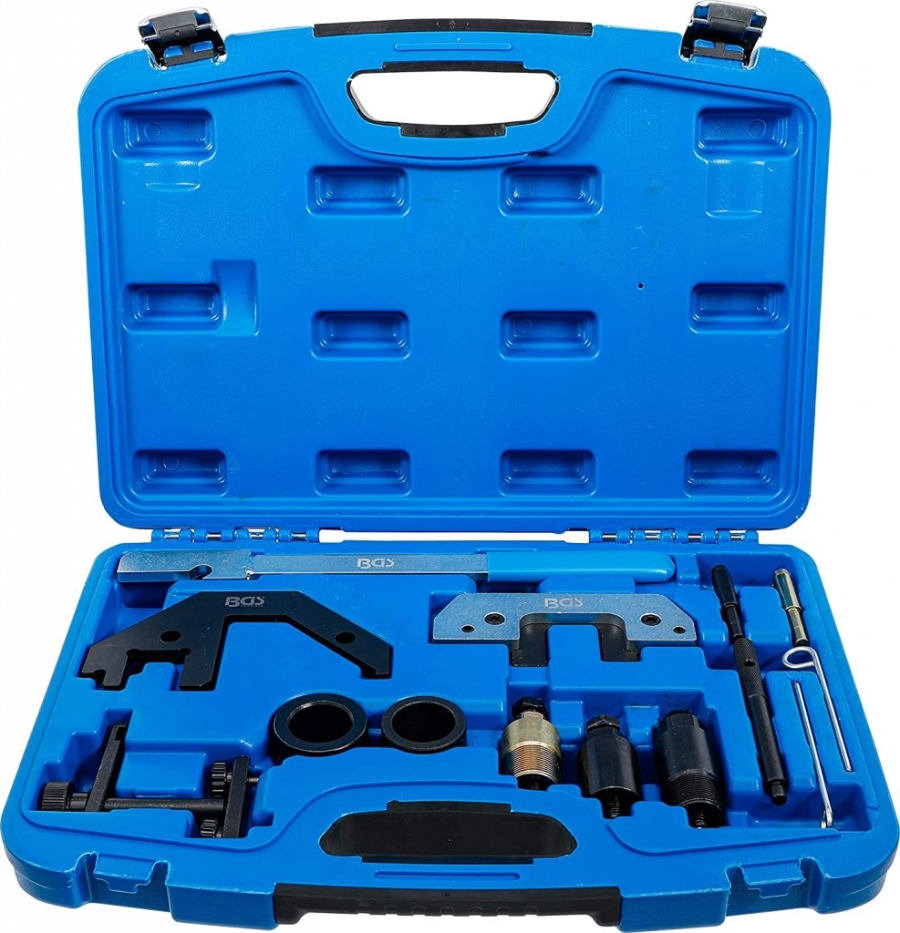

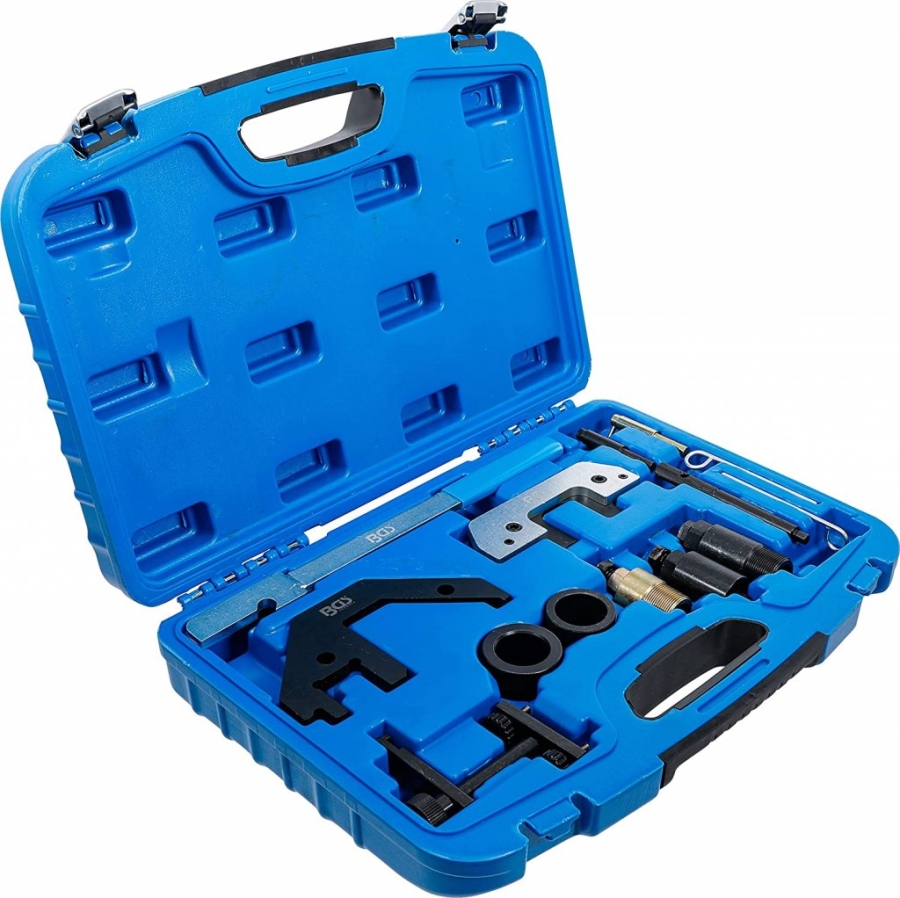

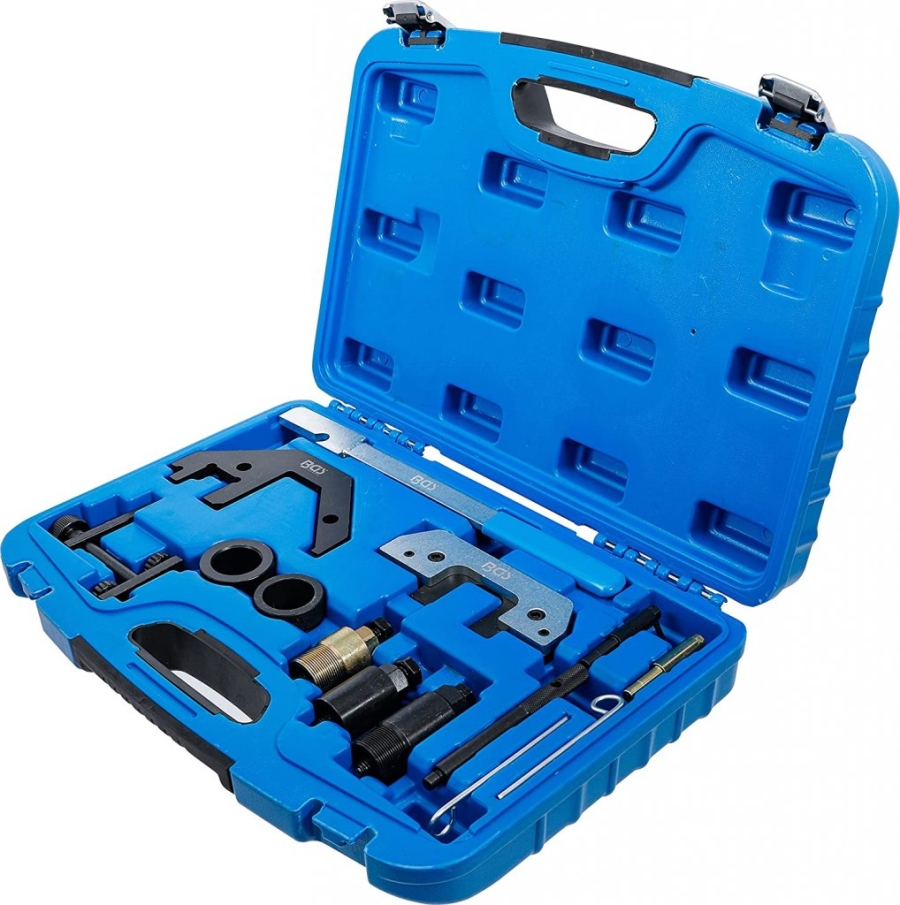

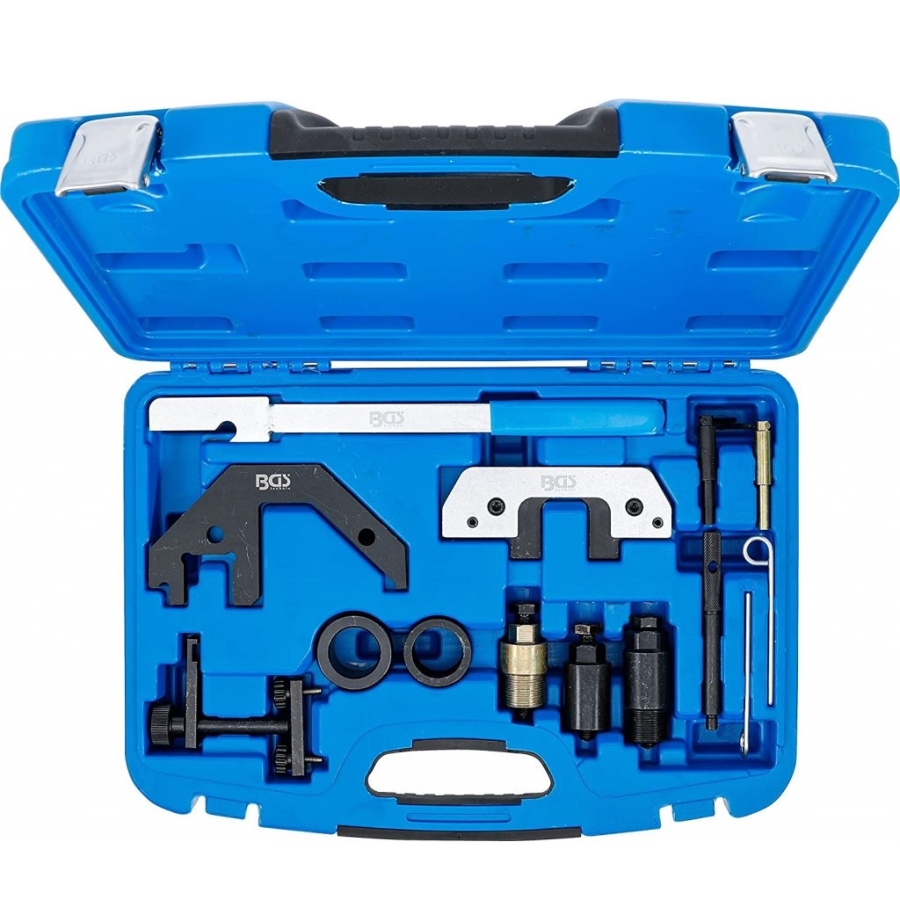

Contents

• Camshaft chain counterhold tool
  113360, LRT-12-115
• Camshaft alignment tool
  116321, 116320, KM6267
• Locking bracket alignment tool
  116322, 116320
• Injection pump puller (long)
  135120
• Injection pump puller
  135120, LRT-12-119
• Injection pump puller (short)
  135191, 135192, 135190, KM6270
• Thread rings
  135191, 135192, 135190, KM6270
• Camshaft locking bridge
  113320, LRT-12-112
• Crankshaft locking pin
  115180
• Crankshaft locking pin
  116080
• Tensioner locking pin
  113340, LRT-12-114, KM-823
• Crankshaft locking pin
  112300, LRT-12-108

Important Notes

• Suitable for a wide range of BMW diesel engines and related platforms
• Ensures precise timing alignment during engine repair procedures
• Designed for workshop and professional use

OEM numbers are for reference purposes only. This is not an original tool.
