Engine Timing Tool Kit for Ford, Mini, Opel, PSA, Toyota Diesel Engines 1.4L–2.8L

This comprehensive engine timing tool kit is designed for precise locking and alignment of crankshaft, camshaft, and injection pump components. It enables accurate timing adjustment across a wide range of diesel engines from multiple manufacturers.

Wide Vehicle & Engine Compatibility

Compatible with numerous engine codes from brands including Ford, Mazda, Citroën, Peugeot, Mini, Opel, Volvo, Suzuki, Toyota, Fiat, Renault, and Iveco.
Covers engine displacements: 1.4L, 1.5L, 1.6L, 2.5L, 2.8L diesel engines.

Ford / Mazda:
AEDA, F6JA, F6JB, F6JC, F6JD, G8DA, G8DB, G8DC, G8DD, G8DE, G8DF, GPDA, GPDB, GPDC, HHDA, HHDB, HHJA, HHJB, HHJC, HHJD, HHJE, HHJF, HNDA, KVJA, MTDA, NGCA, NGDA, NGDB, T1BA, T1BB, T1BC, T1DA, T1DB, T1GA, T1WA, T1WB, T3CA, T3CB, T3CC, T3DA, T3DB, T3JA, T3JB, TZGA, TZGB, TZJA, TZJB, U3CA, UBGA, UBJA, UGCA, UGCB, UGCC, UGJC, UGJE, UGJG, UGJM, XUCA, XUCC, XUCD, XUCE, XUGA, XUJA, XUJB, XUJC, XUJD, XUJE, XUJF, XUJG, XUJH, XUJK, XUJL, XUJM, XUJN, XVCA, XVCB, XVCC, XVGA, XVGB, XVGC, XVJA, XVJB, XVJC, XVJD, XVJE, XWCA, XWCB, XWDA, XWDB, XWDC, XWDD, XWDE, XWGA, XWGB, XWGC, XWJA, XWJB, XWJC, XWMB, XWMC, XXCA, XXCB, XXCC, XXDA, XXDB, XXDC, XXDD, XXGA, Y404, Y406, Y601, Y603, Y605, Y642, Y646, Y650, Y655, Y661, Z2DA, Z2GA, Z2JA, ZTDA, ZTDB, ZTJA, ZTJB, ZTJC

Citroen / Peugeot:
8HP, 8HR, 8HS, 8HT, 8HV, 8HX, 8HY, 8HZ, 9H07, 9HC, 9HD, 9HE, 9HF, 9HH, 9HJ, 9HK, 9HL, 9HM, 9HN, 9HP, 9HR, 9HS, 9HT, 9HU, 9HV, 9HW, 9HX, 9HY, 9HZ, BHS, BHV, BHW, BHX, BHY, BHZ, DV4C, DV4TD, DV4TED, DV4TED4, DV5, DV5RC, DV5RCE, DV5RCU, DV5RD, DV5RE, DV5RUC, DV5RUCD, DV6A, DV6ATED4, DV6AUTED4, DV6B, DV6BTED4, DV6BUTED4, DV6C, DV6CTED, DV6D, DV6DBM, DV6DTED, DV6DTEDM, DV6DUM, DV6E, DV6ETED, DV6ETED4, DV6ETEDM, DV6F, DV6FC, DV6FCU, DV6FD, DV6FDU, DV6FE, DV6T, DV6TED4, DV6TED4B, DV6TED4BU, DV6U, DV6UC, DV6UTED4, YHR, YHS, YHV, YHW, YHX, YHY, YHZ

Mini:
W16D16, W16D16UO

Opel:
B16DT, B16DTH, D15DT, D15DTH, D15DTL, F15DT, LEK

Volvo / Suzuki:
D4162, D4164T

Toyota:
2WZ-TV, 3WZ-HV, 3WZ-TV, 5WZ-HV, 5WZ-TV

Engine codes for commercial vehicles, vans:
Fiat Ducato, Renault Master, Iveco Daily:
8140.27.2500, 8140.27.2510, 8140.27.2580, 8140.27S, 8140.43B, 8140.43C, 8140.43N, 8140.43R, 8140.43S, 8140.47R, 8140.61.240, 8140.63(F28D), 8140.67.2510, 8140.67.2550, 8140.27, 8140.47, 8140.61, 8140.63, 8140.67 8144.21.220, 8144.61.200, 8144.61.500.81, 8144.67.2200, 8144.67.2500, 8144.67.2580, 8144.91.2000, 8144.97.2400, 8144.97S, 8144.97Y, 8144.21, 8144.61, 8144.65, 8144.67, 8144.91, 8144.97, CRD93, CRD93L, F28TDCR, S8U720, S8U722, S8U742, S8U750, S8U752, S8U758, S8U770, S8U772, S9U702, S9U714, S9U740, U25-661

Vehicle-Specific Notes

• Ford 1.5L EcoBlue engines: No gearbox locking hole – requires flywheel locking tool as 50017
• Opel engines: High-pressure pump must be locked using conical pin as 120417
• Volvo D4164T (V70, S80):
  • From chassis no. 590000: crankshaft pulley must be counter-held (e.g. as 50002)
  • Up to chassis no. 589999: remove TDC sensor and counter-hold manually

Equivalent OEM Tool References

Suitable for use as:

• Ford: as 303-734, 21-262, 303-735, 21-263, 303-1667/2, 49JE02020
• Opel: as EN-52137, EN-52138, KM-6349
• PSA / Toyota: as 0188H, 0191J, 01912A, 0194A, 0194B, 0194B2, 0194C, 0198B, 0198B2
• Renault: as MOT.910, MOT.1430
• Fiat / Iveco: as 1860965000, 1860617000, 2000016500, 2000018200, 99360187, 99360614, 99360615
• Mini: as 110300, 119790, 119850, 119851, 119852
• Volvo: as 9997121, 9997122, 9997169, 9997233

Storage & Organization

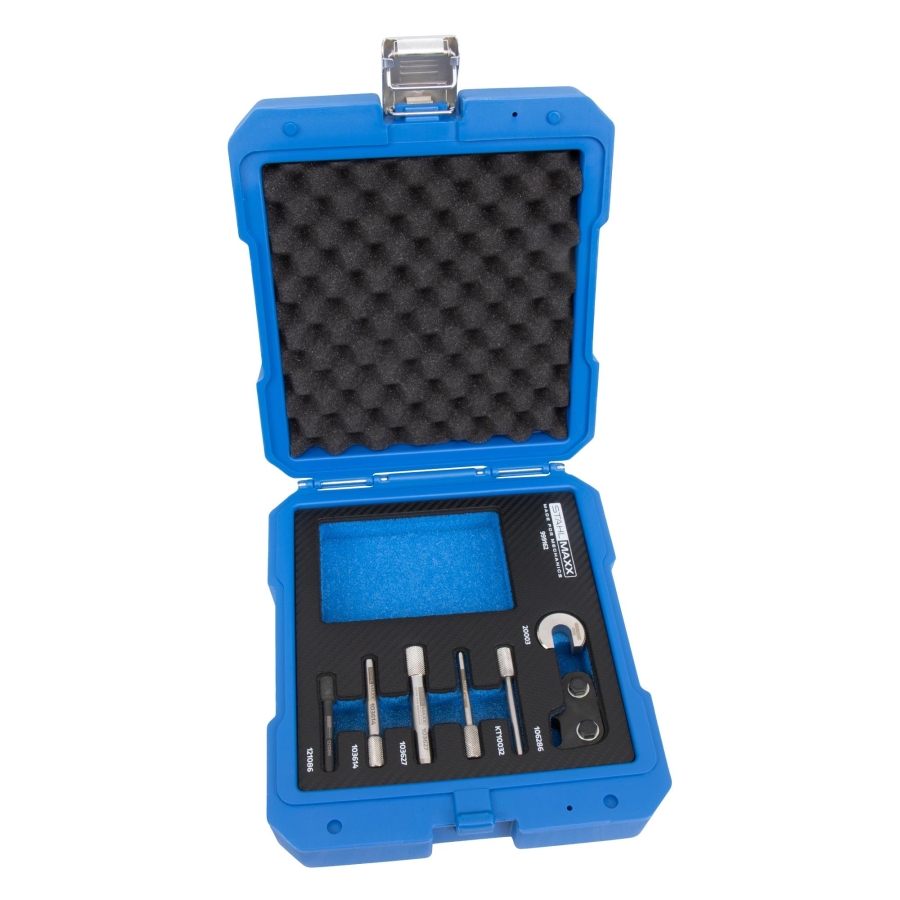

All components are securely stored in a precision-cut foam insert, ensuring organization and protection. Supplied in a robust storage case suitable for workshop environments.

Scope of Delivery

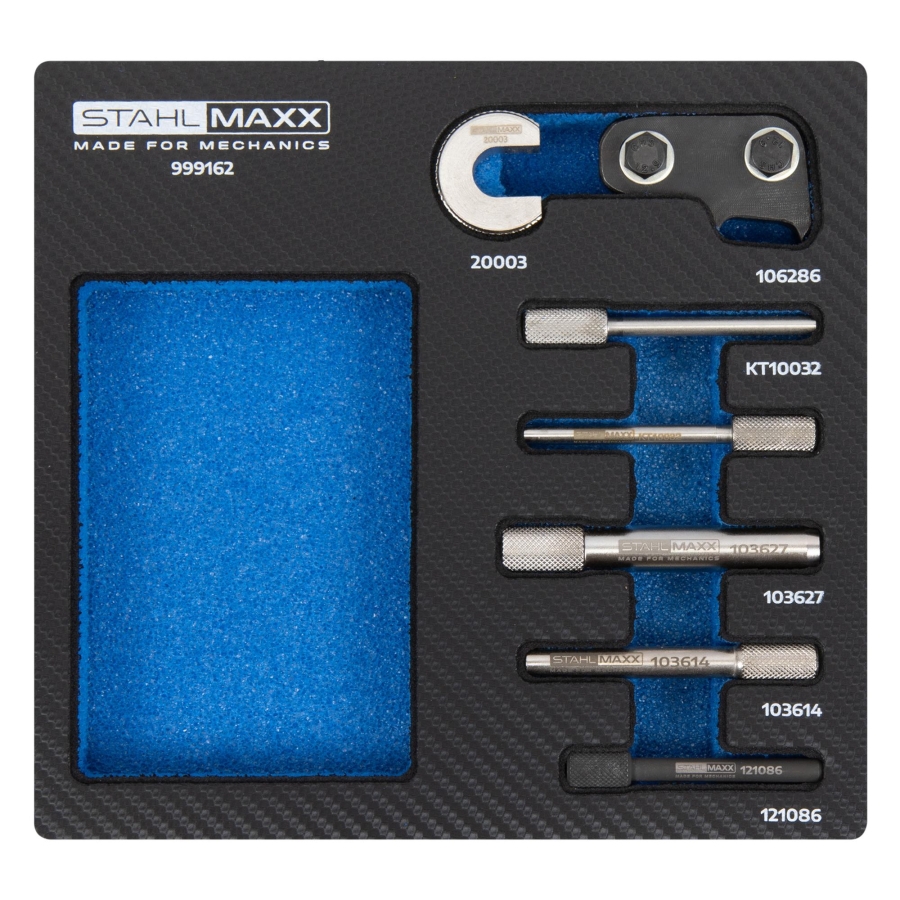

• 1 x Item No. 103627 – Crankshaft locking pin, as 01912A, 0194C, 303-734, 21-262, 49JE02020, 99360615, 9997169, 9997121, EN-52138, 2000018200
• 1 x Item No. 103614 – Camshaft locking pin, as 0194B, 110300, 303-735 (21-263), 9997122, EN-52137, MOT.1430
• 1 x Item No. 106286 – Flywheel locking tool (Mini), as 119850 (incl. 119851, 119852)
• 1 x Item No. 121086 – Camshaft locking pin 6 mm, as 0188H, 0191J, 0198B, 0198B2, 303-1667/2, 2000016500, 1860965000, 99360187
• 2 x Item No. KT10032 – Locking pins for crankshaft sensor wheel & camshaft, as 0194A, 0198B2, 119790, 303-732 (21-260), 99360614, 9997233, KM-6349, 1860617000, MOT.910
• 1 x Item No. 20003 – Tensioner damper locking tool, as 1860638000

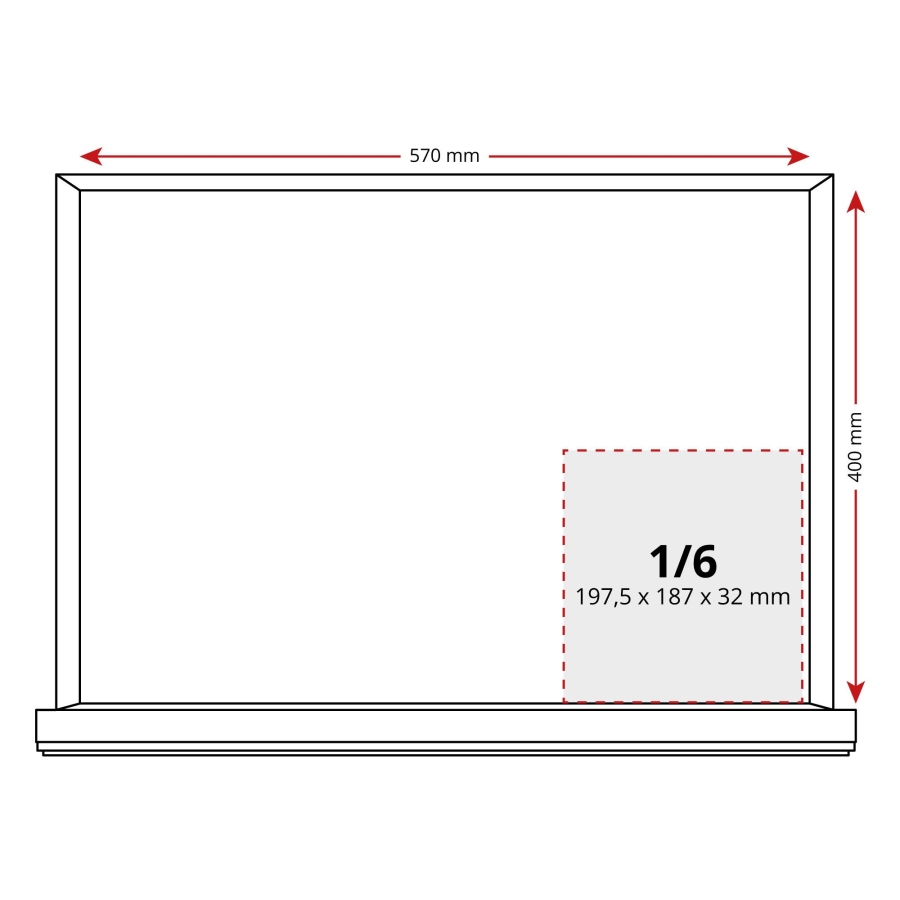

• 1 x Item No. 999162S – Foam insert 1/6 [187 × 197.5 × 32 mm]
• 1 x Item No. 115268 – Storage case 1/6

Original numbers are for comparison purposes only. This is not an OEM tool.
