Engine Timing Tool Kit for Opel, Chevrolet, Saab, Fiat, Lancia, Suzuki & Ford

This comprehensive engine timing tool kit is designed for checking, locking and adjusting engine timing on a wide range of petrol and diesel engines used in Opel, Chevrolet, Saab, Fiat, Lancia, Suzuki and Ford vehicles. The kit is suitable for timing belt replacement, engine servicing and repair procedures requiring precise crankshaft and camshaft positioning.

Vehicle Compatibility

Suitable for the following vehicle models:

• Opel Corsa B/C
• Opel Combo
• Opel Tigra
• Opel Agila
• Opel Tigra B
• Opel Meriva
• Opel Astra F/G/H
• Opel Astravan
• Opel Speedster VX220
• Opel Zafira A/B
• Opel Vectra B/C
• Opel Signum
• Opel Omega B
• Opel Sintra
• Opel Frontera A/B
• Opel Kadett
• Opel Ascona
• Opel Omega
• Opel Monterey
• Opel Antara
• Opel Croma
• Chevrolet Epica
• Chevrolet Captiva
• Chevrolet Nubira
• Chevrolet Lacetti
• Chevrolet Evanda
• Saab 9-3
• Saab 9-5 (98-04)
• Alfa Romeo 145 / 146 / 147 / 156 / 159 / 166 / GT / Crosswagon Q4
• Fiat Punto
• Fiat Grande Punto
• Fiat Bravo
• Fiat Brava
• Fiat Marea Weekend
• Fiat Stilo
• Fiat Doblò Cargo
• Fiat Multipla
• Fiat Idea
• Fiat Panda
• Lancia Ypsilon
• Lancia Musa
• Lancia Lybra
• Lancia Thesis
• Suzuki Ignis
• Suzuki Swift
• Suzuki Wagon R+
• Ford Ka

Compatible Engine Types

Suitable for the following engine variants:

Petrol Engines

• 1.0 12V
• 1.0 16V
• 1.2 16V
• 1.4
• 1.6
• 1.2-1.4 16V Chain
• 1.6 16V
• 1.8 16V
• 2.0
• 2.0 16V
• 2.0 Turbo
• 2.2 16V
• 2.2 16V DOHC

Diesel Engines

• 1.3 JTD MultiJet
• 1.3 CDTI
• 1.3 TDCI
• 1.5 D
• 1.5 TD
• 1.6 MultiJet
• 1.6-1.7 D
• 1.7 D
• 1.7 TD
• 1.9 JTD
• 1.9 MultiJet
• 1.9 CDTI
• 2.0 MultiJet
• 2.0 TDCI
• 2.0 D VCDI
• 2.0-2.2 DI
• 2.0-2.2-2.4 TD
• 2.2 DI
• 2.4 JTD
• 3.0 TD
• 3.1 TD

Engine Code Compatibility

Compatible with numerous engine codes including:

X14XE, Z14XE, X16SEJ, X16XE, X16XEL, Y16XE, Z16XE, Z16YNG, C18XEL, X18XE, X18XE1, Z18XE, Z18XEL, C20SEL, C20XE, X20XEV, Z20LEH, Z20LEL, Z20LER, Z20LET, X22SE, X22XE, Y22SE, Y22XE, Z22XE, D223L, X10XE, Z10XE, Z10XEP, X12XE, Z12XE, Z14XEP, X20DTL, X20DTH, X22DTH, Y20DTL, Y20DTH, Y22DTH, Y22DTR, 169A1.000, 955A4.000, 350A3.000, 192B4.000, 198A2.000, 350A2.000, 955A3.000, 192A8.000, 198A6.000, 198A3.000, 199B1.000, 199B2.000, 199A2.000, 199A3.000, 199A9.000, 940A3.000, 188A3.000, 939A2.000, 188B2.000, 188A8.000, 188A9.000, 323.02, 371.01, 937A2.000, 182B4.000, 182B9.000, 188A2.000, 188A7.000, 192A9.000, 186A6.000, 186A8.000, 192A1.000, 192A3.000, 192B1.000, 192A5.000, 186A9.000, 939A1.000, 199A5.000, 223A7.000, 223A9.000, 342.02, 362.02, 841G.000, 841H.000, 841P.000, 939A3.000, 185A2.000, 185A6.000, Z13DT, Z13DTJ, Z13DTH, Z19DT, Z19DTH, Z19DTJ, Z19DTL, X16SZR, Z16SE, 4EC1/T, 4EC1, 4EE1/T, 4EE1, X17DT, Y17DT, Y17DTi, Y17DTL, 16DA, 17D, 17DR/X, 7DTL, X17DTL, 4JX1/4, JG2T, 4FC1/T, 4FD1, Z20DMH, Z20DM, RA420, Z20S1, 194A1.000, Z22YH.

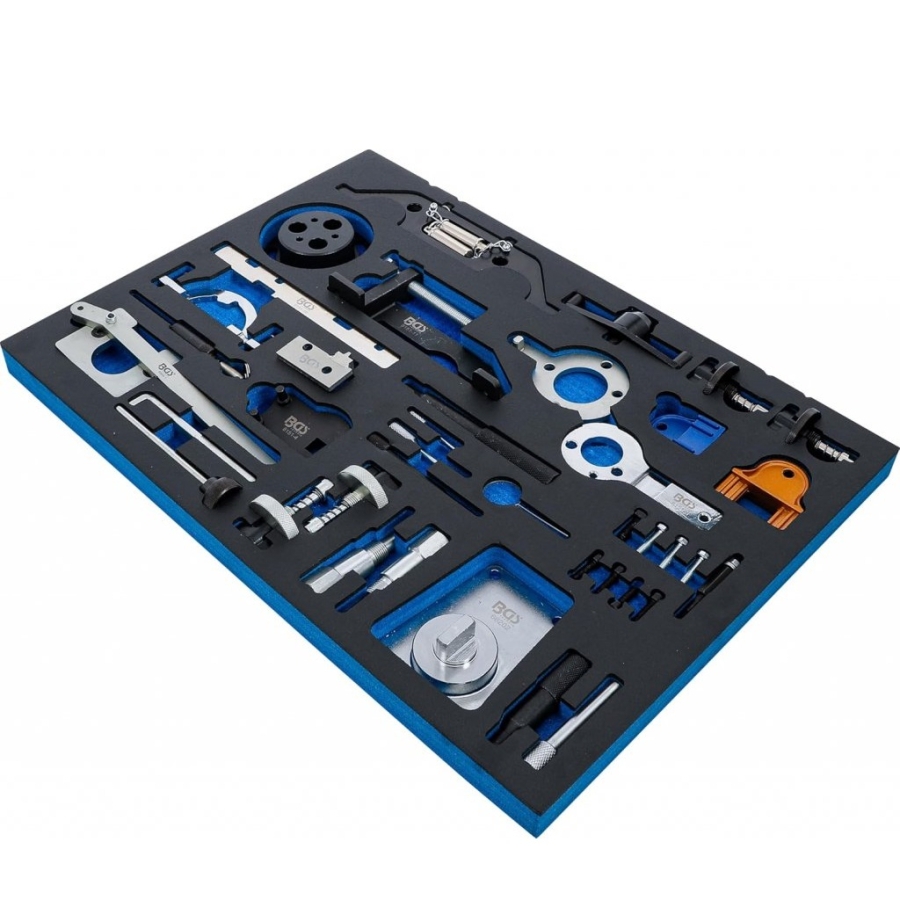

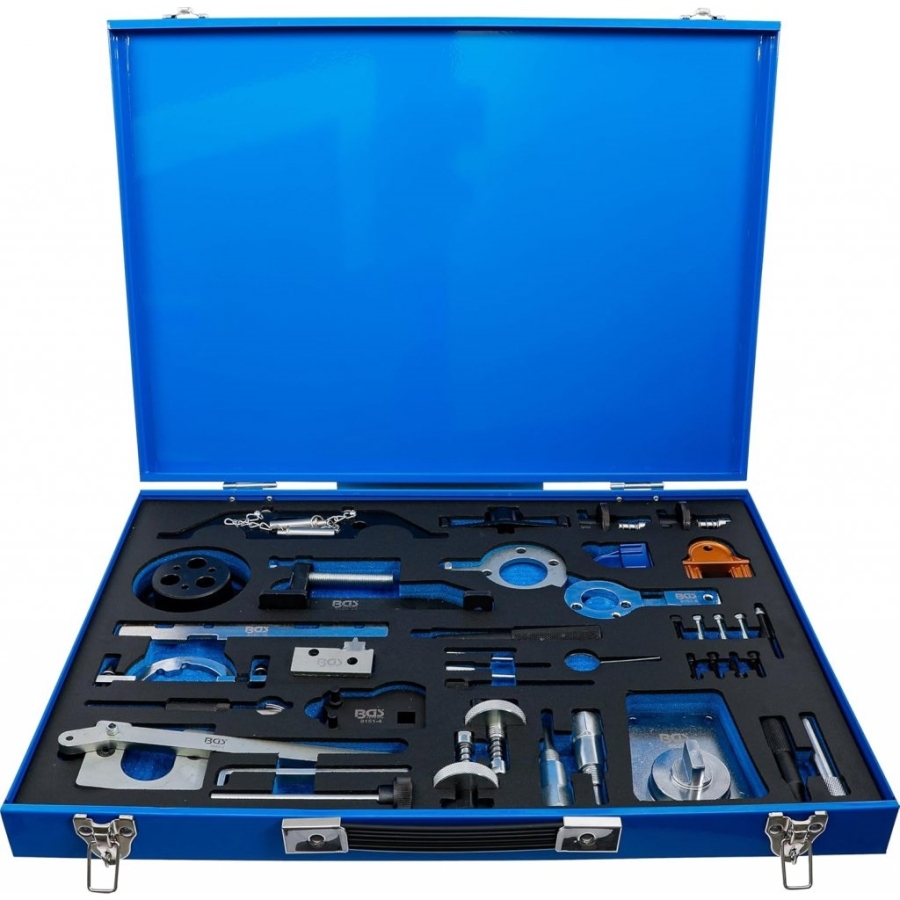

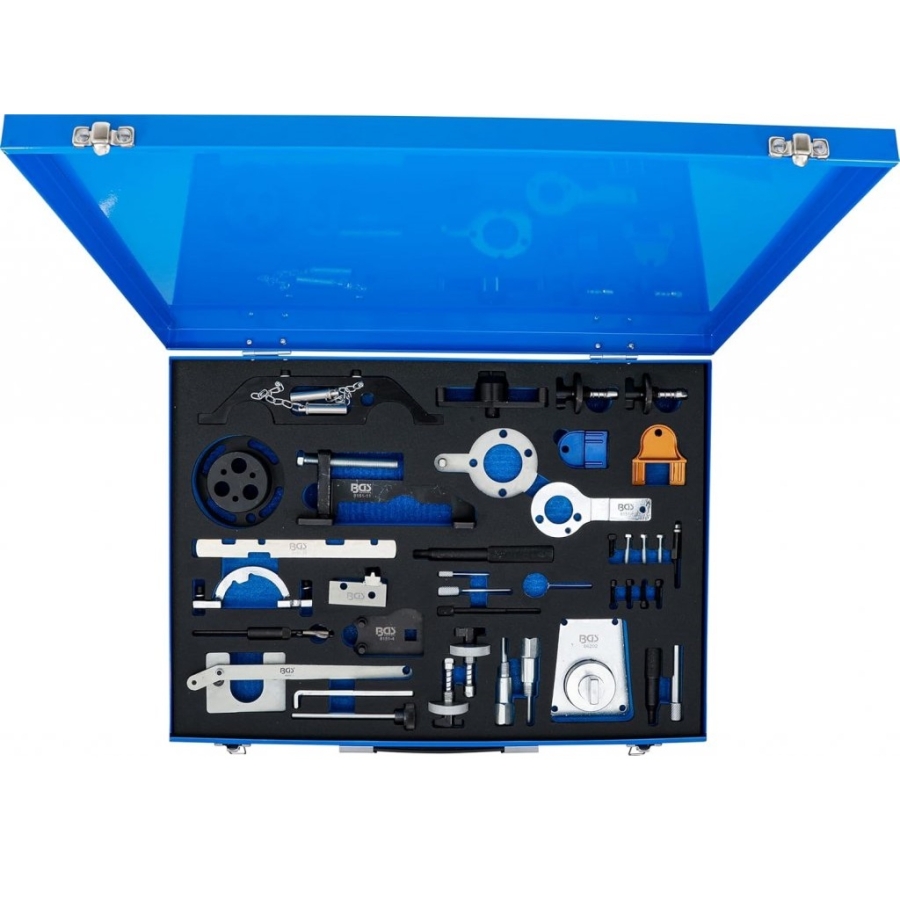

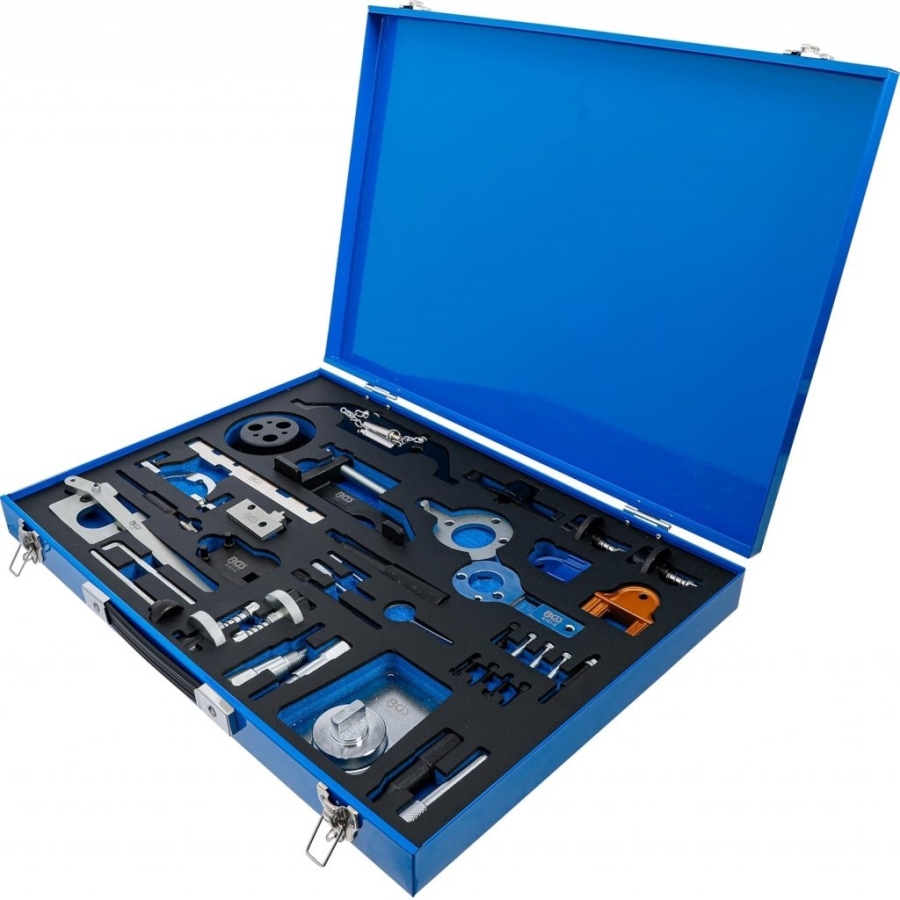

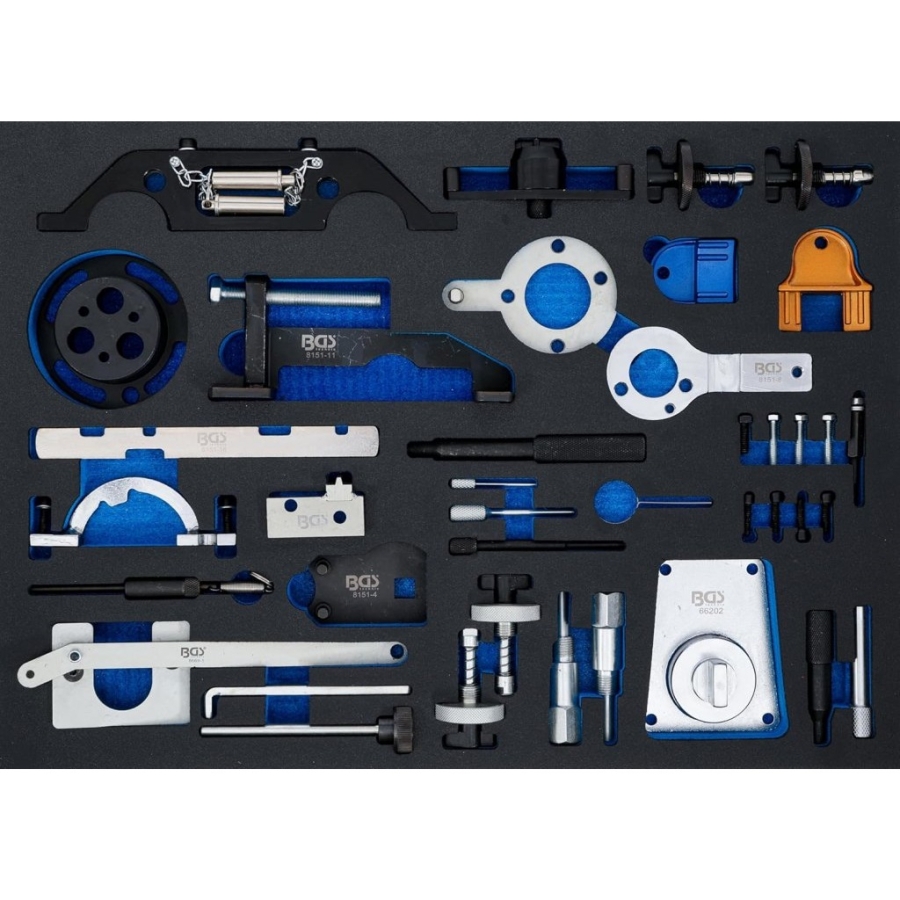

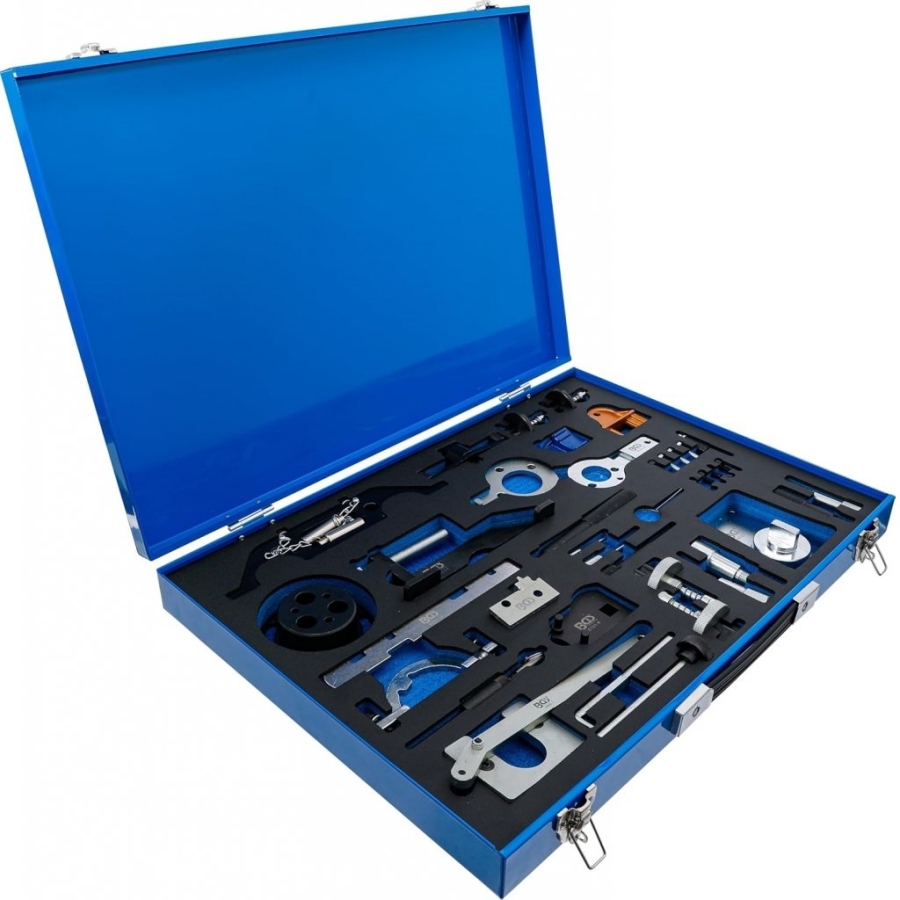

Package Contents

• Camshaft locking tools, to be used as OEM KM-852, KM-853, KM-932, KM-954, 21-162B, 303-376, 303-376B, KM-6148, 1860985000, 1871000900, EN-46781, KM-J-43651, 1870896900, EN-46789, EN-48245
• Adjustment wrench, to be used as OEM KM-933
• Injection pump locking pin, to be used as OEM KM-927
• Flywheel and crankshaft locking tools, to be used as OEM KM-929, KM-952, EN-46785, KM-951, 1860905000, 1860905010, EN-46788, KM-911, 1860703000, EN-48246, 1870900300, 303-1468
• Tensioner tools, to be used as OEM KM-955, KM-6130, KM-6349, 1870900400, 1871000200

Professional Workshop Application

Suitable for professional workshops and technicians performing:

• Engine timing adjustment
• Timing chain and belt replacement
• Camshaft locking procedures
• Crankshaft positioning
• Injection pump timing adjustment
• Engine maintenance and repair

The OEM reference numbers are for identification purposes only. This product is not an original OEM special tool.
