Engine Timing Tool Kit for Land Rover Jaguar 3.0L / 5.0L Diesel

This engine timing tool kit is designed for checking and adjusting the engine timing on Land Rover and Jaguar diesel engines. It enables accurate synchronization of the crankshaft and fuel injection system during maintenance and repair procedures.

Vehicle Compatibility

• Land Rover models with 3.0L and 5.0L diesel engines
• Jaguar models with 3.0L and 5.0L diesel engines

Functions

• Checks engine timing accuracy
• Adjusts crankshaft timing position
• Aligns fuel injection pump with camshaft
• Supports engine service and diagnostics

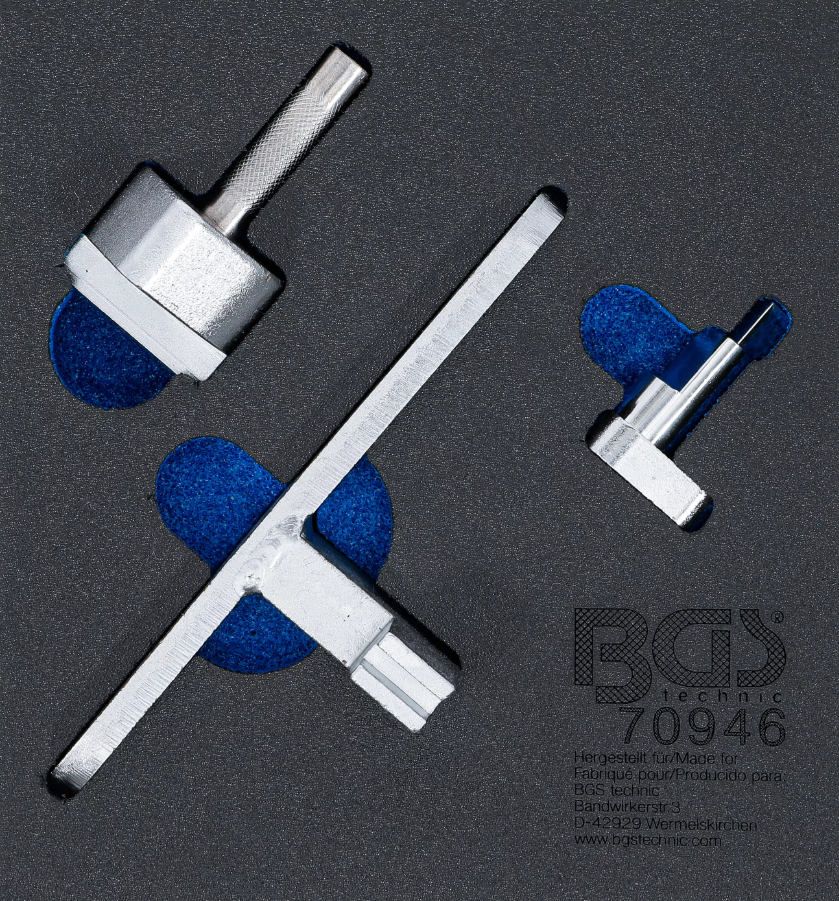

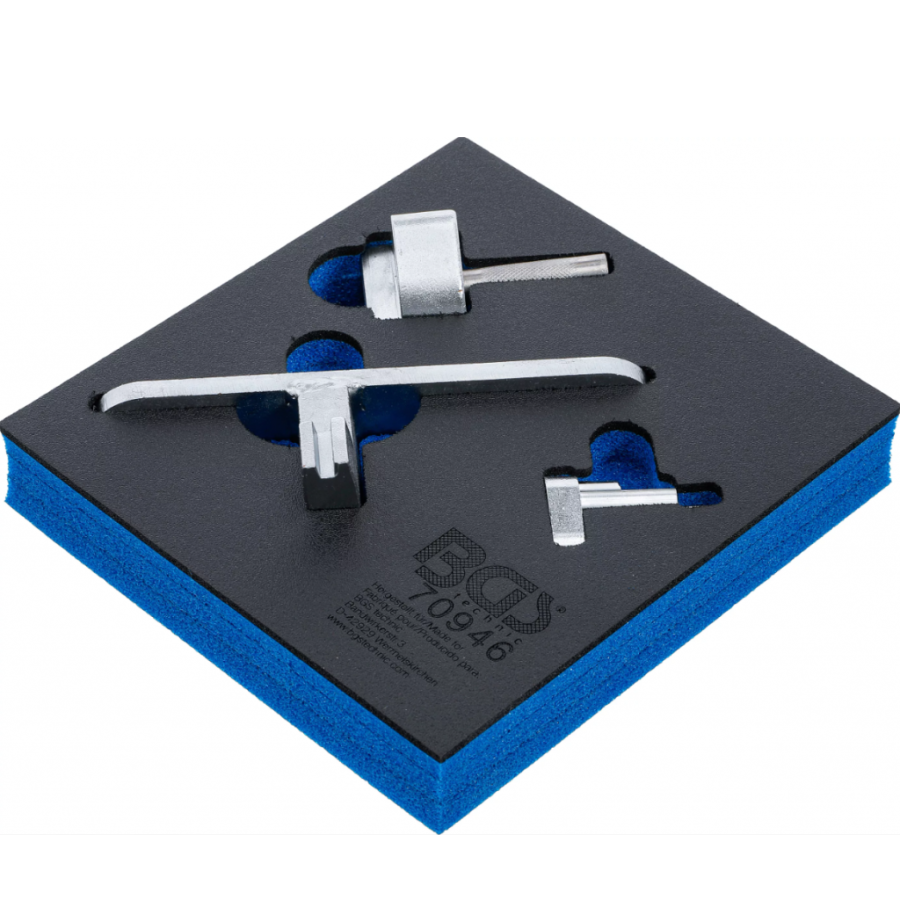

Included Tools

• Fuel pump camshaft setting tool – used as OEM 303-1621
• Flywheel locking tool – used as OEM 303-1304
• Crankshaft setting tool – used as OEM 303-1303

OEM Reference Compatibility

• Used as Jaguar / Land Rover: 303-1303, 303-1304, 303-1621

OEM numbers are provided for reference only. This product is not an original manufacturer tool.

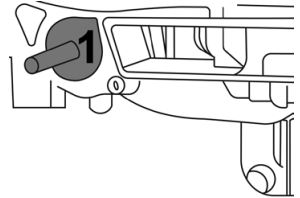

Fuel Pump Camshaft Alignment Tool (1)

Holds the camshaft in the correct timing position.

• To gain access for the tool, the blanking plug must be removed

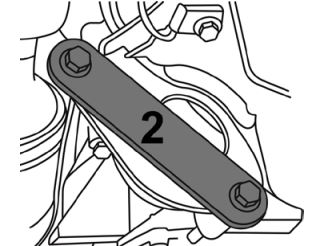

Flywheel Locking Tool (2)

Required when loosening and tightening the crankshaft pulley.

• After removing the starter motor, the tool engages with the flywheel ring gear
• Locks both the flywheel and crankshaft

Crankshaft Alignment Tool (3)

Used to set the crankshaft in the correct timing position.

• Installed in place of the crankshaft position sensor
• Engages with the flywheel ring gear
• Holds the crankshaft in the correct position

Important:
This tool is not suitable for locking the crankshaft when loosening or tightening the pulley bolt.
