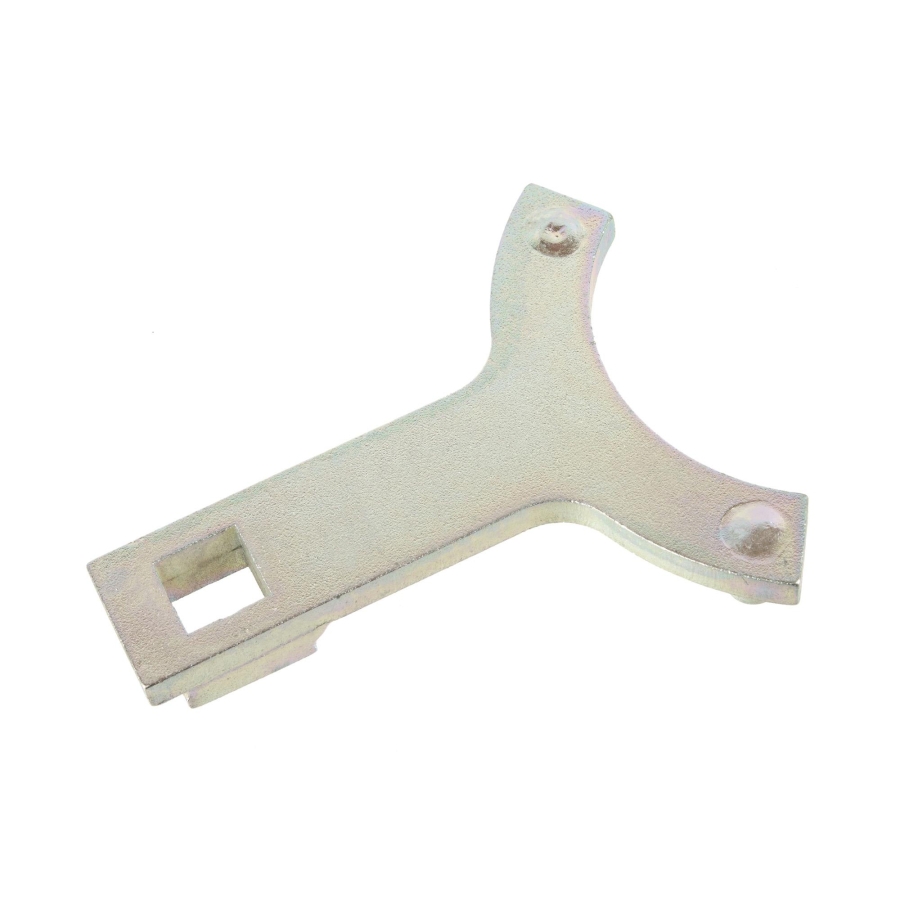

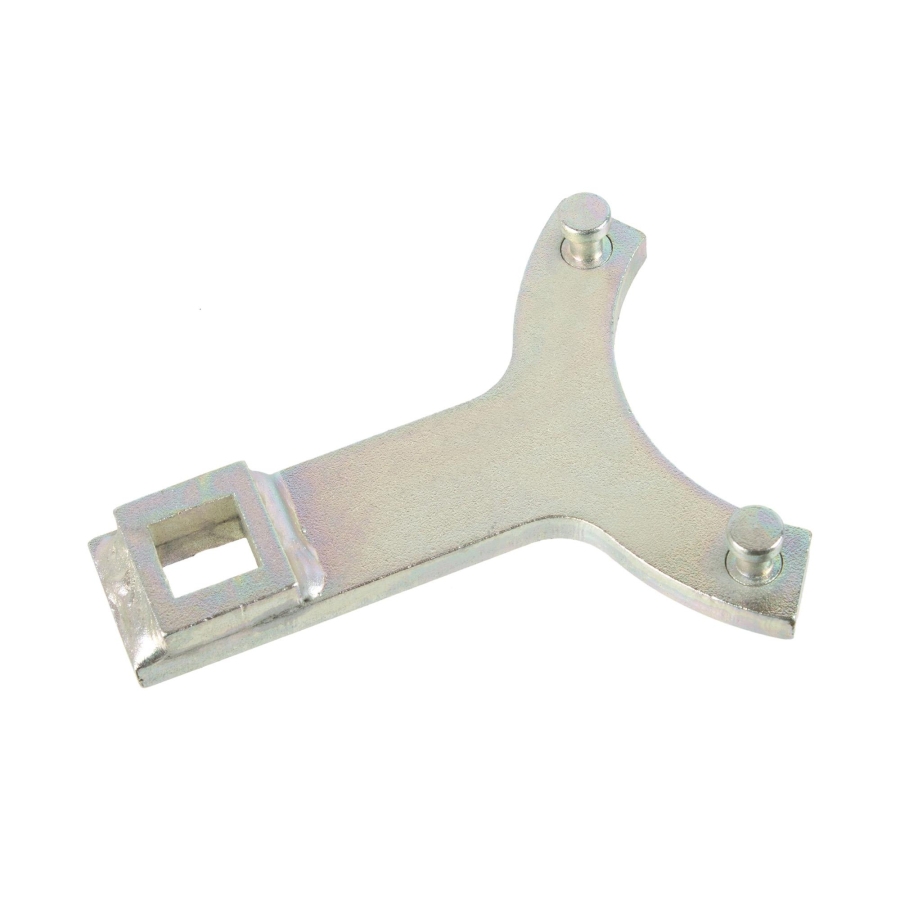

Fan Clutch Holding Tool for Ford Transit as 303-1561
-
Code:116404
-
Weight:0.500 Kgs
Overview:
✔ Holding tool for Ford Transit viscous fan clutch
✔ Designed for use with a 1/2" ratchet or breaker bar
✔ Prevents the cooling fan from rotating during service
✔ Suitable for Ford Transit 2.2L, 2.4L and 3.2L engines
✔ Fan clutch uses a right-hand thread
✔ Designed for use as Ford 303-1561
This holding tool is designed to counterhold the cooling fan and viscous fan clutch during removal and installation on Ford Transit engines.
It is used together with a standard 1/2" ratchet or breaker bar and securely holds the pulley while loosening or tightening the fan clutch.
The tool is particularly useful when corrosion makes the fan clutch thread difficult to loosen.
Important Note
- The fan clutch uses a right-hand thread.
- Recommended tightening torque: 105 Nm.
Compatible Engines
- Ford Transit 2.2L
- Ford Transit 2.4L
- Ford Transit 3.2L
OEM Reference
Designed for use as:
- Ford 303-1561
Original numbers are for comparison purposes only. This is not an original manufacturer tool/product.
