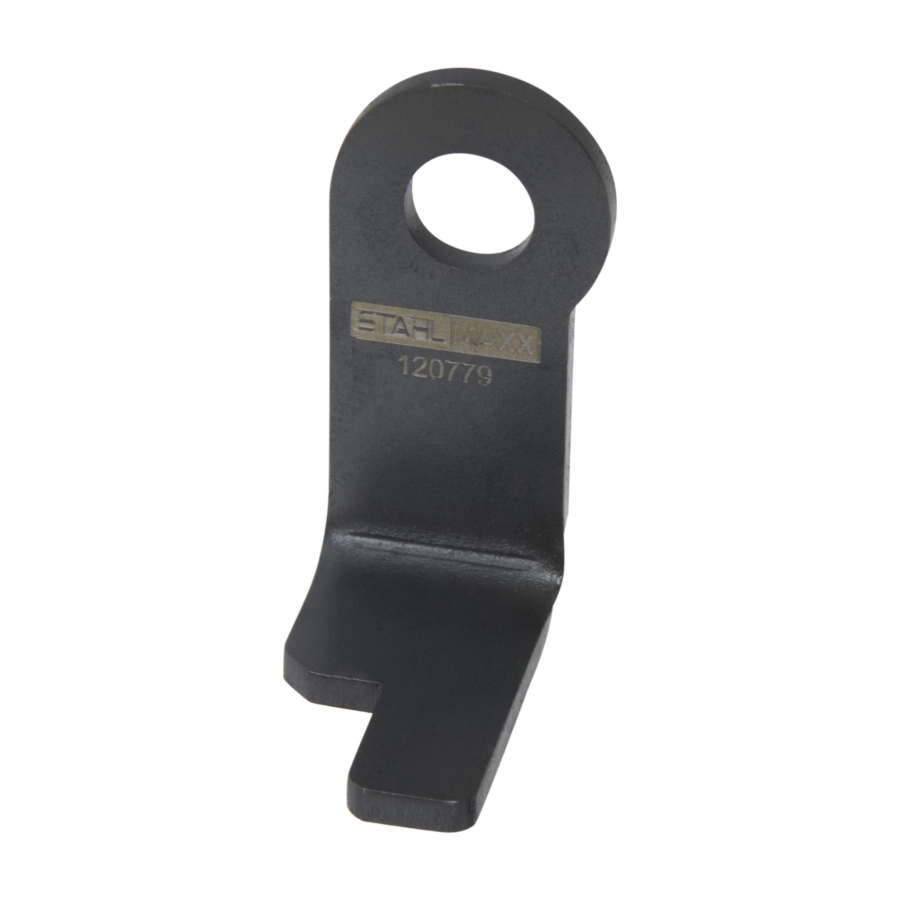

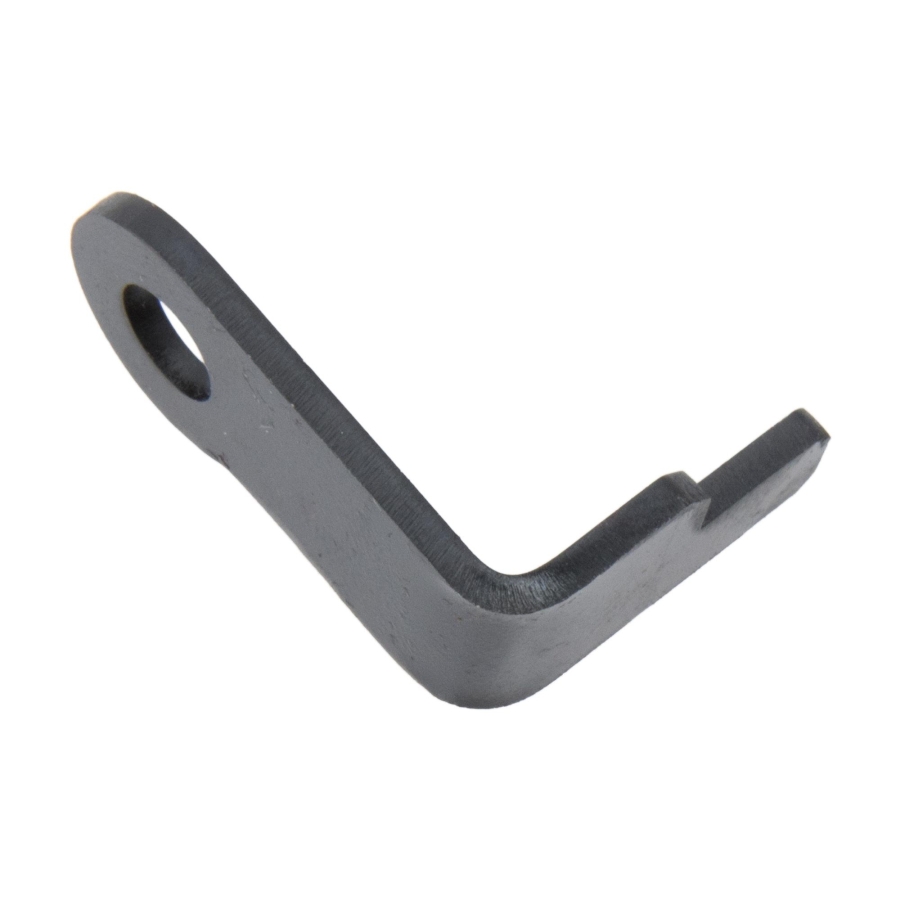

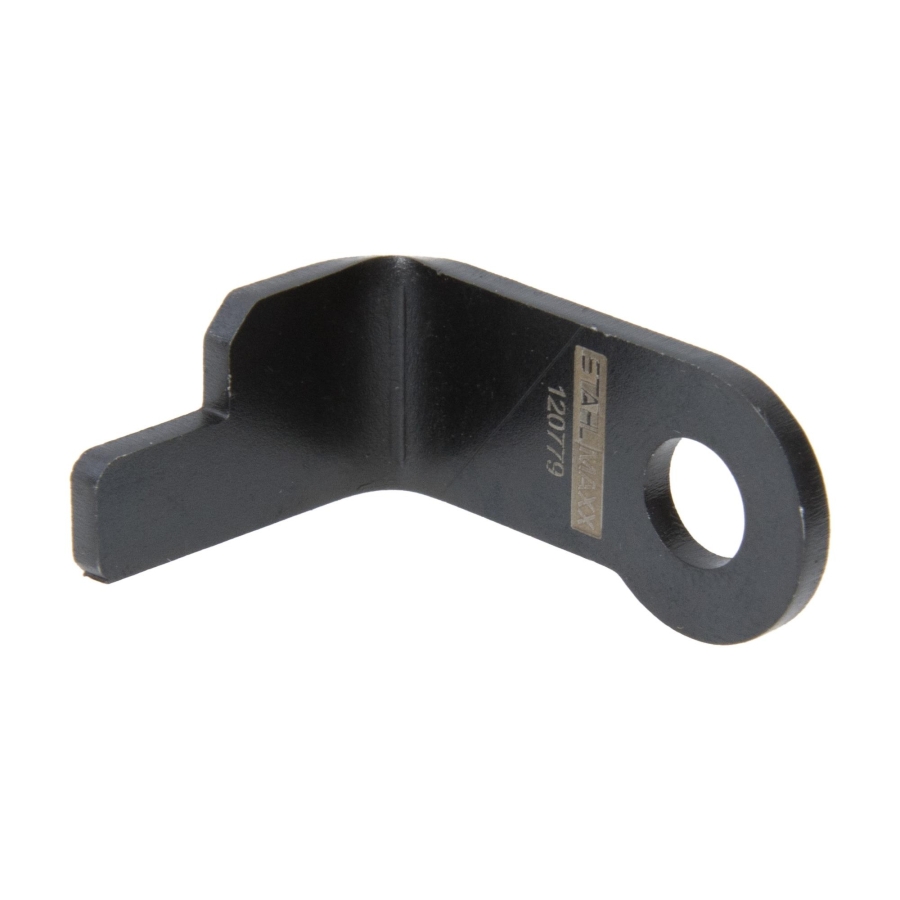

Serpentine Belt Tensioner Retaining Tool for Fiat/Jeep 1.6L, as 2000041200
-
Code:120779
-
Weight:0.010 Kgs
Overview:
✔ Special tool for securing the belt tensioner in its released position
✔ Designed for Fiat/Jeep 1.6L E.torQ E6 engines
✔ Engages with the dedicated slot in the tensioner housing
✔ Required for safe removal of the serpentine belt
✔ Suitable for Fiat 500, Tipo and Jeep Renegade
✔ For use as 2000041200 / 2.000.041.200
This special tool secures the serpentine belt tensioner in its fully released position.
The tensioner housing features a dedicated slot into which the retaining tool is inserted. A conventional locking pin or improvised substitute cannot secure this tensioner correctly. The serpentine belt can only be removed once the tensioner has been fully released and securely locked.
The tensioner assembly must also be removed when carrying out work on the timing chain drive.
Important Safety Information
Removing or installing the tensioner while it is still under spring tension can cause injury and damage or destroy the tensioner.
Always release the tensioner completely and secure it with the correct retaining tool before removing the belt or tensioner assembly.
Suitable for the Following Engines and Engine Codes
Fiat 1.6L E.torQ E6 engines
EJH, 552 63 842, 55263842, 552 68 036, 55268036
Suitable for the Following Vehicles
Fiat: 500, Tipo
Jeep: Renegade
For Use as
2000041200 / 2.000.041.200
Original numbers are used for comparison purposes only. This is not an original tool.
