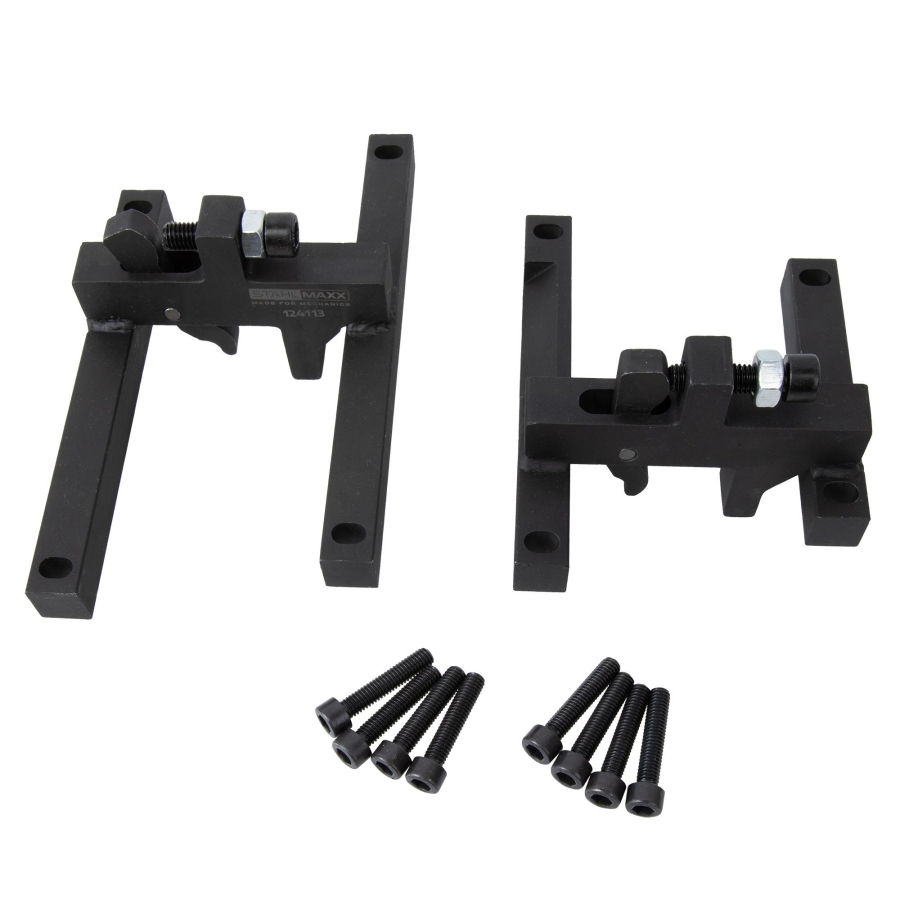

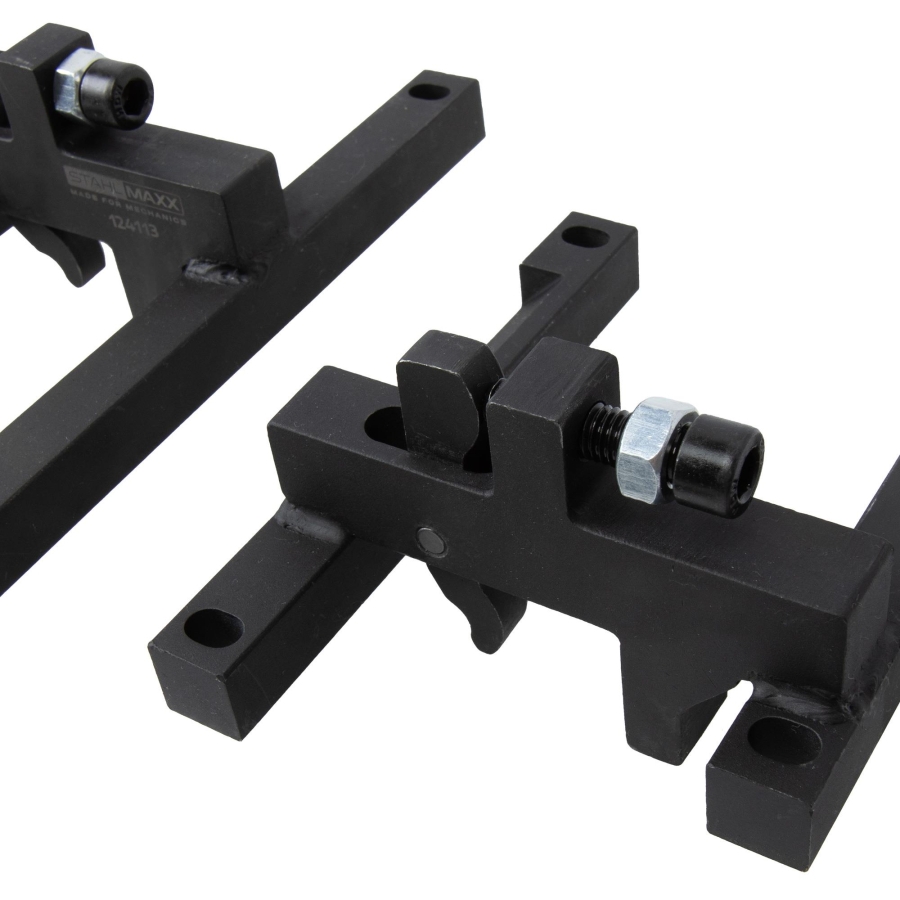

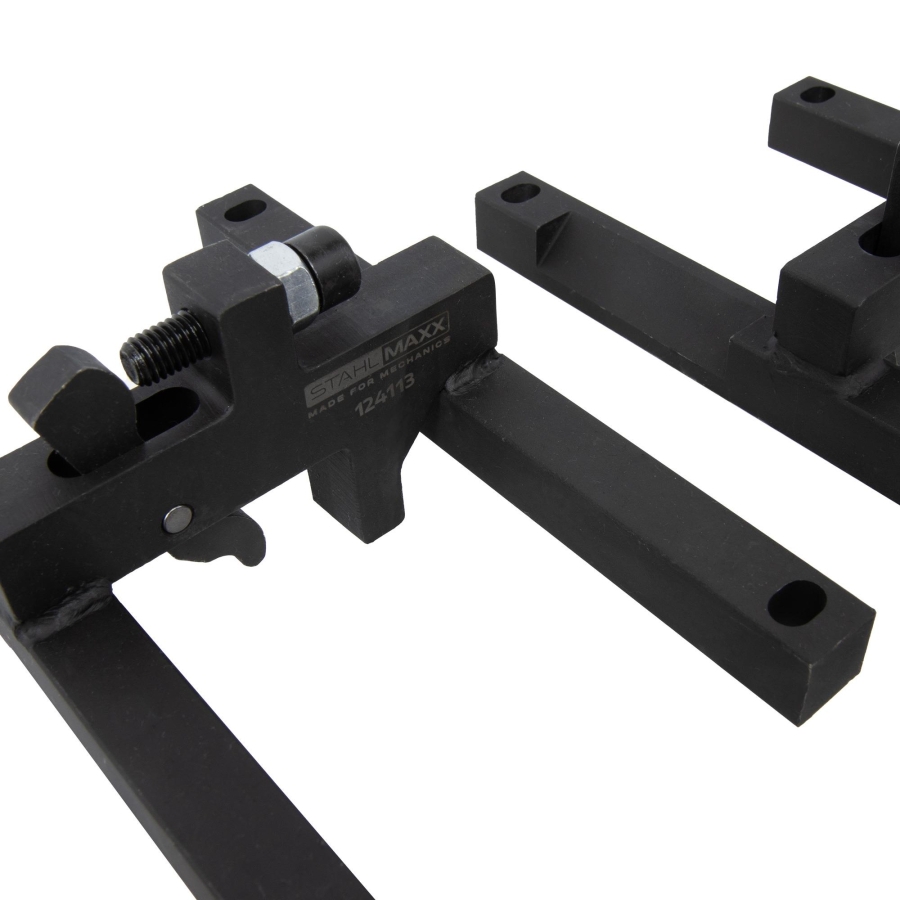

Camshaft Alignment & Locking Tool Set for Ford EcoBoost 1.0 / 1.1

This specialized tool set is designed for locking and adjusting the intake and exhaust camshafts on first-generation Ford EcoBoost 1.0L and 1.1L engines.

It is essential for timing adjustment during timing belt service and engine repair.

Function

The tools fix both camshafts in the correct position, ensuring precise alignment during assembly and maintenance.

This prevents incorrect timing and ensures proper engine performance.

Design Advantage

The camshaft locking tools are manufactured using a precision welding jig, ensuring exact alignment and parallel positioning to the camshaft reference surface.

Compared to other tools on the market:

• Guarantees higher accuracy during timing setup
• Includes a dedicated cut-out for easy installation with the turbocharger oil line installed

This feature is not present in the original OEM tool or many comparable alternatives.

Engine Compatibility

Engine codes:
M1CA, M1CB, M1DA, M1DC, M1DD, M1DH, M1FA, M1JA, M1JC, M1JE, M1JH, M1JJ, M1JL, M1JM, M1JU, M2DA, M2DB, M2DC, M2GA, M2GB, P4JA, P4JB, P4JC, P4JD, Q0JA, Q0JB, Q0JC, Q0JD, SFCA, SFCB, SFCC, SFCD, SFCE, SFCF, SFDA, SFDB, SFDC, SFJA, SFJB, SFJC, SFJD, SFJE, SFJF, SFJH, SFJJ, SFJK, SFJL, SFJN, SFJP, YYJA, YYJB, YYJD, YYJE

OEM Reference

To be used as:
303-1605, 3031605

OEM numbers are for reference purposes only and do not imply original manufacturer tools.
