Engine Timing Tool Set for Ford & Mazda 1.25 / 1.4 / 1.6 / 1.8 / 2.0L Petrol Engines

Price: €24.95 48.80лв.

Code:

8215
Weight:

0.290 Kgs

Overview:
✔ Professional timing tool set for Ford and Mazda petrol engines
✔ Suitable for 1.25L / 1.4L / 1.6L / 1.8L / 2.0L engines (1991–2009)
✔ Includes camshaft alignment bar and crankshaft locking pins
✔ Ensures precise camshaft and crankshaft positioning
✔ Required for timing belt replacement and engine service
✔ Compatible with engines using automatic and semi-automatic tensioners

Engine Timing Tool Set for Ford & Mazda 1.25 / 1.4 / 1.6 / 1.8 / 2.0L Petrol Engines

Send to friend

Rate this product

This engine timing tool set is designed for accurate locking and alignment of camshaft and crankshaft components when performing timing belt replacement and engine maintenance on a wide range of Ford petrol engines, as well as equivalent Mazda engines.

The included camshaft alignment bar and crankshaft locking pins ensure precise timing setup, preventing engine damage and ensuring optimal engine performance.

Compatibility – Vehicles & Engines

Compatible with multiple Ford models including:
Fiesta, Fusion, Escort, Orion, Focus, Mondeo, Transit, Tourneo

Supports engines with automatic and semi-automatic belt tensioners across various production years from 1991 to 2009.

Engine Compatibility

Suitable for the following engine sizes:
1.25L, 1.4L, 1.6L, 1.8L, 2.0L petrol engines

Engine codes include:
AODA, AODB, AODE, CGBA, CGBB, CJBA, CJBB, DHA, DHB, DHC, DHD, DHE, DHF, DHG, EYDB, EYDC, EYDD, EYDE, EYDF, EYDG, EYDI, EYDJ, EYDL, EYPA, EYPB, EYPC, EYPD, FHA, FHE, FUJA, FUJB, FXDA, FXDB, FXDC, FXDD, FXJA, FXJB, FXJC, FYDA, FYDB, FYDC, FYDD, FYDH, FYJA, FYJB, FYJC, HWDA, HWDB, L1E, L1K, L823, M7JA, M7JB, NGA, NGB, NGC, NGD, Q7DA, QQDA, QQDB, QQDC, QQDD, RDA, RDB, RKA, RKB, RKC, RKF, RKH, RKJ, RKK, RQB, SHDA, SHDB, SHDC, SYDA

OEM Reference

To be used as:
303-376B, 21-162B, 49UN303376
303-507, 21-210, 49JE01061
303-748, 21-259, 49JE02024
303-574, 303-620, 21-163, 49UN303574

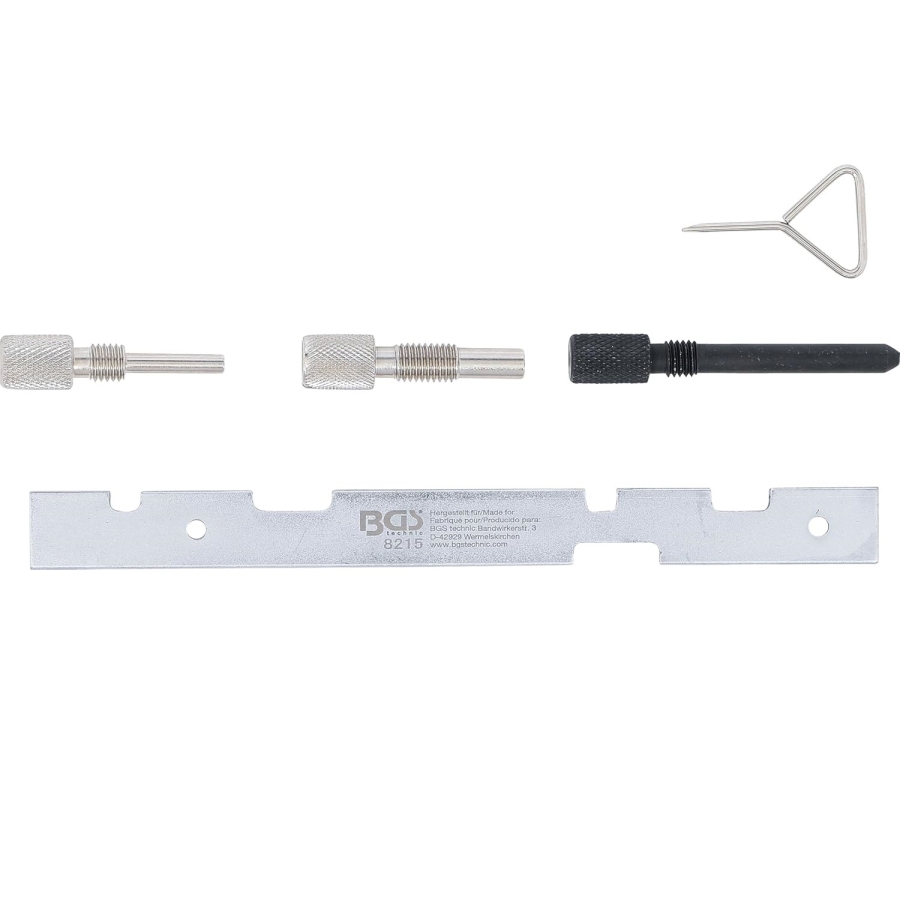

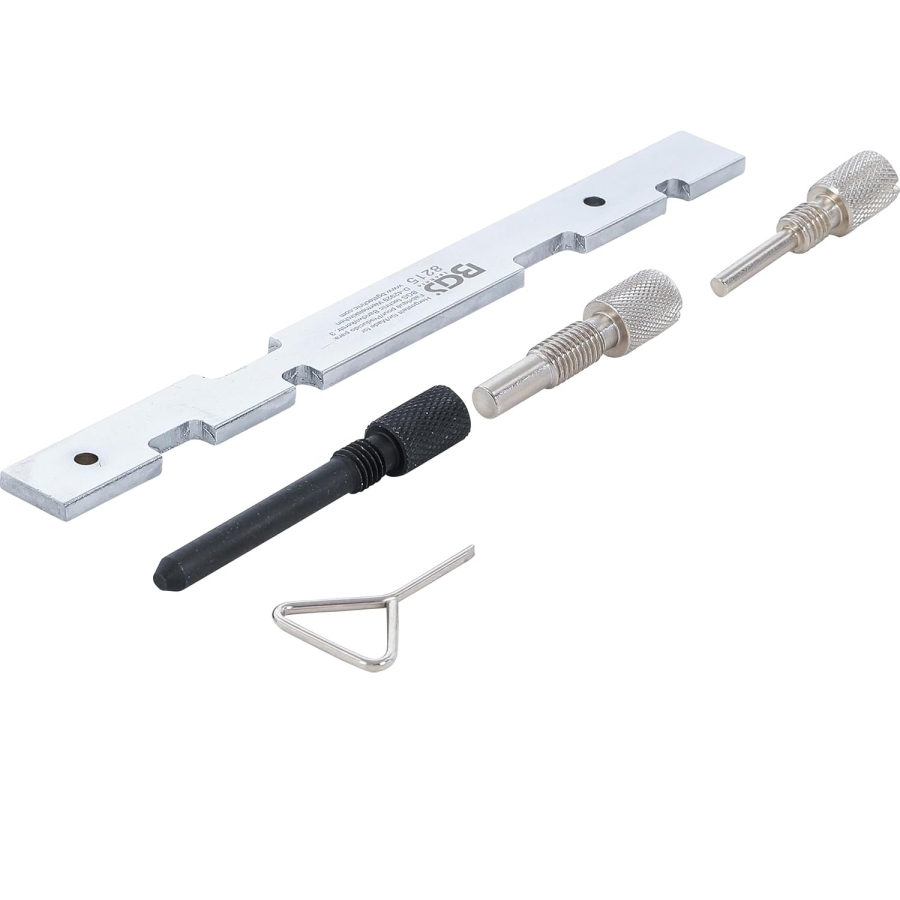

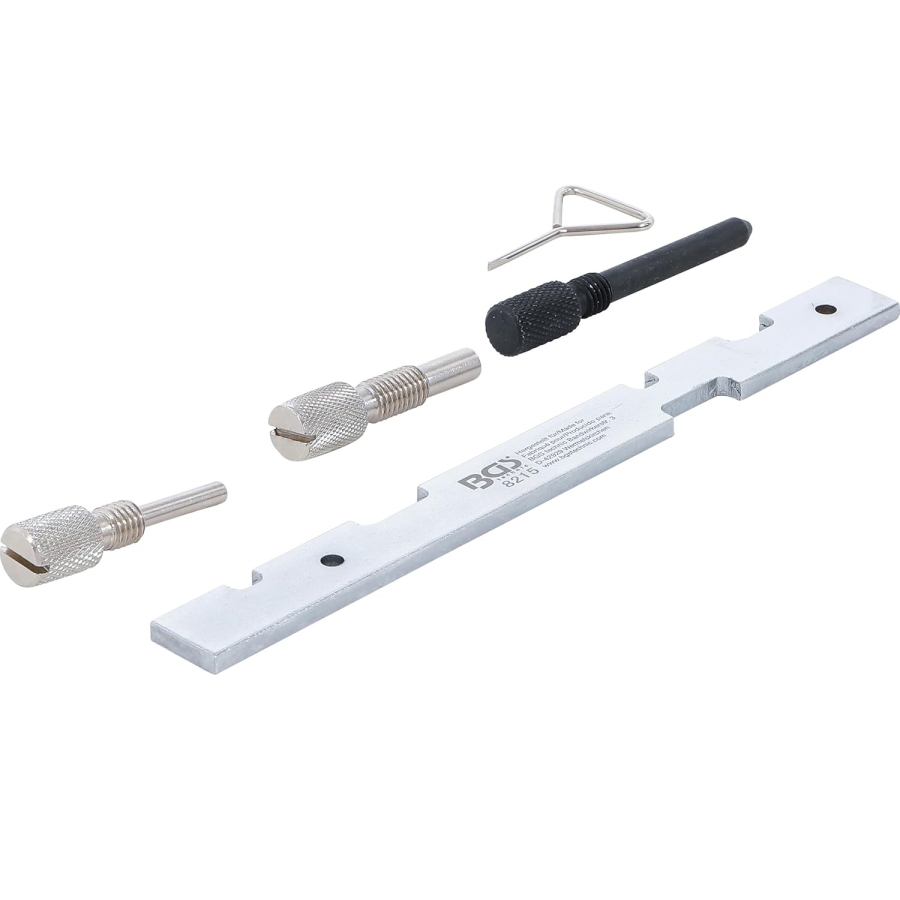

Scope of Delivery

✔ 1 × Camshaft alignment bar as 303-376B, 21-162B, 49UN303376
✔ 1 × Screw-in crankshaft locking pin as 303-507, 21-210, 49JE01061
✔ 1 × Screw-in crankshaft locking pin as 303-748, 21-259, 49JE02024
✔ 1 × Screw-in crankshaft locking pin as 303-574, 303-620, 21-163, 49UN303574

OEM numbers are for reference purposes only and do not imply original manufacturer tools.

FORD C-MAX (DM2) (02.2007 - 09.2010) 1.6 (100 HP, 74 kW) FORD C-MAX (DM2) (02.2007 - 09.2010) 1.8 (122 HP, 90 kW) FORD C-MAX (DM2) (02.2007 - 09.2010) 1.8 (125 HP, 92 kW) FORD C-MAX (DM2) (02.2007 - 09.2010) 2.0 (145 HP, 107 kW) FORD COURIER Pick-up (03.1998 - 12.2013) 1.8 (116 HP, 85 kW) FORD ESCORT CLASSIC (AAL, ABL) (10.1998 - 07.2000) 1.6 16V (90 hp, 66 kW) FORD ESCORT CLASSIC Turnier (ANL) (02.1999 - 07.2000) 1.6 16V (90 hp, 66 kW) FORD ESCORT V (AAL, ABL) (07.1990 - 09.1996) 1.6 i 16V (90 hp, 66 kW) FORD ESCORT V (AAL, ABL) (07.1990 - 09.1996) 1.8 16V XR3i (105 hp, 77 kW) FORD ESCORT V (AAL, ABL) (07.1990 - 09.1996) 1.8 16V XR3i (130 hp, 96 kW) FORD ESCORT V (AAL, ABL) (07.1990 - 09.1996) 1.8 XR3i 16V 4x4 (105 HP, 77 kW) FORD ESCORT V (AAL, ABL) (07.1990 - 09.1996) 1.8 XR3i 16V 4x4 (130 HP, 96 kW) FORD ESCORT V (GAL) (09.1992 - 05.1995) 1.8 16V XR3i (130 HP, 96 kW) FORD ESCORT V (GAL) (09.1992 - 05.1995) 1.8 i 16V (105 HP, 77 kW) FORD ESCORT V Cabriolet (ALL) (07.1990 - 01.1995) 1.6 16V XR3i (90 HP, 66 kW) FORD ESCORT V Cabriolet (ALL) (07.1990 - 01.1995) 1.8 16V XR3i (105 HP, 77 kW) FORD ESCORT V Cabriolet (ALL) (07.1990 - 01.1995) 1.8 16V XR3i (130 HP, 96 kW) FORD ESCORT V Cabriolet (ALL) (12.1992 - 01.1995) 1.8 16V XR3i (105 HP, 77 kW) FORD ESCORT V Cabriolet (ALL) (12.1992 - 01.1995) 1.8 16V XR3i (130 HP, 96 kW) FORD ESCORT V Saloon (AFL) (08.1993 - 01.1995) 1.6 i 16V (90 hp, 66 kW) FORD ESCORT V Saloon (AFL) (08.1993 - 01.1995) 1.8 i 16V (105 hp, 77 kW) FORD ESCORT V Estate (ANL) (07.1990 - 01.1995) 1.6 i 16V (90 hp, 66 kW) FORD ESCORT V Estate (ANL) (07.1990 - 01.1995) 1.8 16V (105 hp, 77 kW) FORD ESCORT V Estate (ANL) (07.1990 - 01.1995) 1.8 i 16V (130 hp, 96 kW) FORD ESCORT V Estate (GAL) (09.1992 - 01.1995) 1.8 i 16V (105 HP, 77 kW) FORD ESCORT VI (GAL, AAL, ABL) (01.1995 - 10.2002) 1.6 16V (90 HP, 66 kW) FORD ESCORT VI (GAL, AAL, ABL) (01.1995 - 10.2002) 1.6 16V 4x4 (90 HP, 66 kW) FORD ESCORT VI (GAL, AAL, ABL) (01.1995 - 10.2002) 1.8 16V (105 HP, 77 kW) FORD ESCORT VI (GAL, AAL, ABL) (01.1995 - 10.2002) 1.8 16V (115 HP, 85 kW) FORD ESCORT VI Cabriolet (ALL) (03.1994 - 08.2000) 1.6 16V XR3i (90 HP, 66 kW) FORD ESCORT VI Cabriolet (ALL) (03.1994 - 08.2000) 1.8 16V XR3i (105 HP, 77 kW) FORD ESCORT VI Cabriolet (ALL) (03.1994 - 08.2000) 1.8 16V XR3i (115 HP, 85 kW) FORD ESCORT VI Cabriolet (ALL) (03.1994 - 08.2000) 1.8 16V XR3i (130 HP, 96 kW) FORD ESCORT VI Saloon (GAL, AFL) (01.1995 - 08.2002) 1.6 i 16V (90 hp, 66 kW) FORD ESCORT VI Saloon (GAL, AFL) (01.1995 - 08.2002) 1.8 16V (105 hp, 77 kW) FORD ESCORT VI Saloon (GAL, AFL) (01.1995 - 08.2002) 1.8 16V (115 hp, 85 kW) FORD ESCORT VI Estate (GAL, ANL) (01.1995 - 10.2002) 1.6 16V (90 hp, 66 kW) FORD ESCORT VI Estate (GAL, ANL) (01.1995 - 10.2002) 1.8 16V (105 hp, 77 kW) kW) FORD ESCORT VI Turnier (GAL, ANL) (01.1995 - 10.2002) 1.8 16V (115 hp, 85 kW) FORD FIESTA III (GFJ) (01.1989 - 01.1997) 1.8 16V (105 hp, 77 kW) FORD FIESTA IV (JA_, JB_) (08.1995 - 06.2006) 1.25 i 16V (75 hp, 55 kW) FORD FIESTA IV (JA_, JB_) (08.1995 - 06.2006) 1.4 i 16V (90 hp, 66 kW) FORD FIESTA Panel Van/MPV (J5_, J3_) (02.1996 - 04.2013) 1.4 i (90 hp, 66 kW) FORD FIESTA Van/MPV (JV_) (05.1998 - 08.2003) 1.4 (90 hp, 66 kW) FORD FIESTA V (JH_, JD_) (11.2001 - 12.2014) 1.25 16V (70 hp, 51 kW) FORD FIESTA V (JH_, JD_) (11.2001 - 12.2014) 1.25 16V (75 hp, 55 kW) FORD FIESTA V (JH_, JD_) (11.2001 - 12.2014) 1.4 16V (80 hp, 59 kW) FORD FIESTA V (JH_, JD_) (11.2001 - 12.2014) 1.6 16V (100 HP, 74 kW) FORD FIESTA V Van (05.2002 - 12.2010) 1.4 (80 HP, 59 kW) FORD FOCUS (DAW, DBW) (10.1998 - 12.2010) 1.4 16V (75 HP, 55 kW) FORD FOCUS (DAW, DBW) (10.1998 - 12.2010) 1.6 (102 HP, 75 kW) FORD FOCUS (DAW, DBW) (10.1998 - 12.2010) 1.6 16V (100 HP, 74 kW) FORD FOCUS (DAW, DBW) (10.1998 - 12.2010) 1.6 16V Flexifuel (102 HP, 75 kW) FORD FOCUS (DAW, DBW) (10.1998 - 12.2010) 1.8 16V (115 HP, 85 kW) FORD FOCUS (DAW, DBW) (10.1998 - 12.2010) 1.8 16V BiFuel (115 HP, 85 kW) FORD FOCUS C-MAX (DM2) (10.2003 - 03.2007) 1.6 (100 HP, 74 kW) FORD FOCUS C-MAX (DM2) (10.2003 - 03.2007) 1.8 (122 HP, 90 kW) FORD FOCUS C-MAX (DM2) (10.2003 - 03.2007) 1.8 (125 HP, 92 kW) FORD FOCUS C-MAX (DM2) (10.2003 - 03.2007) 2.0 (145 HP, 107 kW) FORD FOCUS II (DA_, HCP, DP) (07.2004 - 09.2013) 1.6 (100 HP, 74 kW) FORD FOCUS II (DA_, HCP, DP) (07.2004 - 09.2013) 1.8 (125 HP, 92 kW) FORD FOCUS II (DA_, HCP, DP) (07.2004 - 09.2013) 1.8 Flexifuel (131 HP, 96 kW) FORD FOCUS II (DA_, HCP, DP) (07.2004 - 09.2013) 2.0 (145 HP, 107 kW) FORD FOCUS II Cabriolet (10.2006 - 09.2010) 1.6 (100 HP, 74 kW) FORD FOCUS II Cabriolet (10.2006 - 09.2010) 2.0 (145 HP, 107 kW) FORD FOCUS II Box Body/Estate (07.2004 - 07.2011) 1.6 (101 HP, 74 kW) FORD FOCUS II Box Body/Estate (07.2004 - 07.2011) 1.8 Flexifuel (125 HP, 92 kW) FORD FOCUS II Saloon (DB_, FCH, DH) (04.2005 - 09.2013) 1.6 (100 HP, 74 kW) FORD FOCUS II Saloon (DB_, FCH, DH) (04.2005 - 09.2013) 1.8 (125 hp, 92 kW) FORD FOCUS II Saloon (DB_, FCH, DH) (04.2005 - 09.2013) 2.0 (145 hp, 107 kW) FORD FOCUS II Estate (DA_, FFS, DS) (07.2004 - 09.2012) 1.6 (100 hp, 74 kW) FORD FOCUS II Estate (DA_, FFS, DS) (07.2004 - 09.2012) 1.8 (125 hp, 92 kW) FORD FOCUS II Estate (DA_, FFS, DS) (07.2004 - 09.2012) 2.0 (145 hp, 107 kW) kW) FORD FOCUS Box Body/Estate (DNW) (08.1998 - 03.2005) 1.4 (75 HP, 55 kW) FORD FOCUS Box Body/Estate (DNW) (08.1998 - 03.2005) 1.6 (101 HP, 74 kW) FORD FOCUS Box Body/Estate (DNW) (08.1998 - 03.2005) 1.8 (116 HP, 85 kW) FORD FOCUS Saloon (DFW) (02.1999 - 12.2010) 1.4 16V (75 HP, 55 kW) FORD FOCUS Saloon (DFW) (02.1999 - 12.2010) 1.6 16V (100 HP, 74 kW) FORD FOCUS Saloon (DFW) (02.1999 - 12.2010) 1.8 16V (115 hp, 85 kW) FORD FOCUS Estate (DNW) (02.1999 - 12.2007) 1.4 16V (75 hp, 55 kW) FORD FOCUS Estate (DNW) (02.1999 - 12.2007) 1.6 16V (100 hp, 74 kW) FORD FOCUS Estate (DNW) (02.1999 - 12.2007) 1.6 16V Flexifuel (102 hp, 75 kW) FORD FOCUS Estate (DNW) (02.1999 - 12.2007) 1.8 16V (115 hp, 85 kW) FORD FOCUS Tournament (DNW) (02.1999 - 12.2007) 1.8 BiFuel (111 HP, 82 kW) FORD FUSION (JU_) (08.2002 - 12.2012) 1.25 (75 HP, 55 kW) FORD FUSION (JU_) (08.2002 - 12.2012) 1.4 (80 HP, 59 kW) FORD FUSION (JU_) (08.2002 - 12.2012) 1.6 (100 HP, 74 kW) FORD MONDEO I (GBP) (02.1993 - 08.1996) 1.8 i 16V (112 HP, 82 kW) FORD MONDEO I (GBP) (02.1993 - 08.1996) 1.8 i 16V (115 HP, 85 kW) FORD MONDEO I (GBP) (02.1993 - 08.1996) 1.8 i 16V 4x4 (115 HP, 85 kW) FORD MONDEO I (GBP) (02.1993 - 08.1996) 2.0 i 16V (132 HP, 97 kW) FORD MONDEO I (GBP) (02.1993 - 08.1996) 2.0 i 16V (136 HP, 100 kW) FORD MONDEO I (GBP) (02.1993 - 08.1996) 2.0 i 16V 4x4 (132 HP, 97 kW) FORD MONDEO I (GBP) (02.1993 - 08.1996) 2.0 i 16V 4x4 (136 HP, 100 kW) FORD MONDEO I Saloon (GBP) (01.1993 - 08.1996) 1.8 4x4 (116 HP, 85 kW) FORD MONDEO I Saloon (GBP) (01.1993 - 08.1996) 1.8 i 16V (112 HP, 82 kW) FORD MONDEO I Saloon (GBP) (01.1993 - 08.1996) 1.8 i 16V (115 HP, 85 kW) FORD MONDEO I Saloon (GBP) (01.1993 - 08.1996) 2.0 i 16V (136 HP, 100kW) FORD MONDEO I Saloon (GBP) (01.1993 - 08.1996) 2.0 i 16V 4x4 (132 HP, 97 kW) FORD MONDEO I Saloon (GBP) (01.1993 - 08.1996) 2.0 i 16V 4x4 (136 HP, 100 kW) FORD MONDEO I Tournament (BNP) (01.1993 - 08.1996) 1.8 i 16V (112 HP, 82 kW) FORD MONDEO I Tournament (BNP) (01.1993 - 08.1996) 1.8 i 16V (115 HP, 85 kW) FORD MONDEO I Turnier (BNP) (01.1993 - 08.1996) 1.8 i 16V 4x4 (115 hp, 85 kW) FORD MONDEO I Turnier (BNP) (01.1993 - 08.1996) 2.0 i 16V (132 hp, 97 kW) FORD MONDEO I Turnier (BNP) (01.1993 - 08.1996) 2.0 i 16V (136 hp, 100 kW) FORD MONDEO I Turnier (BNP) (01.1993 - 08.1996) 2.0 i 16V 4x4 (132 hp, 97 kW) FORD MONDEO I Turnier (BNP) (01.1993 - 08.1996) 2.0 i 16V 4x4 (136 HP, 100 kW) FORD MONDEO II (BAP) (08.1996 - 09.2000) 1.8 i (115 HP, 85 kW) FORD MONDEO II (BAP) (08.1996 - 09.2000) 2.0 i (131 HP, 96 kW) FORD MONDEO II Saloon (BFP) (08.1996 - 09.2000) 1.8 i (115 HP, 85 kW) FORD MONDEO II Saloon (BFP) (08.1996 - 09.2000) 2.0 i (131 HP, 96 kW) FORD MONDEO II Tournament (BNP) (08.1996 - 09.2000) 1.8 i (115 PS, 85 kW) FORD MONDEO II Turnier (BNP) (08.1996 - 09.2000) 2.0 i (131 hp, 96 kW) FORD MONDEO III (B5Y) (10.2000 - 03.2007) 1.8 16V (110 hp, 81 kW) FORD MONDEO III (B5Y) (10.2000 - 03.2007) 2.0 16V (146 hp, 107 kW) FORD MONDEO III Saloon (B4Y) (10.2000 - 09.2007) 1.8 16V (110 hp, 81 kW) FORD MONDEO III Saloon (B4Y) (10.2000 - 09.2007) 2.0 (144 146 hp, 106 kW) FORD MONDEO III Saloon (B4Y) (10.2000 - 09.2007) 2.0 16V (146 hp, 107 kW) FORD MONDEO III Estate (BWY) (10.2000 - 03.2007) 1.8 16V (110 hp, 81 kW) FORD MONDEO III Estate (BWY) (10.2000 - 03.2007) 2.0 16V (146 hp, 107 kW) FORD ORION III (GAL) (01.1990 - 09.1996) 1.6 i 16V (90 hp, 66 kW) FORD ORION III (GAL) (01.1990 - 09.1996) 1.8 i 16V (105 HP, 77 kW) FORD ORION III (GAL) (01.1990 - 09.1996) 1.8 i 16V (130 HP, 96 kW) FORD RANGER (ER, EQ, R_) (04.1997 - 12.2011) 1.8 (116 HP, 85 kW) FORD TOURNEO CONNECT (06.2002 - 12.2013) 1.8 16V (116 HP, 85 kW) FORD TRANSIT CONNECT (P65_, P70_, P80_) (06.2002 - 12.2013) 1.8 16V (116 HP, 85 kW) FORD TRANSIT CONNECT (P65_, P70_, P80_) (06.2002 - 12.2013) 1.8 16V LPG (116 HP, 85 kW) MAZDA 5 (CR19) (02.2005 - 12.2010) 1.8 (116 HP, 85 kW)
