Front Lower Control Arm Rear Bush Tool Set for Ford Transit 2000–2013
-
Code:74235
-
Weight:2.228 Kgs
Overview:
✔ Designed for removal and installation of the large rear bush in the front lower control arm
✔ Suitable for Ford Transit models from 2000 to 2013
✔ Compatible with OEM bush references 4042024, 4372132, 4540787 and 7372131
✔ Can be used with a press frame or workshop hydraulic press
✔ Ensures precise and safe bush replacement
✔ Suitable for professional workshop use
This professional tool set is designed for the removal and installation of the large rear bush fitted to the front lower control arm on Ford Transit vehicles manufactured between 2000 and 2013.
The specially designed adapters allow controlled extraction and installation of the bush while minimizing the risk of damage to the control arm or surrounding suspension components.
The tool set can be used together with a workshop press frame or a hydraulic workshop press, making it suitable for professional suspension and chassis repairs.
Applications
Suitable for:
- Front lower control arm rear bushes
- Front suspension bush replacement
- Suspension repair and maintenance
- Workshop servicing of Ford Transit vehicles
Vehicle Compatibility
Ford
- Transit (2000–2013)
Compatible Bushes
Suitable for bushes with the following OEM references:
- OE 4042024
- OE 4372132
- OE 4540787
- OE 7372131
Features
- Designed specifically for the large rear bush of the front lower control arm
- Enables safe and accurate bush installation and removal
- Suitable for use with press frames and hydraulic presses
- Reduces the risk of damage during servicing
- Suitable for professional workshop applications
Tool Usage
The tool set is intended for use with:
- Press frame systems
- Workshop hydraulic presses
These tools provide the necessary force for controlled removal and installation of suspension bushes.
OEM numbers are provided for identification and comparison purposes only.

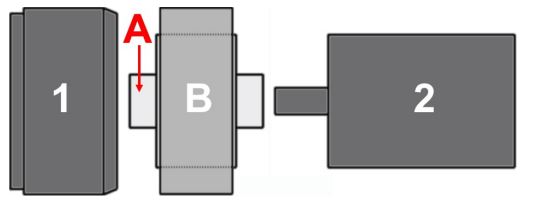

Removal
Position both tool components as shown in the illustration.
- Place the receiving sleeve (1) on the control arm (B), ensuring that the cut-out is correctly aligned.
- Insert the pilot pin of the pressure piece (2) into the rubber bushing sleeve (A).
Using the pressure piece (2), press the rubber bushing (A) out of the control arm (B) and into the receiving sleeve (1).

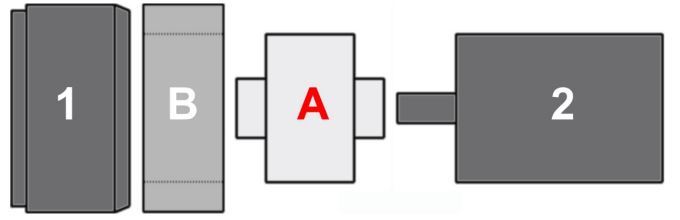

Installation
Position both tool components as shown in the illustration.
- Place the receiving sleeve (1) on the control arm (B), ensuring that the cut-out is correctly aligned.
- Insert the pilot pin of the pressure piece (2) into the rubber bushing sleeve (A).
Using the pressure piece (2), press the rubber bushing (A) into the control arm (B).
