Front Crankshaft Oil Seal Installation Tool for Fiat and Iveco F1A 2.3L, as 99346254

Price: €72.50 141.80лв.

Code:

124784
Weight:

1.513 Kgs

Overview:
✔ Special tool for installing the front crankshaft oil seal
✔ Suitable for Fiat and Iveco 2.3L F1A engines
✔ Precisely presses the oil seal onto the crankshaft stub using a metal sleeve
✔ Simultaneously supports correct alignment of the timing housing
✔ Suitable for Fiat Ducato and Iveco Daily applications
✔ To be used as Fiat/Iveco 99346254

Front Crankshaft Oil Seal Installation Tool for Fiat and Iveco F1A 2.3L, as 99346254

Send to friend

Rate this product

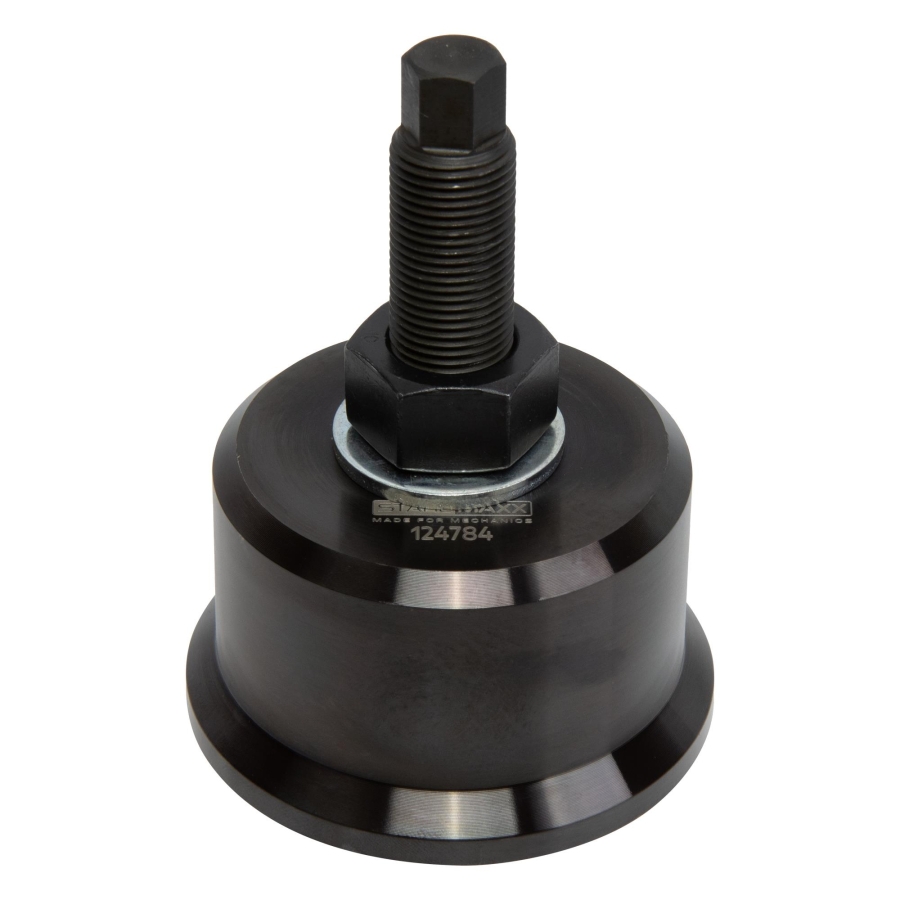

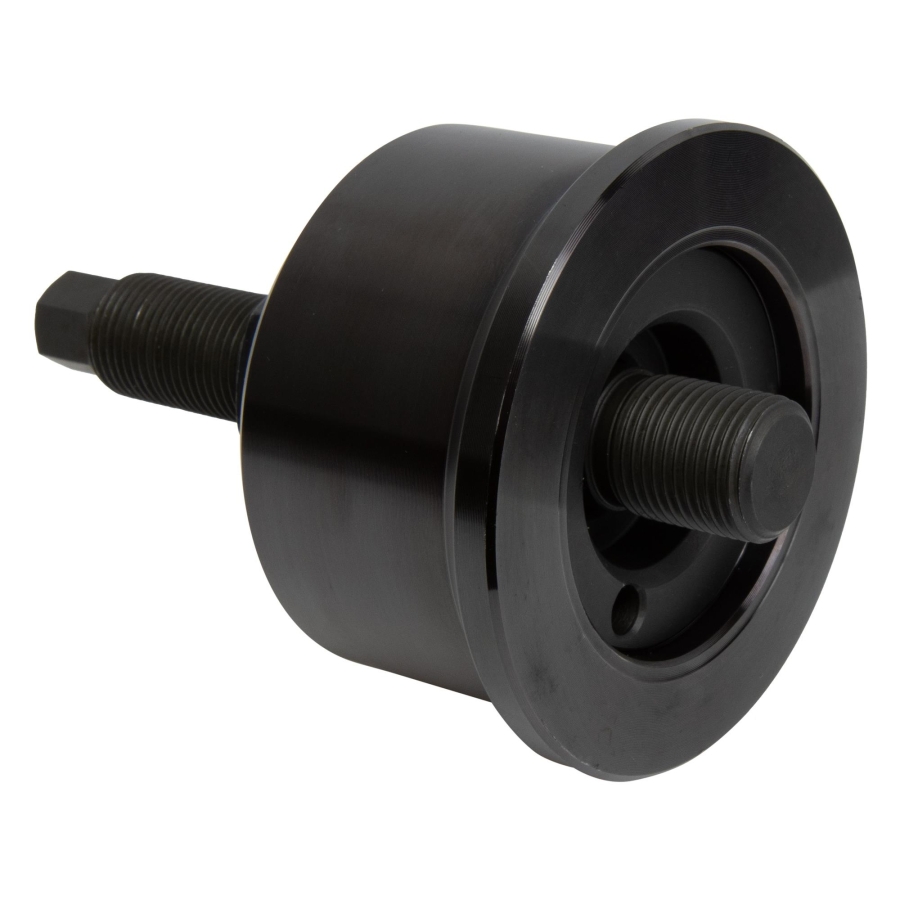

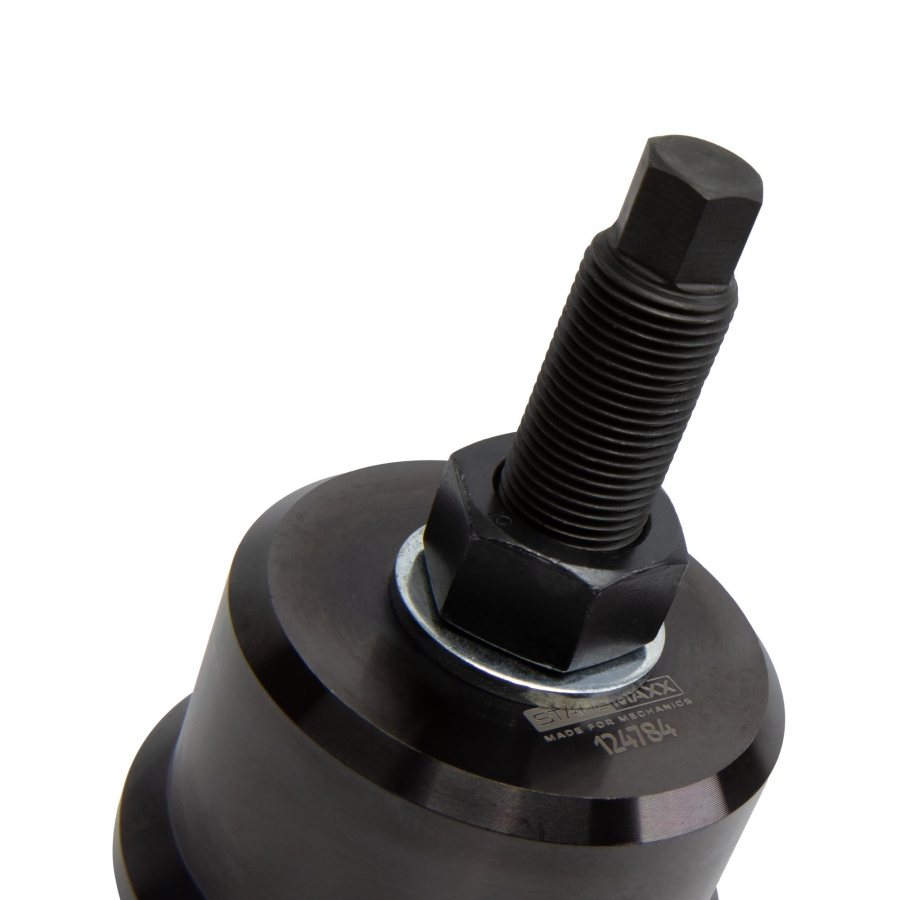

This special tool is designed for the professional installation of the front crankshaft oil seal on Fiat and Iveco 2.3L F1A engines.

The oil seal is pressed precisely onto the crankshaft stub using a metal installation sleeve. At the same time, the tool correctly aligns the timing housing, enabling controlled installation and reducing the risk of damage, misalignment or subsequent oil leakage.

Suitable Engine Codes

F1AFL411A, F1AFL411B, F1AFL411C, F1AGL4114, F1AGL411D, F1AE3481A, F1AE3481B, F1AE3481C, F1AE3481D, F1AE0481F, F1AE0481G, F1AE0481H, F1AE0481N, F1AE0481M, F1AE0481U, F1AE0481R, F1AE0481V

Suitable Vehicles

Fiat Ducato: Type 244, 250, 290
Iveco Daily: Type III, IV, V, VI

Compatible Crankshaft Oil Seals

For use with crankshaft oil seals with the following comparison numbers:

Fiat/Iveco: 504014155, 504123772
Elring: 431.110

Oil seal dimensions: 50 x 80 x 14 mm

To Be Used As

Fiat/Iveco 99346254

Advantages

Professional installation without damaging the oil seal
Precise alignment of the timing housing
Controlled and even pressing onto the crankshaft stub
Robust construction for professional workshop use
Specifically designed for Fiat Ducato and Iveco Daily 2.3L F1A engines

Original numbers are for comparison purposes only; this is not an original tool!

Vehicle Compatibility

Search by brand, model, engine, power, year or chassis code.

0 vehicles found

FIAT DUCATO Bus (250_, 290_) (07.2006 - 07.2014) 130 Multijet 2,3 D (131 hp, 96 kW) FIAT DUCATO Bus (250_, 290_) (07.2006 - 07.2014) 130 Multijet 2,3 D AWD (131 hp, 96 kW) FIAT DUCATO Box Body (250_, 290_) (07.2006 - 12.2018) 120 Multijet 2,3 D (120 hp, 88 kW) FIAT DUCATO Box Body (250_, 290_) (07.2006 - 12.2018) 130 Multijet 2,3 D (131 hp, 96 kW) FIAT DUCATO Box Body (250_, 290_) (07.2006 - 12.2018) 130 Multijet 2,3 D AWD (131 hp, 96 kW) FIAT DUCATO Platform/Chassis (250_, 290_) (07.2006 - 07.2014) 120 Multijet 2,3 D (120 hp, 88 kW) FIAT DUCATO Platform/Chassis (250_, 290_) (07.2006 - 07.2014) 130 Multijet 2,3 D (131 hp, 96 kW) IVECO DAILY III Box Body (05.1999 - 10.2009) 29 L 14 (136 hp, 100 kW) IVECO DAILY III Box Body (05.1999 - 10.2009) 35 C 14, 35 S 14 (136 hp, 100 kW) IVECO DAILY III Box Body (05.1999 - 10.2009) 40 C 14 (136 hp, 100 kW) IVECO DAILY III Platform/Chassis (03.1998 - 10.2009) 29 L 14 (AHRA11C1B1, AHRA14C1B1, AHRA64C1B1) (136 hp, 100 kW) IVECO DAILY III Platform/Chassis (03.1998 - 10.2009) 35 C 14, 35 S 14 (136 hp, 100 kW) IVECO DAILY III Platform/Chassis (03.1998 - 10.2009) 40 C 14 (136 hp, 100 kW) IVECO DAILY IV Bus (05.2006 - 08.2011) 35S14, 35S14 /P (136 hp, 100 kW) IVECO DAILY IV Box Body (05.2006 - 03.2012) 29L10 V (95 hp, 70 kW) IVECO DAILY IV Box Body (05.2006 - 03.2012) 29L12 V, 29L12 V/P (116 hp, 85 kW) IVECO DAILY IV Box Body (05.2006 - 03.2012) 29L14 C, 29L14 C/P, 29L14 V, 29L14 V/P (136 hp, 100 kW) IVECO DAILY IV Box Body (05.2006 - 03.2012) 35C10, 35S10 (95 hp, 70 kW) IVECO DAILY IV Box Body (05.2006 - 03.2012) 35C11 V, 35S11 V (106 hp, 78 kW) IVECO DAILY IV Box Body (05.2006 - 03.2012) 35C12 V, 35C12 V/P, 35S12 V, 35S12 V/P (116 hp, 85 kW) IVECO DAILY IV Box Body (05.2006 - 03.2012) 35C13 V, 35C13 V/P, 35S13 V, 35S13 V/P (126 hp, 93 kW) IVECO DAILY IV Box Body (05.2006 - 03.2012) 35S14 C, 35S14 C/P, 35S14 V, 35S14 V/P, 35C14 V,... (136 hp, 100 kW) IVECO DAILY IV Box Body (05.2006 - 03.2012) 40C10 V (95 hp, 70 kW) IVECO DAILY IV Box Body (05.2006 - 03.2012) 40C11 V (106 hp, 78 kW) IVECO DAILY IV Box Body (05.2006 - 03.2012) 40C12 V, 40C14 V/P (116 hp, 85 kW) IVECO DAILY IV Box Body (05.2006 - 03.2012) 40C13 V, 40C13 V/P (126 hp, 93 kW) IVECO DAILY IV Tipper (05.2006 - 08.2011) 35C10 K (95 hp, 70 kW) IVECO DAILY IV Tipper (05.2006 - 08.2011) 35C11 K, 35C11 DK, 35S11 K, 35S11 DK (106 hp, 78 kW) IVECO DAILY IV Tipper (05.2006 - 08.2011) 35C12 (116 hp, 85 kW) IVECO DAILY IV Tipper (05.2006 - 08.2011) 35C13 K, 35C13 DK, 35S13 K, 35S13 DK (126 hp, 93 kW) IVECO DAILY IV Tipper (05.2006 - 08.2011) 35S14 K, 35S14 DK (136 hp, 100 kW) IVECO DAILY IV Platform/Chassis (05.2006 - 03.2012) 29L10 (95 hp, 70 kW) IVECO DAILY IV Platform/Chassis (05.2006 - 03.2012) 29L12 (116 hp, 85 kW) IVECO DAILY IV Platform/Chassis (05.2006 - 03.2012) 29L14 (136 hp, 100 kW) IVECO DAILY IV Platform/Chassis (05.2006 - 03.2012) 35C10, 35S10 (95 hp, 70 kW) IVECO DAILY IV Platform/Chassis (05.2006 - 03.2012) 35C11, 35S11, 35S11 D, 35S11 /P (106 hp, 78 kW) IVECO DAILY IV Platform/Chassis (05.2006 - 03.2012) 35C12, 35S12 (116 hp, 85 kW) IVECO DAILY IV Platform/Chassis (05.2006 - 03.2012) 35C13, 35C13 /P, 35S13 D, 35S13, 35S13 /P (126 hp, 93 kW) IVECO DAILY IV Platform/Chassis (05.2006 - 03.2012) 35C14, 35S14, 35S14 /P (136 hp, 100 kW) IVECO DAILY IV Platform/Chassis (05.2006 - 03.2012) 40C10 (95 hp, 70 kW) IVECO DAILY IV Platform/Chassis (05.2006 - 03.2012) 40C11, 40C11 D (106 hp, 78 kW) IVECO DAILY IV Platform/Chassis (05.2006 - 03.2012) 40C12 (116 hp, 85 kW) IVECO DAILY IV Platform/Chassis (05.2006 - 03.2012) 40C13, 40C13 /P (126 hp, 93 kW) IVECO DAILY V Box Body (09.2011 - 02.2014) 29L11 V, 35C11 V, 35S11 V, 40C11 V (106 hp, 78 kW) IVECO DAILY V Box Body (09.2011 - 02.2014) 29L13 V, 35C13 V, 35S13 V, 40C13 V, 40S13 V (126 hp, 93 kW) IVECO DAILY V Box Body (09.2011 - 02.2014) 29L15 V, 35S15 V, 35C15L V, 40C15L V, 50C15L V (146 hp, 107 kW) IVECO DAILY V Tipper (09.2011 - 02.2014) 35C11K, 35S11DKP (106 hp, 78 kW) IVECO DAILY V Tipper (09.2011 - 02.2014) 35C13K, 35C13DKP (126 hp, 93 kW) IVECO DAILY V Platform/Chassis (09.2011 - 02.2014) 26L11, 26L11D, 35C11D, 35S11, 40C11 (106 hp, 78 kW) IVECO DAILY V Platform/Chassis (09.2011 - 02.2014) 29L13, 29L13D, 35C13D, 40C13 (126 hp, 93 kW) IVECO DAILY V Platform/Chassis (09.2011 - 02.2014) 29L15 V, 35S15, 35C15L V, 40C15L V, 50C15L V (146 hp, 107 kW) IVECO DAILY VI Box Body (03.2014 - 04.2016) 33S11, 35S11, 35C11 (106 hp, 78 kW) IVECO DAILY VI Box Body (03.2014 - 04.2016) 33S13, 35S13, 35C13 (126 hp, 93 kW) IVECO DAILY VI Box Body (03.2014 - 04.2016) 33S15, 35S15, 35C15 (146 hp, 107 kW) IVECO DAILY VI Platform/Chassis (03.2014 - 04.2016) 33S11, 35S11, 35C11 (106 hp, 78 kW) IVECO DAILY VI Platform/Chassis (03.2014 - 04.2016) 33S13, 35S13, 35C13 (126 hp, 93 kW) IVECO DAILY VI Platform/Chassis (03.2014 - 04.2016) 33S15, 35S15, 35C15 (146 hp, 107 kW)
