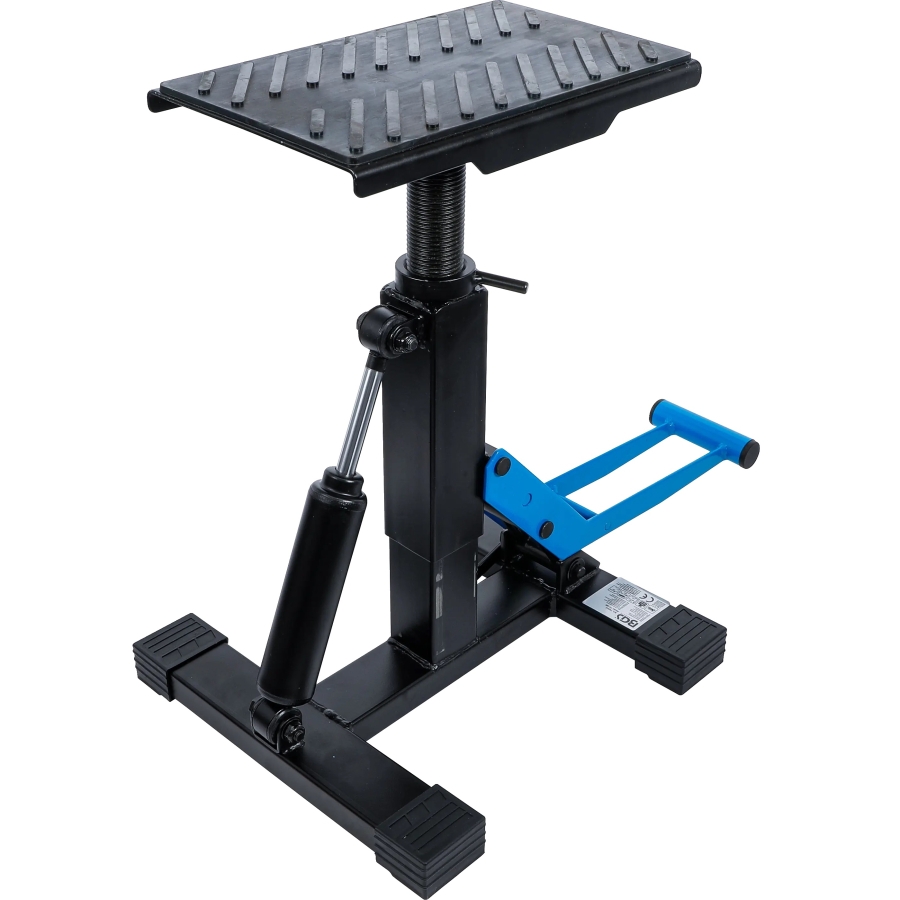

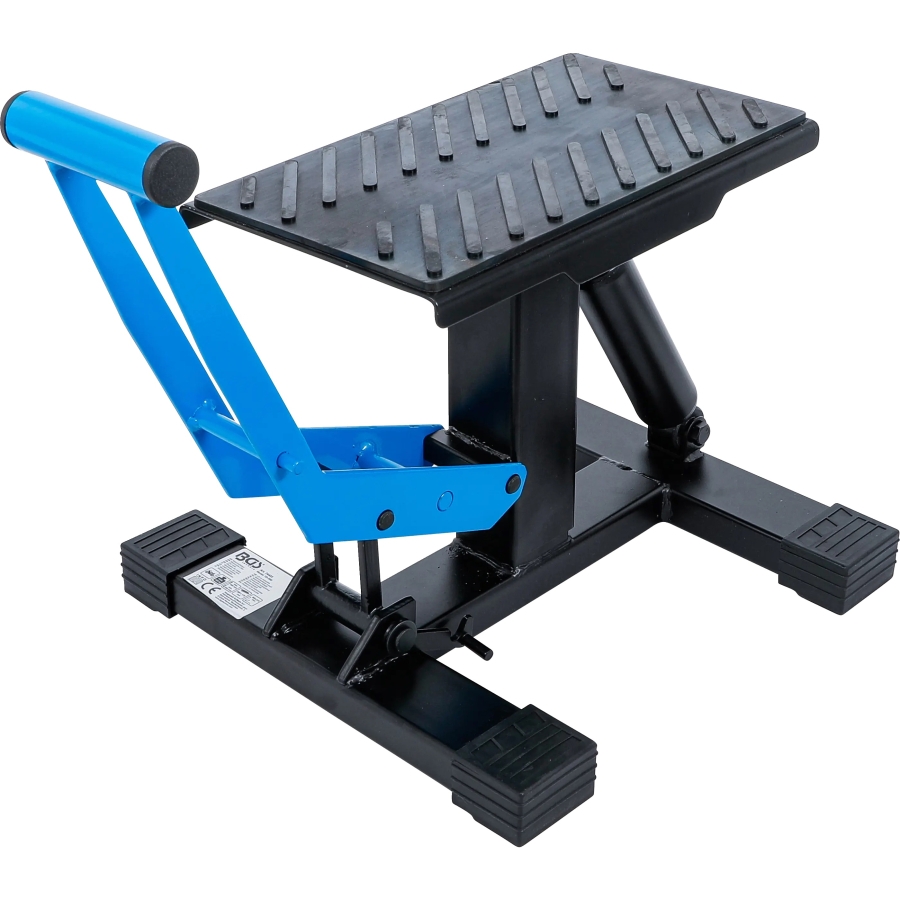

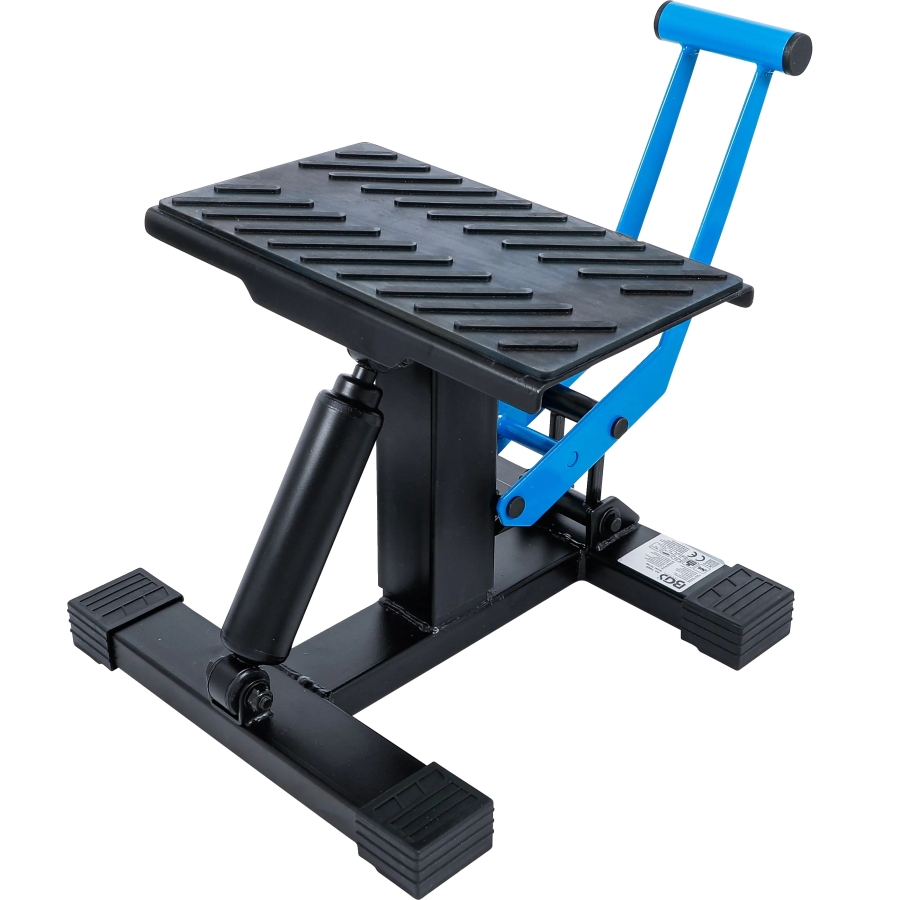

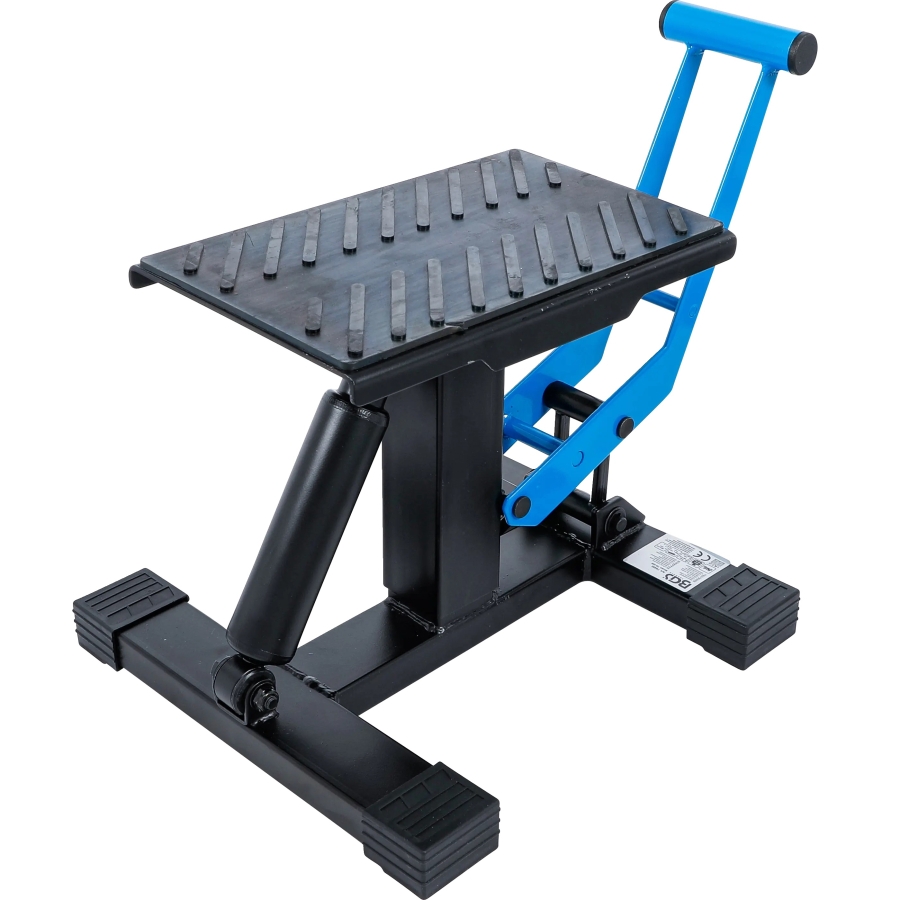

Hydraulic Motorcycle Lift 150 kg, 255–460 mm

Compact hydraulic lift designed for raising motocross bikes, enduro motorcycles and other motorcycles with sufficient ground clearance.

The lift provides a stable working position for maintenance, cleaning and repair tasks and can support a maximum load of 150 kg.

Foot-Operated Hydraulic Lifting

The hydraulic lifting mechanism is operated by a foot pedal, allowing the motorcycle to be raised quickly and conveniently while keeping both hands available for positioning and stabilising the bike.

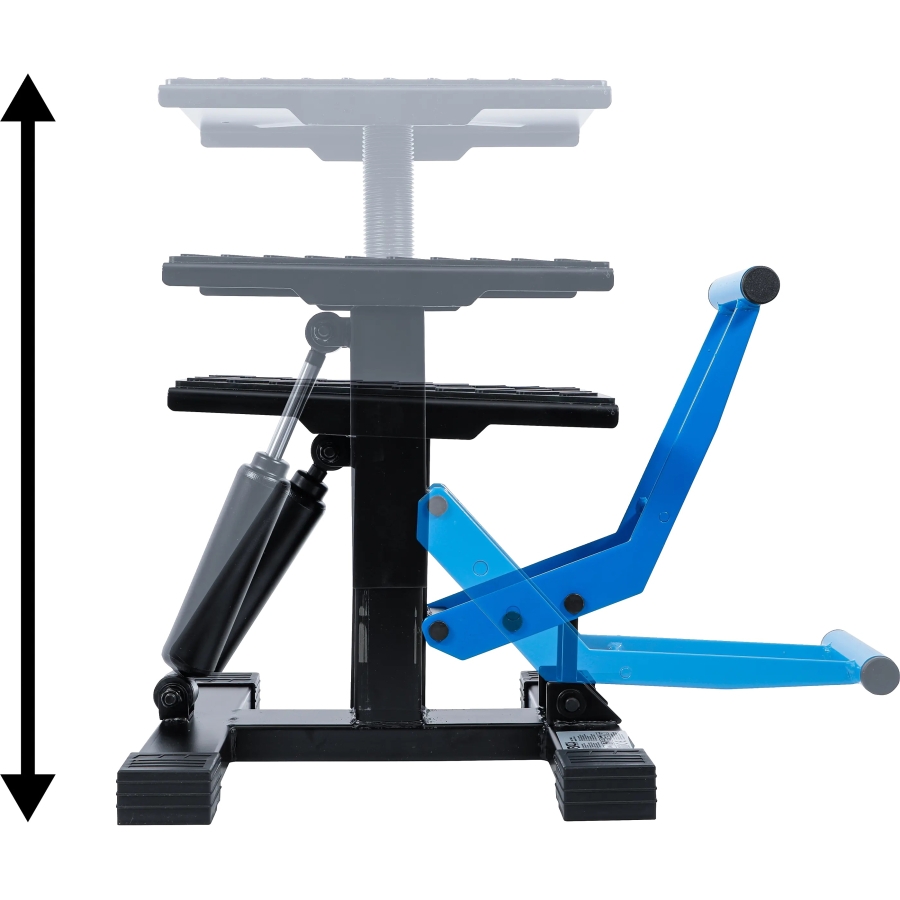

The lifting range from 255 to 460 mm provides a practical working height for a variety of service tasks.

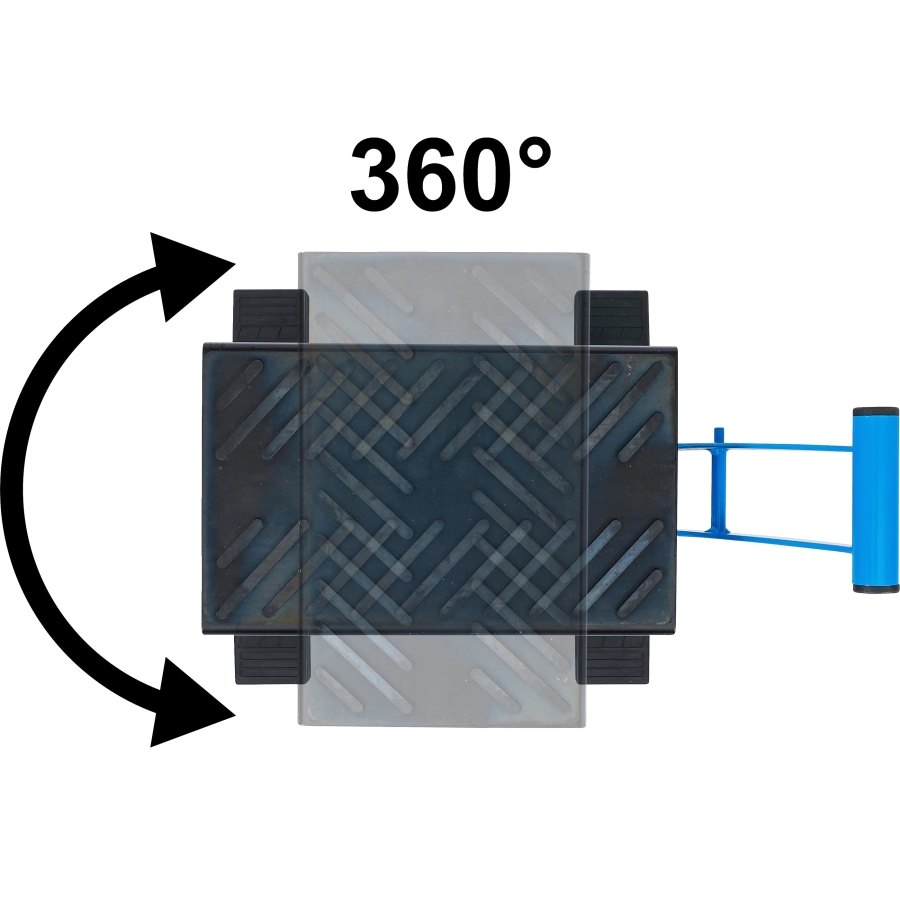

Rotatable and Adjustable Lifting Platform

The lifting platform can be rotated and adjusted in height to suit different motorcycles and lifting points.

A rubber pad on the platform improves contact with the motorcycle and helps protect the frame or contact surface from damage.

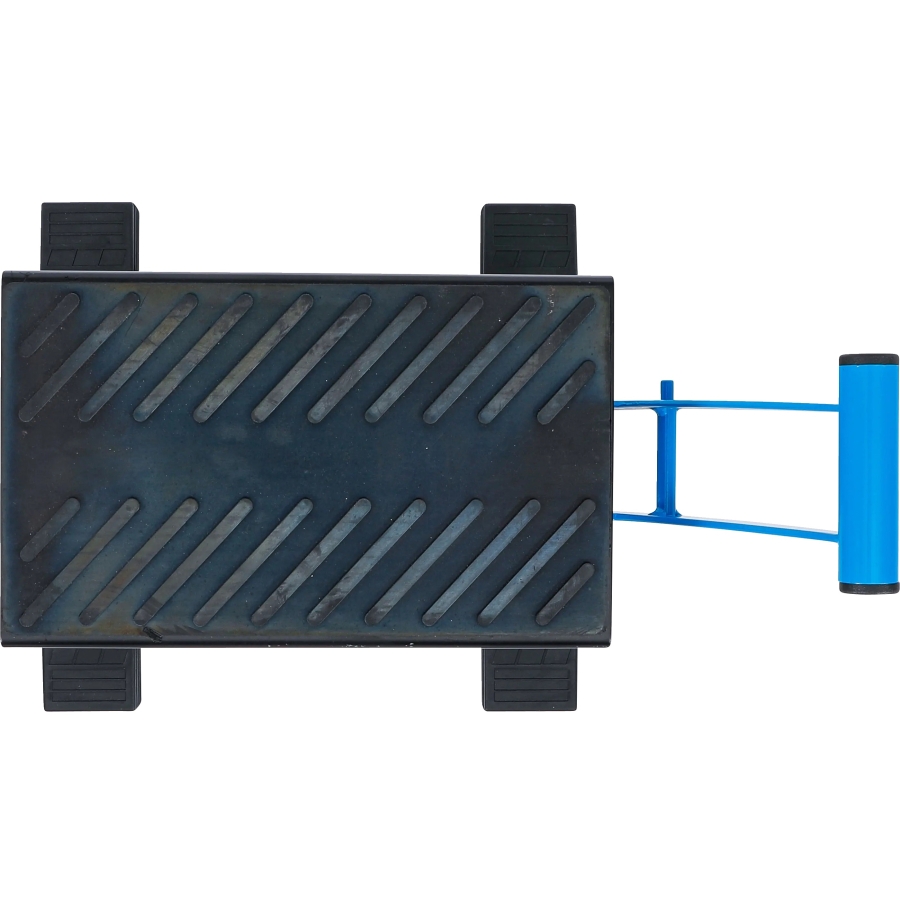

The platform measures 280 x 175 mm.

Controlled Lowering and Safety Lock

An additional damper slows the lowering movement for improved control when bringing the motorcycle back down.

The integrated locking mechanism secures the lift against unintended lowering while the motorcycle is raised.

Technical Data

• Maximum load capacity: 150 kg

• Lifting height: 255–460 mm

• Lifting platform dimensions: 280 x 175 mm

• Overall depth: 300 mm

• Overall width: 315 mm

• Lifting mechanism: Hydraulic

• Operation: Foot pedal

• Lifting platform: Rotatable and height-adjustable

• Platform surface: Rubber pad

• Lowering control: Additional damper

• Safety: Locking mechanism against accidental lowering
