Hydraulic Tool Starter Set 10 pcs with Air Hydraulic Pump, 18.2T Cylinder, Holder and M20 Spindle Set

This professionally assembled hydraulic tool set is designed for vehicle repair work requiring hydraulic assistance. The set combines a convenient air hydraulic pump with approximately 689 bar operating pressure, an 18.2-ton double-acting hollow hydraulic cylinder with M20x2.5 internal thread, a swivel cylinder holder Ø80 mm for transmission jacks, and a medium spindle expansion set with adapters and impact adapter for versatile pull and press applications.

For workshops and mechanics, repairs involving suspension and axle components can require substantial effort and time. This professional hydraulic system significantly improves efficiency during removal and installation of drive shafts, wheel hubs, wheel bearings, front and rear axle components, bushings and ball joints.

Unlike conventional threaded spindle systems, the hydraulic cylinder transfers force directly and axially without rotational movement. The included impact adapter additionally allows controlled hammer impacts for shock-release of seized or corroded components.

Ideal Applications

• Removal and installation of wheel hubs and wheel bearings
• Front and rear axle repairs
• Replacement of bushings and ball joints
• Drive shaft service operations
• Releasing seized or corroded components
• Pulling and pressing operations

Key Features

• Double-acting hydraulic cylinder 18.2T
• Air hydraulic foot-operated pump up to 689 bar
• Controlled axial force transmission
• Shock-release functionality through impact adapter
• Expandable modular system
• Universal and vehicle-specific compatibility
• Suitable for professional workshop use

System Compatibility

The system is designed as a modular platform and can be expanded with:

• Pressure sleeves
• Adapter kits
• Threaded spindle systems
• Wheel hub adapters
• Press frames
• Vehicle-specific components

Compatible with professional workshop systems from manufacturers including:

• Klann
• Paschke
• SSW
• Other compatible systems

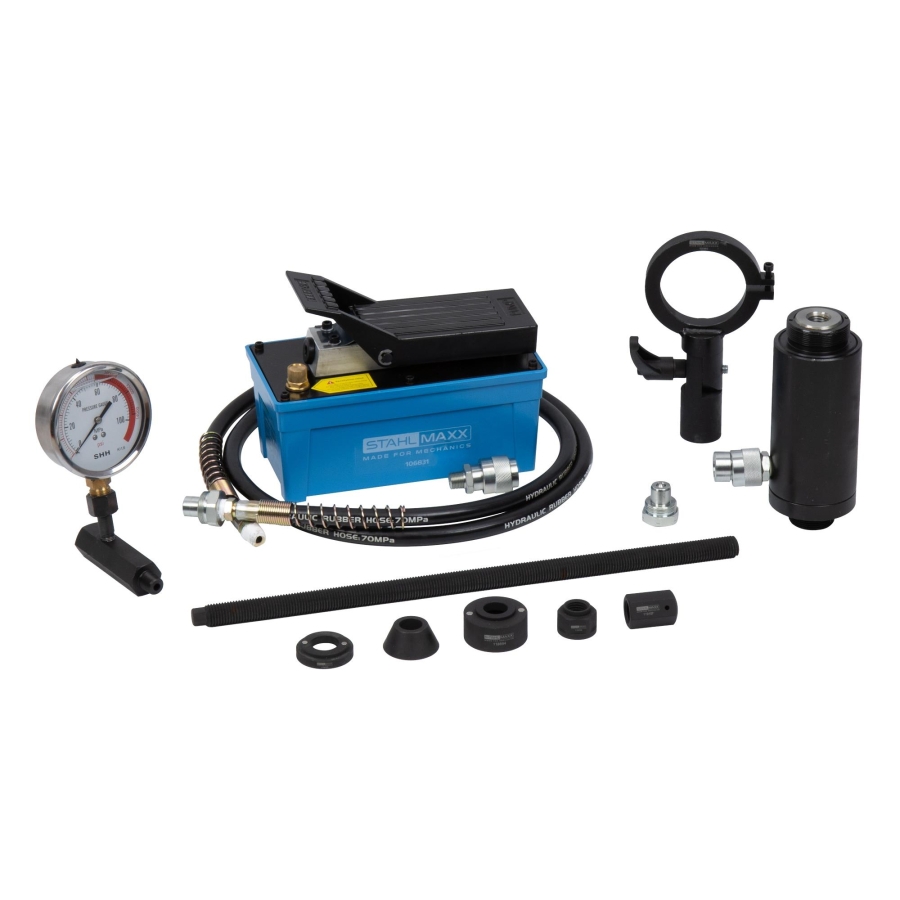

Package Contents

• Item no. 106831 — Air hydraulic pump with foot operation, quick coupling and 2.2 m hose, 689 bar (10,000 PSI)
• Item no. 102754 — Hydraulic cylinder 18.2T, double-acting hollow cylinder with M20x2.5 for pull and press applications
• Item no. 123382 — Swivel hydraulic cylinder holder Ø80 mm for transmission jack
• Item no. 119103 — Adapter plate for centering pull and pressure sleeves 35 × 42 mm
• Item no. 119104 — Spindle nut with centering and magnetic holder M20x2.5 for pull and pressure sleeves
• Item no. 119105 — Pull and pressure spindle M20x2.5, length 500 mm
• Item no. 119107 — Impact adapter for hydraulic spindle M20x2.5
• Item no. 118894 — Adapter plate for hydraulic cylinder Item no. 102754 for pressure sleeves M42x2
• Item no. 120811 — Universal pressure piece for wheel bearing and wheel hub removal and installation Ø30–50 mm
• Item no. 115251 — Pressure gauge 0–1000 bar for hydraulic pumps Item no. 106831 and 123504

Additional Information

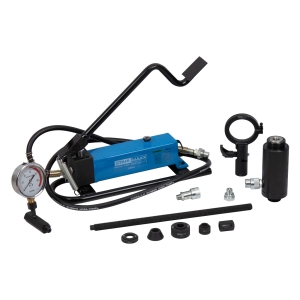

A similar starter set with manual hydraulic pump configuration is available under:

Item no. 980005
