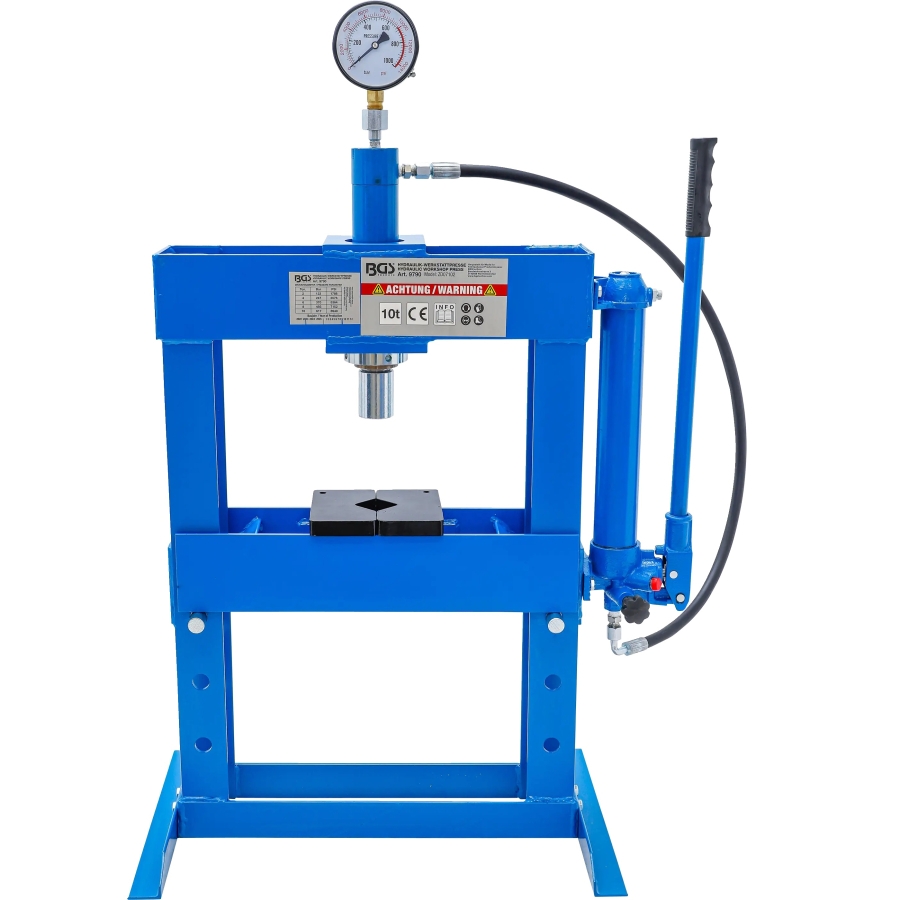

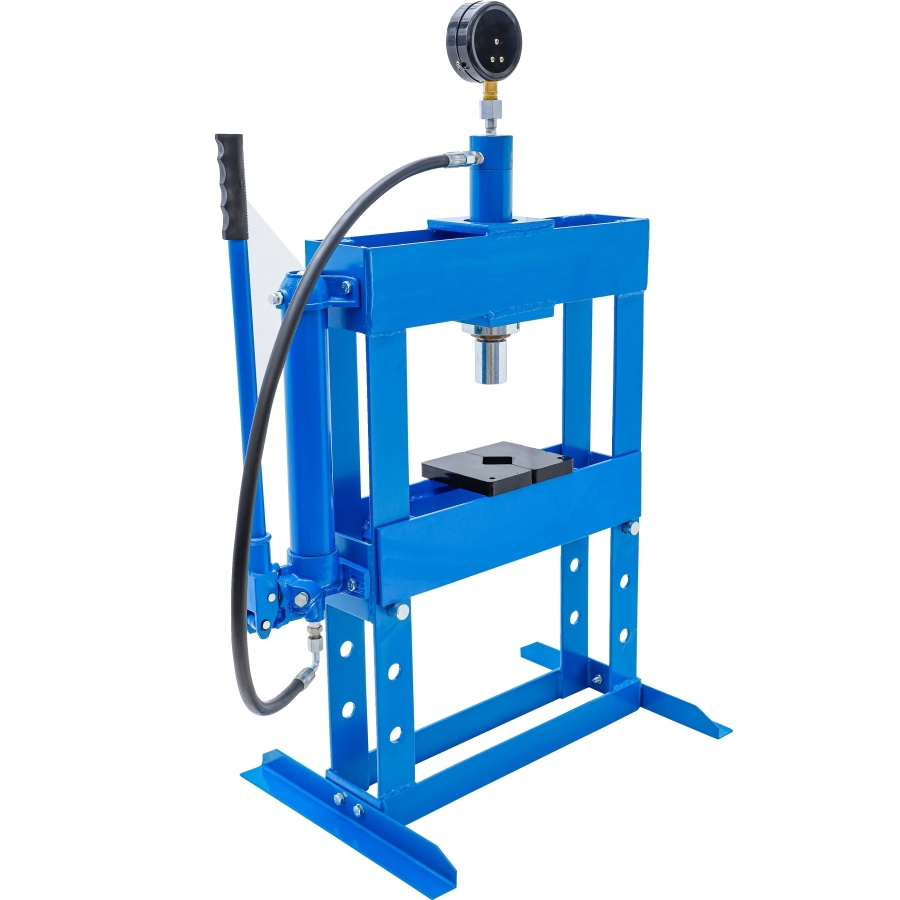

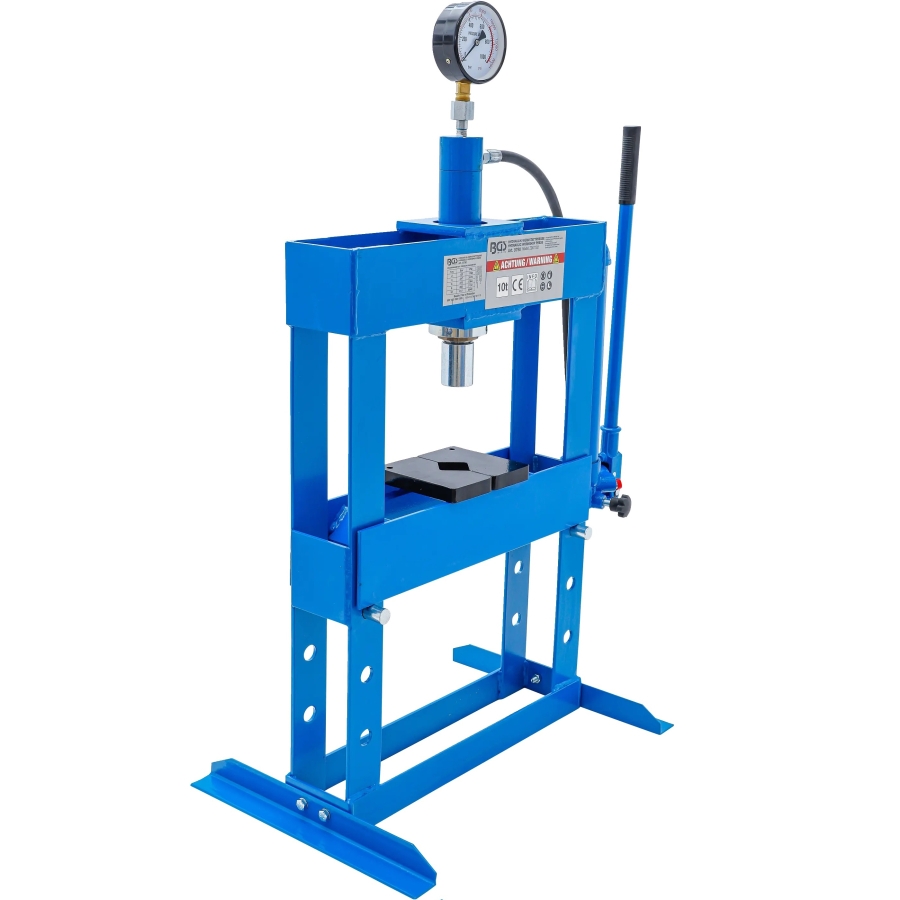

Hydraulic Workshop Press, 10 t
-
Code:9790
-
Weight:50.000 Kgs
Overview:
✔ Maximum pressing force of 10 t
✔ Suitable for bearings, shafts and rubber bushes
✔ Adjustable press bed with three height positions
✔ Large pressure gauge with bar and psi scales
✔ Working range of 0–300 mm
✔ Hydraulic cylinder stroke of 130 mm

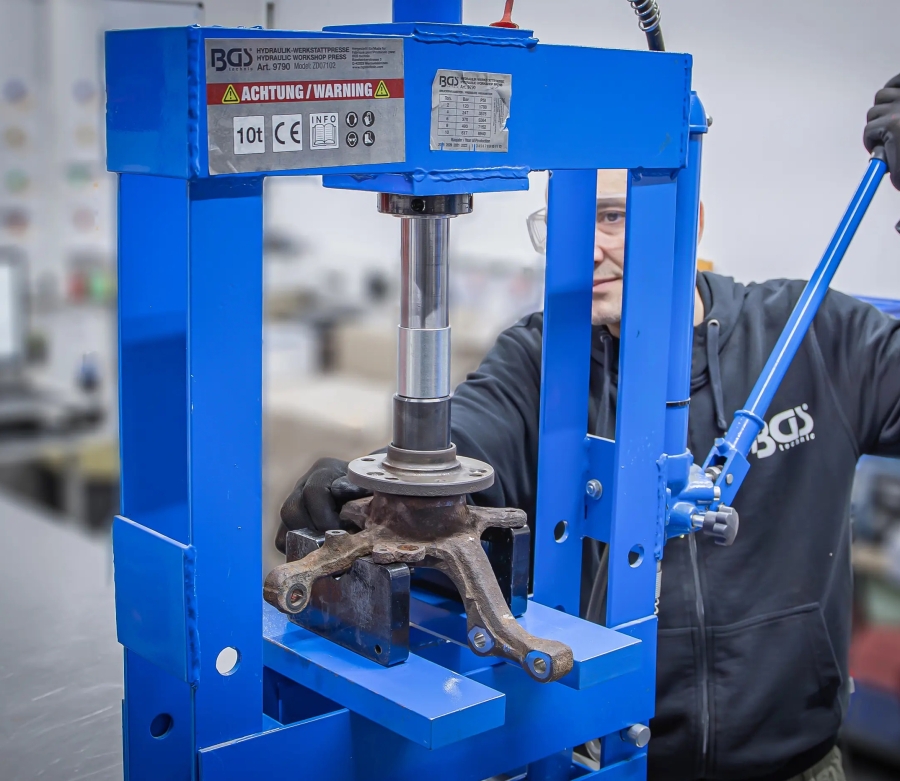

This 10 t hydraulic workshop press facilitates the removal and installation of wheel bearings, transmission shaft bearings, rubber bushes and other press-fitted components.
The individually adjustable press bed provides a flexible working area and can be set to three different height positions. A large, clearly visible pressure gauge allows the applied hydraulic pressure to be monitored during operation.
Features
- Suitable for replacing wheel bearings, transmission shaft bearings, rubber bushes and similar components
- Individually adjustable press bed
- Three height positions
- Large pressure gauge for easy monitoring
- Pressure scale in bar and psi
Technical Specifications
Maximum pressing force: 10 t

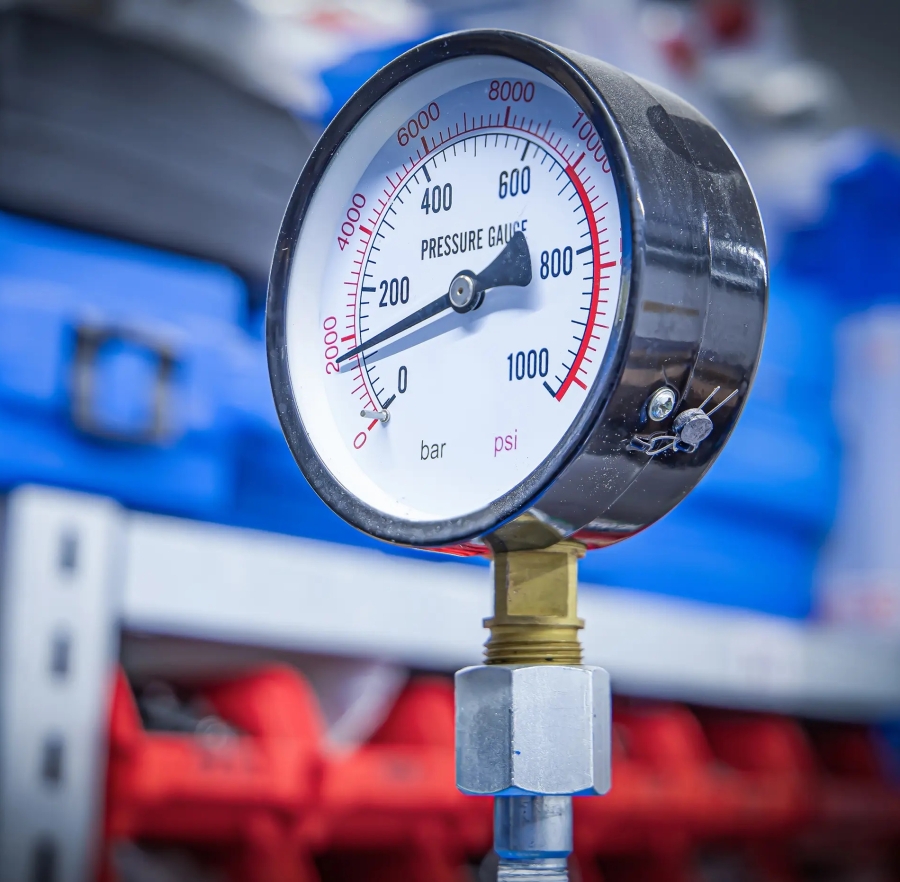

Pressure gauge range: 0–1000 bar / 0–14,500 psi
Working range: 0–300 mm, adjustable in three positions
Hydraulic cylinder stroke: 130 mm
Dimensions (L × W × H): 690 × 400 × 1020 mm
