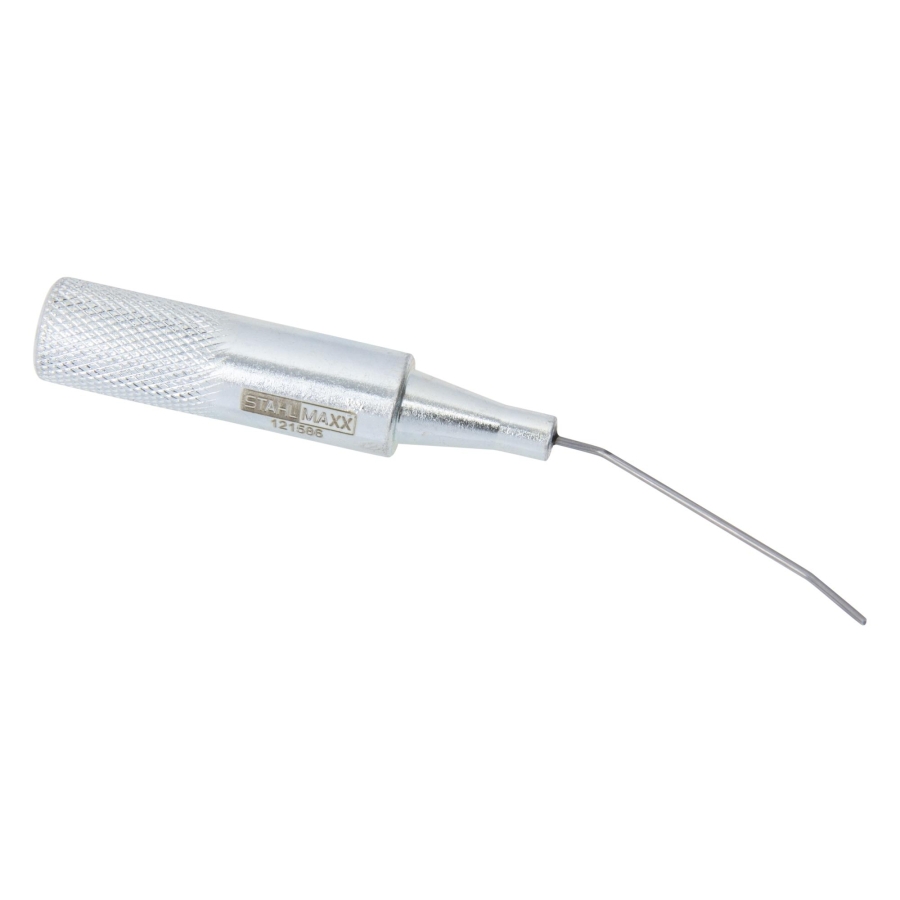

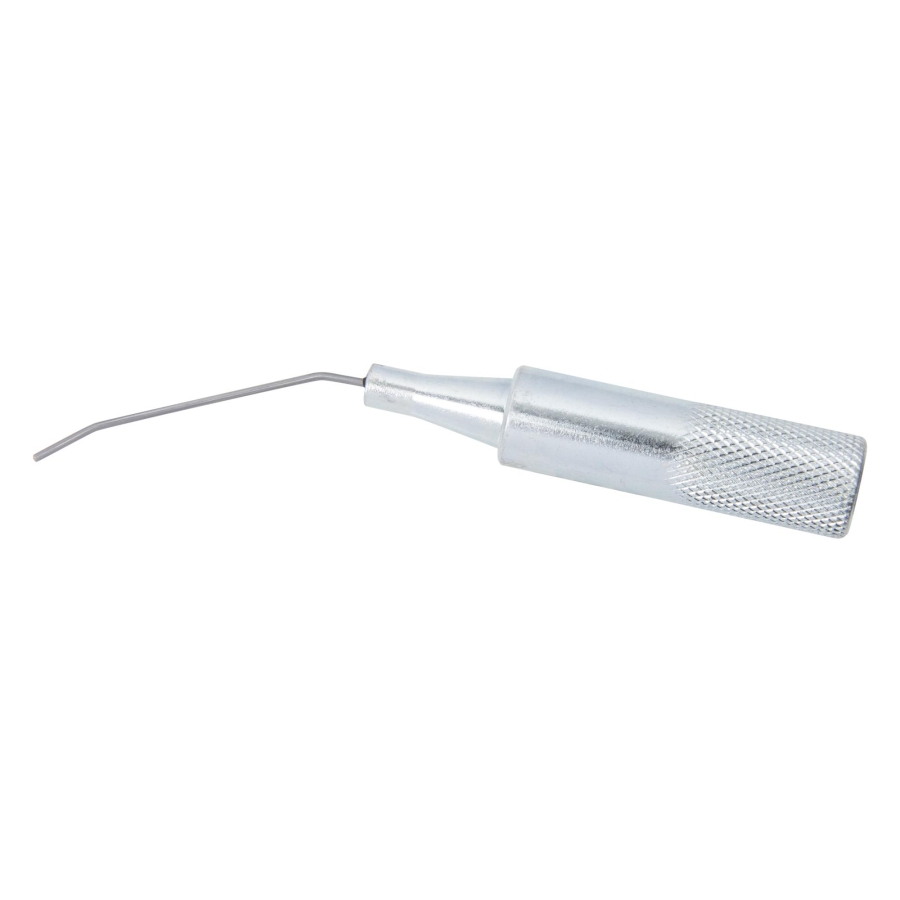

Ignition Lock Cylinder Release Tool BMW Mini VAG Mercedes as 323110 / 83300492055
-
Code:121586
-
Weight:0.054 Kgs
Overview:
✔ Professional ignition lock cylinder release tool
✔ Designed for removal and replacement of ignition lock cylinders

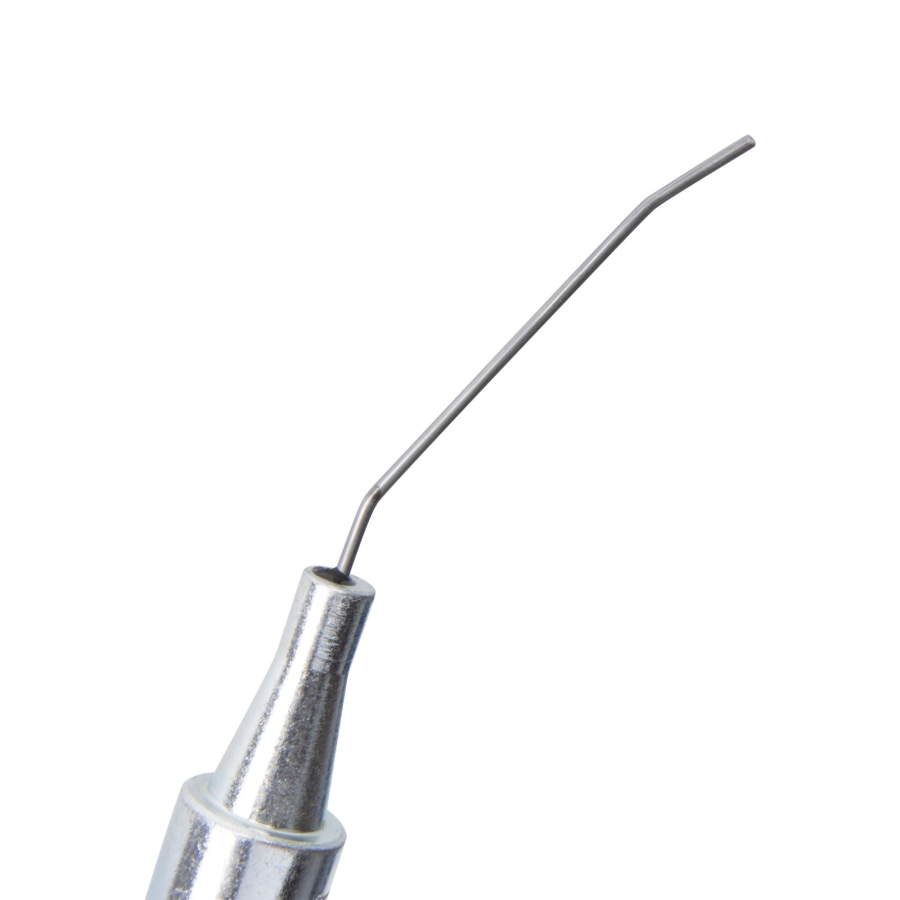

✔ Special diameter, length and angle for correct release procedure
✔ Suitable for BMW E-series and Mini R-series vehicles
✔ Universally applicable for selected VAG and Mercedes models
✔ Item no. to use as: 323110 / 83300492055
✔ Enables unlocking while key remains inserted in ignition position R / 1
The ignition lock cylinder release tool is designed for professional removal and replacement of ignition lock cylinders and steering lock mechanisms. The tool features a specific diameter, length and angle that are critical for correct operation during the unlocking process.
The release procedure is performed in ignition position R / 1 and requires the ignition key to remain inserted during operation. The specialized geometry allows proper access to the internal locking mechanism for safe and efficient removal.
Vehicle Compatibility
Suitable for:
BMW: E31, E32, E34, E36, E38, E39, E46, E60, E63, E64, E83, E86
Mini: R50, R52, R53
Universal application: Selected VAG and Mercedes models
Instructions for Lock Cylinder Removal
- Remove the ring antenna
- Remove the rubber cover of the ignition switch
- Release and unclip the ring antenna locking mechanism
- Insert the ignition key and turn the lock cylinder to position R / 1
- Insert the release tool into the lock cylinder opening
- Press the tool into position
- Pull out the lock cylinder
Reference Numbers
Item no. to use as:
- 323110
- 83300492055
Recommended Additional Tools
Item no. 120455
- Clip remover and trim wedge set, 12 pcs
Item no. 115753
- Plastic trim installation wedge
Original numbers are provided for comparison purposes only. This is not an original manufacturer tool.
