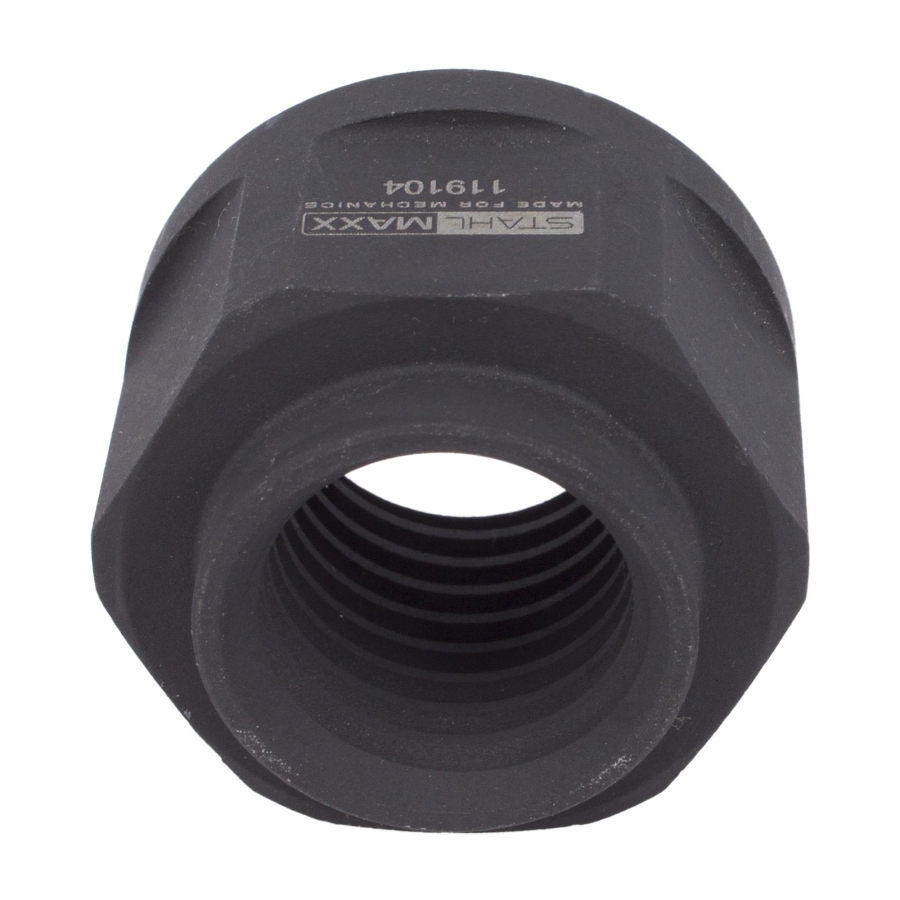

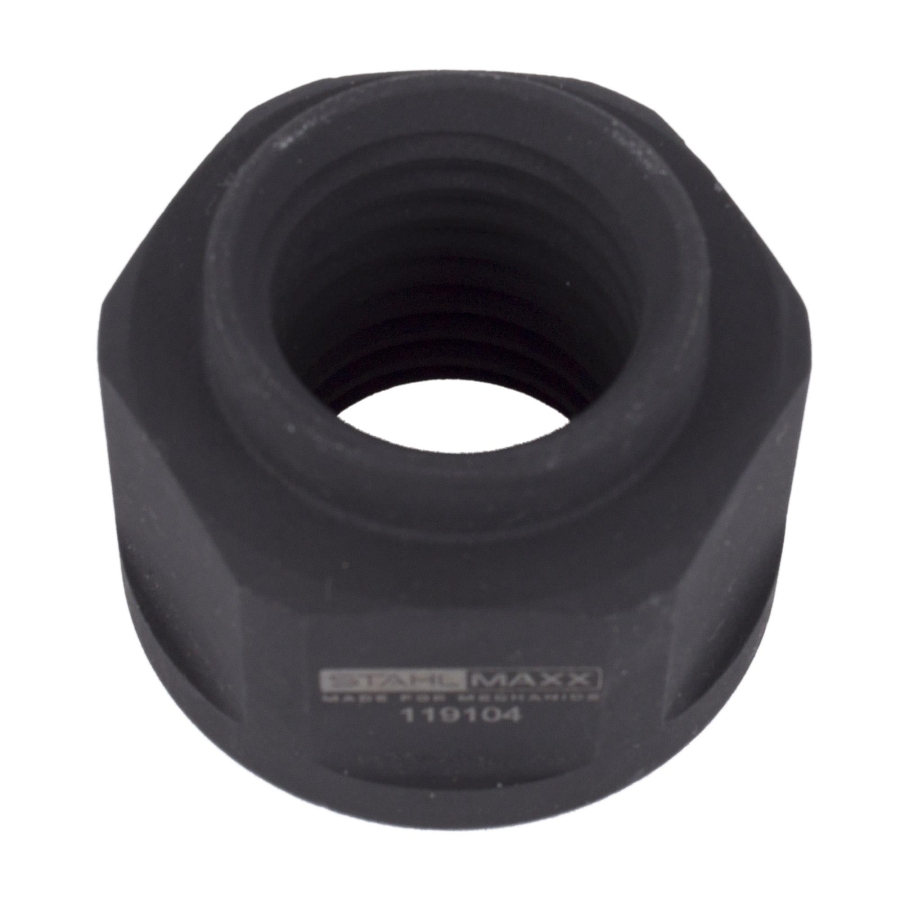

Spindle Nut with Centering and Magnetic Sleeve Holder M20 × 2.5 for Pull & Press Sleeves

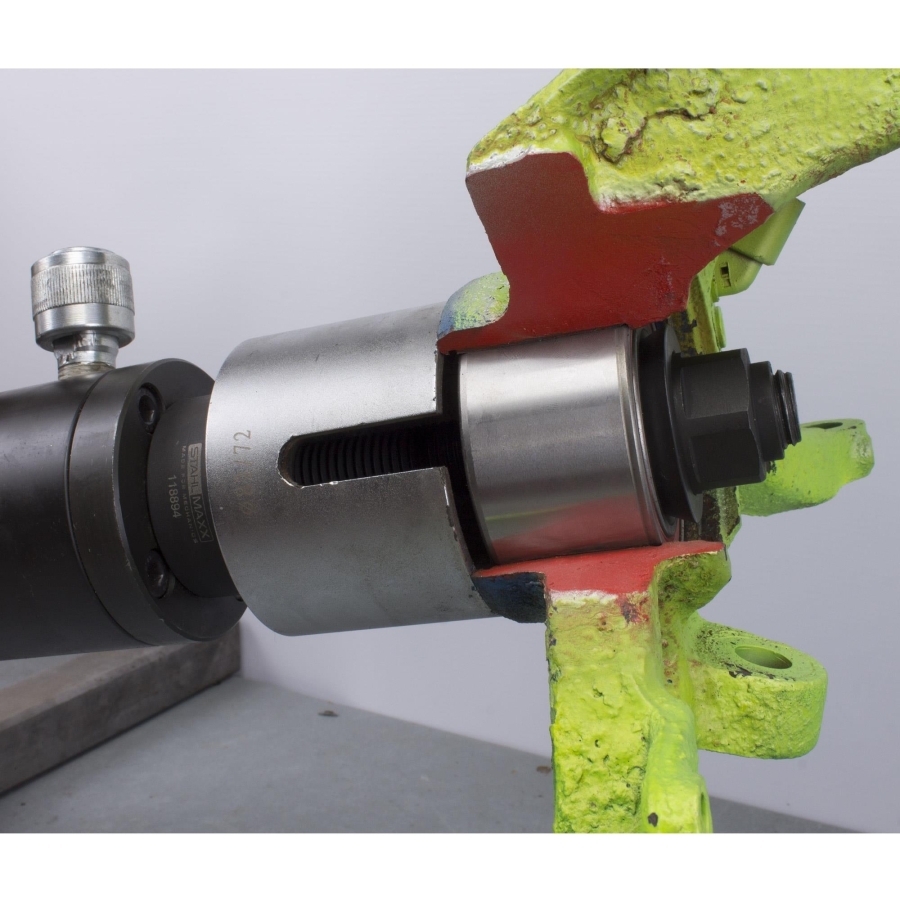

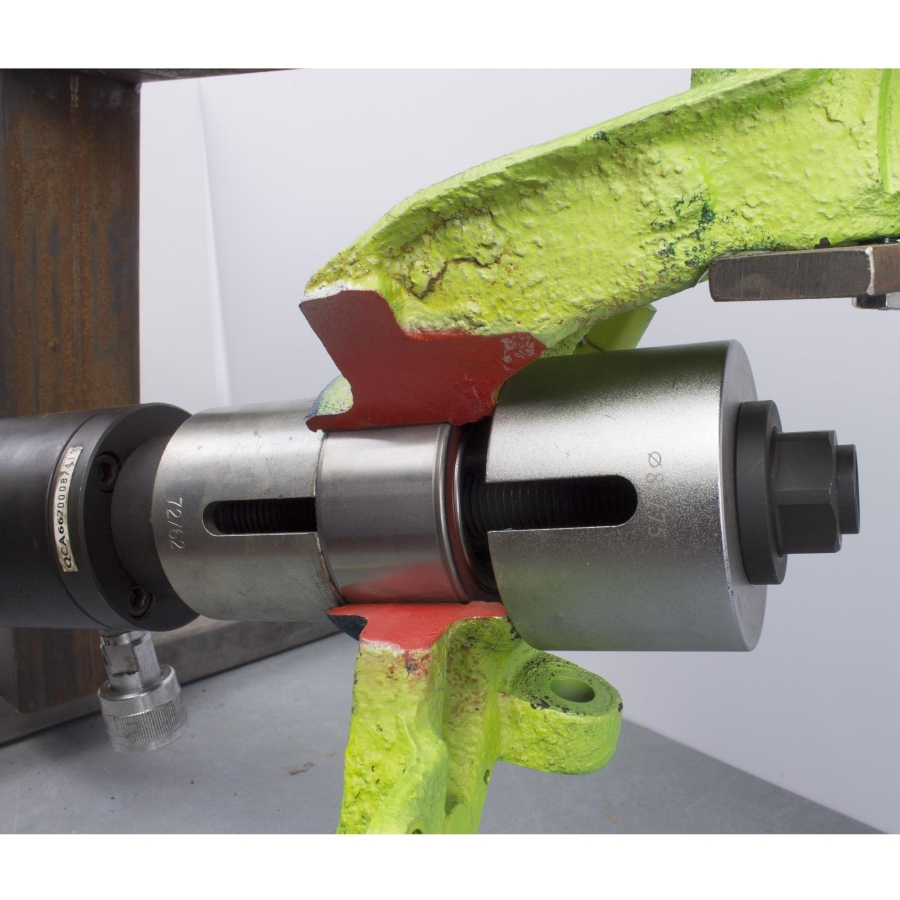

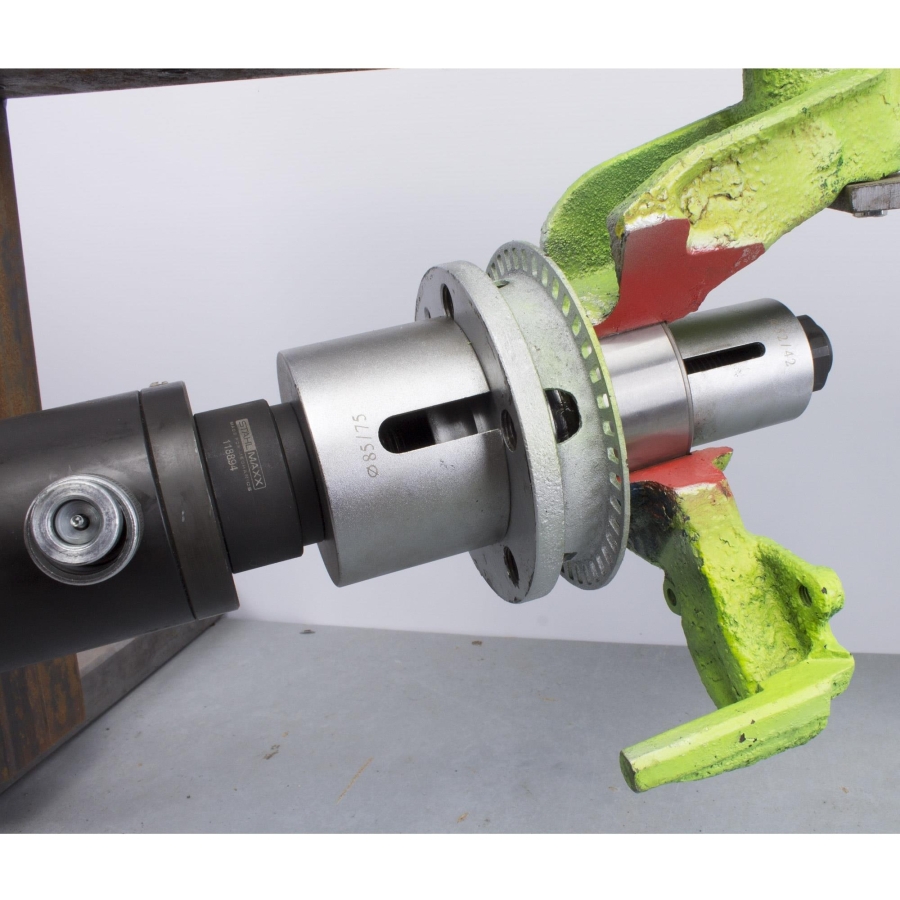

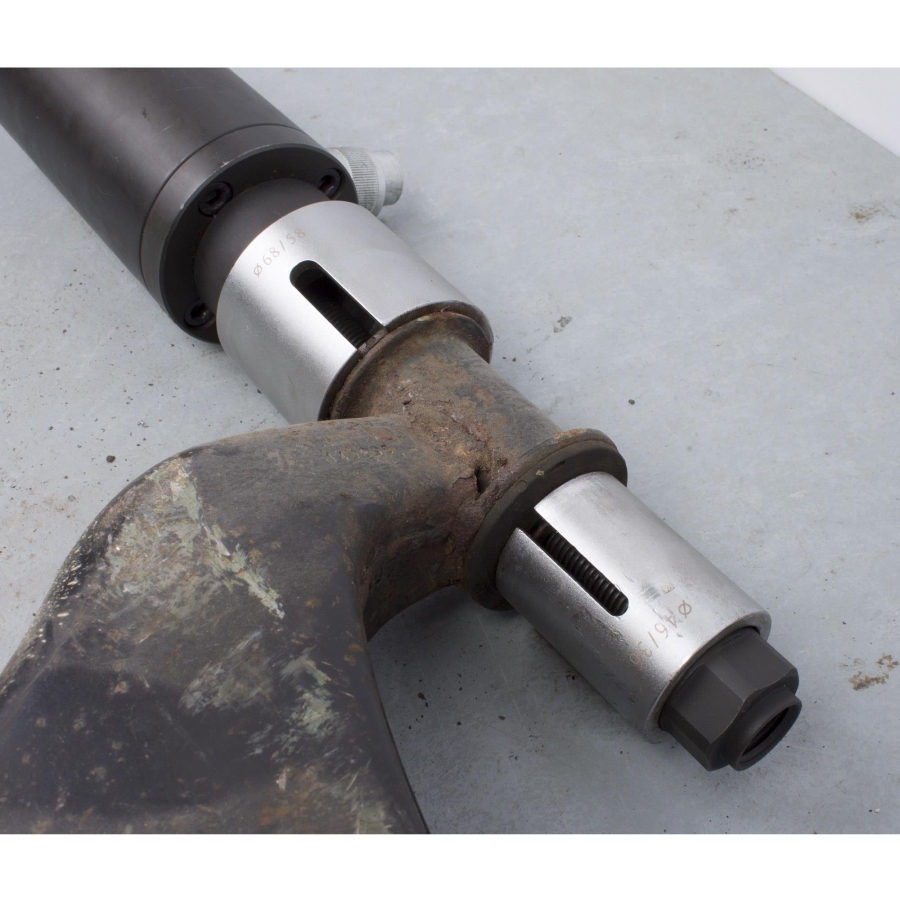

This multifunctional spindle nut for M20 pull and press spindles combines several functions in a single component. It allows centered mounting of pull and press sleeves and also enables direct application of pulling or pressing force to the component being serviced.

The design improves handling during installation and removal procedures and simplifies operation during hydraulic repair work.

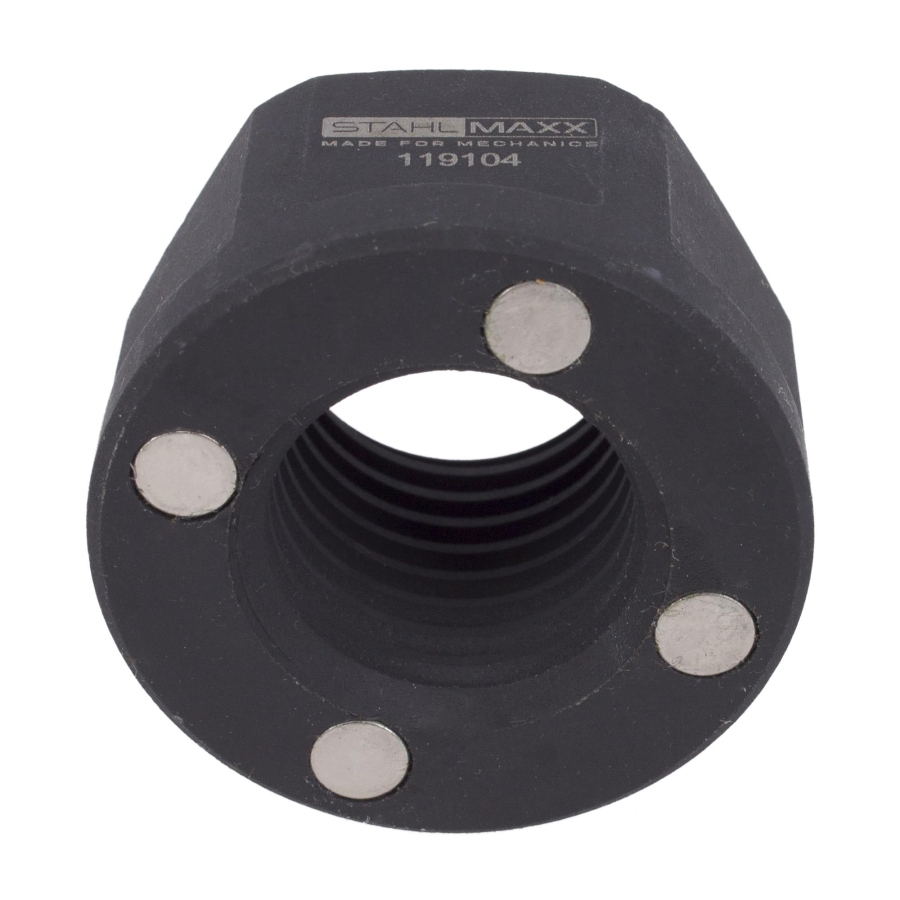

Integrated Magnetic Positioning System

For use with press sleeves such as those from pull and press sleeve sets, four integrated magnets are incorporated into the spindle nut.

The sleeve can be mounted directly in a centered position without requiring manual support.

Advantages:

• Precise sleeve positioning
• Faster installation procedures
• Improved handling
• Increased working efficiency
• Reduced need for manual positioning

Manufactured from High-Strength S45C Steel

The spindle nut is manufactured from durable S45C steel for demanding workshop environments.

Benefits:

• High strength construction
• Excellent wear resistance
• Long service life
• Suitable for repeated professional use

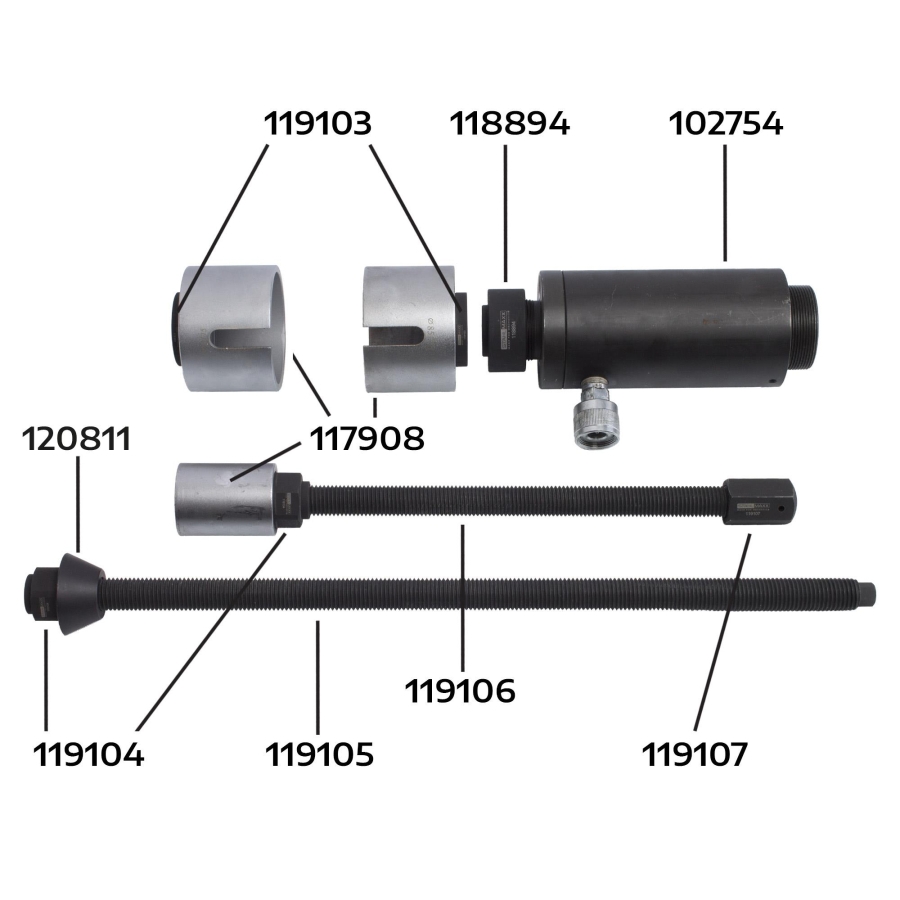

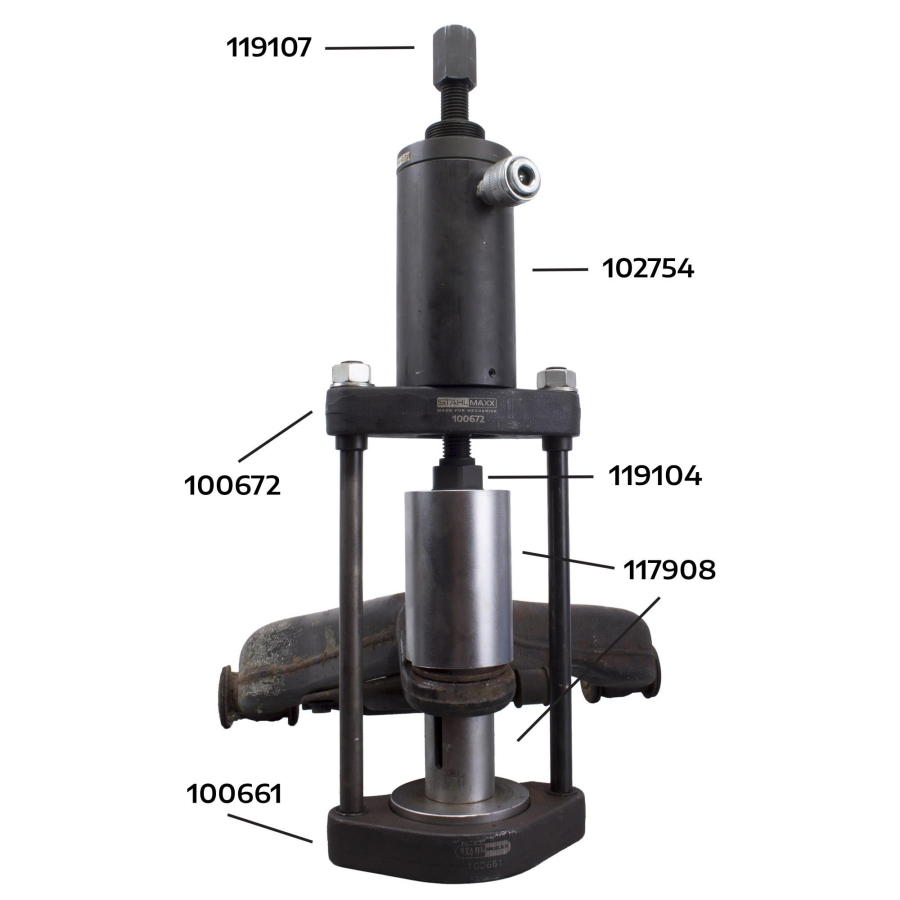

Compatible Systems

Suitable for use with:

• Item no. 119103 — Adapter ring for centering pull and press sleeves 35 mm to 42 mm
• Item no. 118894 — Adapter plate M42 × 2 for hydraulic cylinder
• Item no. 102754 — Hydraulic cylinder 18.2 t
• Item no. 117908 — Pull and press sleeve set
• Item no. 119105 — Pull spindle 500 mm M20 × 2.5
• Item no. 119106 — Pull spindle 320 mm M20 × 2.5

Technical Specifications

• Internal thread: M20 × 2.5
• Material: S45C steel
• Wrench size: 32 mm
• Pull and press sleeve holder: Ø35 mm
• Integrated magnets: 4
• Dimensions (W × H): Ø35 × 25 mm

Package Contents

1 × Spindle nut with centering and magnetic holder

• Thread: M20 × 2.5
• Integrated magnets: 4
