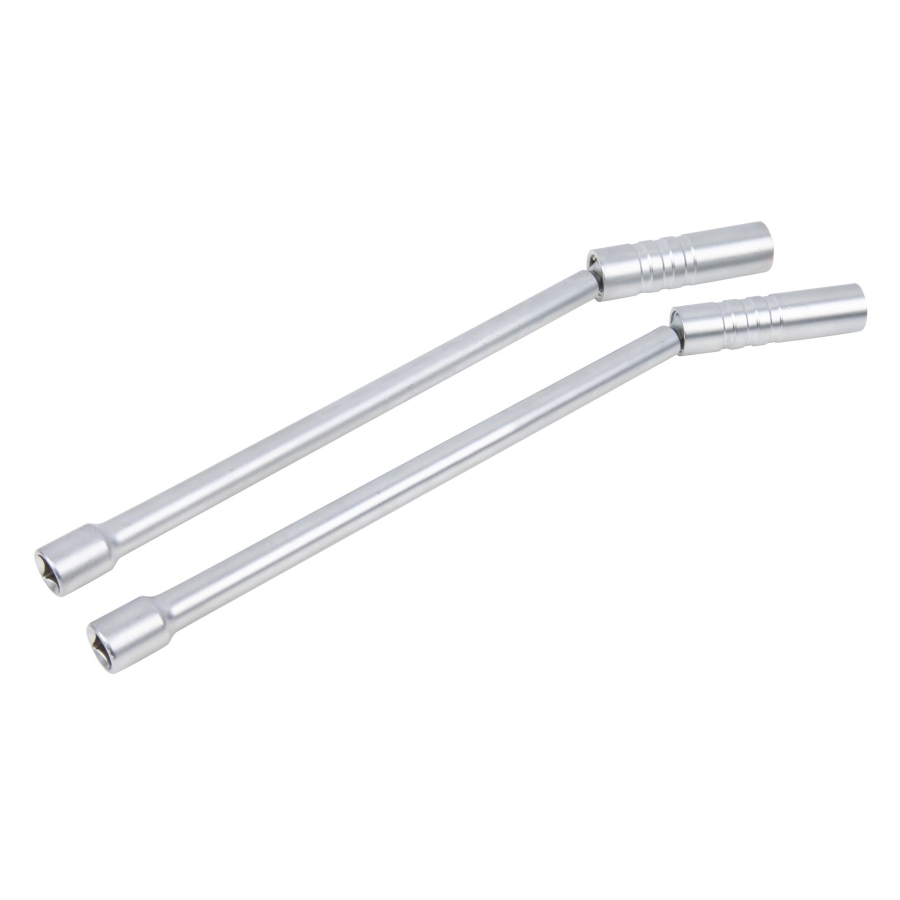

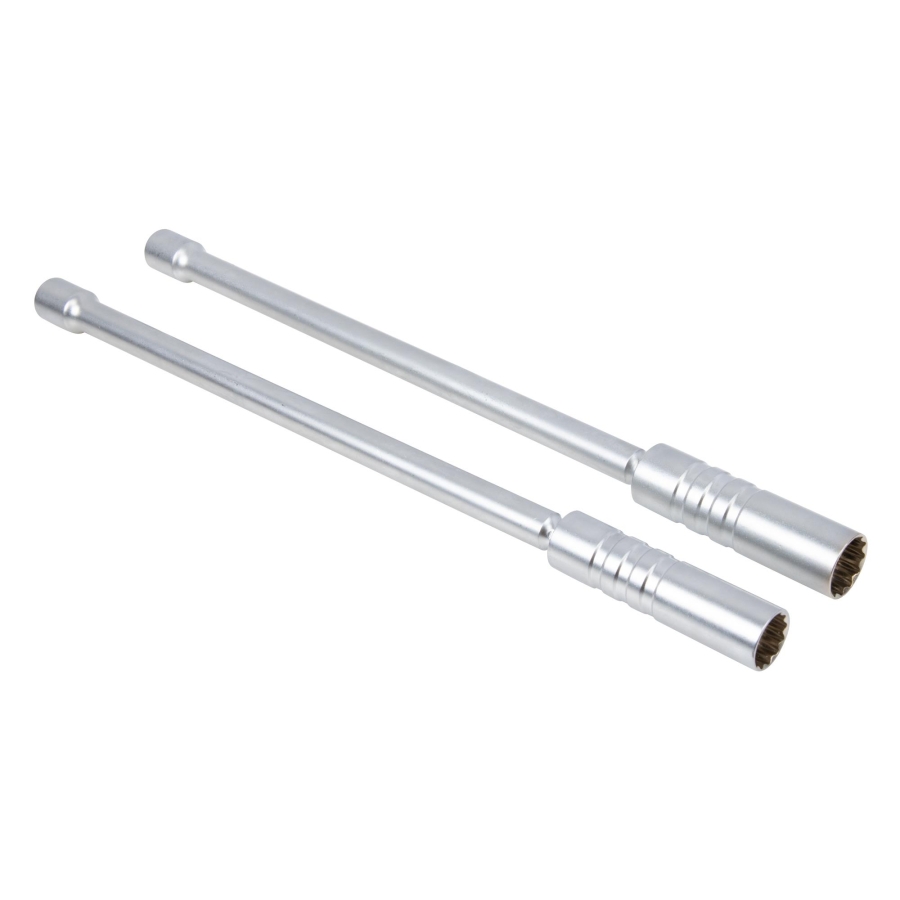

Magnetic Swivel Spark Plug Socket Set, 14/16 mm, 12-Point, 3/8", 310 mm
-
Code:116735A
-
Weight:0.440 Kgs
Overview:
✔ Professional two-piece spark plug socket set
✔ Includes 14 and 16 mm 12-point sockets
✔ Compatible with 6- and 12-point spark plug profiles
✔ Integrated magnets securely retain the spark plugs
✔ Swivel joints for straight and angled spark plug bores
✔ Slim, extra-long 310 mm construction
✔ 3/8" drive
✔ Chrome vanadium steel
This professional swivel socket set is designed for removing and installing 14 and 16 mm spark plugs. The 12-point profiles are suitable for spark plugs with both 6- and 12-point wrench profiles.
The slim outside diameters and extra-long 310 mm construction allow access to long, narrow spark plug bores and confined engine compartments.

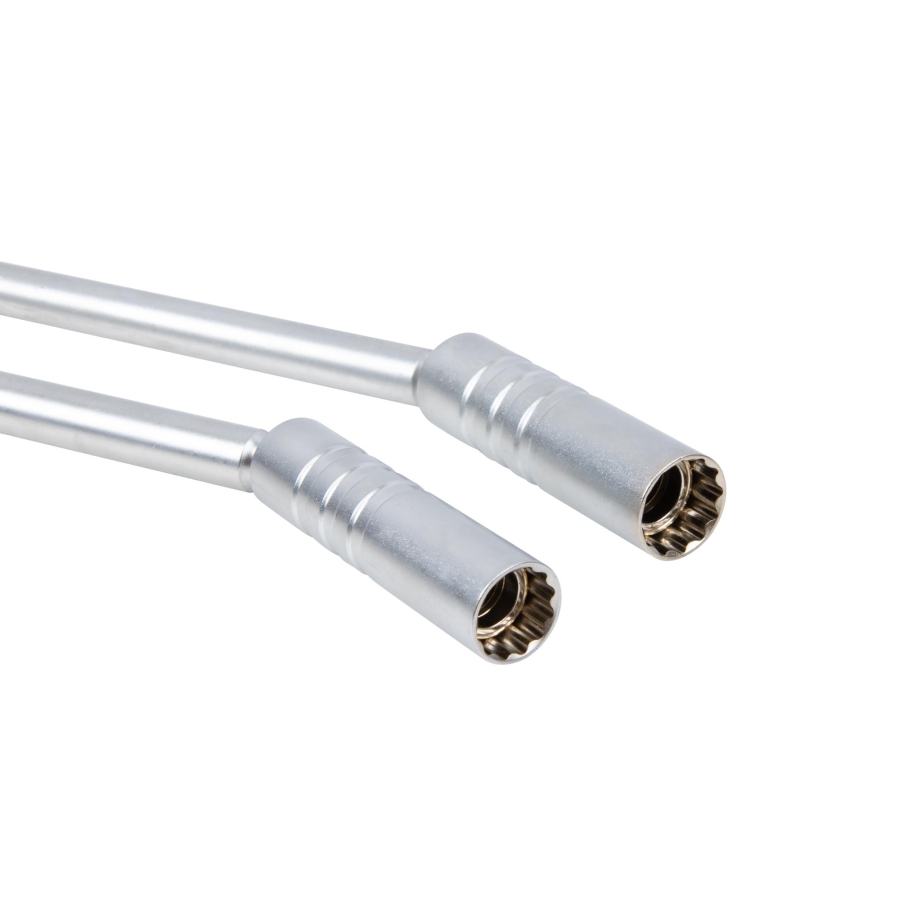

Each socket features an integrated magnet that securely retains the spark plug during removal and installation. The hexagonal ball joint facilitates positioning in angled bores while providing reliable torque transmission.
Applications
The set is particularly suitable for engines with long, narrow spark plug bores, including selected vehicles from:
- Citroën
- Dacia
- Opel
- Peugeot
- Renault
- BMW
- MINI

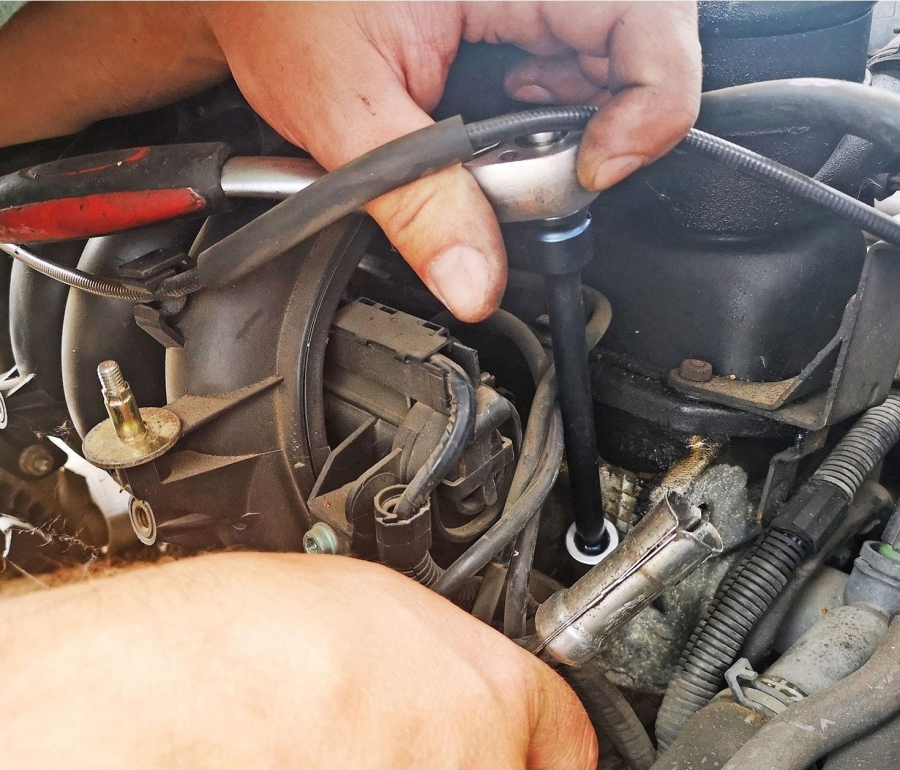

It is also suitable for spark plugs installed at an angle inside the bore, as found in various BMW and MINI engines.
Always confirm the required socket size and available outside diameter before use.
Technical Specifications
14 mm socket
- Working profile: 12-point
- Outside diameter: 18.5 mm
16 mm socket
- Working profile: 12-point
- Outside diameter: 20.5 mm
General specifications
- Internal depth: 60 mm
- Drive: 3/8"
- Total length: 310 mm
- Material: chrome vanadium steel
- Design: swivel joint
- Spark plug retention: integrated magnet
- Suitable spark plug profiles: 6- and 12-point
Scope of Delivery
- 1 × magnetic swivel spark plug socket, 14 mm, 12-point, 3/8" drive, length 310 mm
- 1 × magnetic swivel spark plug socket, 16 mm, 12-point, 3/8" drive, length 310 mm
