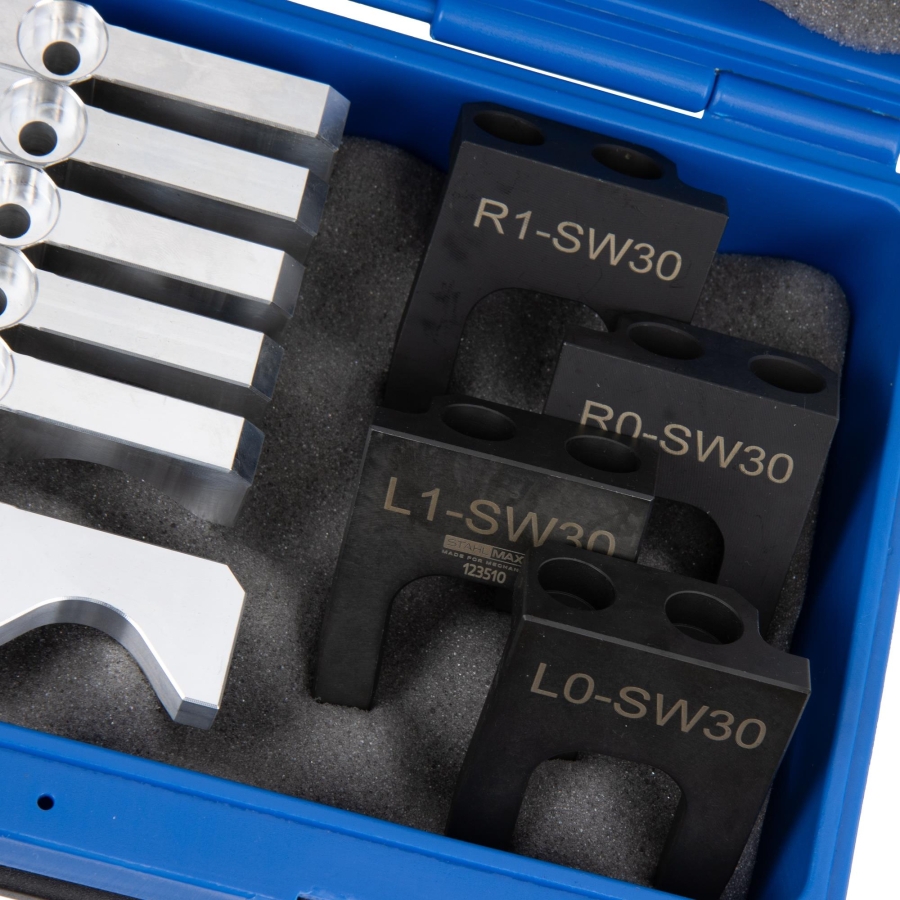

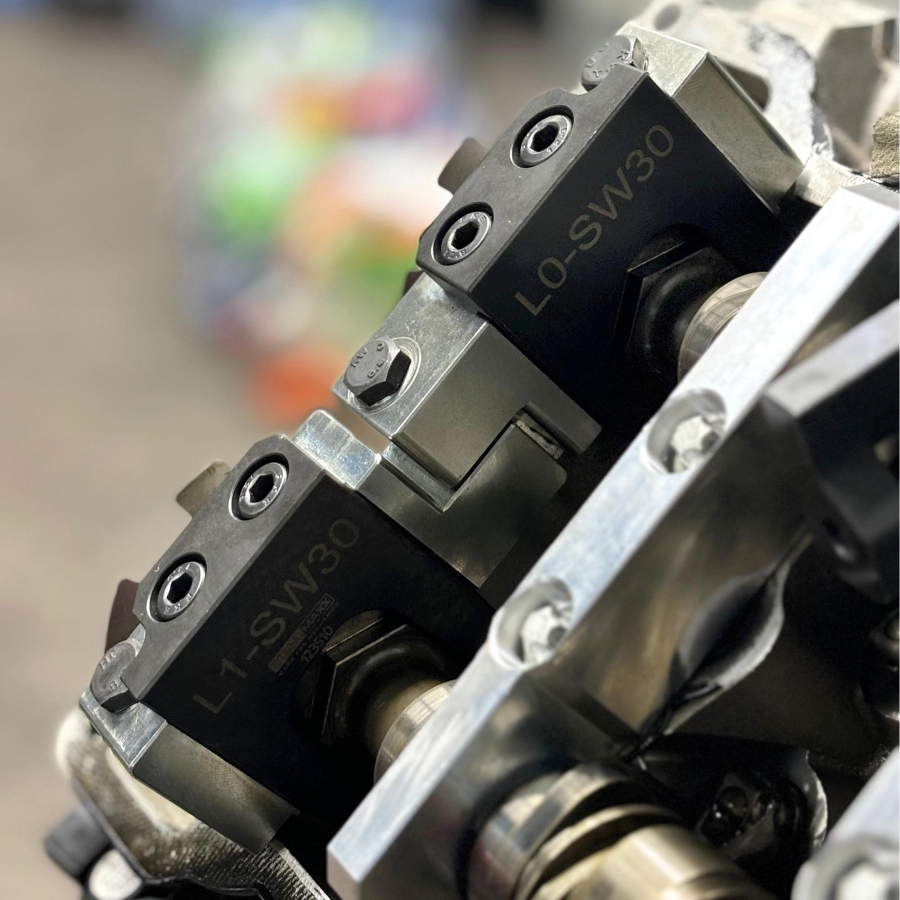

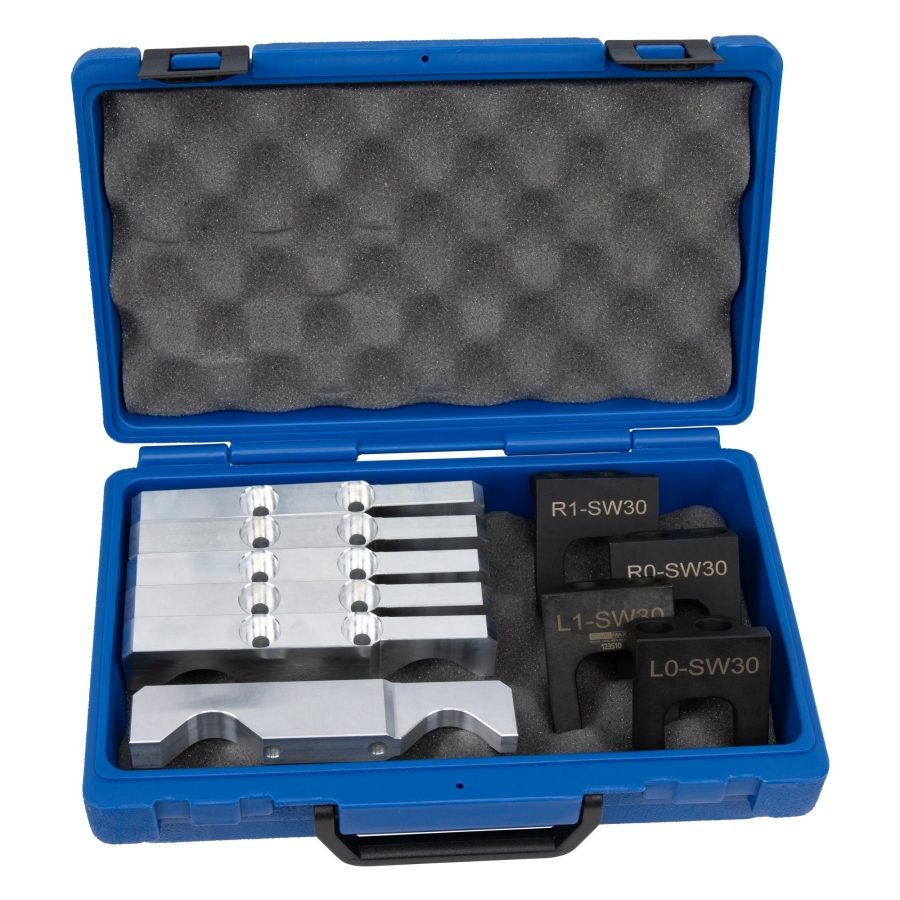

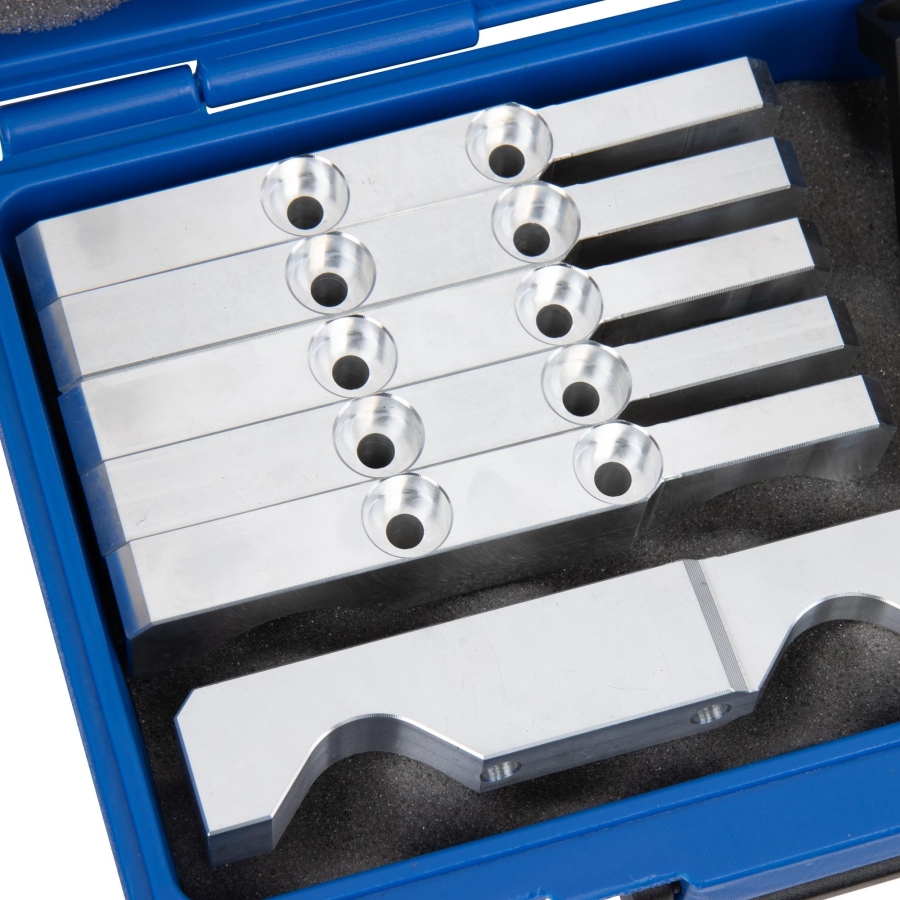

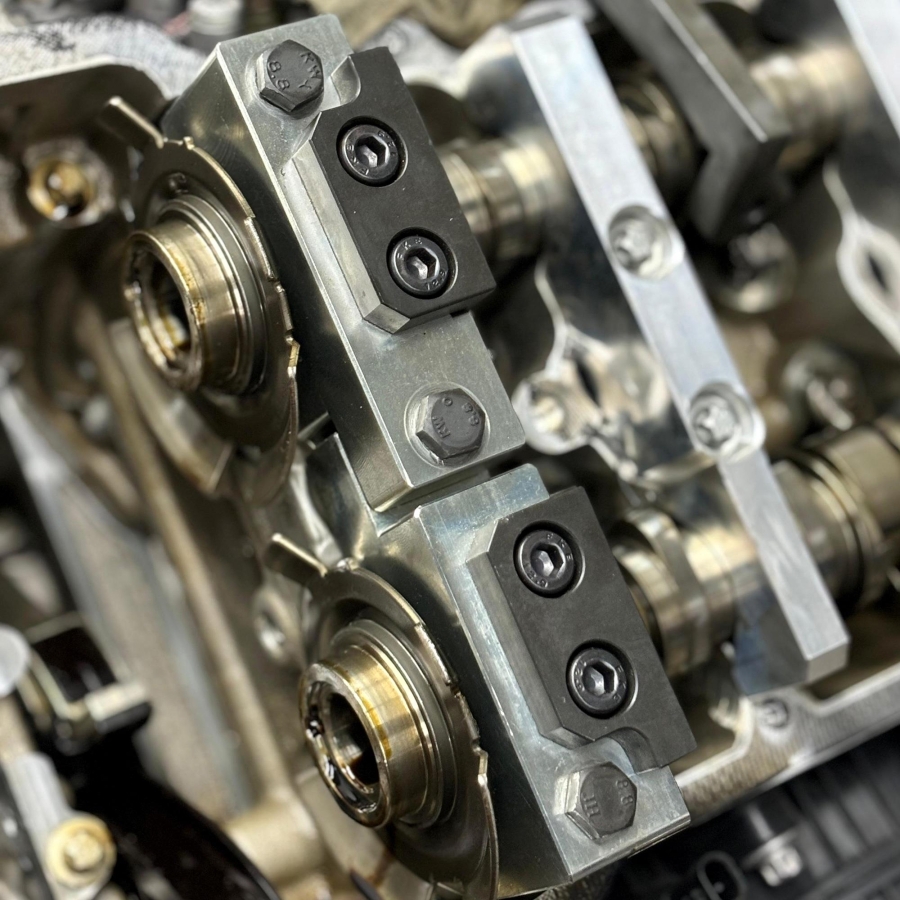

Camshaft Locking Tool for Mercedes-Benz M176 / M177 with Camtronic® (Valve Lift Control)

Special tool for camshaft adjustment on Mercedes-Benz engines equipped with Camtronic® (variable valve lift system).

Designed as an extension to existing engine timing tool sets for:

• M176
• M177
• M178

Required when working on engines with valve lift control (Camtronic®), due to manufacturer design changes.

Compatibility

Suitable for engines:
M176, M177

Application Notes

✔ Extension tool for engine timing tool set

✔ Required for engines with Camtronic® (valve lift control)

✔ For engines without Camtronic®:

• Use base tool set
  item.no. 115983

✔ According to Mercedes repair manual:

• Camshaft locking tools and retainers are listed under OEM number W177589024000

✔ Retainers are NOT identical to those included in base set (item.no. 115983)
✔ Additional tool required for correct repair procedure

✔ Enables repair according to manufacturer guidelines

Product Highlights

✔ Professional-grade special tool
✔ High-quality materials
✔ Precision manufacturing
✔ Designed for OE-compliant repair procedures

OEM Reference

To be used as:
W177589024000
177589024000

OEM numbers are provided for identification purposes only. This product is not an original manufacturer tool.

ASTON MARTIN DBX (11.2019 - ) 4.0 (551 HP, 405 kW)

ASTON MARTIN VANTAGE Coupe (11.2017 - ) 4.0 (510 HP, 375 kW)

ASTON MARTIN VANTAGE Roadster (02.2020 - ) 4.0 (510 HP, 375 kW)

MERCEDES-BENZ AMG GT (C190) (10.2014 - ) GT (190.382) (530 HP, 390 kW)

MERCEDES-BENZ AMG GT (X290) (07.2018 - ) 63 4-matic+ (290.688) (585 HP, 430 kW)

MERCEDES-BENZ AMG GT (X290) (07.2018 - ) 63 S 4-matic+ (290,689) (639 hp, 470 kW)

MERCEDES-BENZ C-CLASS (W205) (07.2013 - 08.2018) AMG C 63 (205.086) (476 HP, 350 kW)

MERCEDES-BENZ C-CLASS (W205) (07.2013 - 08.2018) AMG C 63 S (205.087) (510 HP, 375 kW)

MERCEDES-BENZ C-CLASS Cabriolet (A205) (06.2016 - 12.2018) AMG C 63 (205.486) (476 HP, 350 kW)

MERCEDES-BENZ C-CLASS Cabriolet (A205) (06.2016 - 12.2018) AMG C 63 S (205.487) (510 HP, 375 kW)

MERCEDES-BENZ C-CLASS Coupe (C205) (10.2015 - 12.2018) AMG C 63 (205.386) (476 HP, 350 kW)

MERCEDES-BENZ C-CLASS Coupe (C205) (10.2015 - 12.2018) AMG C 63 S (205.387) (510 HP, 375 kW)

MERCEDES-BENZ C-CLASS T-Model (S205) (09.2014 - 05.2018) AMG C 63 (205.286) (476 HP, 350 kW)

MERCEDES-BENZ C-CLASS T-Model (S205) (09.2014 - 05.2018) AMG C 63 S (205.287) (510 HP, 375 kW)

MERCEDES-BENZ E-CLASS (W213) (01.2016 - 05.2018) AMG E 63 4-matic+ (213.088) (571 HP, 420 kW)

MERCEDES-BENZ E-CLASS (W213) (01.2016 - 05.2018) AMG E 63 S 4-matic+ (213.089) (612 HP, 450 kW)

MERCEDES-BENZ E-CLASS T-Model (S213) (07.2016 - 12.2018) AMG E 63 4-matic+ (213.288) (571 HP, 420 kW)

MERCEDES-BENZ E-CLASS T-Model (S213) (07.2016 - 12.2018) AMG E 63 S 4-matic+ (213.289) (612 HP, 450 kW)

MERCEDES-BENZ G-CLASS (W463) (01.2018 - ) AMG G 63 (463.276, 463.277) (585 HP, 430 kW)

MERCEDES-BENZ G-CLASS (W463) (01.2018 - ) G 500 (463.260, 463.261) (422 HP, 310 kW)

MERCEDES-BENZ G-CLASS (W463) (09.1989 - 12.2011) G 500 (463.234, 463.239) (422 HP, 310 kW)

MERCEDES-BENZ GLC (X253) (06.2015 - 08.2019) AMG 63 4-matic+ (253.988) (476 HP, 350 kW)

MERCEDES-BENZ GLC (X253) (06.2015 - 08.2019) AMG 63 S 4-matic+ (253.989) (510 HP, 375 kW)

MERCEDES-BENZ GLC Coupe (C253) (06.2016 - 08.2019) AMG 63 4-matic+ (253.388) (476 HP, 350 kW)

MERCEDES-BENZ GLC Coupe (C253) (06.2016 - 08.2019) AMG 63 S 4-matic+ (253.389) (510 HP, 375 kW)

MERCEDES-BENZ GLE (V167) (10.2018 - ) AMG GLE 63 EQ Boost 4-matic+ (167.188) (571 HP, 420 kW)

MERCEDES-BENZ GLE (V167) (10.2018 - ) AMG GLE 63 S EQ Boost 4-matic+ (167.189) (612 HP, 450 kW)

MERCEDES-BENZ GLE (V167) (10.2018 - ) GLE 580 EQ Boost 4-matic (167.186) (489 HP, 360 kW)

MERCEDES-BENZ GLE Coupe (C167) (11.2019 - ) AMG GLE 63 EQ Boost 4-matic+ (167.388) (571 HP, 420 kW)

MERCEDES-BENZ GLE Coupe (C167) (11.2019 - ) AMG GLE 63 EQ Boost 4-matic+ (167.389) (612 HP, 450 kW)

MERCEDES-BENZ GLS (X167) (04.2019 - ) 580 EQ Boost 4-matic (167.986) (489 HP, 360 kW)

MERCEDES-BENZ GLS (X167) (04.2019 - ) AMG 63 4Matic+ EQ Boost (167.989) (612 HP, 450 kW)

MERCEDES-BENZ GLS (X167) (04.2019 - ) Maybach 600 EQ Boost 4-matic (167.987) (557 HP, 410 kW)

MERCEDES-BENZ S-CLASS (W222, V222, X222) (05.2013 - 11.2018) AMG S 63 (222.187) (612 HP, 450 kW)

MERCEDES-BENZ S-CLASS (W222, V222, X222) (05.2013 - 11.2018) AMG S 63 4-matic+ (222.188) (612 HP, 450 kW)

MERCEDES-BENZ S-CLASS (W222, V222, X222) (05.2013 - 11.2018) S 560 (222.083, 222.183) (469 HP, 345 kW)

MERCEDES-BENZ S-CLASS (W222, V222, X222) (05.2013 - 11.2018) S 560 4-matic (222.086, 222.186) (469 HP, 345 kW)

MERCEDES-BENZ S-CLASS (W222, V222, X222) (05.2013 - 11.2018) p 560 Maybach (222,983) (469 hp, 345 kW)

MERCEDES-BENZ S-CLASS (W222, V222, X222) (05.2013 - 11.2018) S 560 Maybach 4-matic (222.986) (469 HP, 345 kW)

MERCEDES-BENZ S-CLASS Cabriolet (A217) (12.2015 - 05.2019) AMG S 63 (217.487) (612 HP, 450 kW)

MERCEDES-BENZ S-CLASS Cabriolet (A217) (12.2015 - 05.2019) AMG S 63 4-matic+ (217.488) (612 HP, 450 kW)

MERCEDES-BENZ S-CLASS Cabriolet (A217) (12.2015 - 05.2019) S 560 (217.483) (469 HP, 345 kW)

MERCEDES-BENZ S-CLASS Coupe (C217) (04.2014 - 05.2019) S 560 (217.383) (469 HP, 345 kW)

MERCEDES-BENZ S-CLASS Coupe (C217) (04.2014 - 05.2019) S 560 4-matic (217.386) (469 HP, 345 kW)

MERCEDES-BENZ S-CLASS Coupe (C217) (04.2014 - 05.2019) S 63 AMG (217,387) (612 hp, 450 kW)

MERCEDES-BENZ S-CLASS Coupe (C217) (04.2014 - 05.2019) S 63 AMG 4-matic+ (217.388) (612 HP, 450 kW)
