Camshaft Installation Tool for Mercedes-Benz M256 (Camtronic)

This specialized tool is required for the installation and removal of Camtronic camshafts in Mercedes-Benz M256 engines. It ensures correct positioning during assembly and disassembly procedures.

Functionality

The camshafts are mounted within a ladder frame structure. This tool acts as a spacer to maintain the correct installation position and ensures the Camtronic element is set to its base position.

The Camtronic elements are located on the intake camshaft and must be positioned against the mechanical stop before installation.

Compatibility

Suitable for Mercedes-Benz engines:

• M256

OEM Reference

To be used as:
W256589033100
256589033100

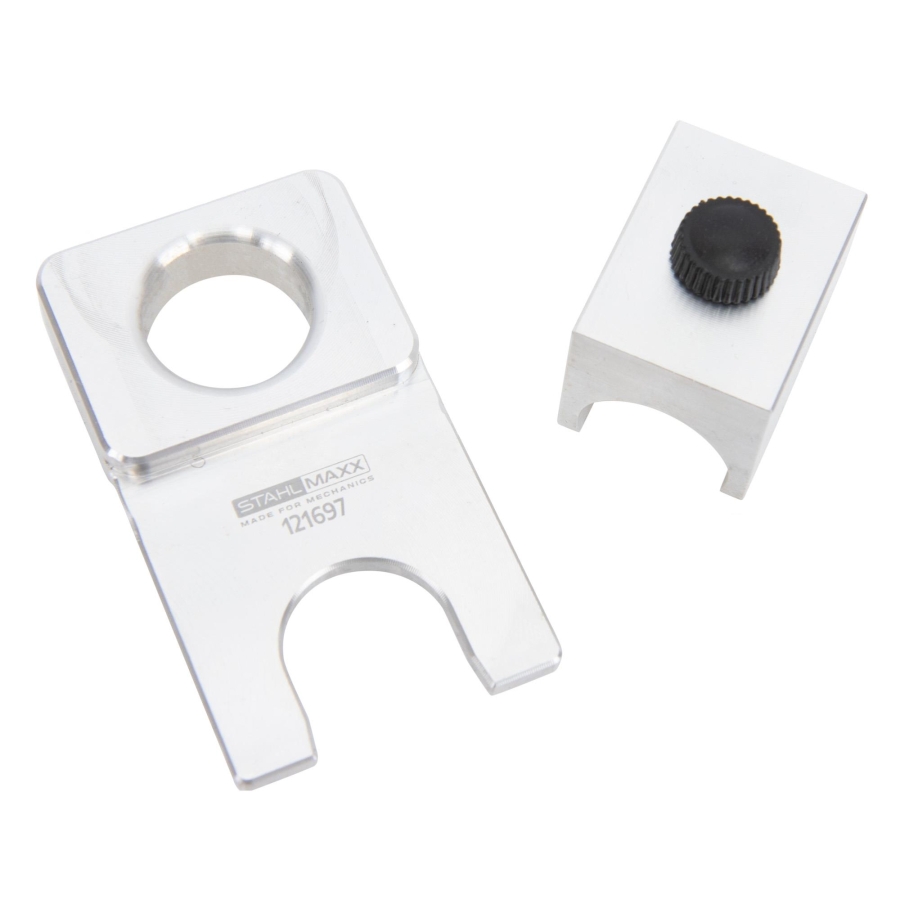

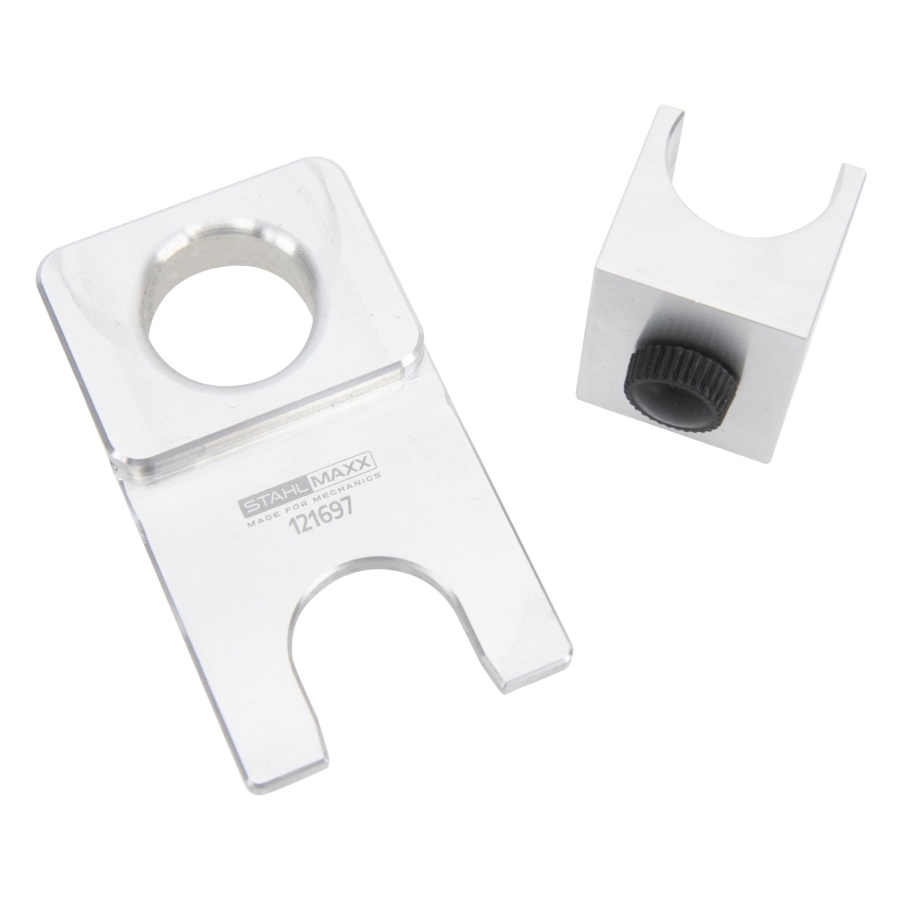

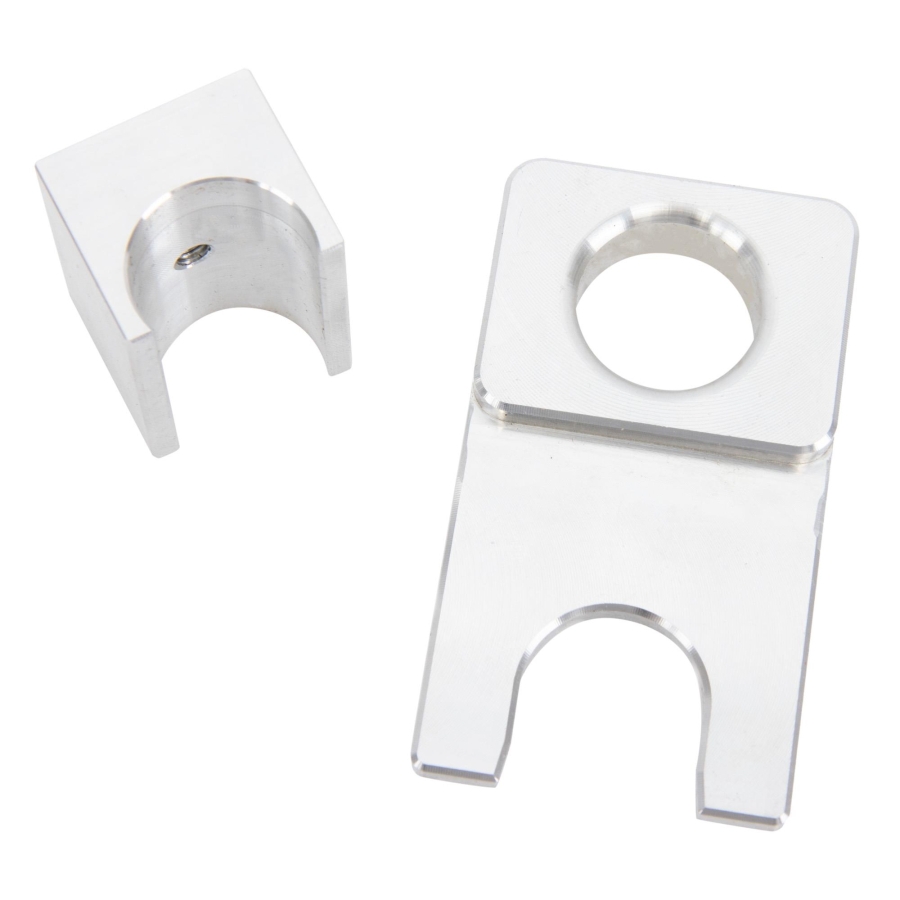

Scope of Delivery

✔ Camtronic stop tool
✔ Camtronic spacer tool

OEM numbers are provided for identification purposes only. This product is not an original manufacturer tool.

MERCEDES-BENZ AMG GT (X290) (07.2018 - ) 43 EQ Boost (290.658) (367 HP, 270 kW)

MERCEDES-BENZ AMG GT (X290) (07.2018 - ) 43 EQ Boost 4-matic+ (290.659) (367 HP, 270 kW)

MERCEDES-BENZ AMG GT (X290) (07.2018 - ) 53 EQ Boost 4-matic+ (290.661) (435 HP, 320 kW)

MERCEDES-BENZ CLS (C257) (12.2017 - ) AMG CLS 53 EQ Boost 4-matic+ (257.361) (435 HP, 320 kW)

MERCEDES-BENZ CLS (C257) (12.2017 - ) CLS 450 EQ Boost (257.358) (367 HP, 270 kW)

MERCEDES-BENZ CLS (C257) (12.2017 - ) CLS 450 EQ Boost 4-matic (257.359) (367 HP, 270 kW)

MERCEDES-BENZ E-CLASS (W213) (01.2016 - 05.2018) AMG E 53 EQ Boost 4-matic+ (213.061) (435 HP, 320 kW)

MERCEDES-BENZ E-CLASS (W213) (01.2016 - 05.2018) E 450 EQ Boost 4-matic (213,059) (367 hp, 270 kW)

MERCEDES-BENZ E-CLASS All-Terrain (S213) (01.2017 - ) E 450 EQ Boost (213.260) (367 HP, 270 kW)

MERCEDES-BENZ E-CLASS Cabriolet (A238) (06.2017 - 12.2018) AMG E53 EQ Boost 4-matic+ (238.461) (435 HP, 320 kW)

MERCEDES-BENZ E-CLASS Cabriolet (A238) (06.2017 - 12.2018) E 450 (238.458) (367 HP, 270 kW)

MERCEDES-BENZ E-CLASS Cabriolet (A238) (06.2017 - 12.2018) E 450 EQ Boost 4-matic (238.459) (367 HP, 270 kW)

MERCEDES-BENZ E-CLASS Coupe (C238) (12.2016 - 12.2018) AMG E 53 EQ Boost 4-matic+ (238.361) (435 HP, 320 kW)

MERCEDES-BENZ E-CLASS Coupe (C238) (12.2016 - 12.2018) E 450 (238.358) (367 HP, 270 kW)

MERCEDES-BENZ E-CLASS Coupe (C238) (12.2016 - 12.2018) E 450 EQ Boost 4-matic (238,359) (367 hp, 270 kW)

MERCEDES-BENZ E-CLASS T-Model (S213) (07.2016 - 12.2018) AMG E 53 EQ Boost 4-matic+ (213.261) (435 HP, 320 kW)

MERCEDES-BENZ E-CLASS T-Model (S213) (07.2016 - 12.2018) E 450 EQ Boost (213.259) (367 HP, 270 kW)

MERCEDES-BENZ GLE (V167) (10.2018 - ) AMG GLE 53 EQ Boost 4-matic+ (167.161) (435 HP, 320 kW)

MERCEDES-BENZ GLE (V167) (10.2018 - ) GLE 450 EQ Boost 4-matic (167.159) (367 HP, 270 kW)

MERCEDES-BENZ GLE Coupe (C167) (11.2019 - ) AMG GLE 53 EQ Boost 4-matic+ (167.361) (435 HP, 320 kW)

MERCEDES-BENZ GLE Coupe (C167) (11.2019 - ) GLE 450 EQ Boost 4-matic (167.357) (367 HP, 270 kW)

MERCEDES-BENZ GLE Coupe (C167) (11.2019 - ) GLE 450 EQ Boost 4-matic (167.359) (367 HP, 270 kW)

MERCEDES-BENZ GLS (X167) (04.2019 - ) 400 EQ Boost 4-matic (167.956) (313 HP, 230 kW)

MERCEDES-BENZ GLS (X167) (04.2019 - ) 450 EQ Boost 4-matic (167.959) (367 HP, 270 kW)

MERCEDES-BENZ GLS (X167) (04.2019 - ) Maybach 480 EQ Boost 4-matic (167.967) (367 HP, 270 kW)

MERCEDES-BENZ S-CLASS (W222, V222, X222) (05.2013 - 11.2018) S 350 L EQ Boost (222,156) (299 hp, 220 kW)

MERCEDES-BENZ S-CLASS (W222, V222, X222) (05.2013 - 11.2018) S 450 EQ Boost (222.158, 222.058) (367 HP, 270 kW)

MERCEDES-BENZ S-CLASS (W222, V222,

MERCEDES-BENZ S-CLASS (W222, V222, X222) (05.2013 - 11.2018) S 450 Maybach EQ Boost 4-matic (222.959) (367 HP, 270 kW)

MERCEDES-BENZ S-CLASS (W222, V222, X222) (05.2013 - 11.2018) S 500 EQ Boost (222.060, 222.160) (435 HP, 320 kW)

MERCEDES-BENZ S-CLASS (W222, V222, X222) (05.2013 - 11.2018) S 500 L 4-matic (222.169) (435 HP, 320 kW)

MERCEDES-BENZ S-CLASS (W222, V222, X222) (05.2013 - 11.2018) S 500 L EQ Boost 4-matic (222.169) (435 HP, 320 kW)

MERCEDES-BENZ S-CLASS (W223) (09.2020 - ) S 450 EQ Boost 4-matic (223.061, 223.161) (367 HP, 270 kW)

MERCEDES-BENZ S-CLASS (W223) (09.2020 - ) S 500 EQ Boost 4-matic (223.063, 223.163) (435 HP, 320 kW)
