Engine Timing Tool Set for Mercedes-Benz M254, M256

This specialized tool set is designed for adjusting engine timing on Mercedes-Benz M254 and M256 engines. It is suitable for timing chain replacement and general engine repair procedures.

Functionality

The set includes all essential tools required for correct base timing setup, including camshaft adjusters, camshafts, timing chain, and crankshaft positioning. It ensures accurate synchronization of engine components during service work.

Compatibility

Suitable for Mercedes-Benz engines:

• M254
• M256

Engine codes:
M254.915, M254.920, M256.930

Technical Notes

The timing chain and valve train gears are located at the rear of the engine.

To check timing:

• Remove the crankshaft pulley and camshaft sensor
• Install the crankshaft positioning tool and plastic adapter into the sensor bore
• Verify camshaft marking through inspection window

If timing is incorrect:

• Remove upper timing cover and two-part camshaft adjusters
• Preload and lock camshaft adjusters before loosening

Note:

• Exhaust camshaft adjuster oil control valve uses left-hand thread
• Intake side uses standard thread

Torque Specifications

• Crankshaft pulley/damper bolts: 50 Nm + 180°
• Camshaft sprocket (oiled): 125 ± 5 Nm
• Chain tensioner: 80 Nm
• Guide rails: 25 Nm
• Cylinder head cover (inside to outside): 6 Nm, 6 Nm + 90°
• Camshaft position sensor: 8 Nm

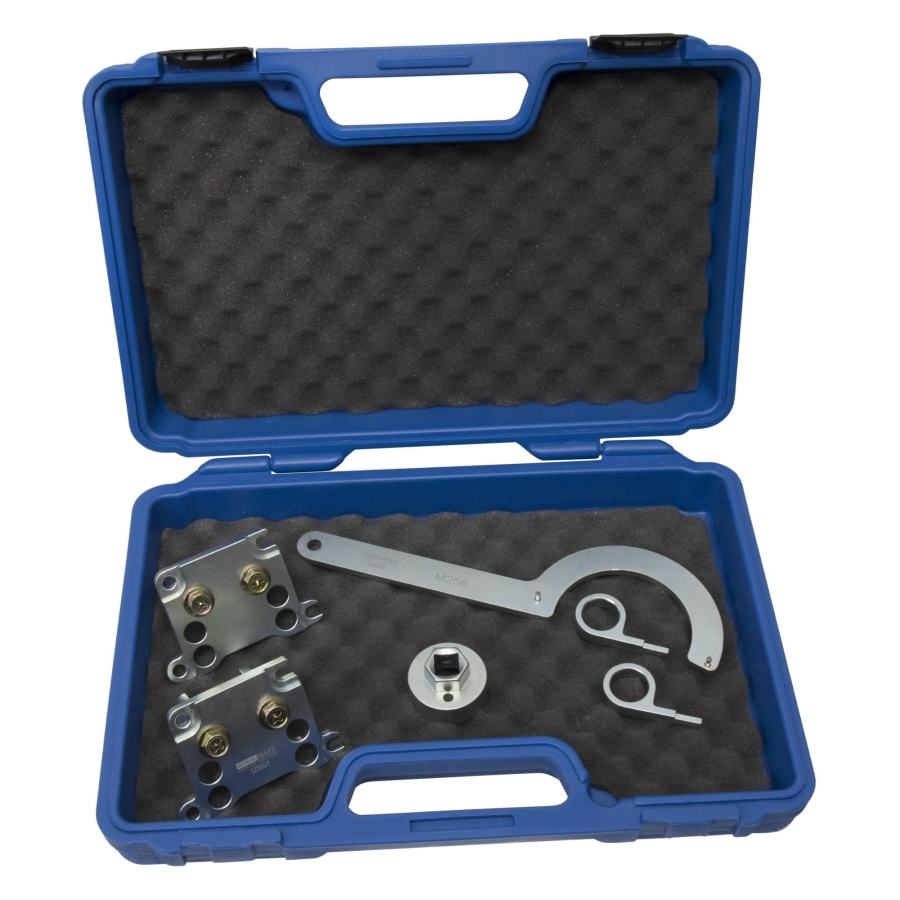

Scope of Delivery

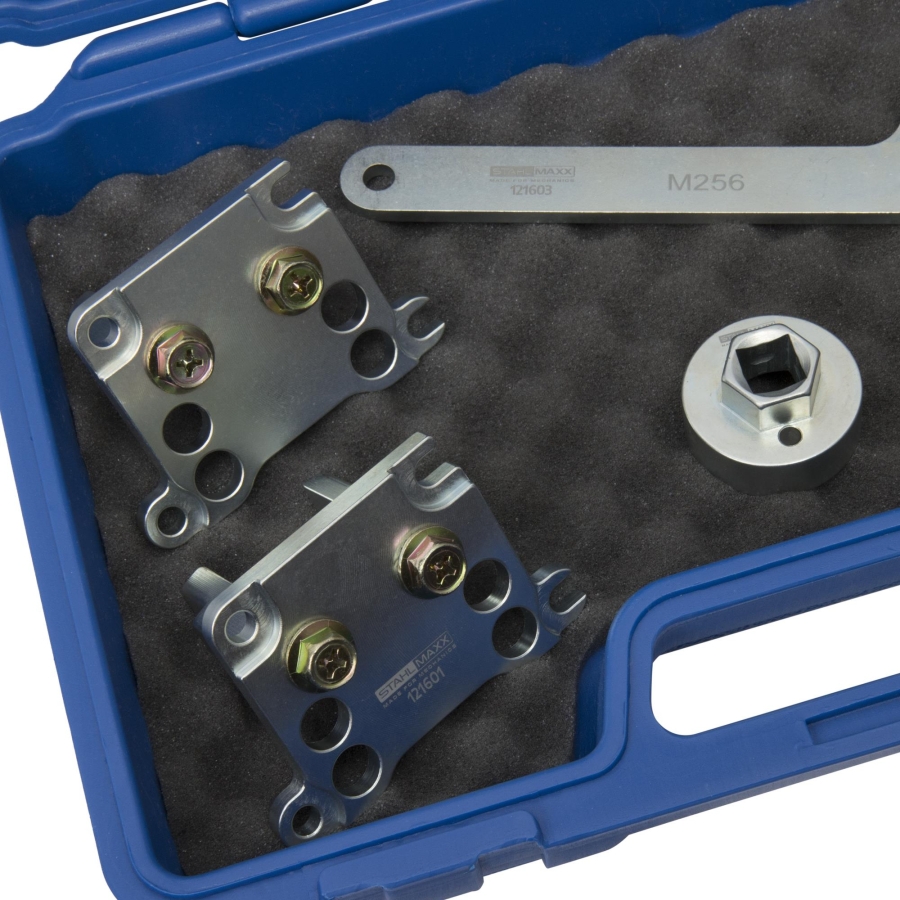

✔ item.no. 121601 – Camshaft locking fixtures for M254, M256 – as 256589002300
✔ item.no. 121602 – Special socket for camshaft rotation/holding (M139, M176, M177, M178, M254, M256) – as 177589010900

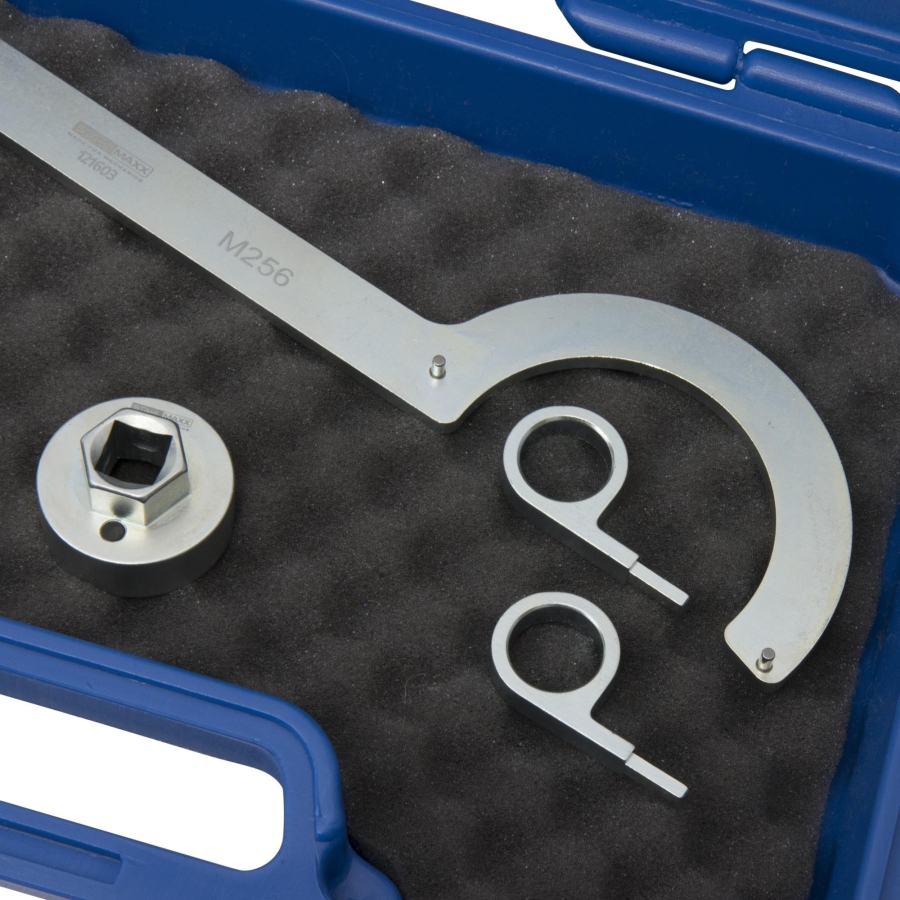

✔ item.no. 121603 – Camshaft adjuster installation tool (M139, M254, M256) – as 256589023100
✔ item.no. 51003 – Storage case

OEM numbers are provided for identification purposes only. This product is not an original manufacturer tool.

MERCEDES-BENZ AMG GT (X290) (07.2018 - ) 43 EQ Boost (290.658) (367 HP, 270 kW)

MERCEDES-BENZ AMG GT (X290) (07.2018 - ) 43 EQ Boost 4-matic+ (290.659) (367 HP, 270 kW)

MERCEDES-BENZ AMG GT (X290) (07.2018 - ) 53 EQ Boost 4-matic+ (290.661) (435 HP, 320 kW)

MERCEDES-BENZ C-CLASS (W206) (03.21 -) C 180 (206.041) (170 HP, 125 kW)

MERCEDES-BENZ C-CLASS (W206) (03.21 -) C 200 (206.042) (204 HP, 150 kW)

MERCEDES-BENZ C-CLASS (W206) (03.21 -) C 200 4-matic (206.043) (204 HP, 150 kW)

MERCEDES-BENZ C-CLASS (W206) (03.21 -) C 300 (206.046) (258 HP, 190 kW)

MERCEDES-BENZ C-CLASS (W206) (03.21 -) C 300 4-matic (206.047) (258 HP, 190 kW)

MERCEDES-BENZ C-CLASS (W206) (05.22 -) C 300 e 4-matic (206,056) (313 hp, 230 kW)

MERCEDES-BENZ C-CLASS (W206) (05.22 -) C 400 e 4-matic (206.055) (381 HP, 280 kW)

MERCEDES-BENZ C-CLASS (W206) (12.21 -) C 300 e (206.054) (204 HP, 150 kW)

MERCEDES-BENZ C-CLASS (W206) (12.21 -) C 300 e (206.054) (313 HP, 230 kW)

MERCEDES-BENZ C-CLASS All-Terrain (S206) (12.21 -) C 200 4-matic (206.245) (204 HP, 150 kW)

MERCEDES-BENZ C-CLASS T-Model (S206) (03.21 -) C 180 (206.241) (170 HP, 125 kW)

MERCEDES-BENZ C-CLASS T-Model (S206) (03.21 -) C 200 (206.242) (204 HP, 150 kW)

MERCEDES-BENZ C-CLASS T-Model (S206) (10.21 -) C 200 4-matic (206.243) (204 HP, 150 kW)

MERCEDES-BENZ C-CLASS T-Model (S206) (10.21 -) C 300 (206.246) (258 HP, 190 kW)

MERCEDES-BENZ C-CLASS T-Model (S206) (10.21 -) C 300 4-matic (206.247) (258 HP, 190 kW)

MERCEDES-BENZ C-CLASS T-Model (S206) (12.21 -) C 300 e (206.254) (204 HP, 150 kW)

MERCEDES-BENZ C-CLASS T-Model (S206) (12.21 -) C 300 e (206.254) (313 HP, 230 kW)

MERCEDES-BENZ CLS (C257) (12.2017 - ) AMG CLS 53 EQ Boost 4-matic+ (257.361) (435 HP, 320 kW)

MERCEDES-BENZ CLS (C257) (12.2017 - ) CLS 450 EQ Boost (257.358) (367 HP, 270 kW)

MERCEDES-BENZ CLS (C257) (12.2017 - ) CLS 450 EQ Boost 4-matic (257.359) (367 HP, 270 kW)

MERCEDES-BENZ E-CLASS (W213) (01.2016 - 05.2018) AMG E 53 EQ Boost 4-matic+ (213.061) (435 HP, 320 kW)

MERCEDES-BENZ E-CLASS (W213) (01.2016 - 05.2018) E 450 EQ Boost 4-matic (213.059) (367 HP, 270 kW)

MERCEDES-BENZ E-CLASS All-Terrain (S213) (01.2017 - ) E 450 EQ Boost (213.260) (367 HP, 270 kW)

MERCEDES-BENZ E-CLASS Cabriolet (A238) (06.2017 - 12.2018) AMG E53 EQ Boost 4-matic+ (238.461) (435 HP, 320 kW)

MERCEDES-BENZ E-CLASS Cabriolet (A238) (06.2017 - 12.2018) E 450 (238.458) (367 HP, 270 kW)

MERCEDES-BENZ E-CLASS Cabriolet (A238) (06.2017 - 12.2018) E 450 EQ Boost 4-matic (238.459) (367 HP, 270 kW)

MERCEDES-BENZ E-CLASS Coupe (C238) (12.2016 - 12.2018) AMG E 53 EQ Boost 4-matic+ (238.361) (435 HP, 320 kW)

MERCEDES-BENZ E-CLASS Coupe (C238) (12.2016 - 12.2018) E 450 (238.358) (367 HP, 270 kW)

MERCEDES-BENZ E-CLASS Coupe (C238) (12.2016 - 12.2018) E 450 EQ Boost 4-matic (238.359) (367 HP, 270 kW)

MERCEDES-BENZ E-CLASS T-Model (S213) (07.2016 - 12.2018) AMG E 53 EQ Boost 4-matic+ (213.261) (435 HP, 320 kW)

MERCEDES-BENZ E-CLASS T-Model (S213) (07.2016 - 12.2018) E 450 EQ Boost (213.259) (367 HP, 270 kW)

MERCEDES-BENZ GLE (V167) (10.2018 - ) AMG GLE 53 EQ Boost 4-matic+ (167.161) (435 HP, 320 kW)

MERCEDES-BENZ GLE (V167) (10.2018 - ) GLE 450 EQ Boost 4-matic (167.159) (367 HP, 270 kW)

MERCEDES-BENZ GLE Coupe (C167) (11.2019 - ) AMG GLE 53 EQ Boost 4-matic+ (167.361) (435 HP, 320 kW)

MERCEDES-BENZ GLE Coupe (C167) (11.2019 - ) GLE 450 EQ Boost 4-matic (167.359) (367 HP, 270 kW)

MERCEDES-BENZ GLS (X167) (04.2019 - ) 450 EQ Boost 4-matic (167.959) (367 HP, 270 kW)

MERCEDES-BENZ GLS (X167) (04.2019 - ) Maybach 480 EQ Boost 4-matic (167.967) (367 HP, 270 kW)

MERCEDES-BENZ S-CLASS (W222, V222, X222) (05.2013 - 11.2018) S 350 L EQ Boost (222.156) (299 HP, 220 kW)

MERCEDES-BENZ S-CLASS (W222, V222, X222) (05.2013 - 11.2018) S 450 EQ Boost (222.158, 222.058) (367 HP, 270 kW)

MERCEDES-BENZ S-CLASS (W222, V222, X222) (05.2013 - 11.2018) p 450 EQ Boost 4-matic (222.059, 222.159) (367 HP, 270 kW)

MERCEDES-BENZ S-CLASS (W222, V222, X222) (05.2013 - 11.2018) S 450 Maybach EQ Boost 4-matic (222.959) (367 HP, 270 kW)

MERCEDES-BENZ S-CLASS (W222, V222, X222) (05.2013 - 11.2018) S 500 EQ Boost (222.060, 222.160) (435 HP, 320 kW)

MERCEDES-BENZ S-CLASS (W222, V222, X222) (05.2013 - 11.2018) S 500 L 4-matic (222.169) (435 HP, 320 kW)

MERCEDES-BENZ S-CLASS (W222, V222, X222) (05.2013 - 11.2018) S 500 L EQ Boost 4-matic (222.169) (435 HP, 320 kW)

MERCEDES-BENZ S-CLASS (W223) (09.2020 - ) S 450 EQ Boost 4-matic (223.061, 223.161) (367 HP, 270 kW)

MERCEDES-BENZ S-CLASS (W223) (09.2020 - ) S 500 EQ Boost 4-matic (223.063, 223.163) (435 hp, 320 kW)
