Oil Pump & Balance Shaft Locking Tool Set for BMW N20 N26

Special tool set for setting and locking the oil pump and balance shaft during timing work and service of the oil pump chain module on BMW N20 and N26 engines.

---

Important Notes

• Required when performing work on valve timing or oil pump chain module
• Different flywheel locking tools required depending on transmission type (manual / automatic)
• Central bolt of vibration damper (N20/N26) exceeds 500 Nm loosening torque → use 3/4" drive tools

---

Compatibility

Suitable for engines:

• N20
• N26

---

Engine Codes

N20B16A, N20B20A, N20B20B, N20B20C, N20B20D, N26B20A

---

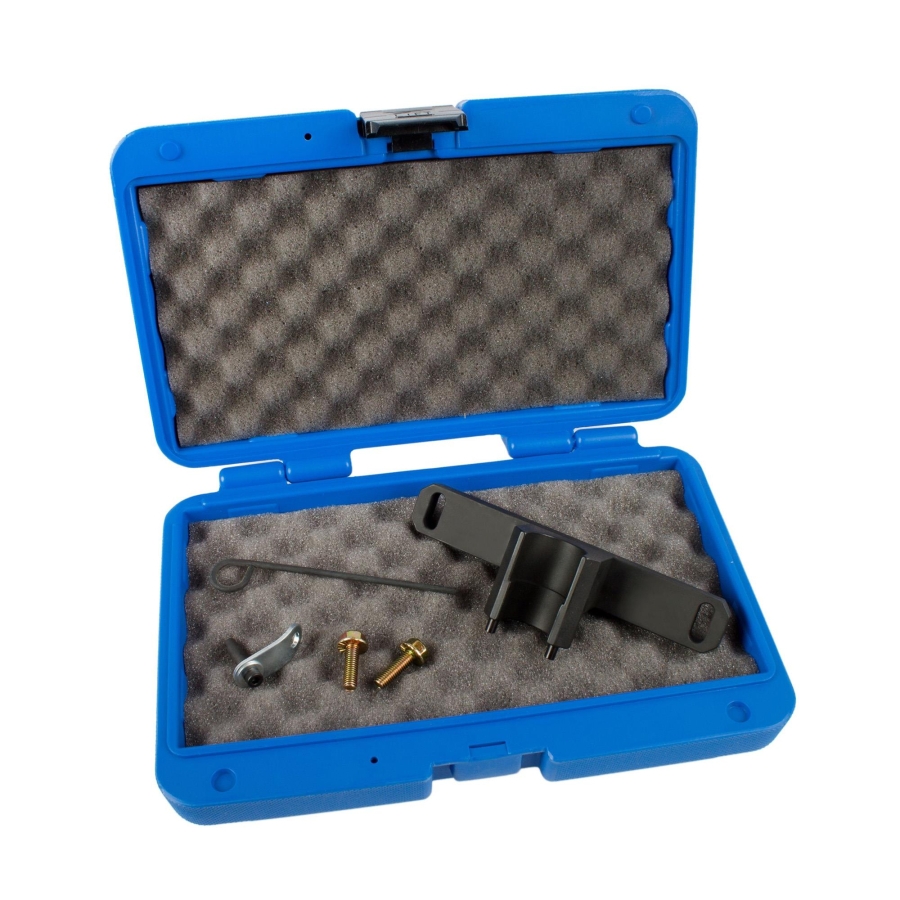

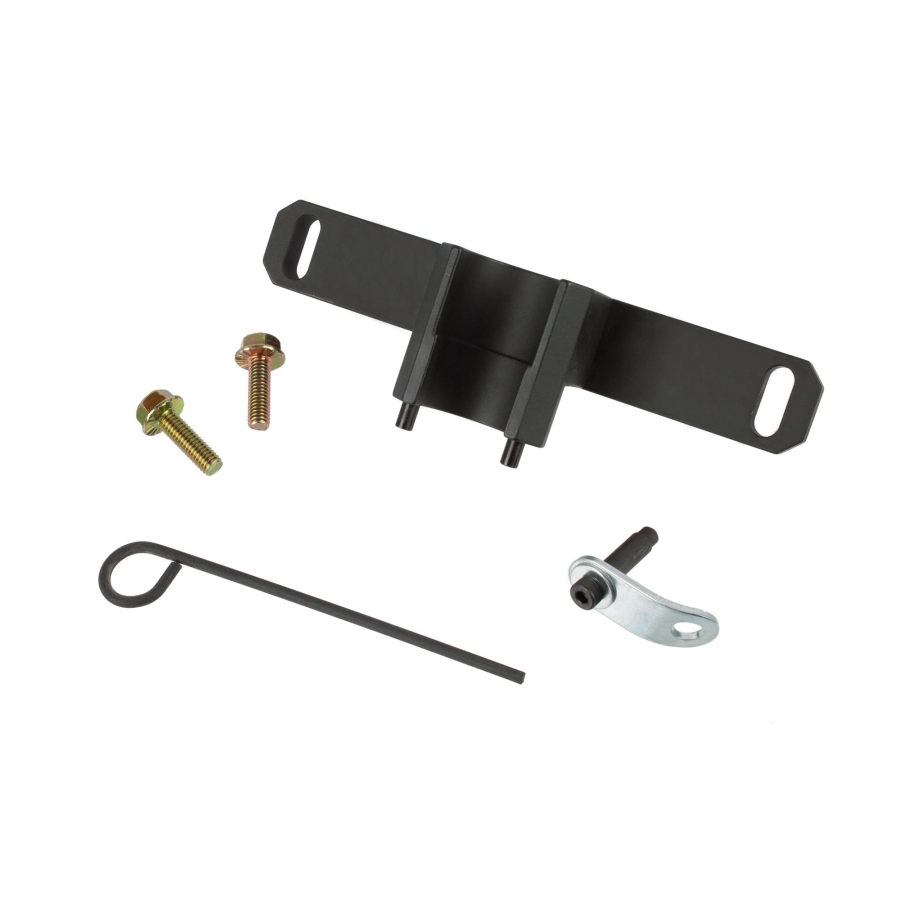

Scope of Delivery

• item.no. 116854 Balance shaft locking tool, as 2318117 / 83302212825 (incl. 2 × M6x1 bolts, length 26 mm)
• item.no. 116128 Oil pump sprocket locking tool, as 2212825 / 83302212825
• item.no. 116456 Chain tensioner locking tool, as 114120 / 83300491012

---

Function

• Locks oil pump and balance shaft system
• Secures timing components during service
• Prevents incorrect alignment and damage
• Enables professional and precise repairs

---

OEM Reference

• as 2318117
• as 2212825
• as 114120



The original numbers are for comparison purposes only and are not original tools.

Repair Information – Oil Pump Chain Module (N20B20A Engine)

The following information refers to the N20B20A engine. Always follow the manufacturer’s official service documentation.

---

Preparatory Work:

• Remove the cylinder head cover
  (Removal includes: right-hand tension strut, camshaft actuators, fuel rail, high-pressure fuel pump, vacuum pump)
  (When reinstalling the high-pressure fuel pump, the camshaft bottom dead center (BDC) position must be checked using a depth gauge caliper)
• Remove spark plugs
  (Risk of damage – use only a swivel/angled special socket, e.g. Art. No. 106510, equivalent to BMW 121220)
• Remove oil pan
  (Lower the front subframe)
• Remove auxiliary drive belt
  (On AWD vehicles with hydraulic power steering, ensure correct locking/unlocking of the belt pulley in installation position)
• Remove vibration damper
  (Breakaway torque: 500 Nm – Use flywheel locking tool: manual transmission Art. No. 115406 (equivalent to 118180), automatic transmission Art. No. 116859 (equivalent to 2222742))
• Set/check engine timing
  (Timing tools remain installed)

---

Removal:

• Lock the crankshaft using a locking pin
  (Equivalent to OEM 2219548)
• Remove the sealing cap of the balance shaft and lock it using the appropriate tool
  (Equivalent to OEM 2212825)
• Install the sprocket locking tool using the two bolts
  (Equivalent to OEM 2318117 – locking pins engage into the sprocket)
• Release the chain tensioner and secure it using the locking tool
  (Equivalent to OEM 114120)
• Loosen the central bolt of the sprocket
  (Factory mixed installation – use Art. No. 102497 or 102499 (T50 or T60, 140 mm long))
• Remove the sprocket locking tool
• Lock the flywheel using the appropriate special tool and loosen the crankshaft central bolt
  (Breakaway torque: 500 Nm)
• Remove the chain module
  (Pay attention to the friction discs – risk of engine damage)

---

Installation:

• Timing tools remain installed
• Position the module and sprocket, install the hub with friction disc
• Tighten both module bolts to 10 Nm
• Install the sprocket locking tool and tighten the central bolt:
  → First to 20 Nm, then to 95 Nm, then remove the tool
• Release the chain tensioner
• Tighten the crankshaft central bolt:
  → 100 Nm + 270°
  (Lightly oil the bolt and threads)
• Replace the shaft seal
• Reassemble the engine completely

BMW 1 (F20) (07.2011 - 06.2019) 120 i Active Flex (184 hp, 135 kW)

BMW 1 (F20) (07.2011 - 06.2019) 125 i (218 hp, 160 kW)

BMW 1 (F20) (07.2011 - 06.2019) 125 i (238 hp, 175 kW)

BMW 1 (F20) (07.2011 - 06.2019) 125 i Active Flex (218 HP, 160 kW)

BMW 1 (F21) (12.2011 - 12.2019) 120 i Active Flex (184 HP, 135 kW)

BMW 1 (F21) (12.2011 - 12.2019) 125 i (218 HP, 160 kW)

BMW 1 (F21) (12.2011 - 12.2019) 125 i (238 HP, 175 kW)

BMW 1 (F21) (12.2011 - 12.2019) 125 i Active Flex (218 HP, 160 kW)

BMW 2 Cabriolet (F23) (03.2014 - 07.2016) 220 i (184 HP, 135 kW)

BMW 2 Cabriolet (F23) (03.2014 - 07.2016) 228 i (245 hp, 180 kW)

BMW 2 Cabriolet (F23) (03.2014 - 07.2016) 228 i xDrive (245 HP, 180 kW)

BMW 2 Coupe (F22, F87) (10.2012 - 06.2018) 220 i (184 HP, 135 kW)

BMW 2 Coupe (F22, F87) (10.2012 - 06.2018) 228 i (243 hp, 179 kW)

BMW 2 Coupe (F22, F87) (10.2012 - 06.2018) 228 i (245 hp, 180 kW)

BMW 2 Coupe (F22, F87) (10.2012 - 06.2018) 228 i xDrive (245 HP, 180 kW)

BMW 3 (F30, F80) (04.2011 - 10.2018) 320 i (182 HP, 134 kW)

BMW 3 (F30, F80) (04.2011 - 10.2018) 320 i (184 HP, 135 kW)

BMW 3 (F30, F80) (04.2011 - 10.2018) 320 i ActiveFlex (184 HP, 135 kW)

BMW 3 (F30, F80) (04.2011 - 10.2018) 320 i xDrive (182 HP, 134 kW)

BMW 3 (F30, F80) (04.2011 - 10.2018) 320 i xDrive (184 HP, 135 kW)

BMW 3 (F30, F80) (04.2011 - 10.2018) 328 i (245 hp, 180 kW)

BMW 3 (F30, F80) (04.2011 - 10.2018) 328 i ActiveFlex (245 HP, 180 kW)

BMW 3 (F30, F80) (04.2011 - 10.2018) 328 i xDrive (243 HP, 179 kW)

BMW 3 (F30, F80) (04.2011 - 10.2018) 328 i xDrive (245 HP, 180 kW)

BMW 3 (F30, F80) (04.2011 - 10.2018) 328i (218 HP, 160 kW)

BMW 3 Cabriolet (E93) (05.2006 - 12.2013) 328 i (243 hp, 179 kW)

BMW 3 Gran Turismo (F34) (11.2012 - 02.2018) 320 i (163 hp, 120 kW)

BMW 3 Gran Turismo (F34) (11.2012 - 02.2018) 320 i (184 hp, 135 kW)

BMW 3 Gran Turismo (F34) (11.2012 - 02.2018) 320 i xDrive (163 HP, 120 kW)

BMW 3 Gran Turismo (F34) (11.2012 - 02.2018) 320 i xDrive (184 HP, 135 kW)

BMW 3 Gran Turismo (F34) (11.2012 - 02.2018) 328 i (245 hp, 180 kW)

BMW 3 Gran Turismo (F34) (11.2012 - 02.2018) 328 i xDrive (245 HP, 180 kW)

BMW 3 Touring (F31) (07.2012 - 06.2019) 320 i (163 hp, 120 kW)

BMW 3 Touring (F31) (07.2012 - 06.2019) 320 i (184 hp, 135 kW)

BMW 3 Touring (F31) (07.2012 - 06.2019) 320 i xDrive (163 HP, 120 kW)

BMW 3 Touring (F31) (07.2012 - 06.2019) 320 i xDrive (184 HP, 135 kW)

BMW 3 Touring (F31) (07.2012 - 06.2019) 328 i (245 hp, 180 kW)

BMW 3 Touring (F31) (07.2012 - 06.2019) 328 i xDrive (245 HP, 180 kW)

BMW 4 Cabriolet (F33, F83) (10.2013 - 12.2018) 420 i (163 HP, 120 kW)

BMW 4 Cabriolet (F33, F83) (10.2013 - 12.2018) 420 i (184 hp, 135 kW)

BMW 4 Cabriolet (F33, F83) (10.2013 - 12.2018) 428 i (243 HP, 179 kW)

BMW 4 Cabriolet (F33, F83) (10.2013 - 12.2018) 428 i (245 HP, 180 kW)

BMW 4 Cabriolet (F33, F83) (10.2013 - 12.2018) 428 i xDrive (243 HP, 179 kW)

BMW 4 Cabriolet (F33, F83) (10.2013 - 12.2018) 428 i xDrive (245 HP, 180 kW)

BMW 4 Coupe (F32, F82) (07.2013 - 06.2019) 420 i (163 HP, 120 kW)

BMW 4 Coupe (F32, F82) (07.2013 - 06.2019) 420 i (184 HP, 135 kW)

BMW 4 Coupe (F32, F82) (07.2013 - 06.2019) 420 i xDrive (163 HP, 120 kW)

BMW 4 Coupe (F32, F82) (07.2013 - 06.2019) 420 i xDrive (184 HP, 135 kW)

BMW 4 Coupe (F32, F82) (07.2013 - 06.2019) 428 i (243 HP, 179 kW)

BMW 4 Coupe (F32, F82) (07.2013 - 06.2019) 428 i (245 HP, 180 kW)

BMW 4 Coupe (F32, F82) (07.2013 - 06.2019) 428 i xDrive (243 HP, 179 kW)

BMW 4 Coupe (F32, F82) (07.2013 - 06.2019) 428 i xDrive (245 HP, 180 kW)

BMW 4 Gran Coupe (F36) (03.2014 - 02.2018) 420 i (163 hp, 120 kW)

BMW 4 Gran Coupe (F36) (03.2014 - 02.2018) 420 i (184 HP, 135 kW)

BMW 4 Gran Coupe (F36) (03.2014 - 02.2018) 420 i xDrive (163 HP, 120 kW)

BMW 4 Gran Coupe (F36) (03.2014 - 02.2018) 420 i xDrive (184 HP, 135 kW)

BMW 4 Gran Coupe (F36) (03.2014 - 02.2018) 428 i (243 hp, 179 kW)

BMW 4 Gran Coupe (F36) (03.2014 - 02.2018) 428 i (245 hp, 180 kW)

BMW 4 Gran Coupe (F36) (03.2014 - 02.2018) 428 i xDrive (243 hp, 179 kW)

BMW 4 Gran Coupe (F36) (03.2014 - 02.2018) 428 i xDrive (245 HP, 180 kW)

BMW 5 (F10) (01.2009 - 10.2016) 520 i (163 hp, 120 kW)

BMW 5 (F10) (01.2009 - 10.2016) 520 i (170 hp, 125 kW)

BMW 5 (F10) (01.2009 - 10.2016) 520 i (184 hp, 135 kW)

BMW 5 (F10) (01.2009 - 10.2016) 528 i (218 HP, 160 kW)

BMW 5 (F10) (01.2009 - 10.2016) 528 i (245 hp, 180 kW)

BMW 5 (F10) (01.2009 - 10.2016) 528 i xDrive (245 hp, 180 kW)

BMW 5 Gran Turismo (F07) (01.2009 - 02.2017) 528 i (245 hp, 180 kW)

BMW 5 Touring (F11) (11.2009 - 02.2017) 520 i (163 hp, 120 kW)

BMW 5 Touring (F11) (11.2009 - 02.2017) 520 i (184 hp, 135 kW)

BMW 5 Touring (F11) (11.2009 - 02.2017) 528 i (245 hp, 180 kW)

BMW 5 Touring (F11) (11.2009 - 02.2017) 528 i xDrive (245 HP, 180 kW)

BMW X1 (E84) (03.2009 - 06.2015) sDrive 16 i (143 hp, 105 kW)

BMW X1 (E84) (03.2009 - 06.2015) sDrive 20 i (184 hp, 135 kW)

BMW X1 (E84) (03.2009 - 06.2015) sDrive 20 i Flex (184 HP, 135 kW)

BMW X1 (E84) (03.2009 - 06.2015) sDrive 28 i (245 hp, 180 kW)

BMW X1 (E84) (03.2009 - 06.2015) xDrive 20 i (184 hp, 135 kW)

BMW X1 (E84) (03.2009 - 06.2015) xDrive 28 i (245 hp, 180 kW)

BMW X1 (E84) (03.2009 - 06.2015) xDrive 28 i Flex (245 HP, 180 kW)

BMW X3 (F25) (09.2010 - 08.2017) sDrive 20 i (170 hp, 125 kW)

BMW X3 (F25) (09.2010 - 08.2017) sDrive 20 i (184 HP, 135 kW)

BMW X3 (F25) (09.2010 - 08.2017) sDrive 28 i (245 hp, 180 kW)

BMW X3 (F25) (09.2010 - 08.2017) xDrive 20 i (150 hp, 110 kW)

BMW X3 (F25) (09.2010 - 08.2017) xDrive 20 i (184 hp, 135 kW)

BMW X3 (F25) (09.2010 - 08.2017) xDrive 28 i (245 hp, 180 kW)

BMW X4 (F26) (04.2014 - 03.2018) xDrive 20 i (184 hp, 135 kW)

BMW X4 (F26) (04.2014 - 03.2018) xDrive 28 i (243 hp, 179 kW)

BMW X4 (F26) (04.2014 - 03.2018) xDrive 28 i (245 hp, 180 kW)

BMW X5 (F15, F85) (08.2013 - 07.2018) xDrive 28 i (245 HP, 180 kW)

BMW X5 (F15, F85) (08.2013 - 07.2018) xDrive 40e (211 HP, 155 kW)

BMW X5 (F15, F85) (08.2013 - 07.2018) xDrive 40e (245 HP, 180 kW)

BMW X5 (F15, F85) (08.2013 - 07.2018) xDrive 40e (279 HP, 205 kW)

BMW X5 (F15, F85) (08.2013 - 07.2018) xDrive 40e (313 HP, 230 kW)

BMW X6 (F16, F86) (08.2014 - 07.2019) xDrive 28 i (245 hp, 180 kW)

BMW Z4 Roadster (E89) (02.2009 - 08.2016) sDrive 18 i (156 hp, 115 kW)

BMW Z4 Roadster (E89) (02.2009 - 08.2016) sDrive 20 i (163 hp, 120 kW)

BMW Z4 Roadster (E89) (02.2009 - 08.2016) sDrive 20 i (184 hp, 135 kW)

BMW Z4 Roadster (E89) (02.2009 - 08.2016) sDrive 28 i (245 hp, 180 kW)

MAZDA 323 III Station Wagon (BW) (01.1986 - 10.1998) 1.7 D (54 HP, 40 kW)

MAZDA 323 III Station Wagon (BW) (01.1986 - 10.1998) 1.7 D (56 HP, 41 kW)

MAZDA 323 III Station Wagon (BW) (01.1986 - 10.1998) 1.7 D (57 hp, 42 kW)
