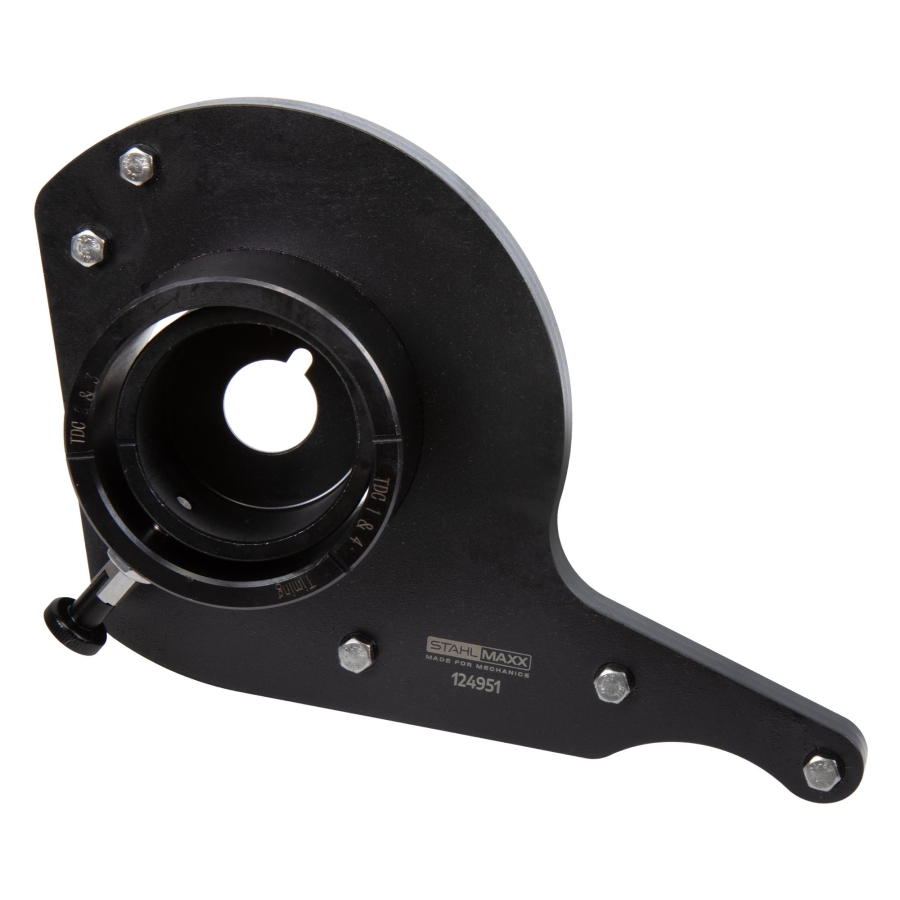

Crankshaft Setting Tool for Opel/GM 2.0L F20SHL, F20SHT, LSY, as EN-52463
-
Code:124951
-
Weight:1.940 Kgs
Overview:
✔ Determines the correct crankshaft timing position
✔ Setting position: 52.4° after TDC of cylinder 1
✔ Suitable for Opel, Chevrolet, Cadillac and GM 2.0L engines
✔ Markings for “Timing”, TDC 1 & 4 and TDC 2 & 3
✔ Precise fit for professional timing work
This special tool is designed to determine the correct crankshaft setting position on Opel, Chevrolet, Cadillac and GM 2.0L engines with engine codes F20SHL, F20SHT and LSY.
Setting Position
The correct crankshaft position for setting the engine timing is 52.4° after top dead centre of cylinder 1.

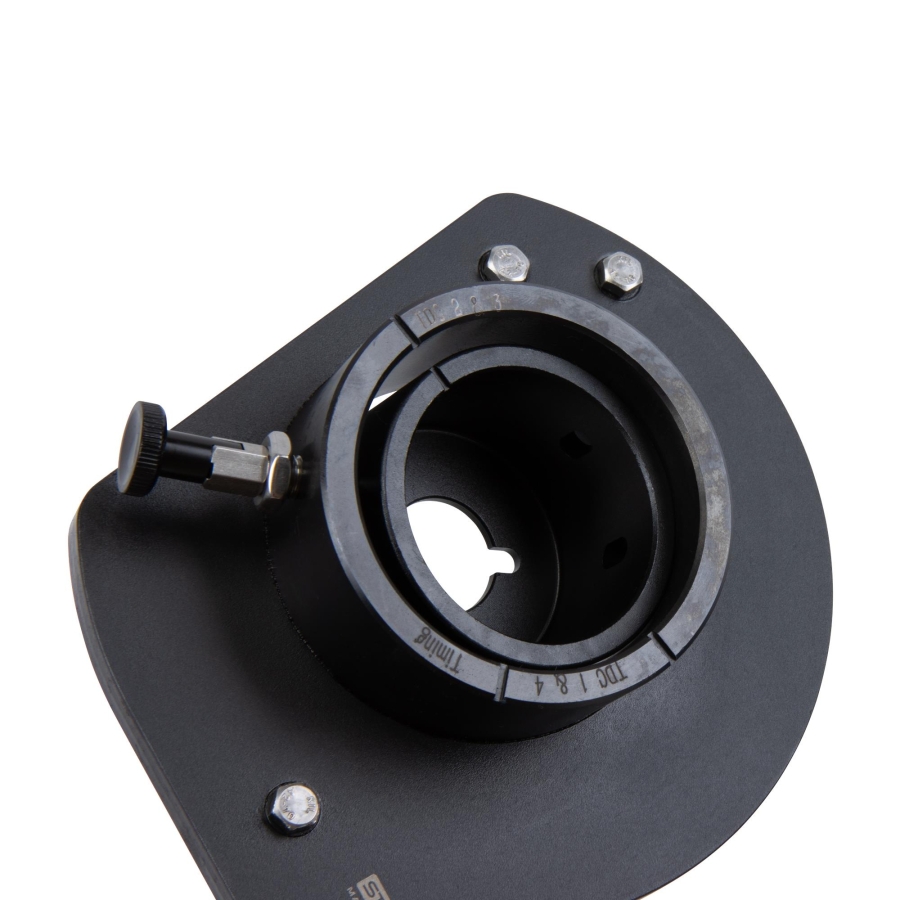

The tool features the following position markings:
- “Timing” for the required timing position
- TDC 1 & 4
- TDC 2 & 3

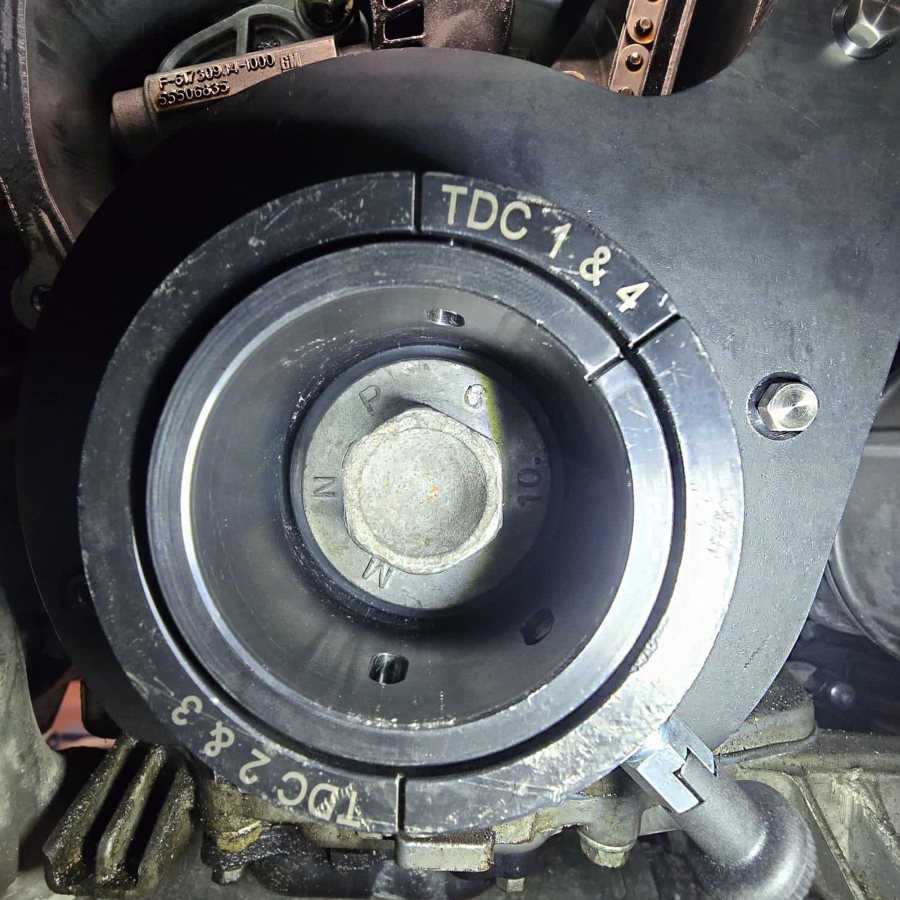

To set the engine timing, the reference line on the inner sleeve must be aligned with the “Timing” marking.
Compatible Engine Codes
F20SHL, F20SHT, LSY
To Be Used as Opel, Chevrolet, Cadillac and GM
EN-52463-1, EN-52463-2
Original numbers are provided for comparison purposes only. This is not an original tool.
