Paint Coating Thickness Gauge

This coating thickness gauge is designed for precise non-destructive measurement of non-magnetic coating thickness on steel and iron surfaces. The device is suitable for measuring paint, lacquer and plastic coatings without damaging the tested surface.

The compact design allows fast inspection procedures and reliable thickness evaluation.

Suitable for measuring:

• Paint coatings
• Lacquer coatings
• Plastic coatings

Base materials:

• Steel
• Iron

Fast Vehicle Inspection and Body Repair Detection

The device is particularly suitable for vehicle inspections and automotive trading applications where previously repaired or repainted body panels must be identified quickly.

Different coating thicknesses can indicate:

• Repainted panels
• Body filler application
• Repaired damage areas
• Non-original paint layers

This allows rapid assessment of possible previous body repairs with minimal effort.

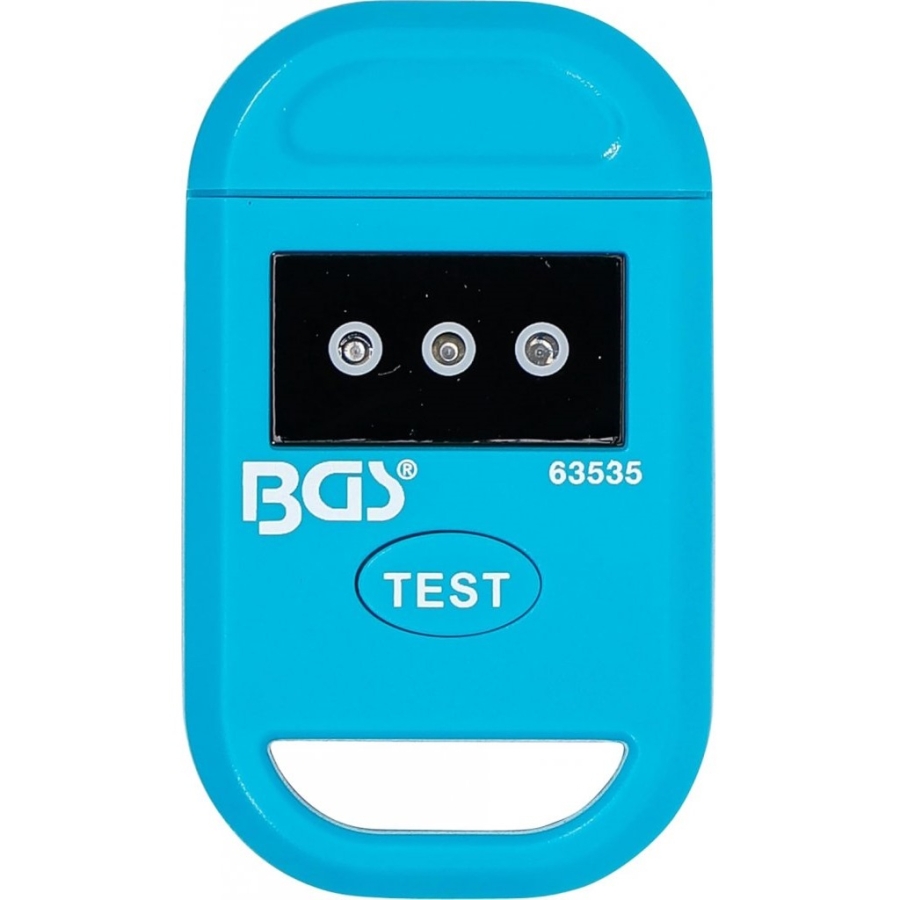

Three-Color LED Evaluation System

The integrated LED indication system provides fast visual interpretation of measurement results.

LED indicators:

Green LED:

• Coating thickness below 1.0 mm

Yellow LED:

• Coating thickness between 1.0–1.8 mm

Red LED:

• Coating thickness above 1.8 mm

The color-coded indication simplifies interpretation without requiring complex analysis.

Reference-Based Measurement Function

The gauge allows comparative measurements using reference values for improved accuracy and consistency during inspection procedures.

Features:

• Reference-based comparison measurements
• Fast visual assessment
• Easy operation

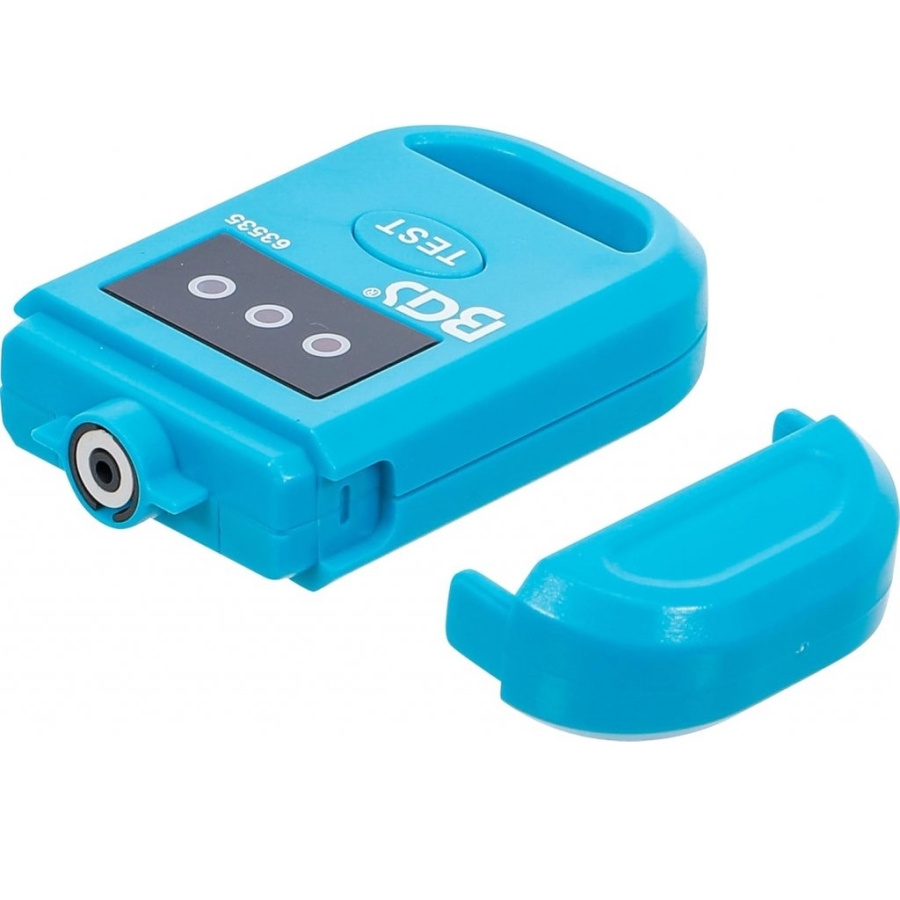

Protected Measuring Sensor Design

The measuring head includes a removable protective cap to help prevent damage during storage and transport.

Features:

• Protected measuring sensor
• Removable cap
• Compact housing design
