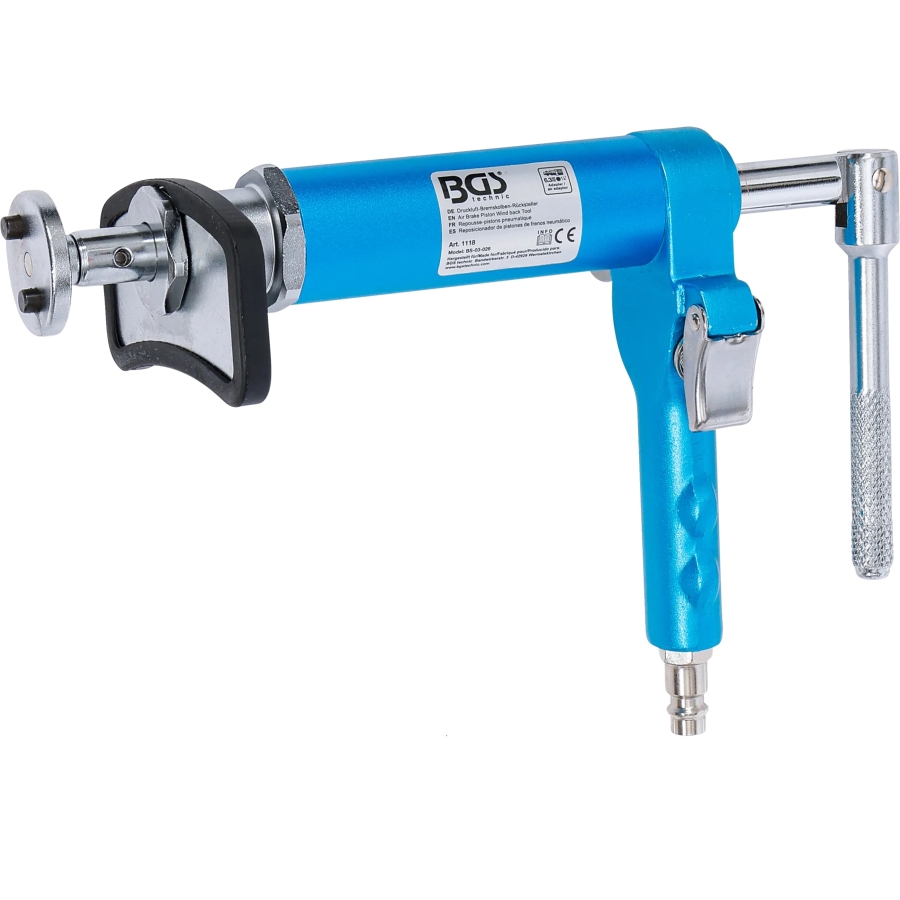

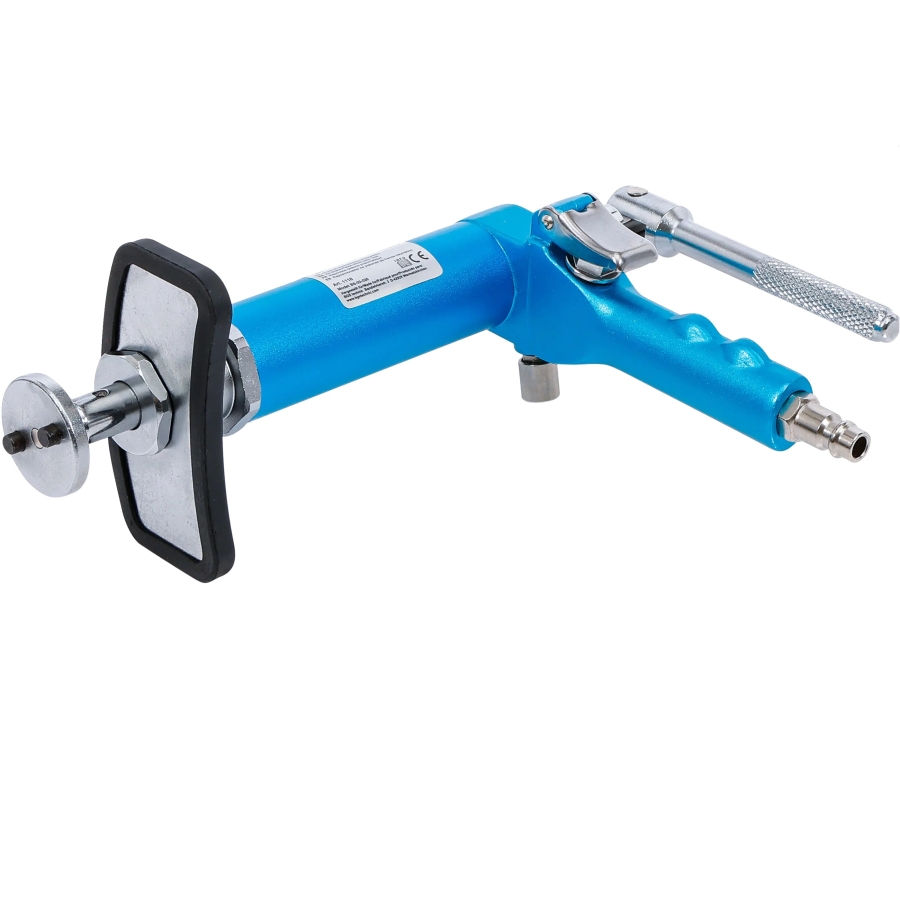

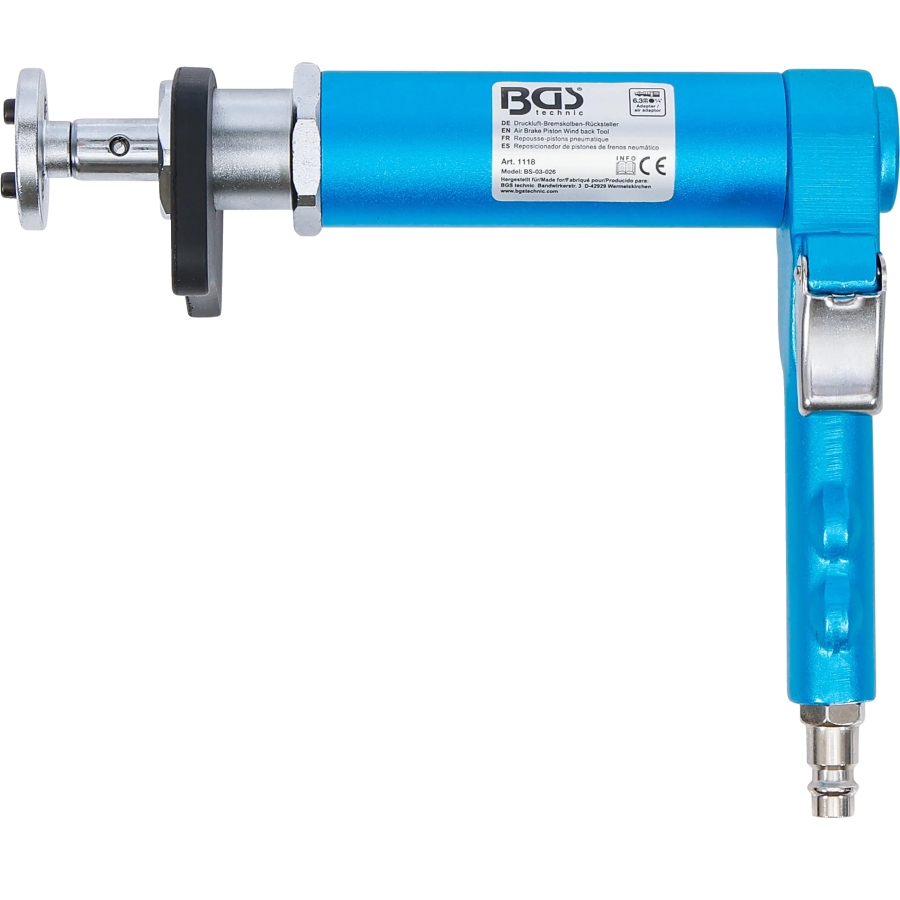

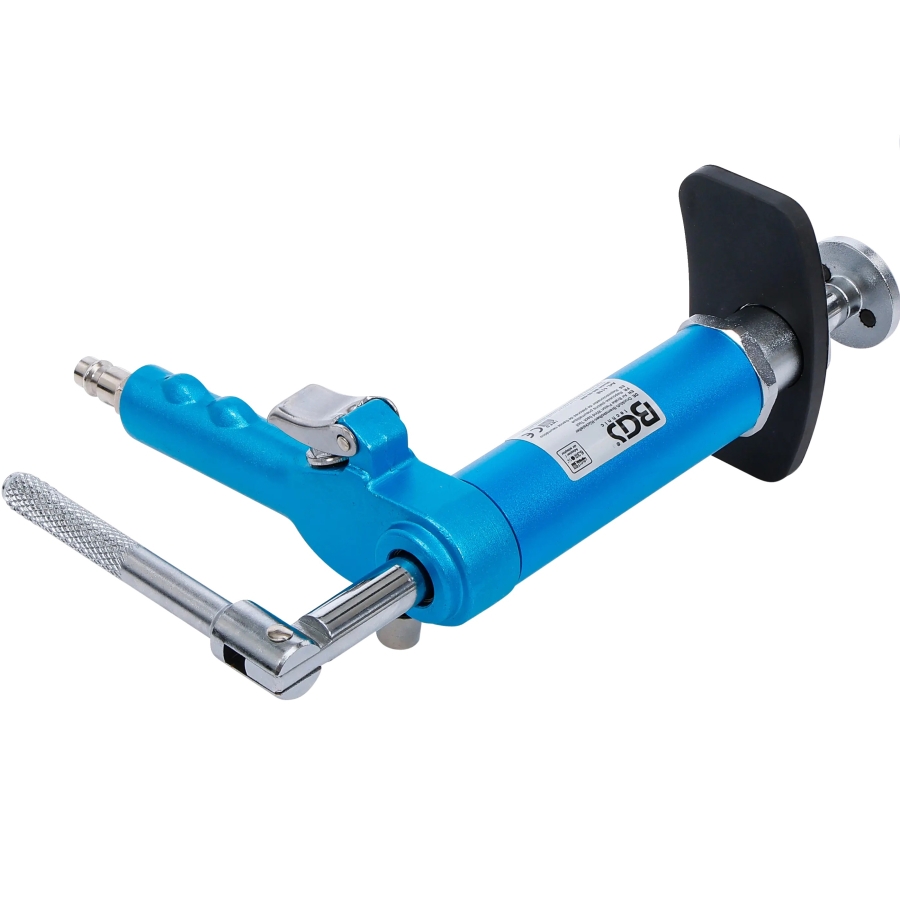

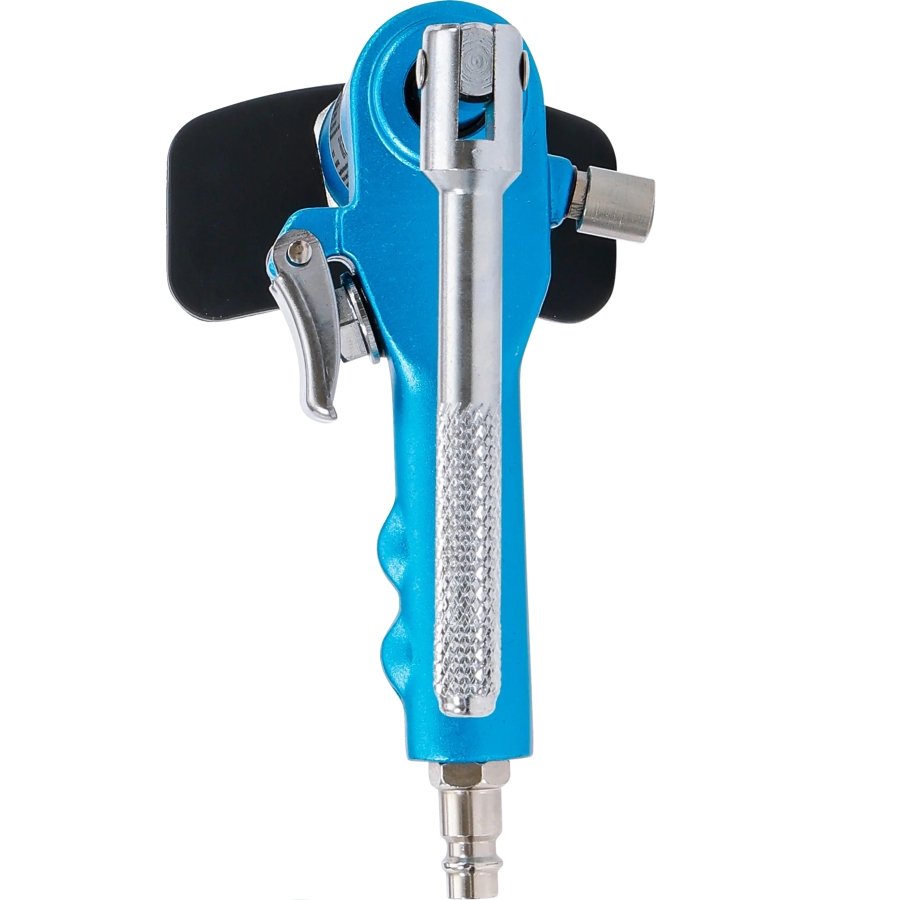

Pneumatic Brake Piston Rewind Tool
-
Code:1118
-
Weight:1.292 Kgs
Overview:
✔ Professional pneumatic brake piston rewind tool
✔ Designed for fast servicing of disc brake systems
✔ Suitable for brake pistons with left-hand and right-hand threads
✔ Rotation direction selectable by the user via the angled drive head
✔ Automatically compensates for different thread pitches
✔ Pneumatic operation for effortless piston retraction at the push of a button
✔ Expandable with optional rewind adapters for additional vehicle applications
✔ Ideal for professional workshops and brake service
This pneumatic brake piston rewind tool is designed for fast and efficient servicing of disc brake systems. The air-powered mechanism enables brake pistons to be retracted easily at the push of a button, reducing manual effort and increasing workshop productivity.
The integrated rewind spindle can rotate in both directions, allowing the tool to be used with brake pistons featuring either left-hand or right-hand threads.
Suitable for Left and Right-Hand Threaded Pistons
The rotation direction is selected by the user using the angled drive head at the end of the spindle.
The design automatically compensates for different thread pitches, ensuring smooth and controlled piston retraction across various brake systems.
Features:
- Pneumatic brake piston rewind tool
- Suitable for left-hand and right-hand threaded pistons
- Rotation direction selectable by angled drive head
- Automatic compensation of different thread pitches
- Push-button operation
- Fast and effortless brake service
Expandable Universal System
The tool can be used with optional brake piston rewind adapters, making it suitable for a wide variety of vehicle makes and brake caliper designs.
Advantages:
- Compatible with optional rewind adapters
- Suitable for numerous vehicle applications
- Universal workshop tool
- Compact and lightweight design
Technical Specifications
| Specification | Value |
|---|---|
| Weight | 1.07 kg |
| Dimensions | 258 × 173 × 97 mm |
| Operating Pressure | 7.8 bar |
| Operating Pressure | 113.7 psi |
| Noise Level | 64.3 dB |
| Vibration Level | 0.876 m/s² |
Ideal for Professional Brake Service
This pneumatic brake piston rewind tool provides a fast and convenient solution for brake maintenance. Thanks to its dual-direction spindle, pneumatic operation and compatibility with optional adapters, it is an excellent choice for professional workshops and automotive service centers.
